AR03.30-P-5000B Remove/Install Retaining Lock For Crankshaft / Ring Gear
AR03.30-P-5000B Remove/Install Retaining Lock For Crankshaft / Ring Gear
Remove/Install Retaining Lock For
Crankshaft
/ Ring Gear

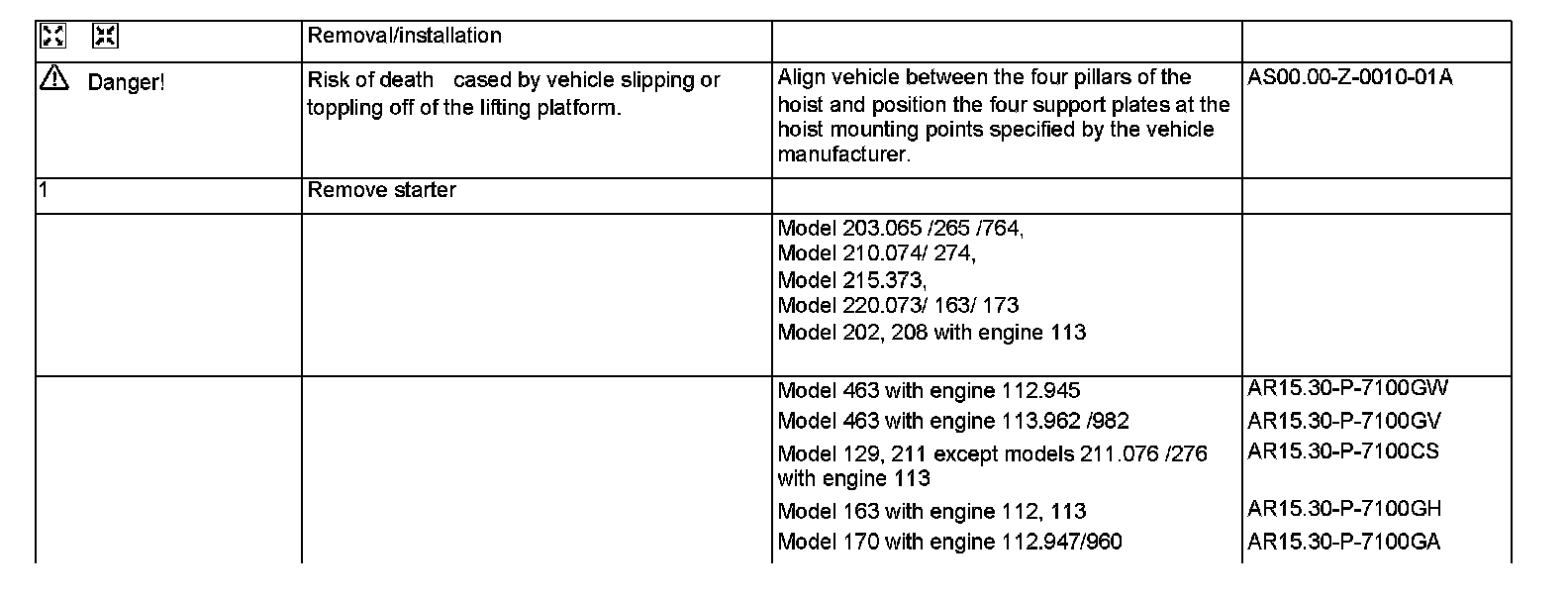

Step 1:

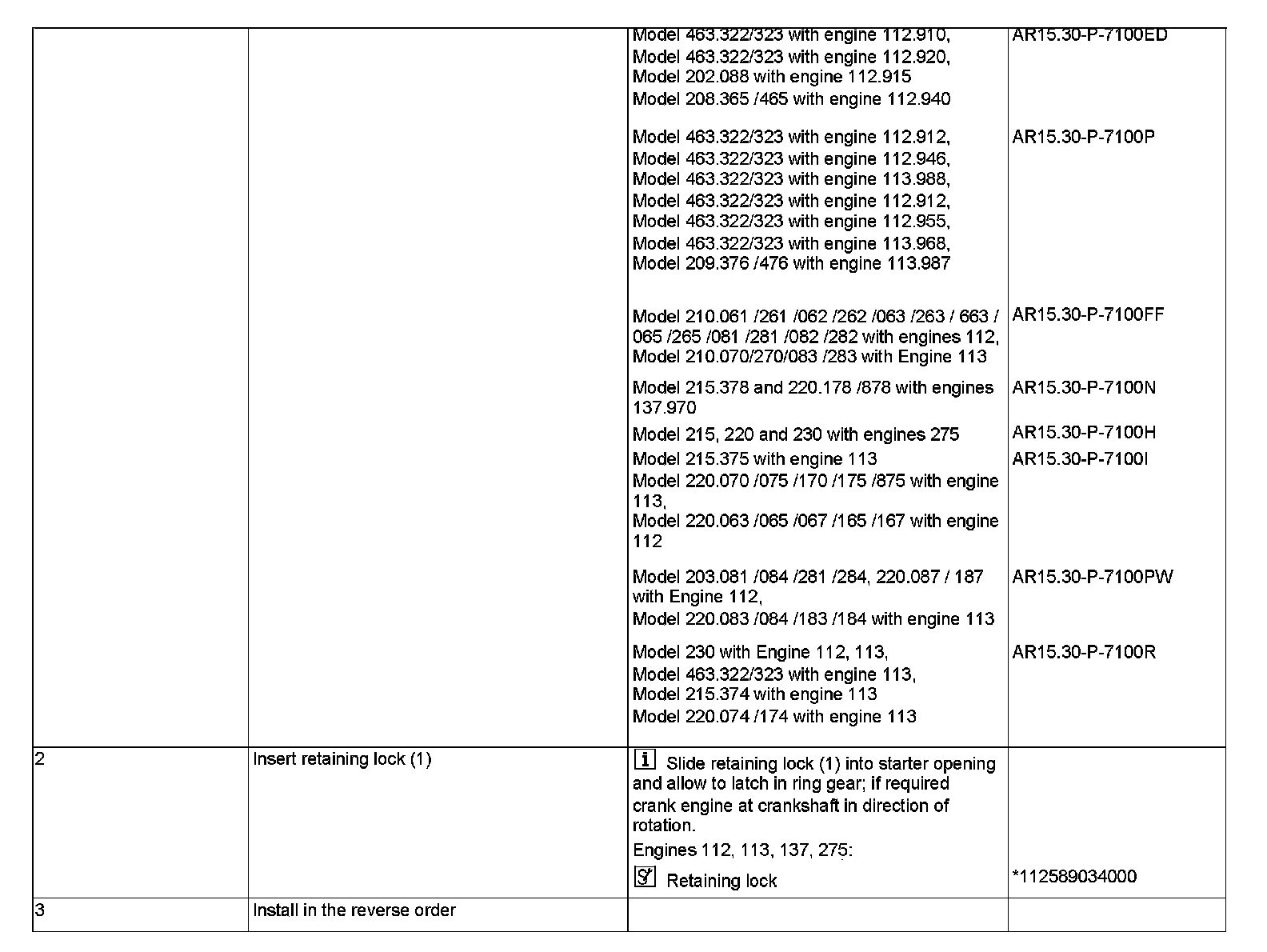

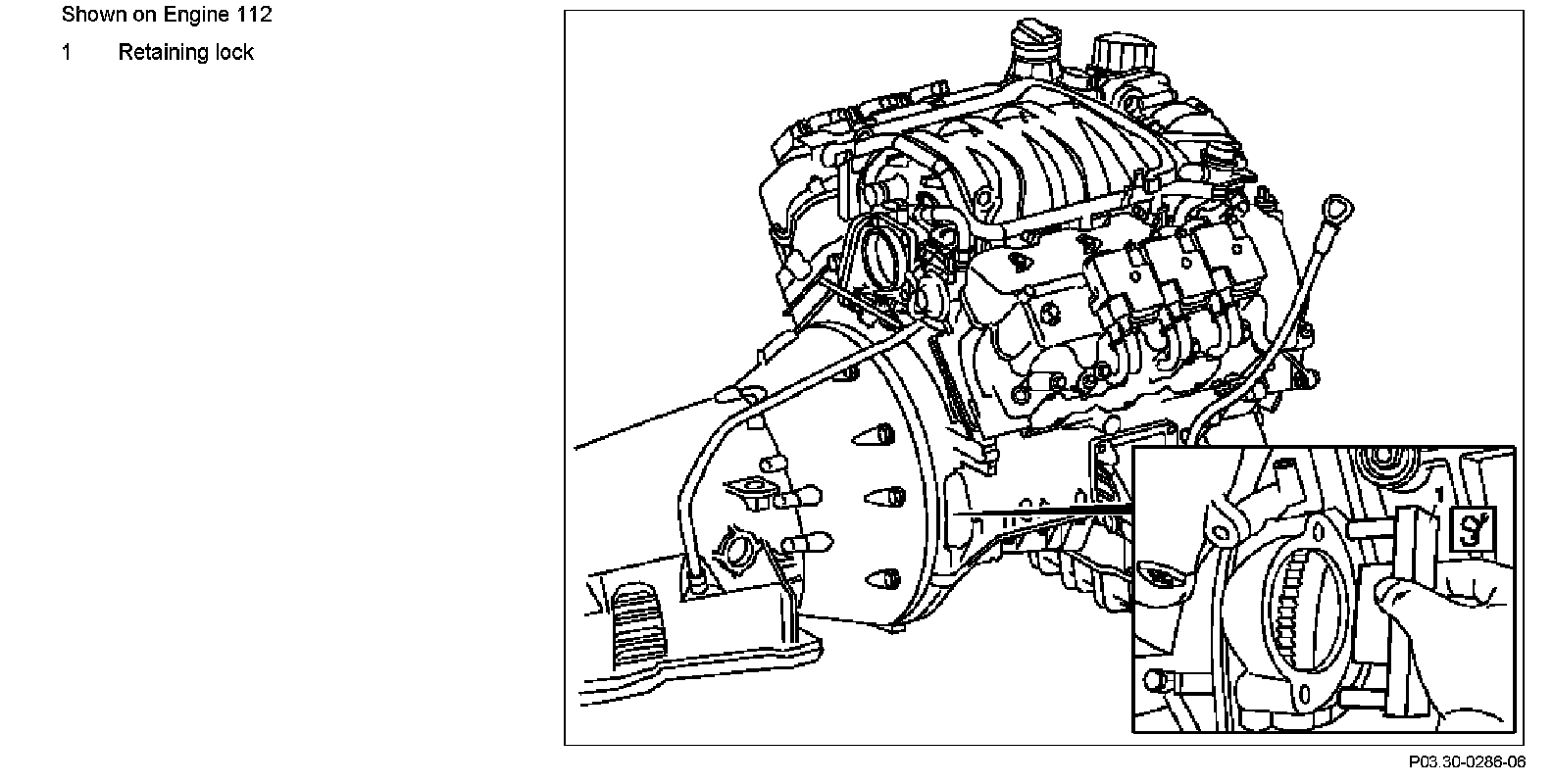

Steps 2-3:
