AN91.30-P-0002M Retrofitting Front Seat Ventilation

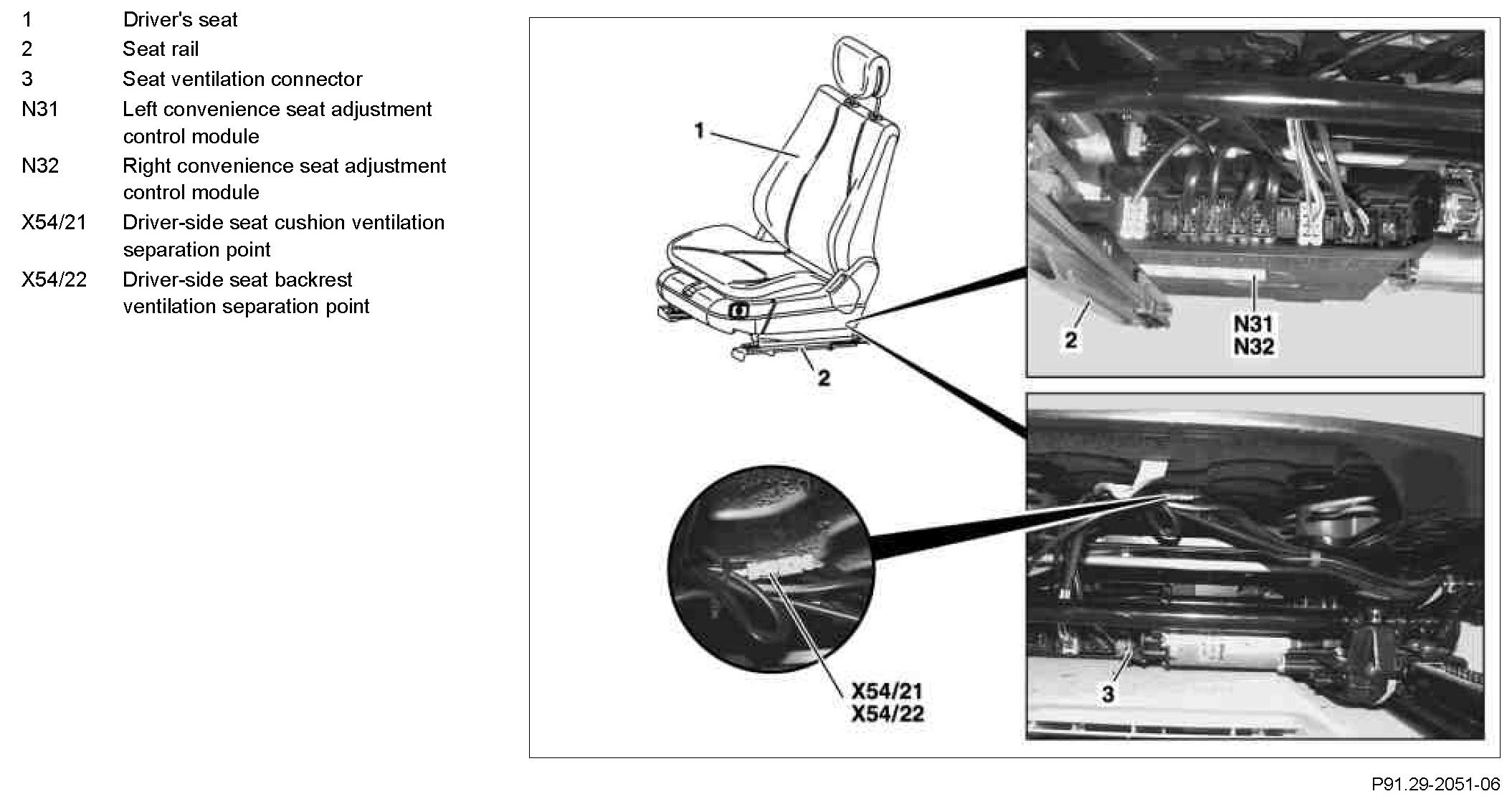

Component Identification:

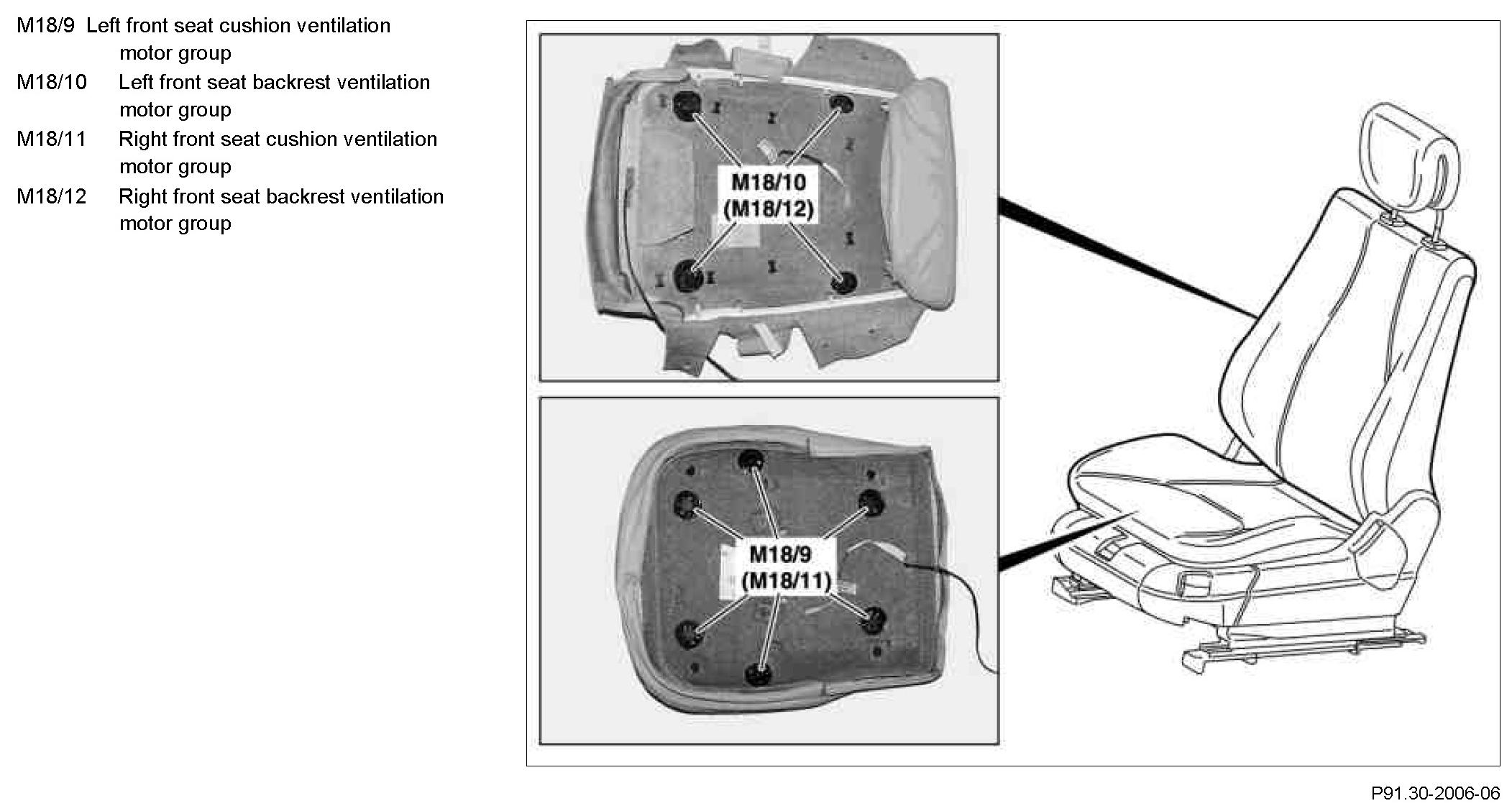

Component Identification:

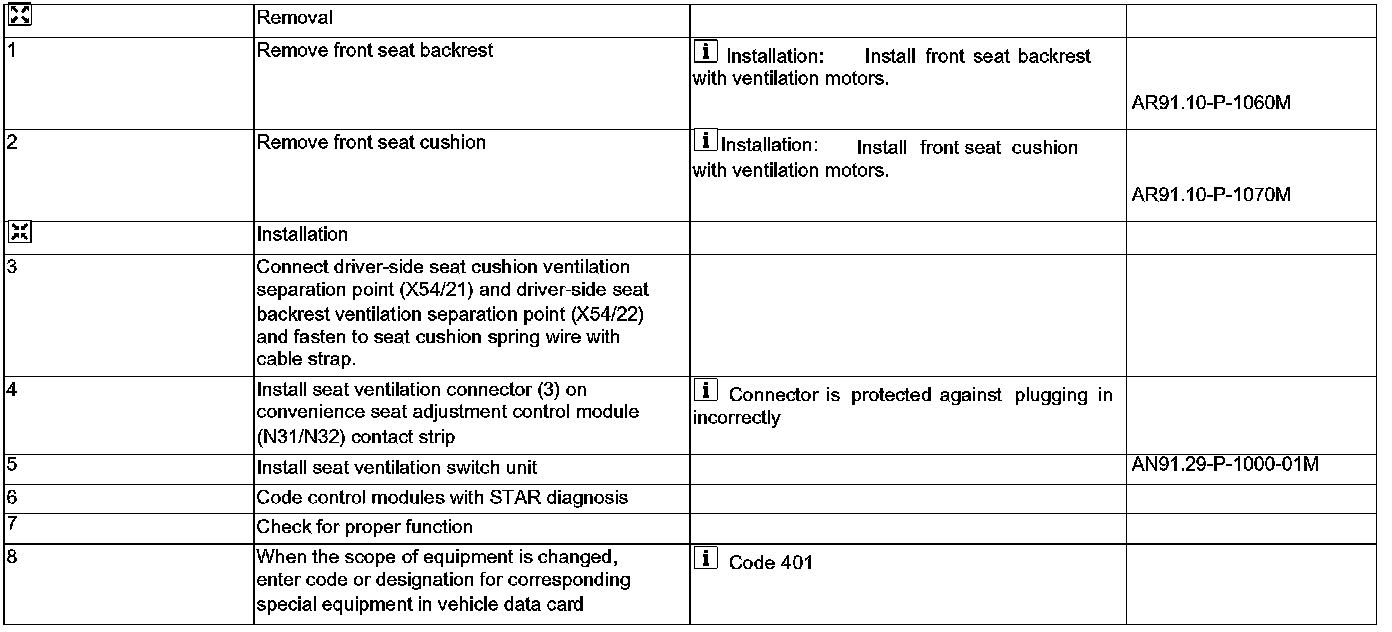

Steps 1 - 8:

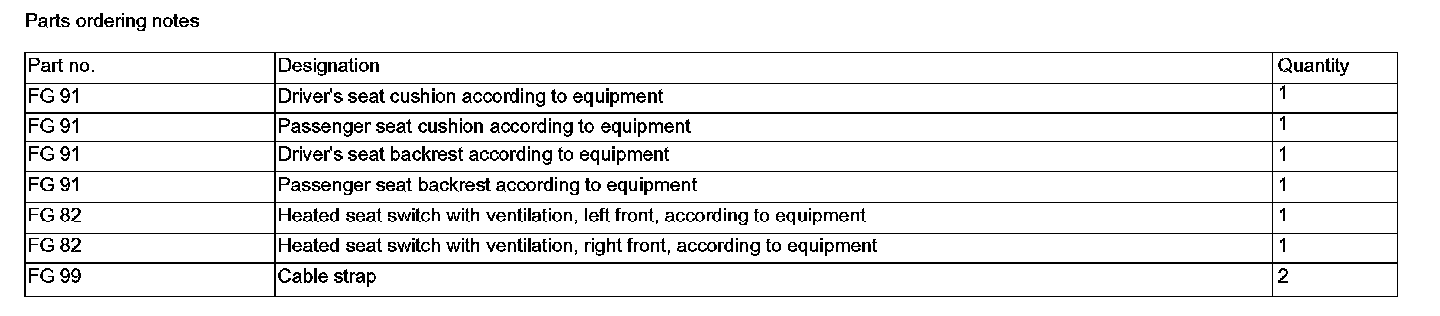

Parts Ordering Notes:
