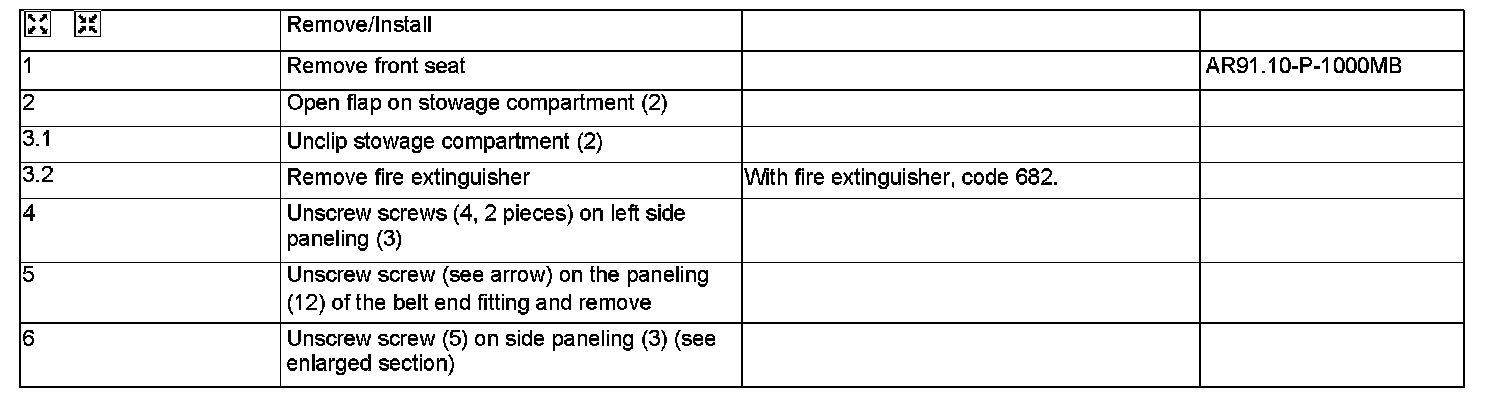

AR91.10-P-1060MB Remove/Install Front Seat Backrest
AR91.10-P-1060MB Remove/Install Front Seat Backrest
AR91.10-P-1060MB Remove/Install Front Seat Backrest
Part 1:
Part 2:

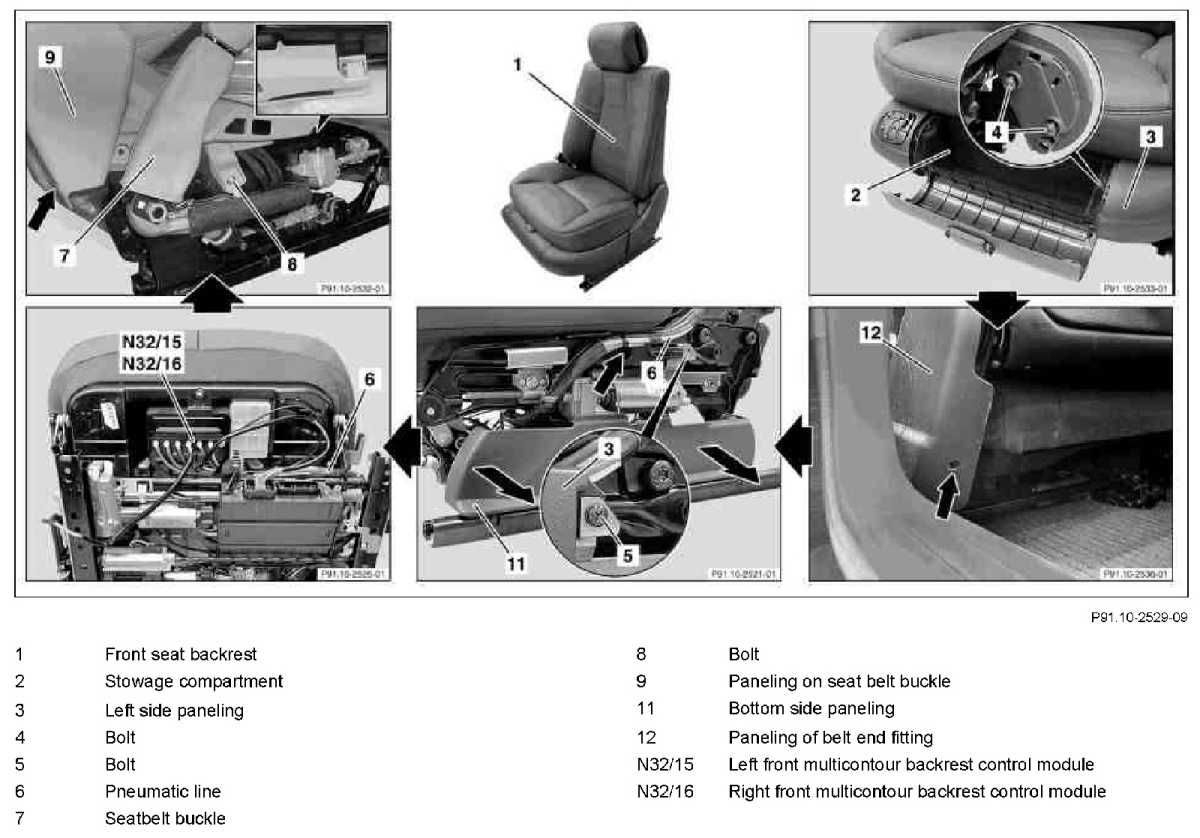

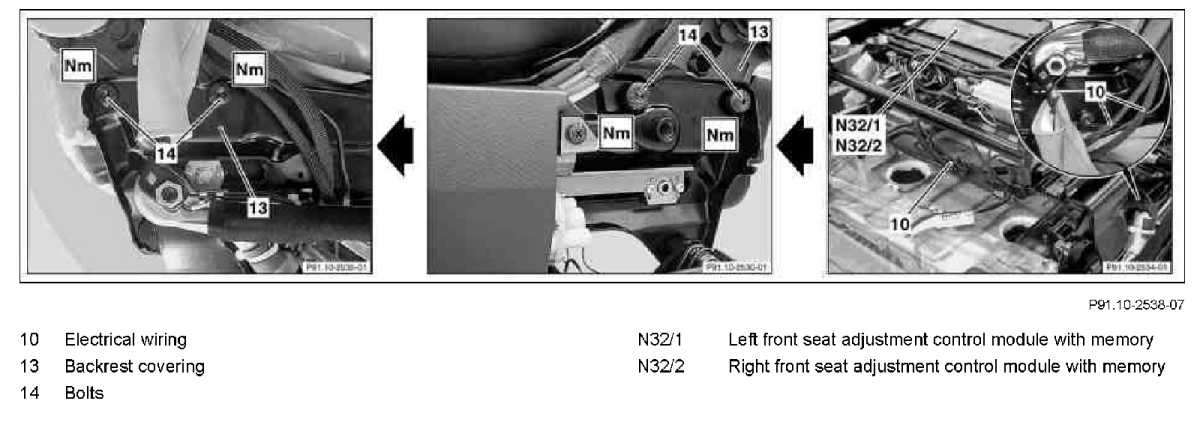

Front Seats
Front Seats:
