Crankshaft Position Sensor: Service and Repair



AR15.12-P-2133Q Remove/install crankshaft position sensor

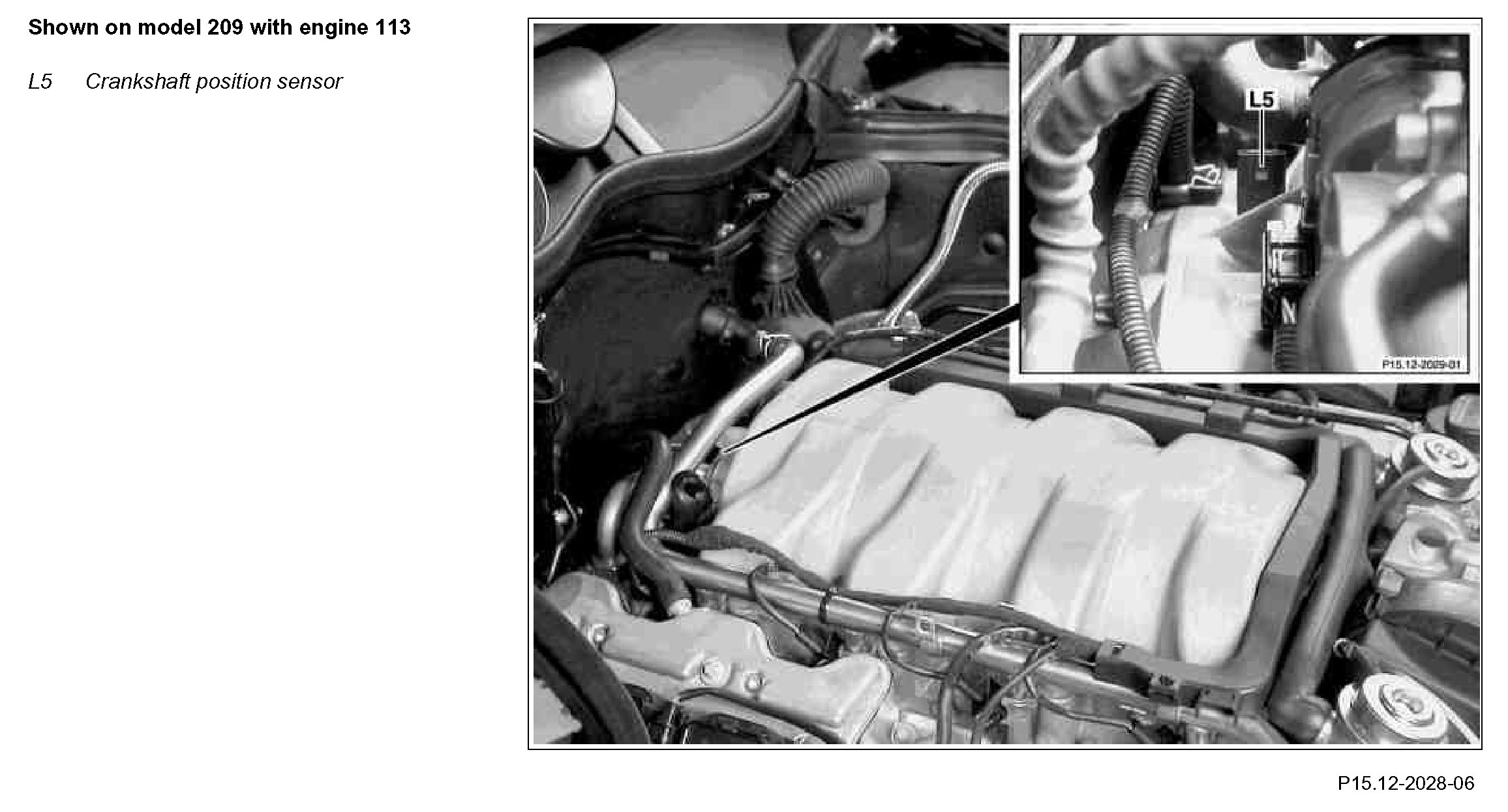

Component Identification:

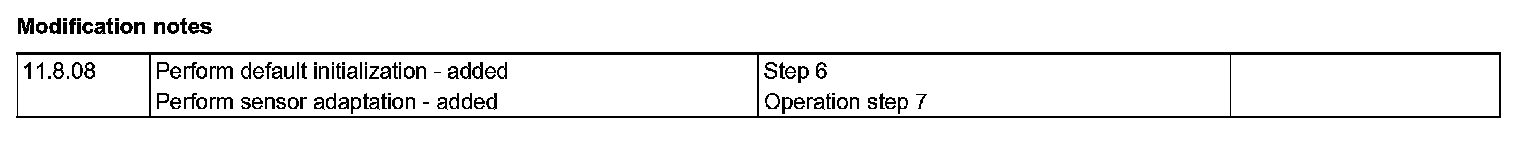

Modification notes:

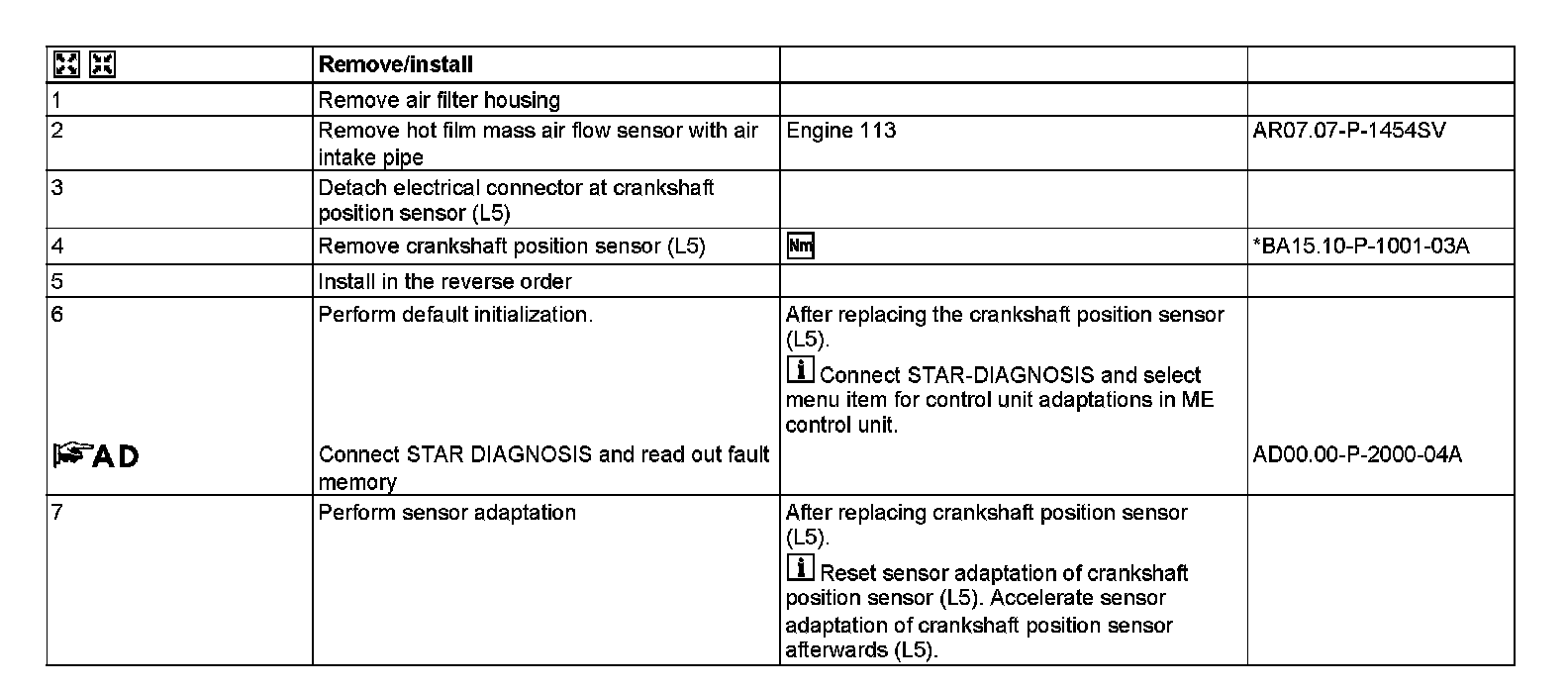

Steps 1-7:

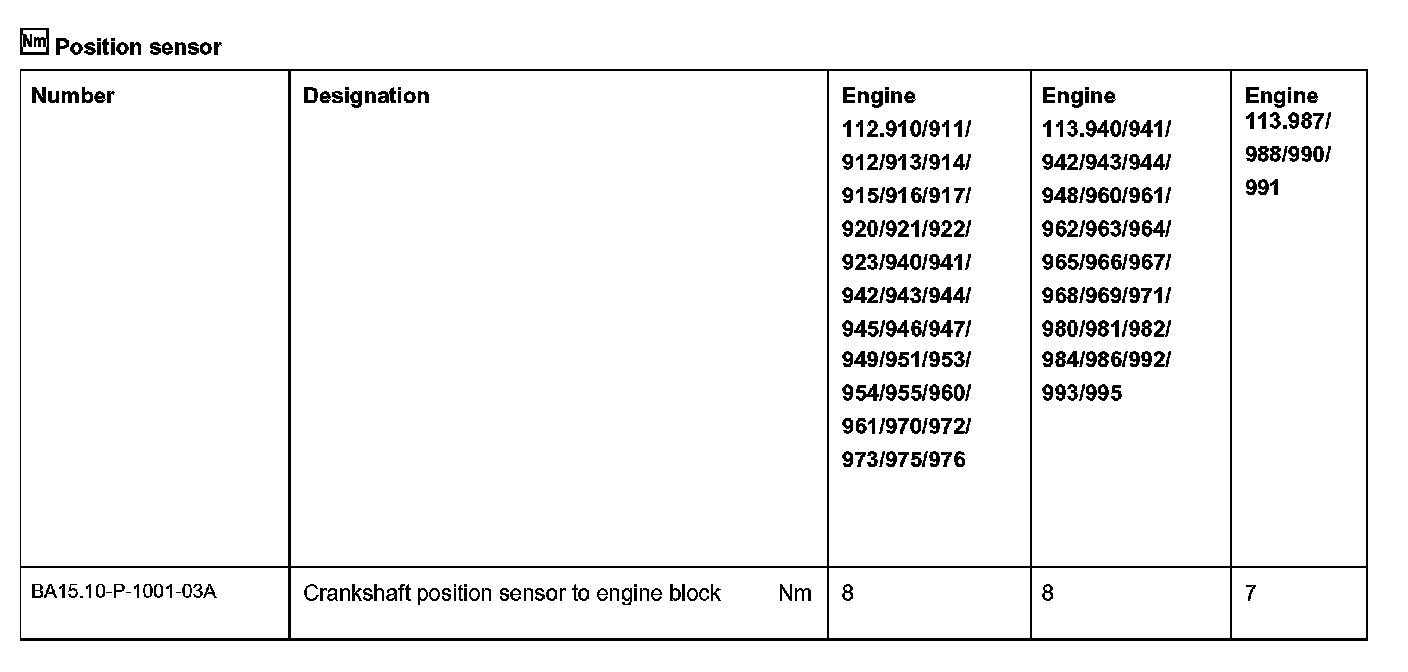

Position sensor:

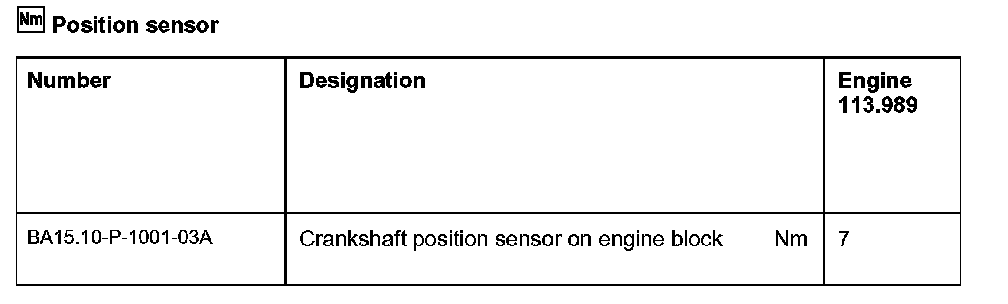

Position sensor:
