Seals and Gaskets: Service and Repair

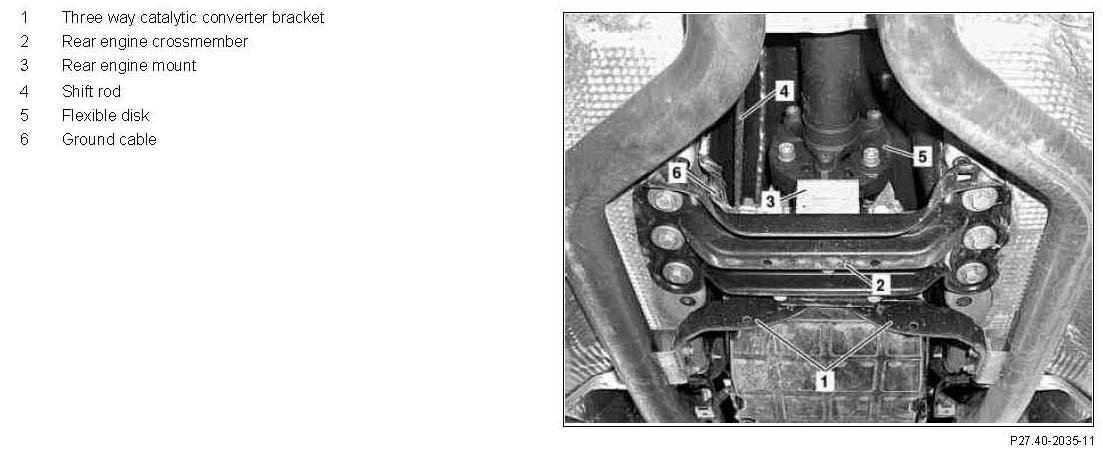

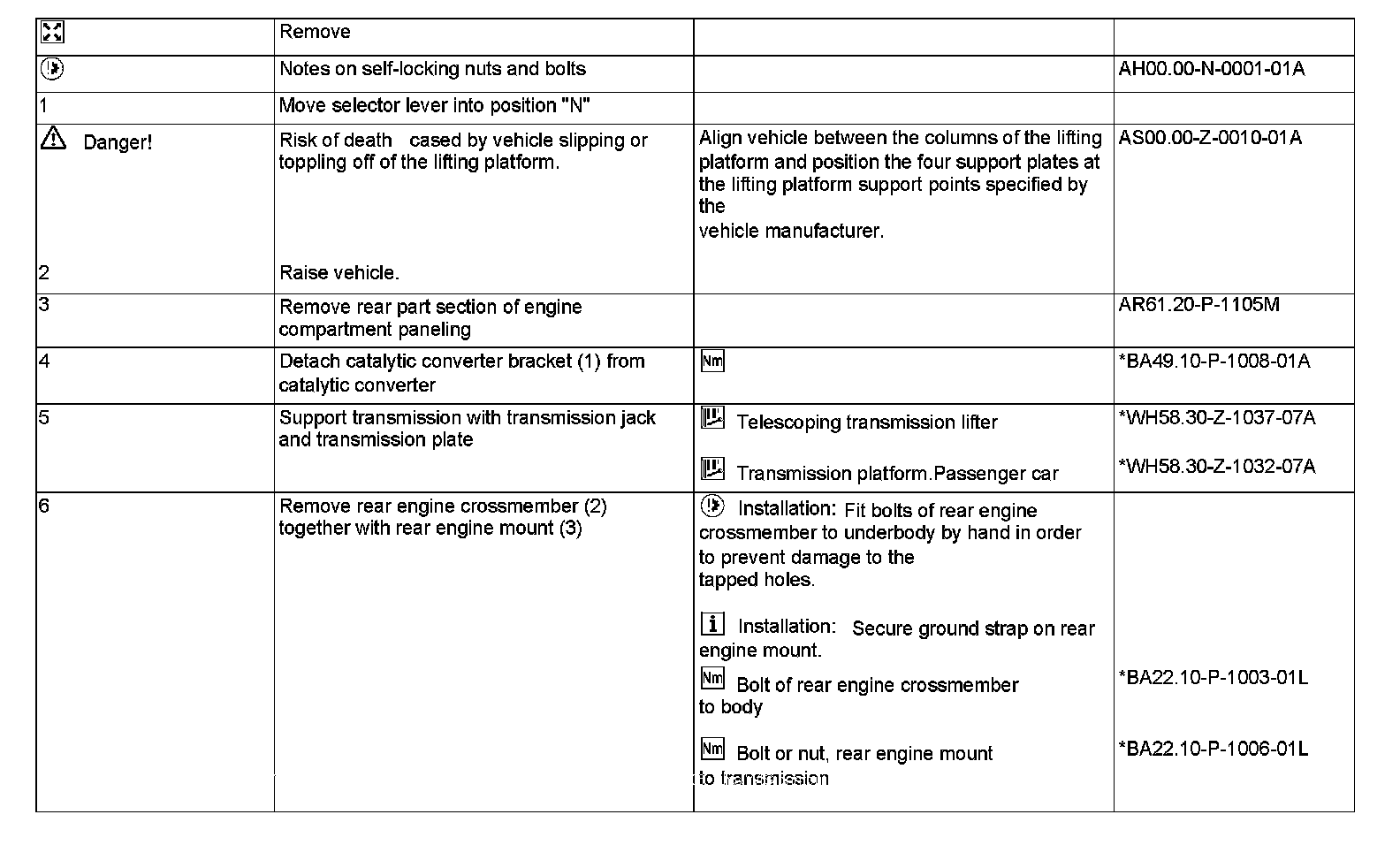

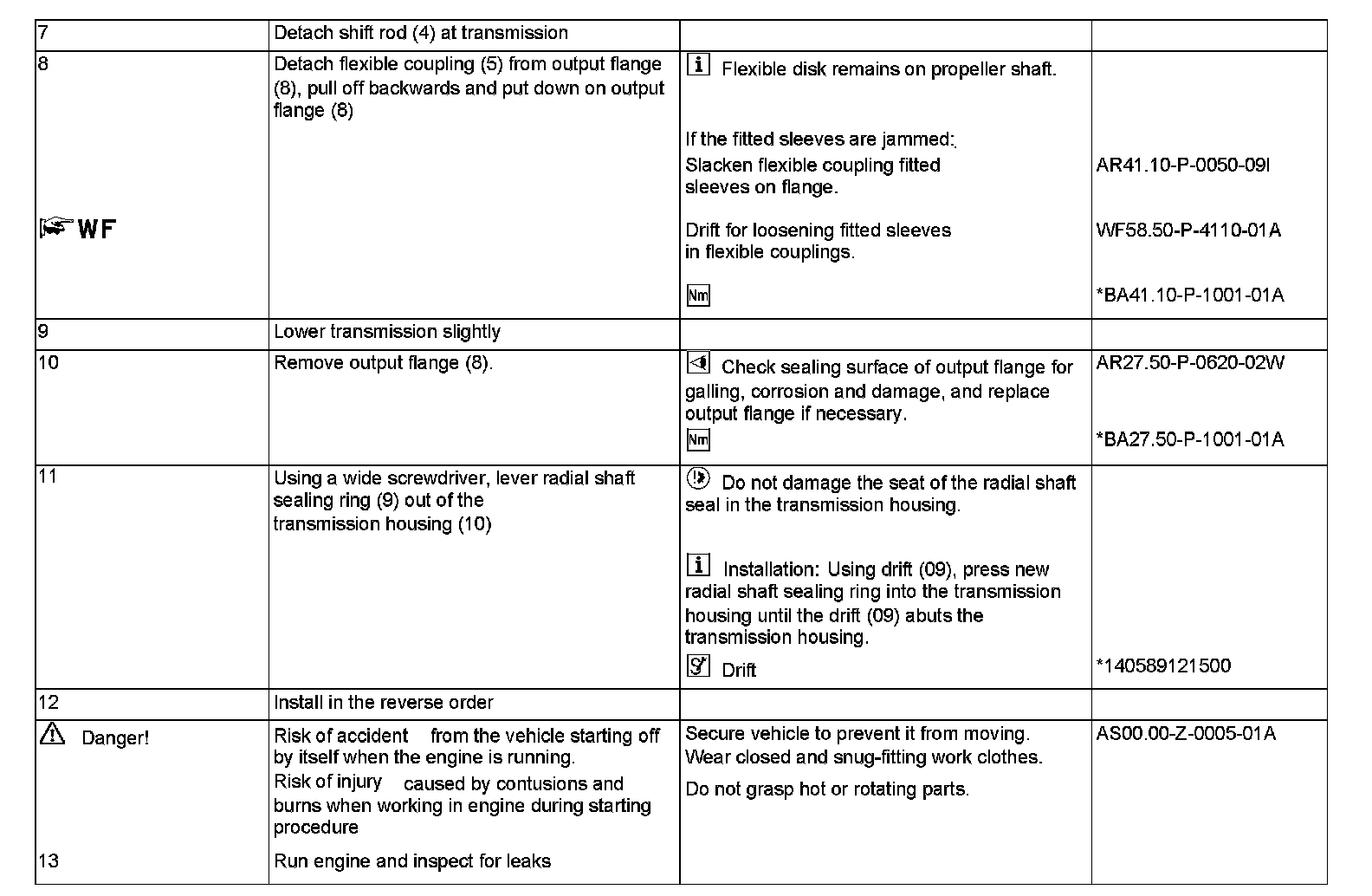

Remove/install radial shaft seal at output flange
- with transmission 722.9

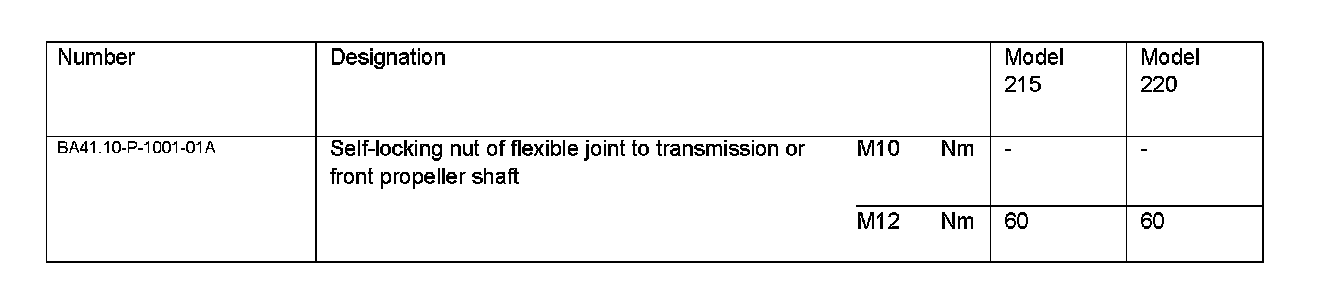

Driveshaft:
