Head Rest: Service and Repair
AR91.16-P-1770E Removing And Installing Rear Head Restraints

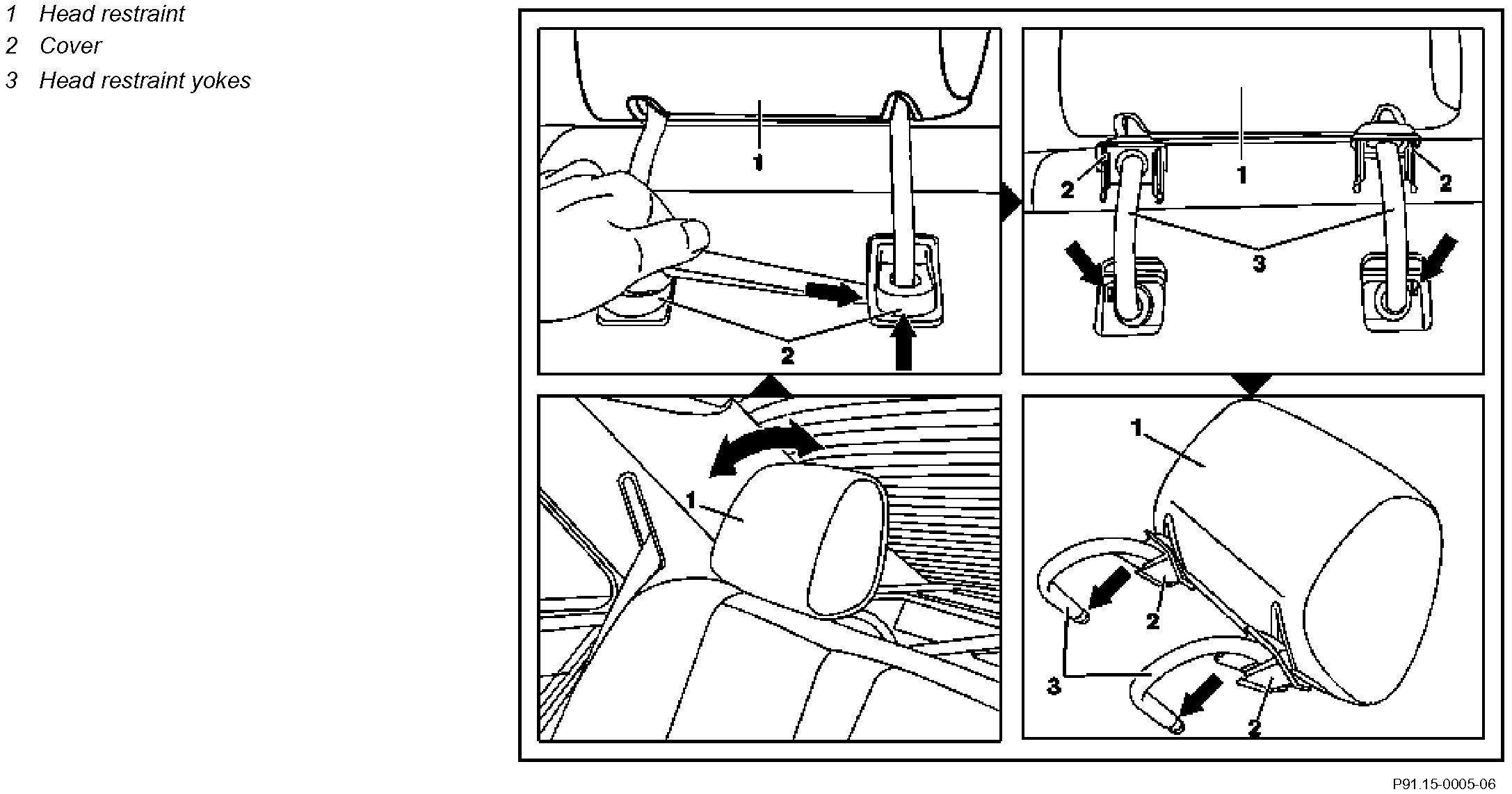

Component Identification:

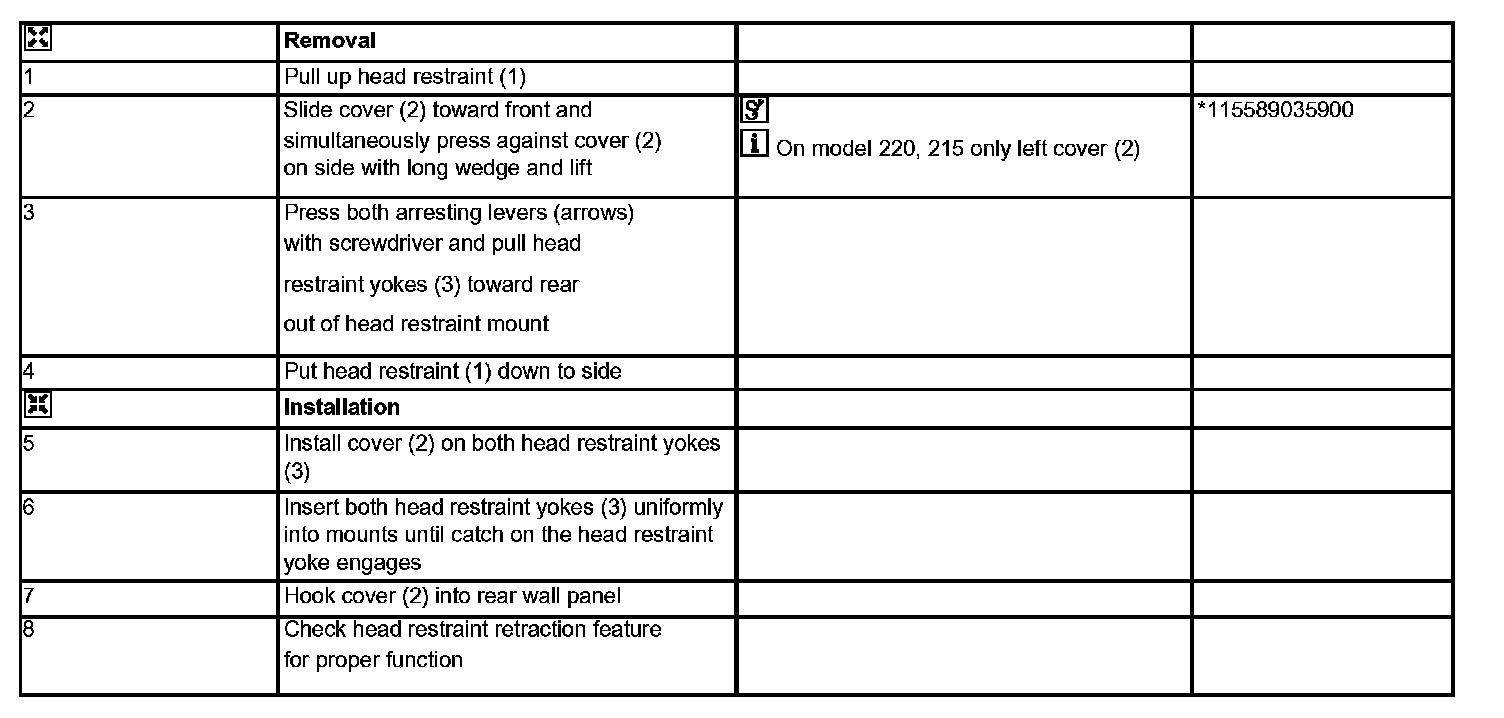

Steps 1 - 8:

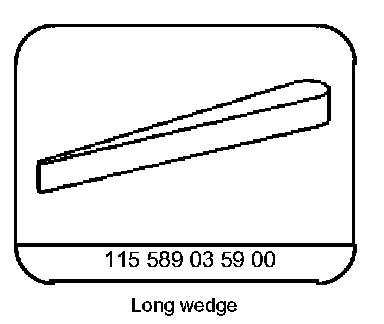

Special Tools:
