AR83.30-P-6521P Remove/Install Drier Cartridge



AR83.30-P-6521P Remove/Install Drier Cartridge

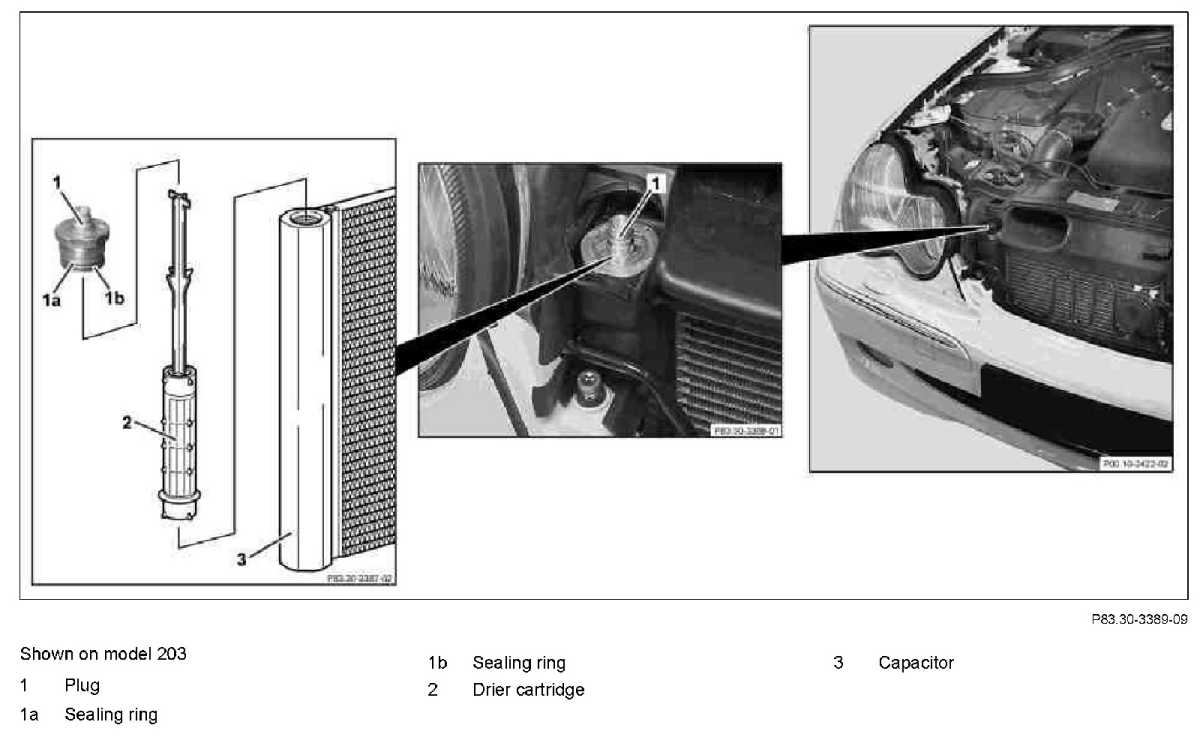

- Desiccant cartridge at side

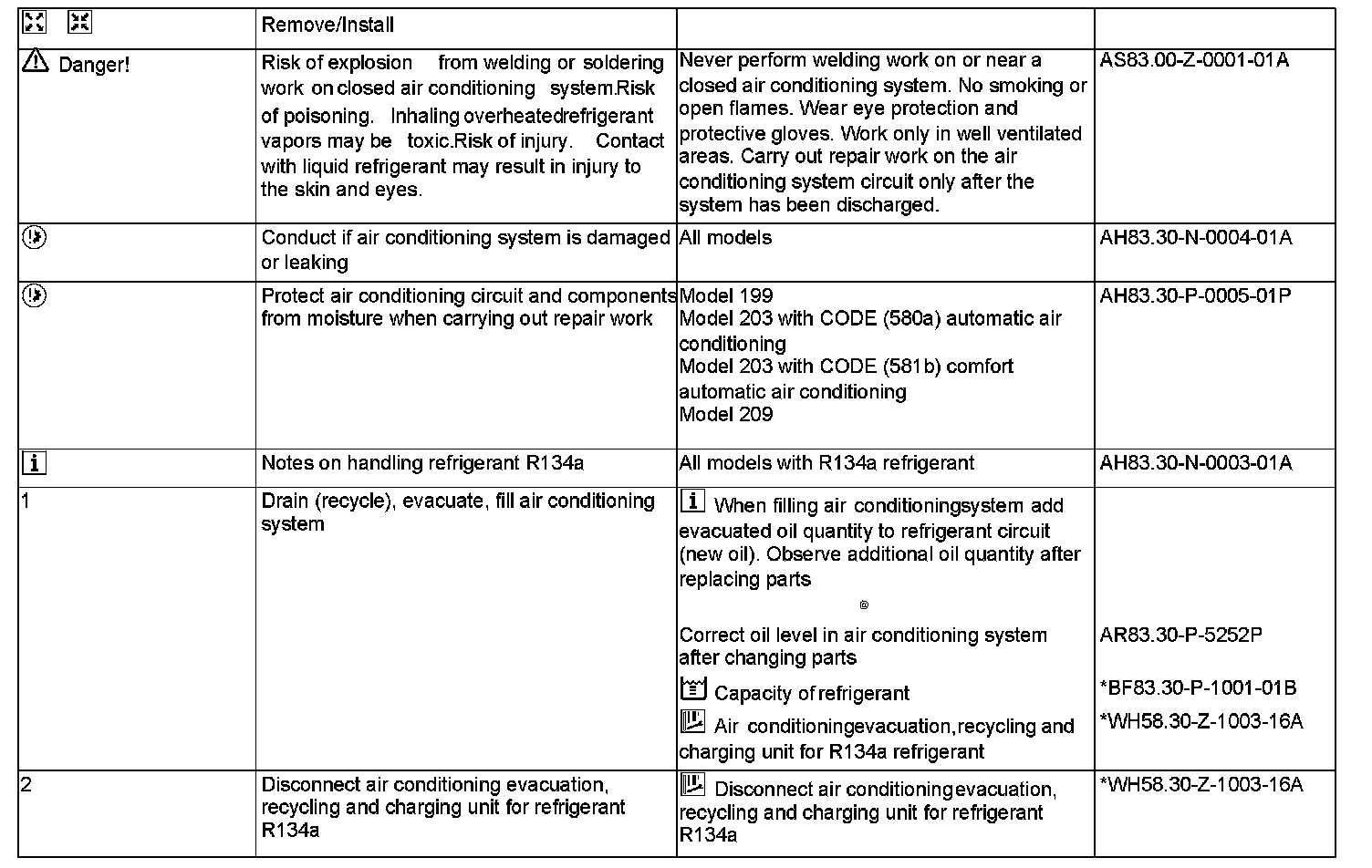

Part 1:






Part 2:

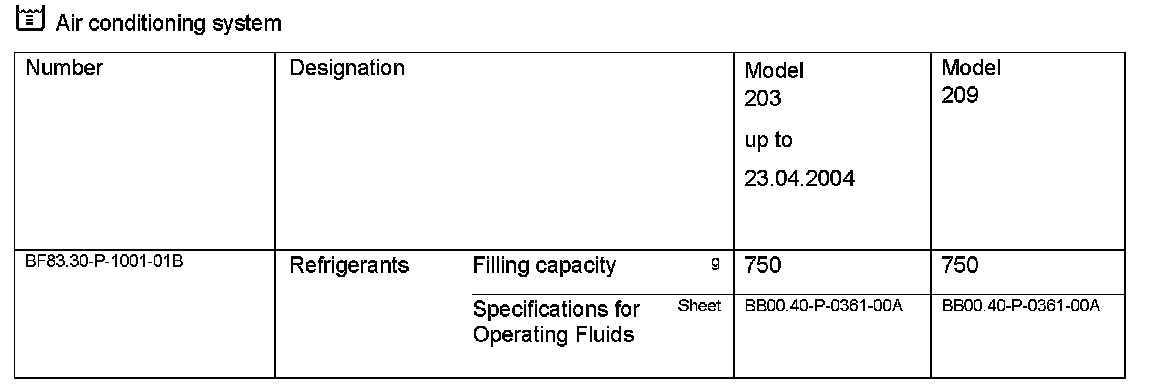

Air Conditioning System:

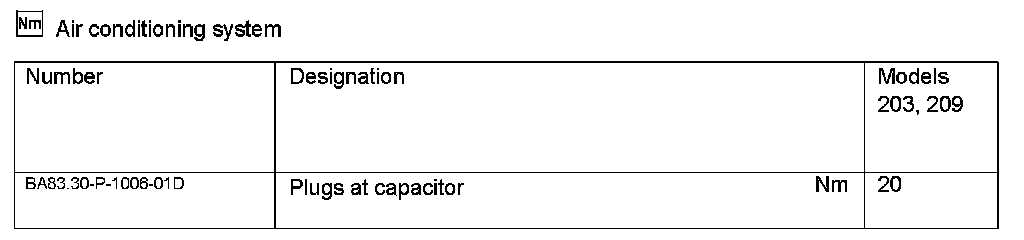

Air Conditioning System:
