Vacuum Pump: Service and Repair
SM43.10-P-0003A Retrofit brake booster vacuum pump

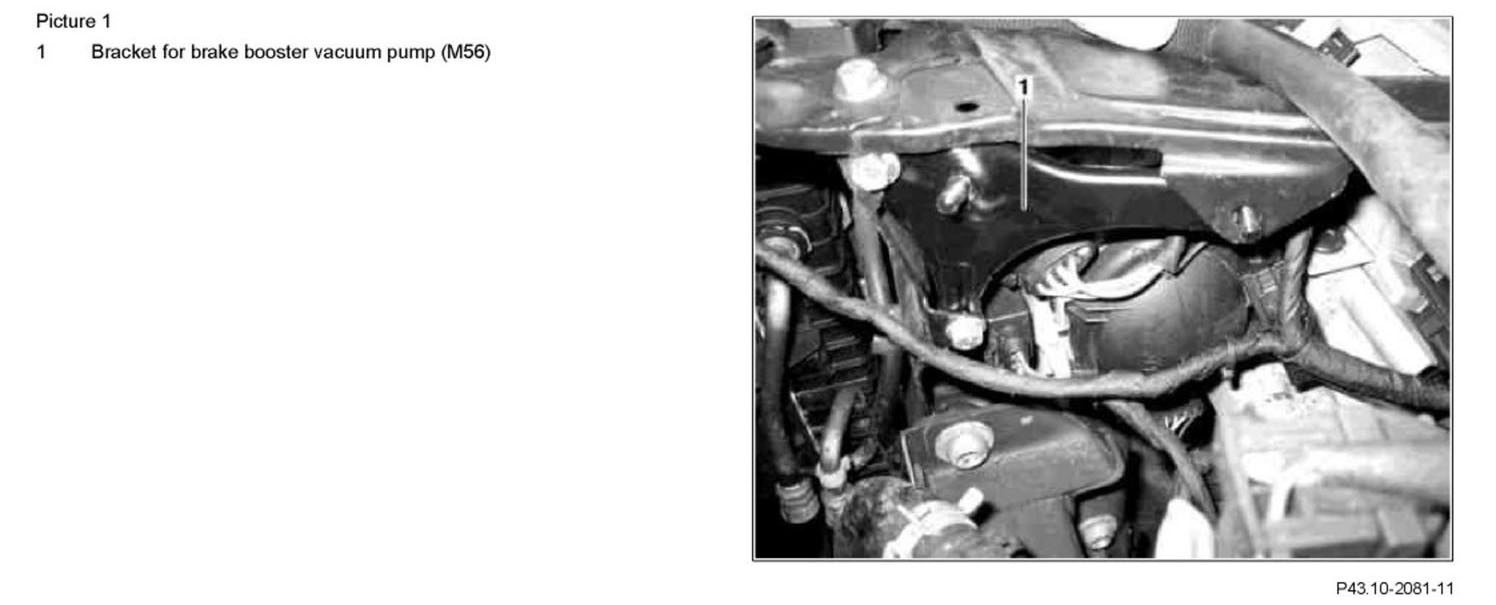

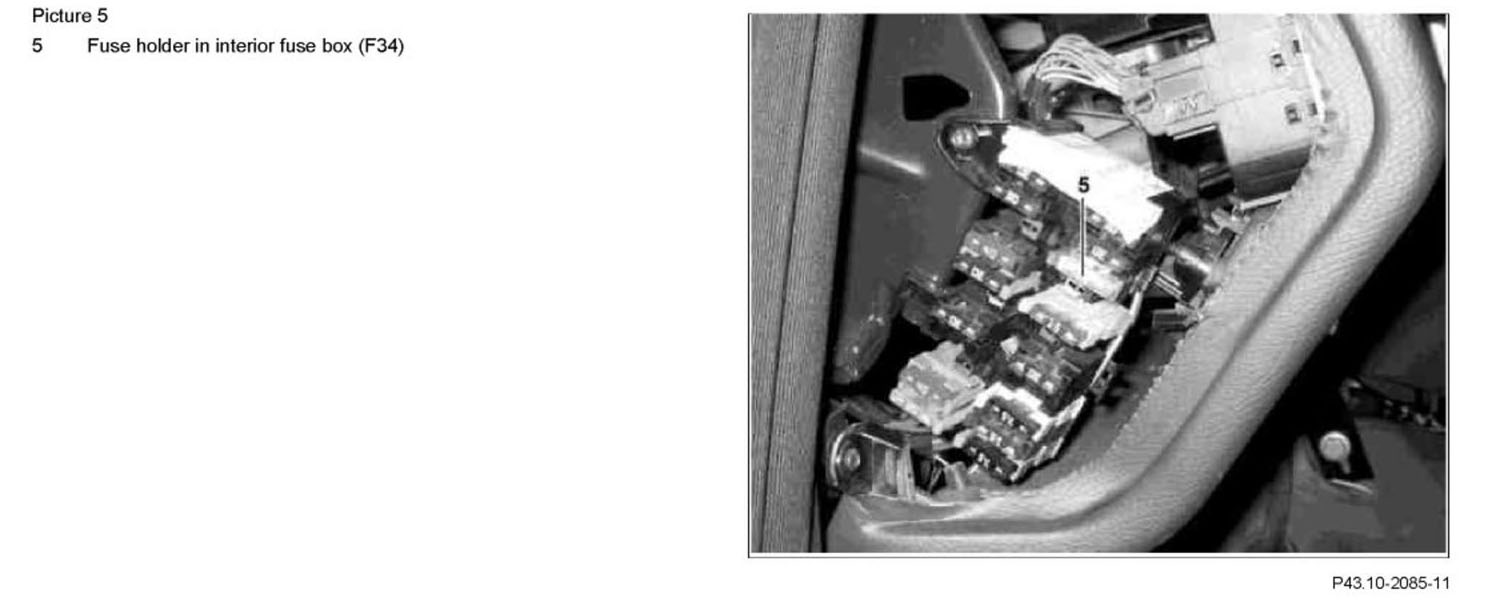

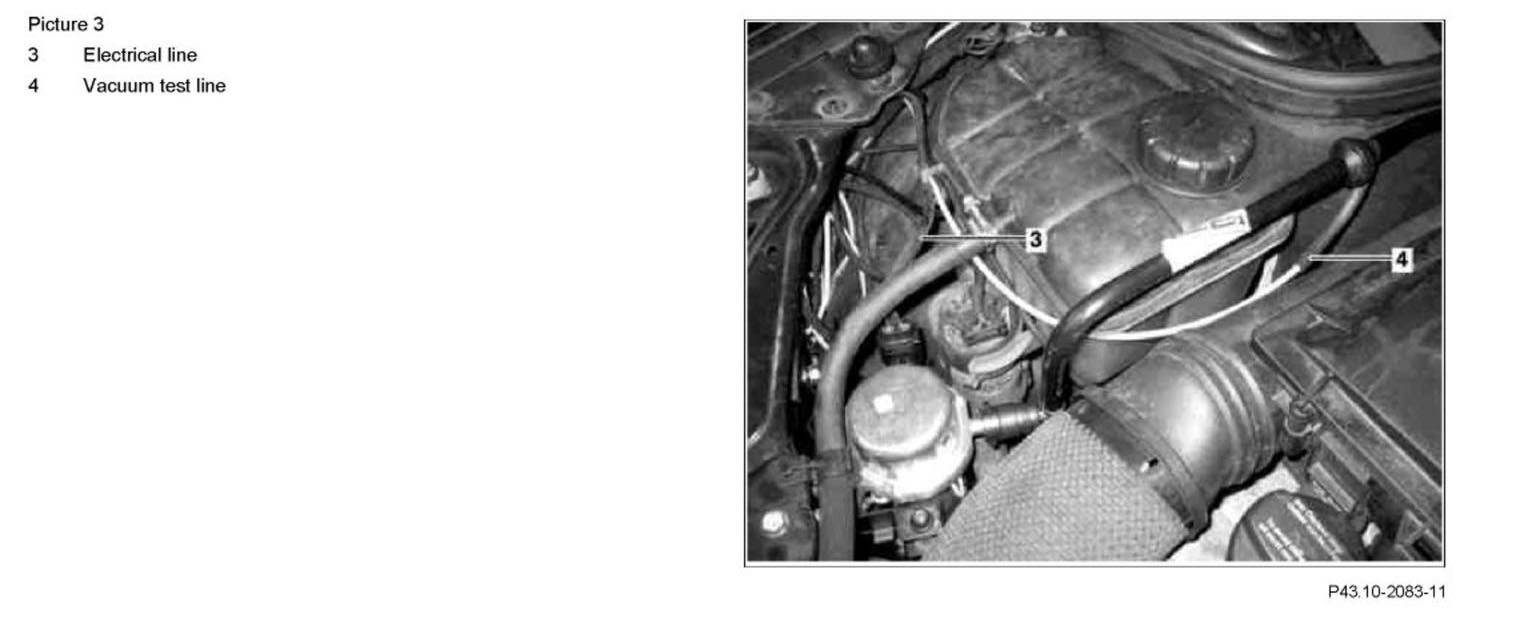

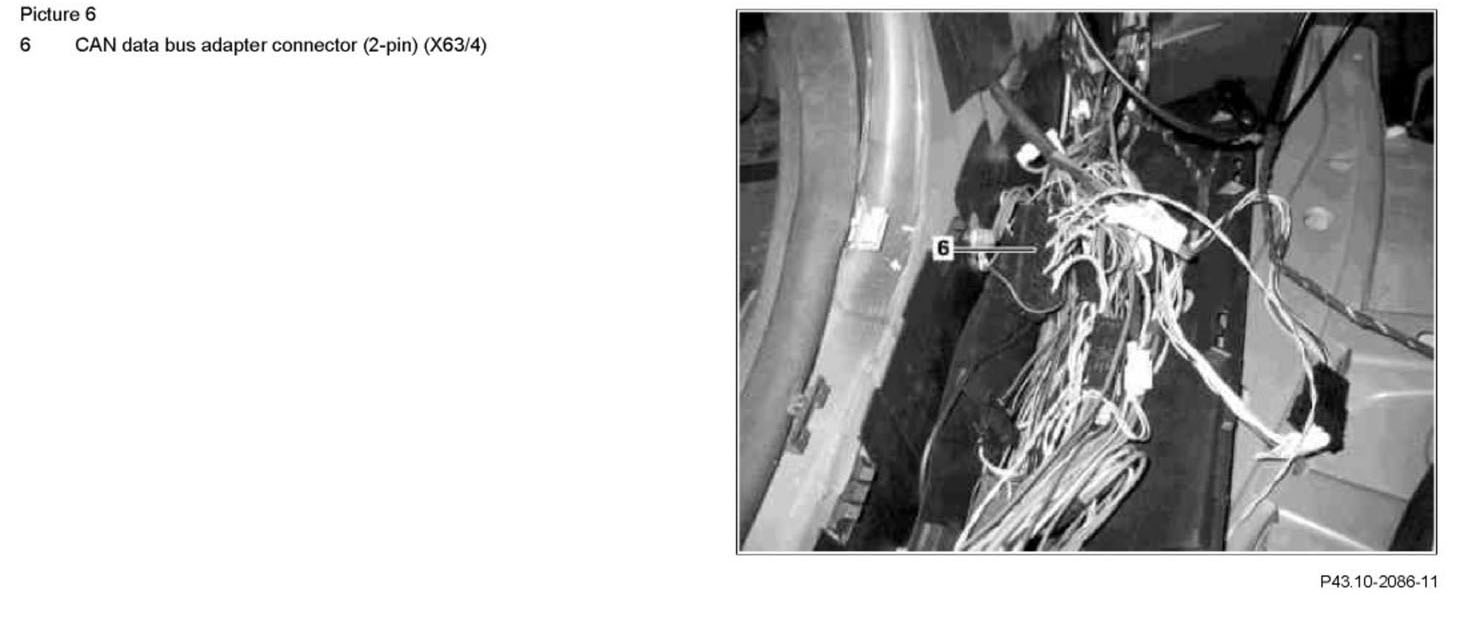

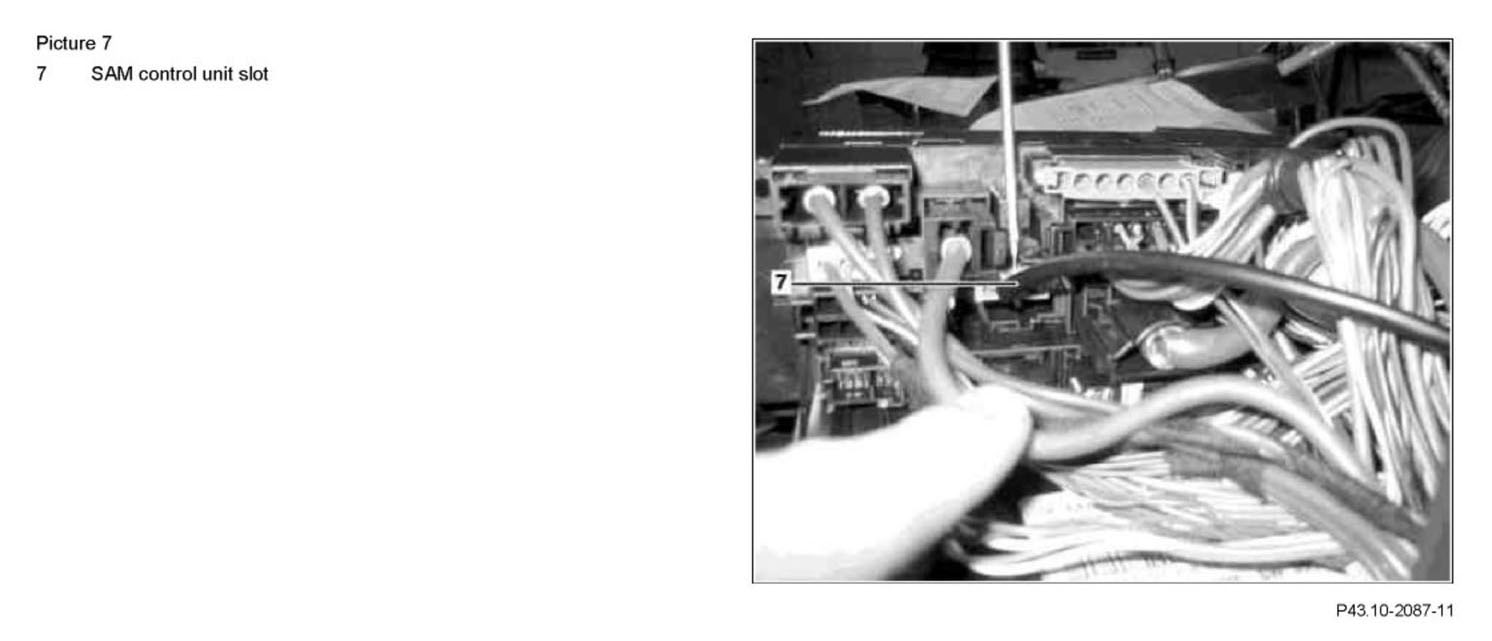

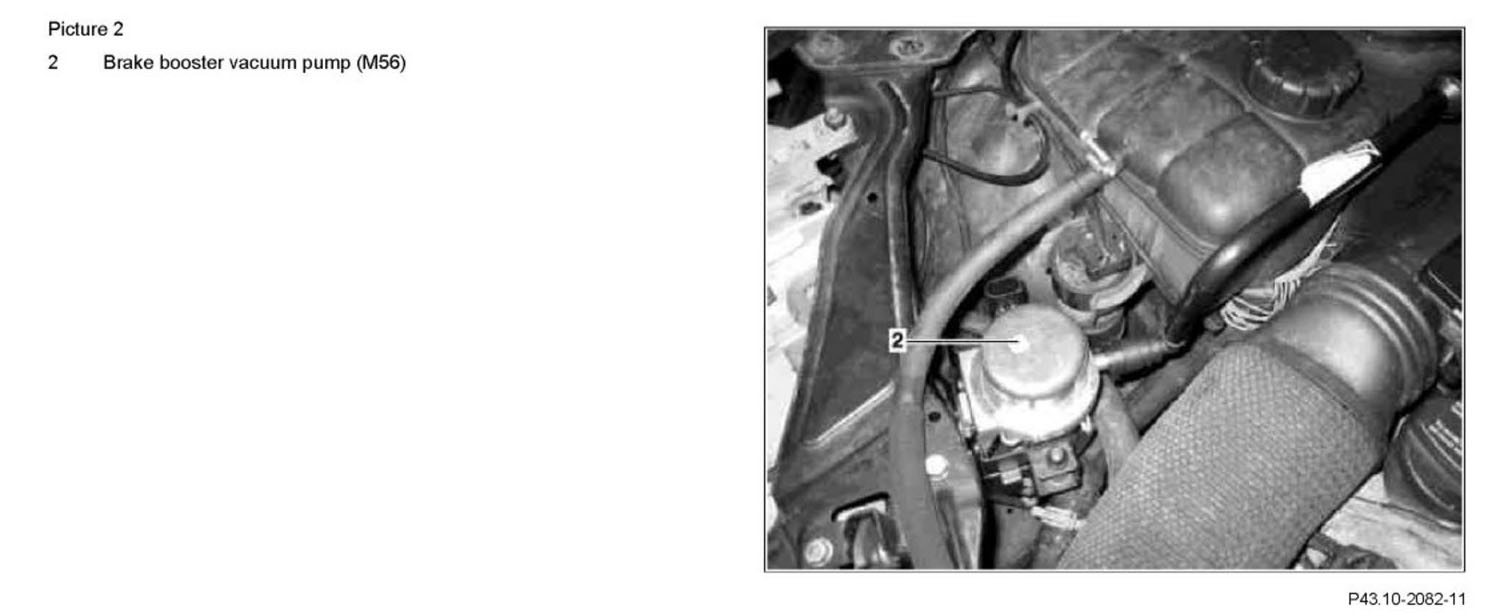

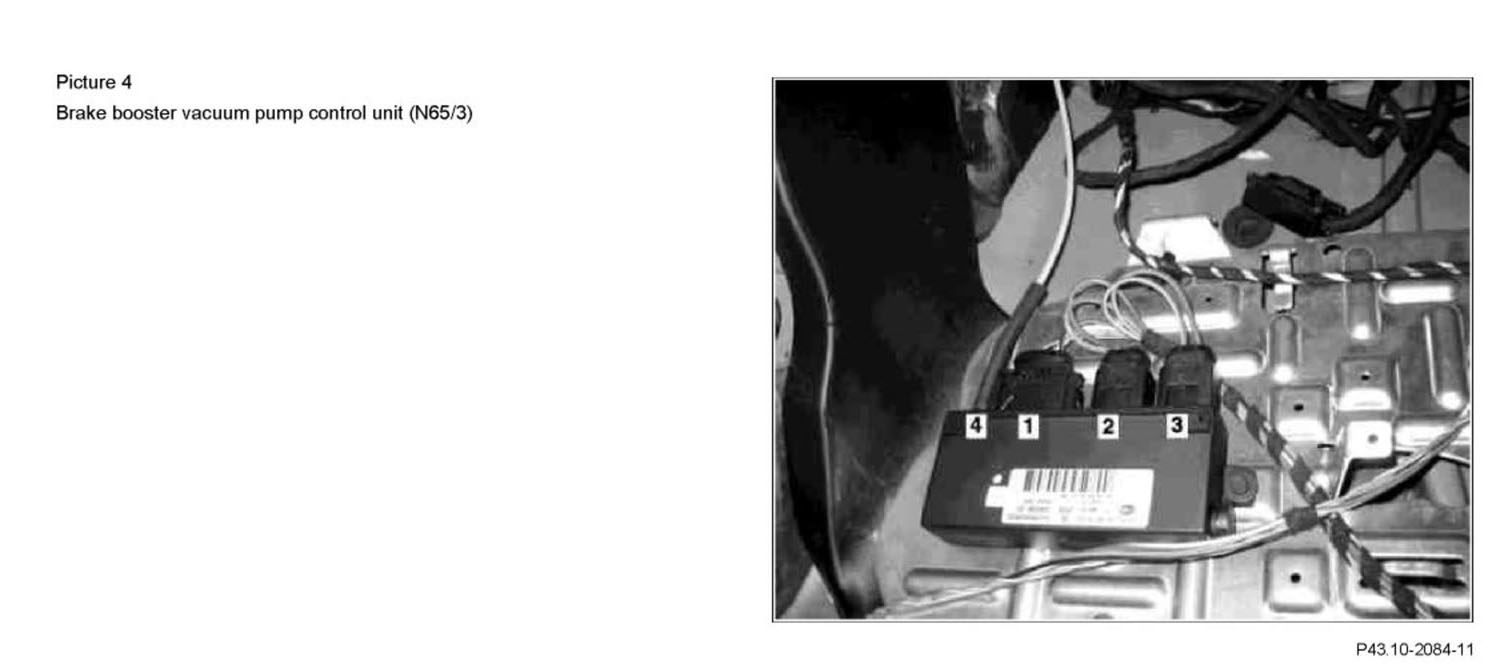

Component Identification:
Component Identification:
Component Identification:
Component Identification:
Component Identification:
Component Identification:
Component Identification:

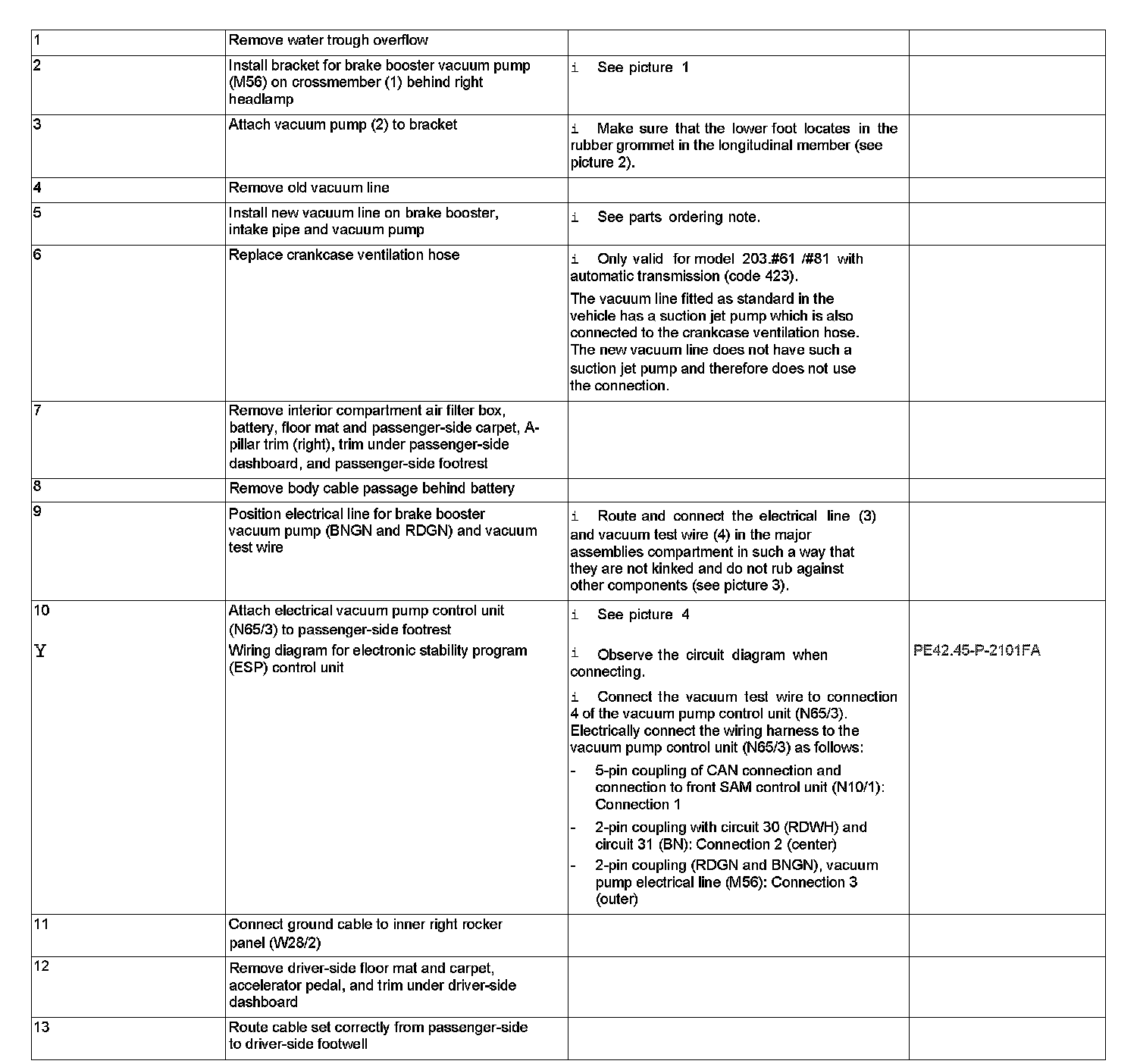

Steps 1 - 13:

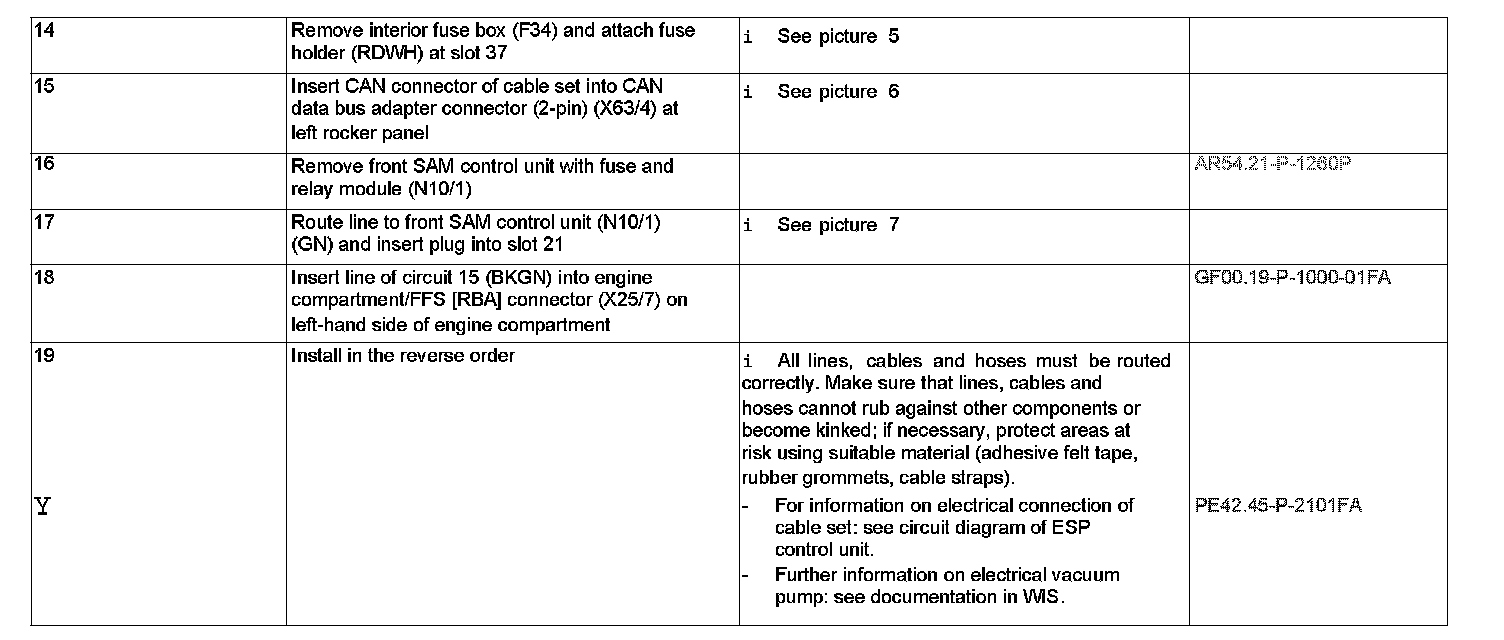

Steps 14 - 19:

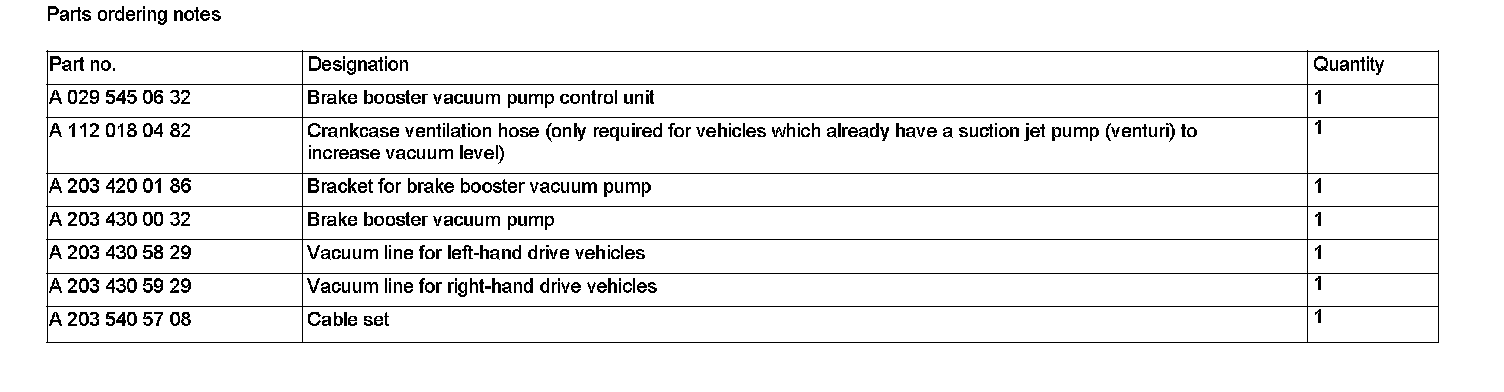

Parts Ordering Notes:
