AR82.35-P-6000P Remove/Install Windshield Washer Fluid Reservoir

AR82.35-P-6000P Remove/Install Windshield Washer Fluid Reservoir












1 Open engine hood

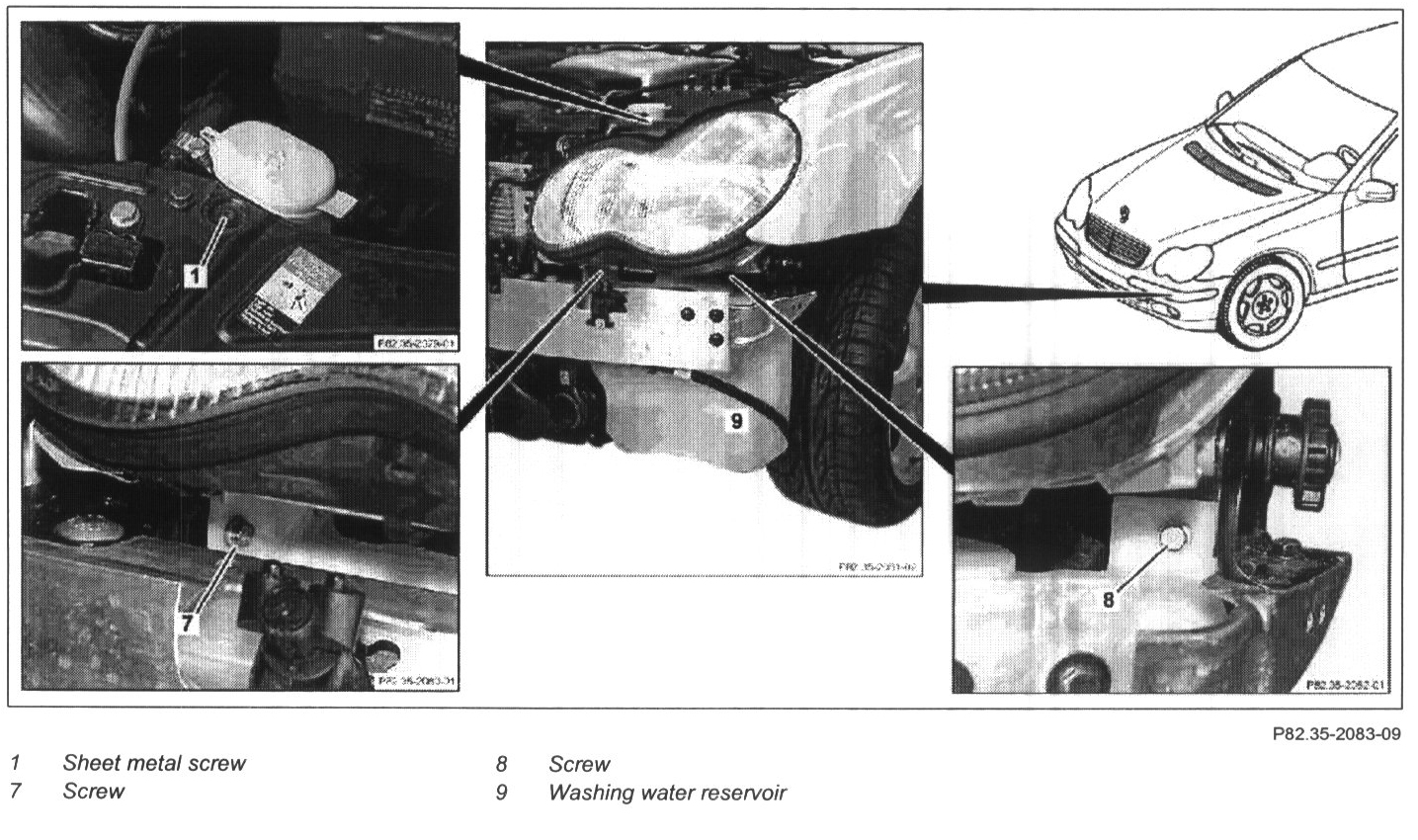

2 Remove self-tapping screw (1)
3 Remove front bumper
4 Disconnect connector
5 Remove hose
6 Disconnect connector
7 Remove hose
8 Remove retainer (2)
9 Pull off hose (3)

See "Special Tools" given below.

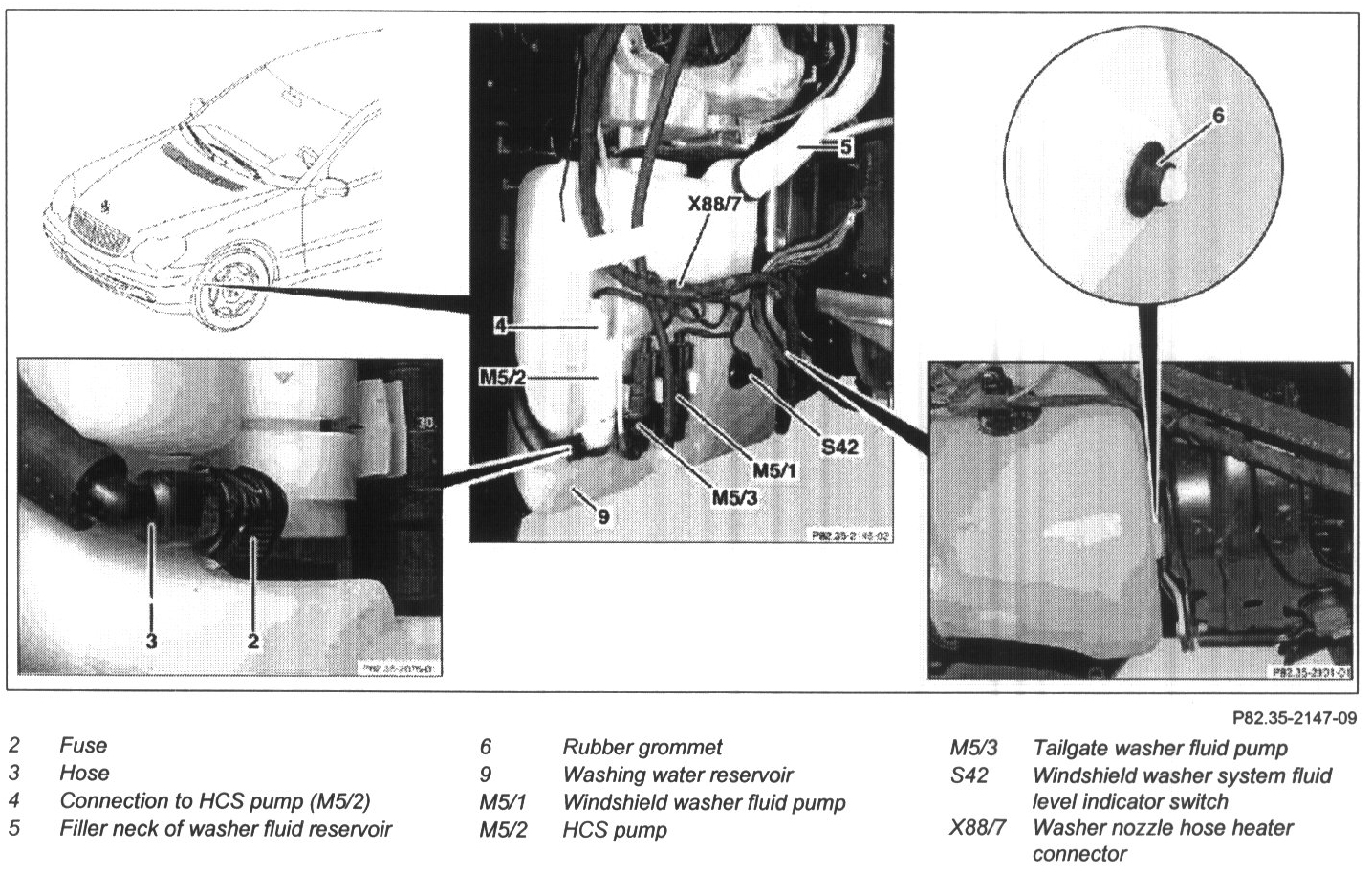

10 Remove connector (4) from SRA pump (M5/2)
11 Disconnect heated washer nozzle hose connector (X88/7)
12 Detach connection from switch of water fluid indicator of windshield washer system (S42)
13 Pull washing water reservoir filler neck (5) from washing water reservoir (9)
14 Unscrew screw (7)
15 Unscrew screw (8)
16 Take off washer fluid reservoir (9)
17 Install in the reverse order
18 Inspect fluid level of windshield washer system, adjust to correct level


Special Tool

Set Of Plugs, P/N # 129 589 00 91 00:
