Home >> Mercedes Benz >> 2003 >> C 230 CL (203.740) L4-1.8L SC (271.948) >> Repair and Diagnosis >> Transmission and Drivetrain >> Flex Plate >> Service and Repair >> AR03.30-P-8001Q Remove/Install Flywheel/Driven Plate

AR03.30-P-8001Q Remove/Install Flywheel/Driven Plate



AR03.30-P-8001Q Remove/install flywheel / drive plate

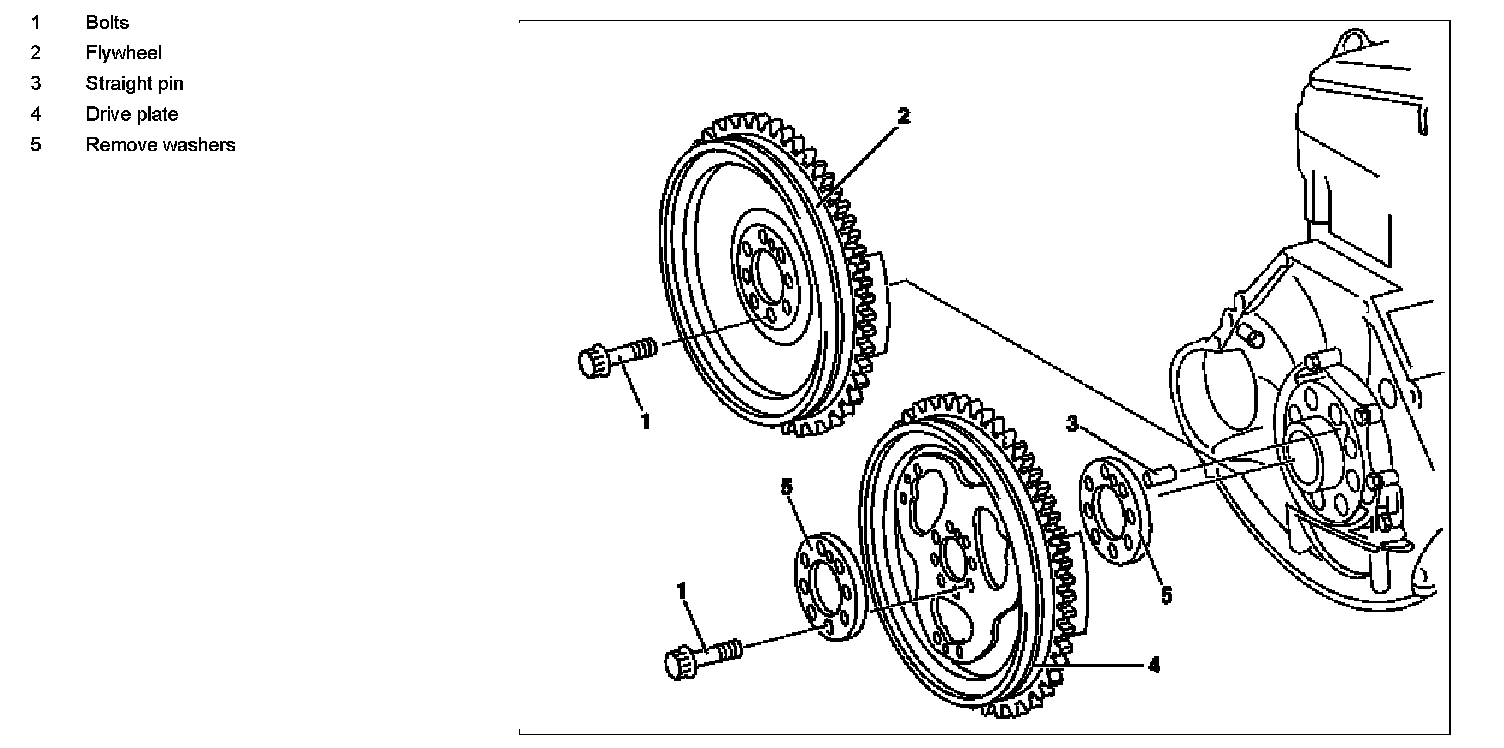

Component Identification:

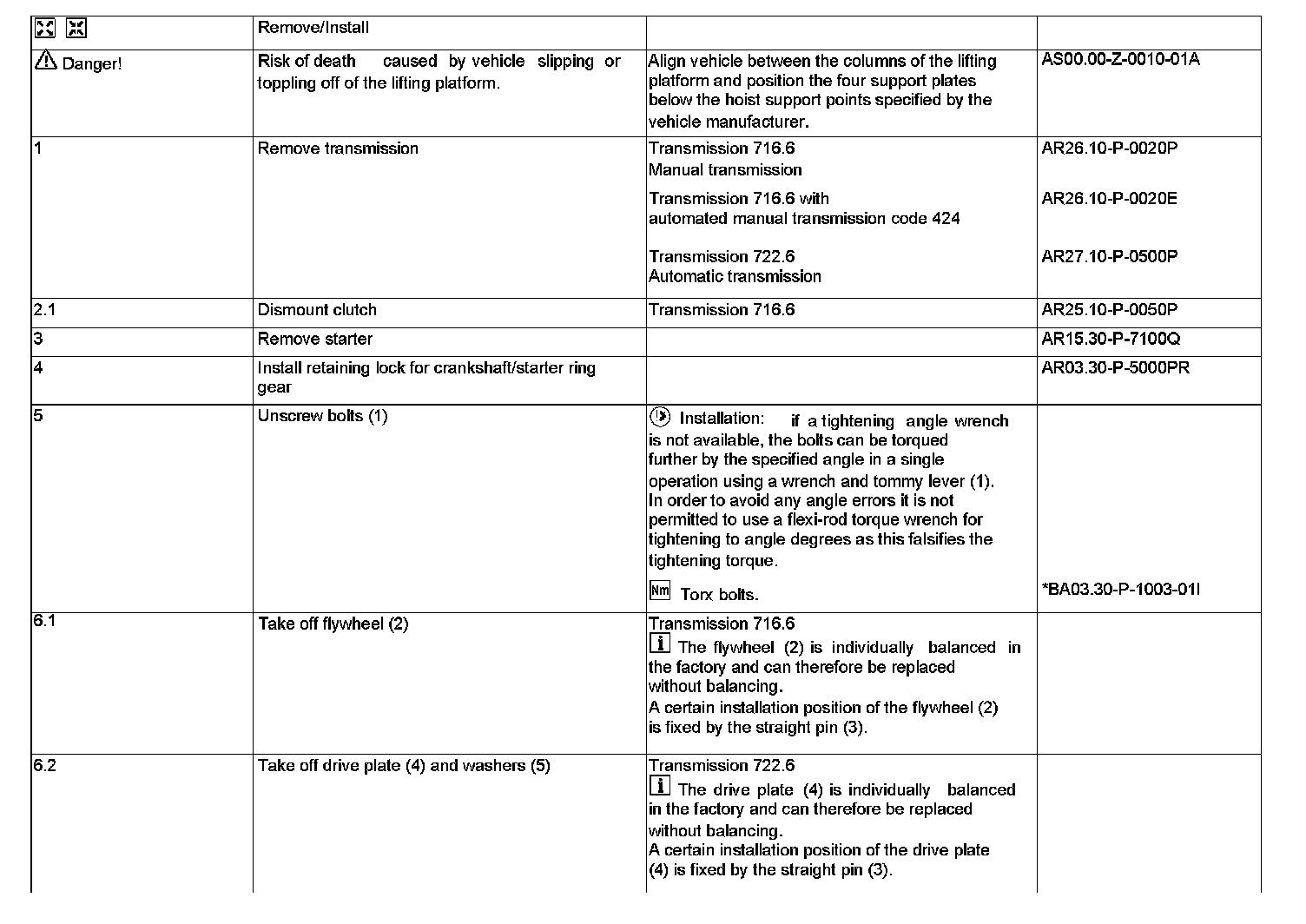

Steps 1-6.2:




Step 7:

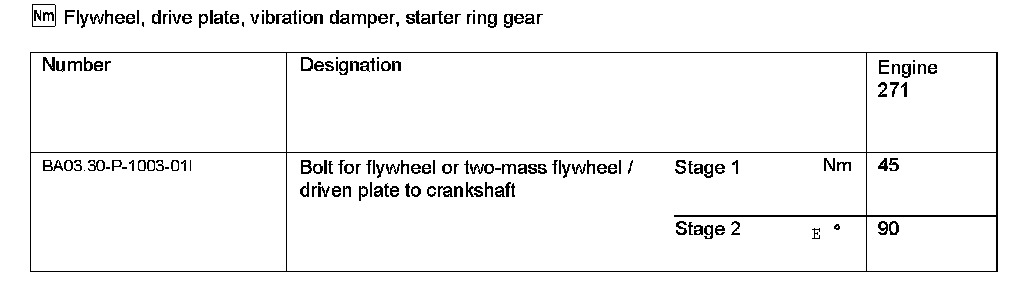

Flywheel,drive Plate, Vibration Damper, Starter Ring Gear:
