AR35.31-P-0554PI Remove/Install End Cover at Rear Axle Differential

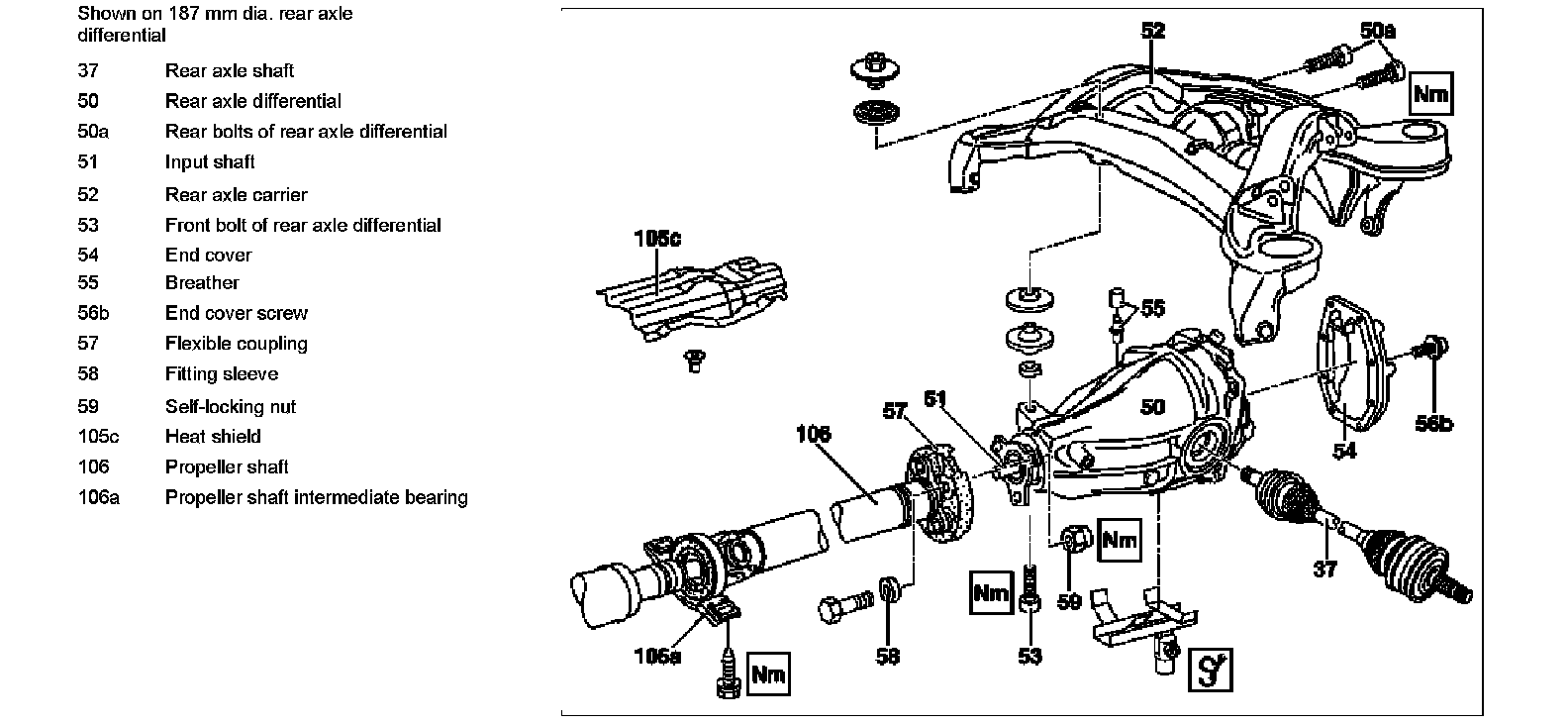

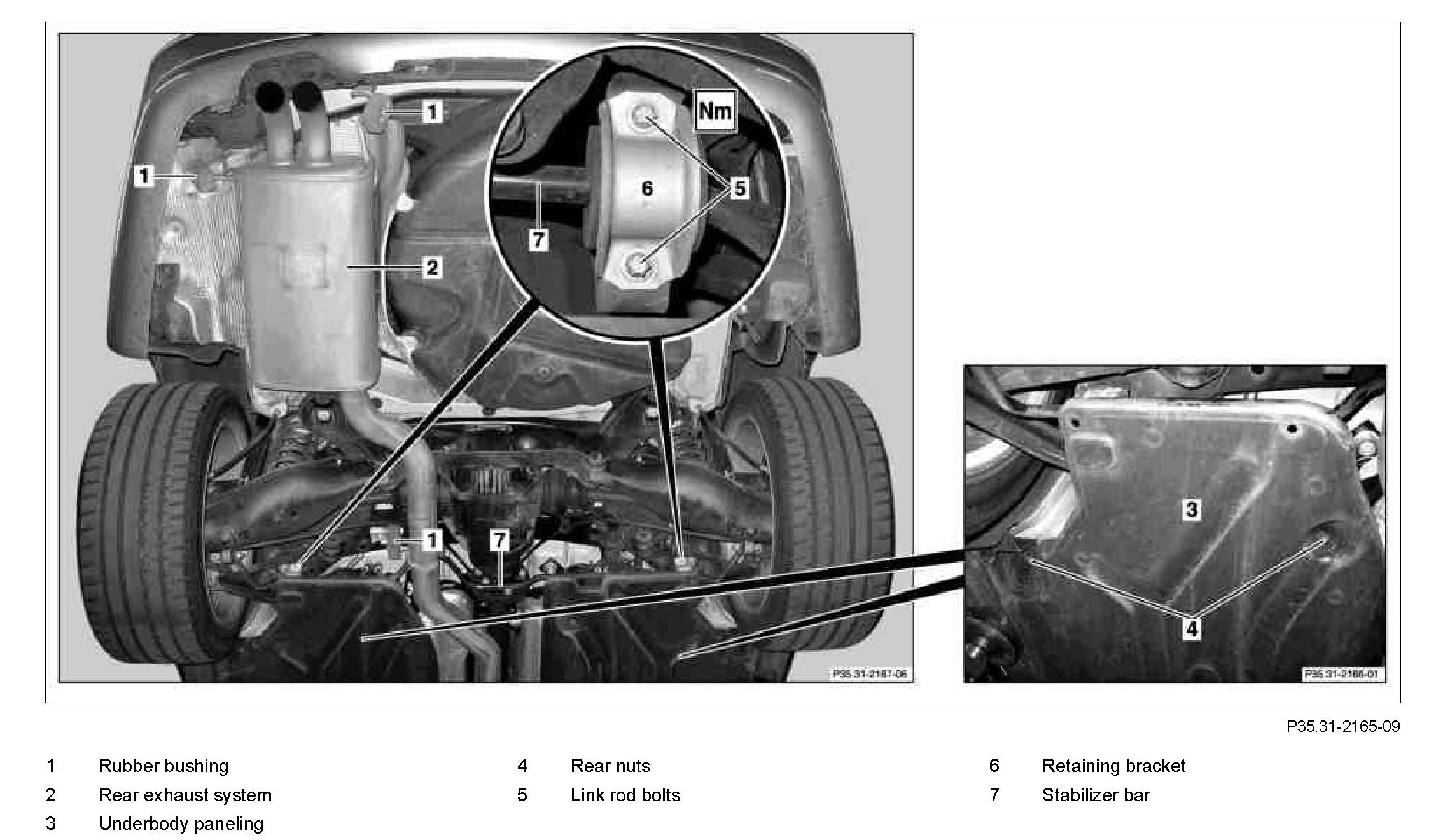

Component Identification:

Component Identification:

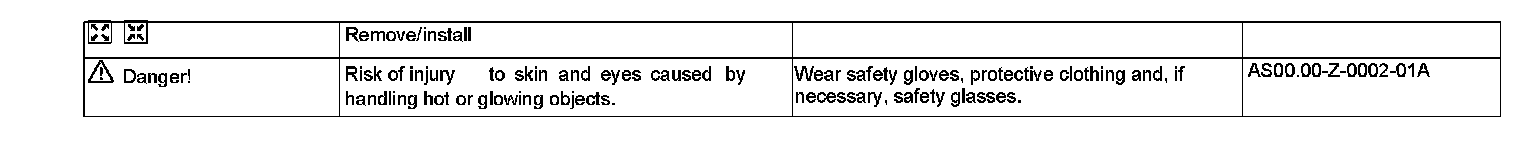

Warning:

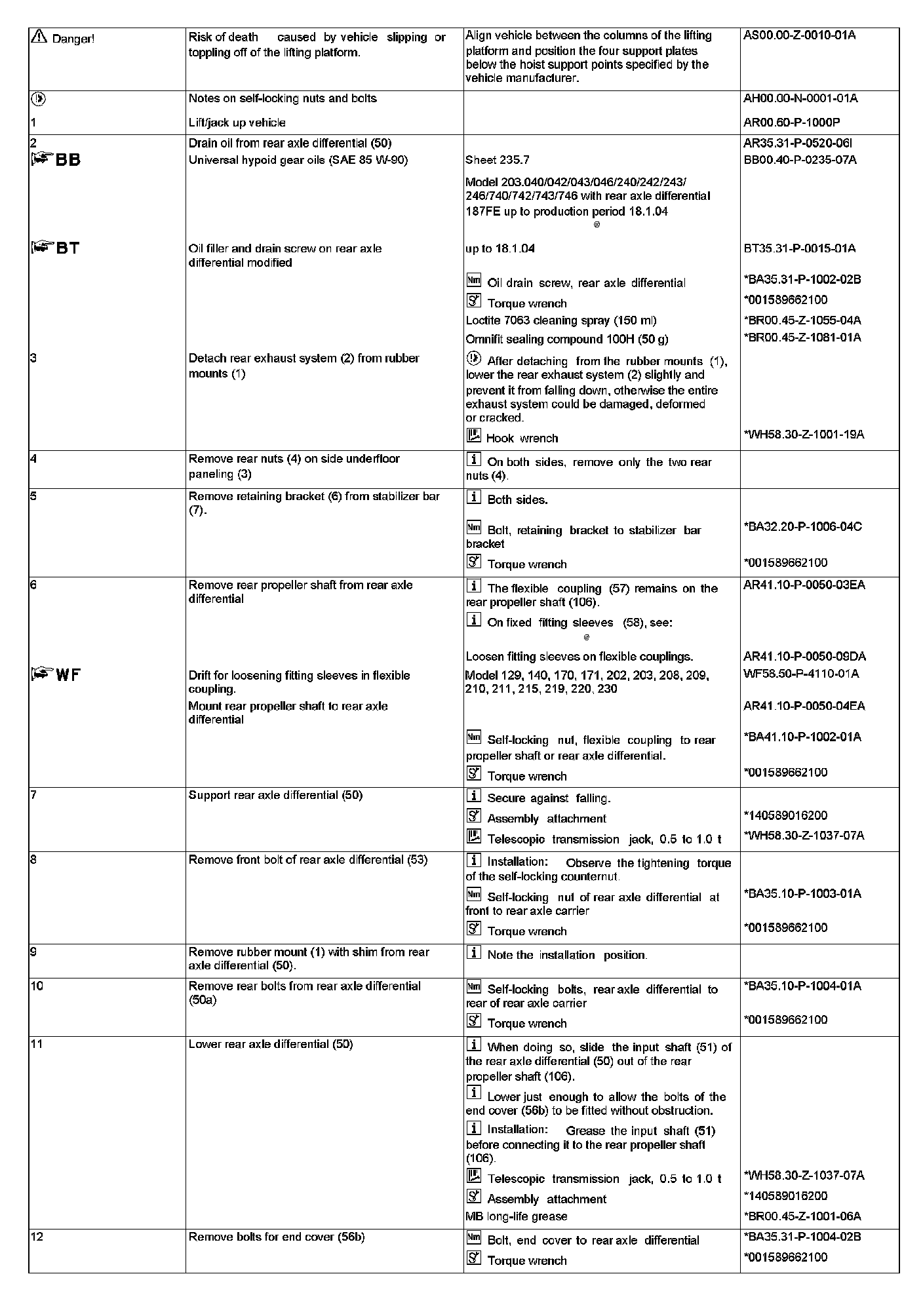

Steps 1 - 12:

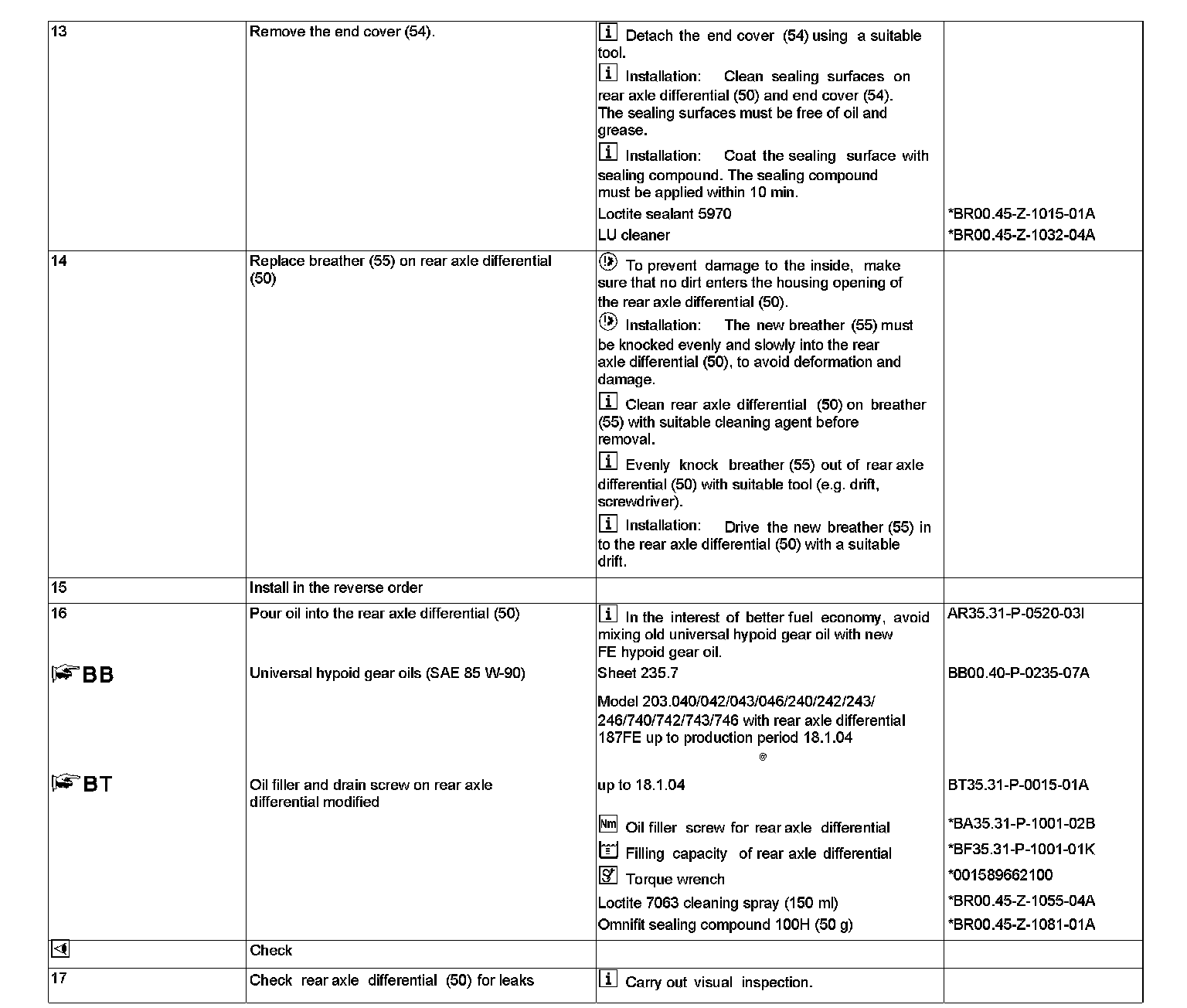

Steps 13 - 17:

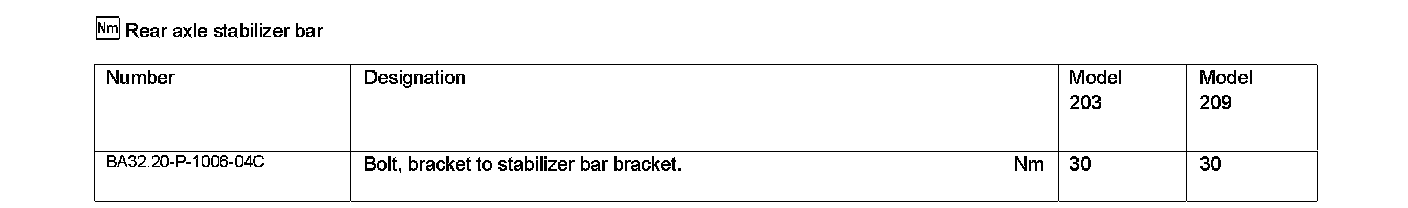

Rear Axle Stabilizer Bar:

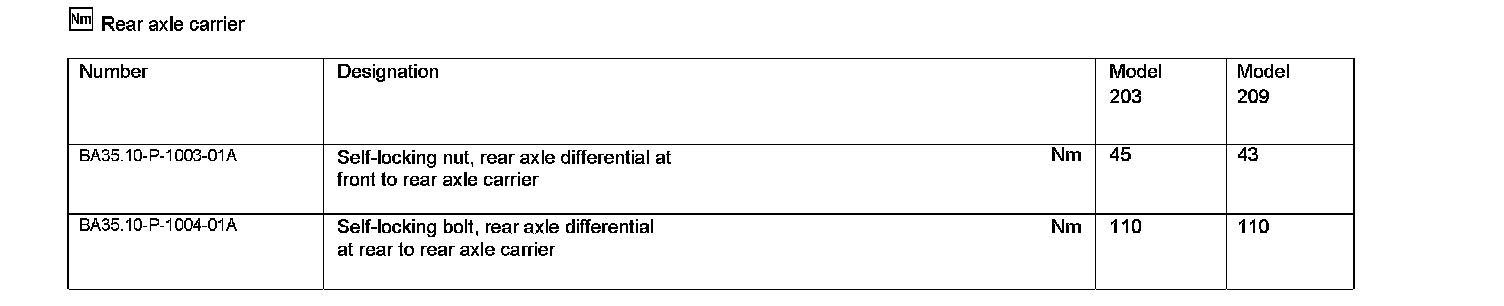

Rear Axle Carrier:

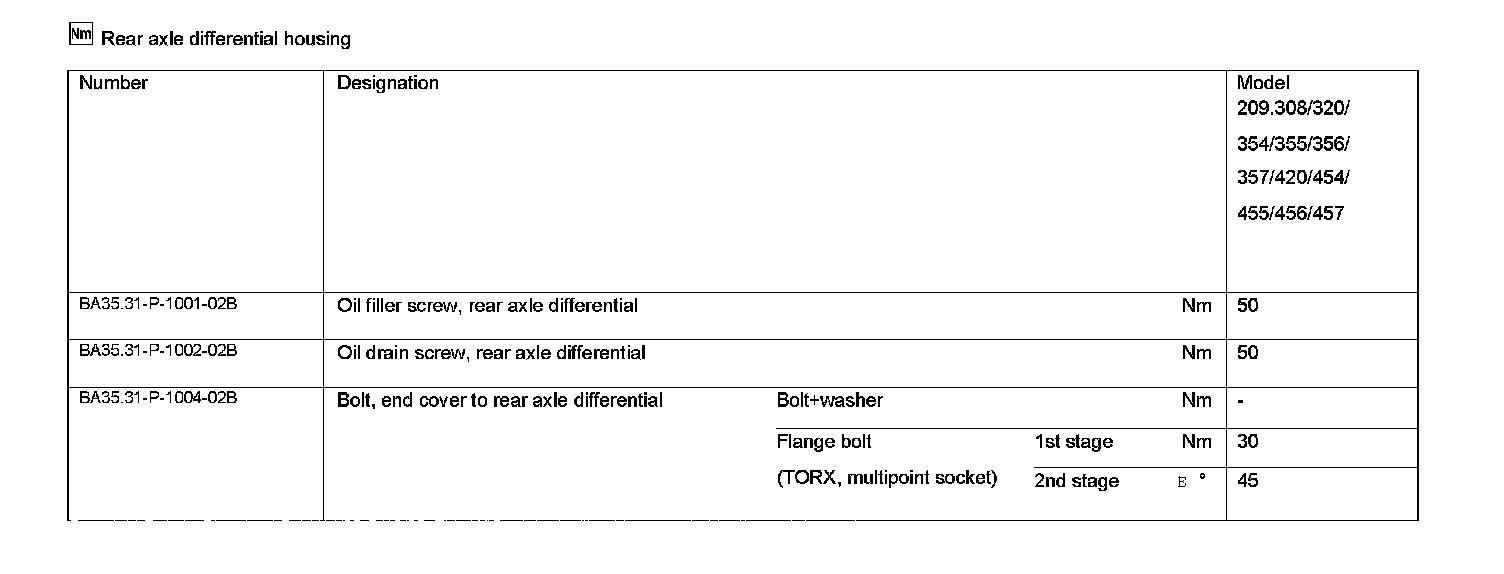

Rear Axle Differential Housing:

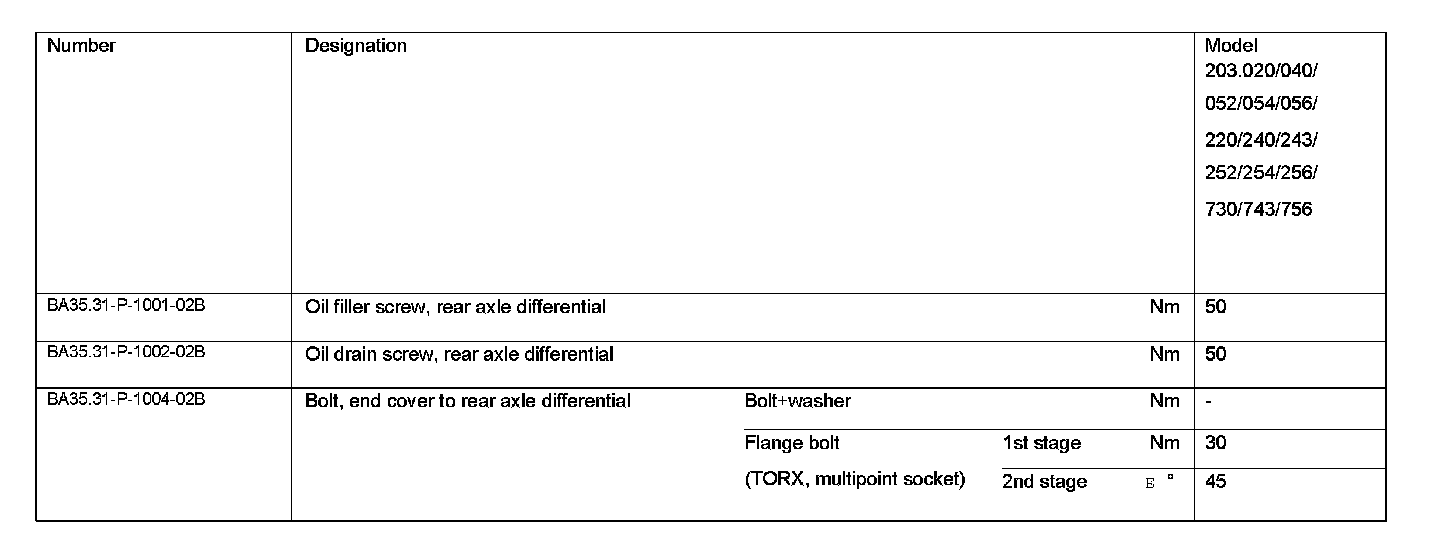

Rear Axle Differential Housing:

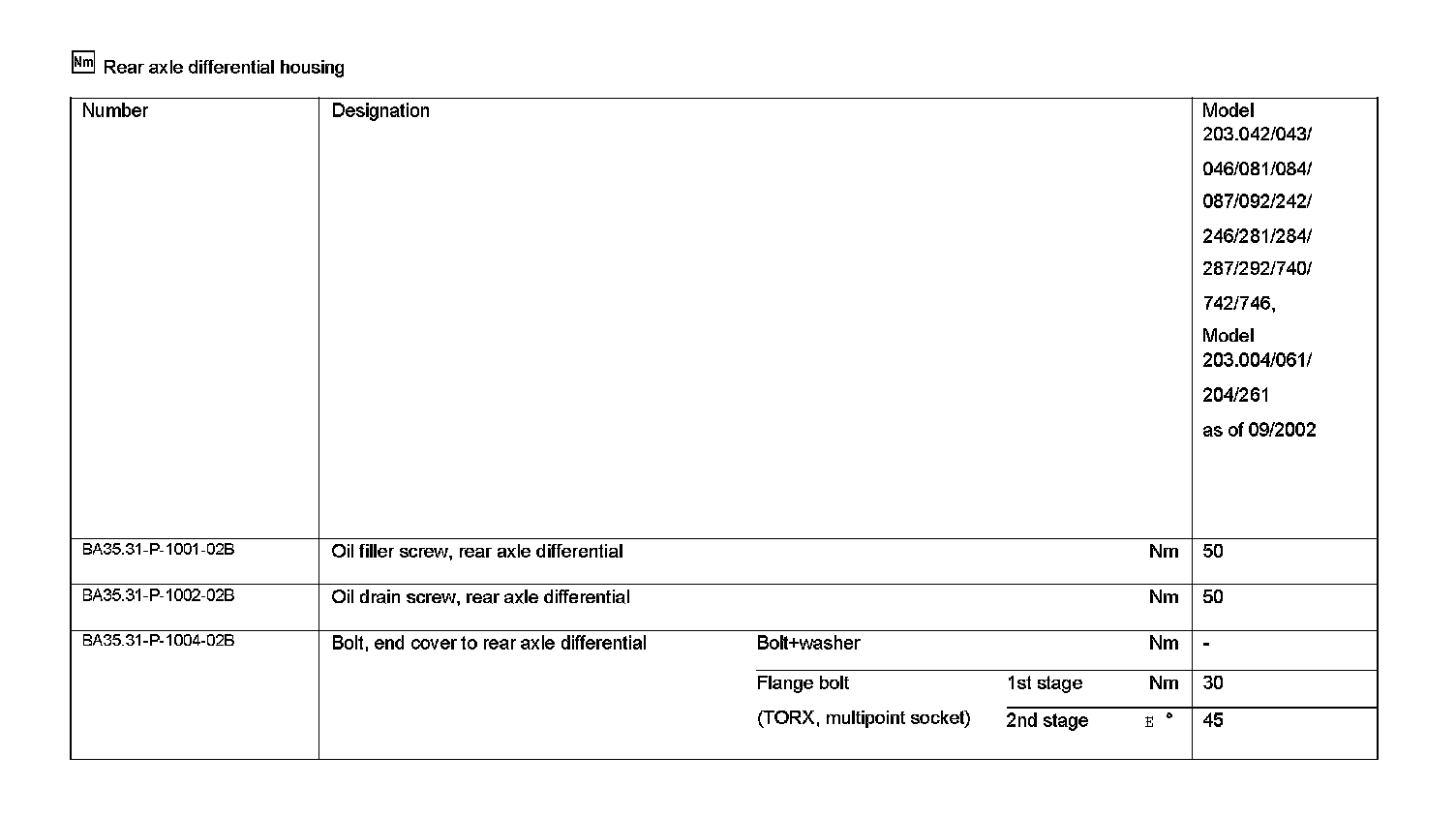

Rear Axle Differential Housing:

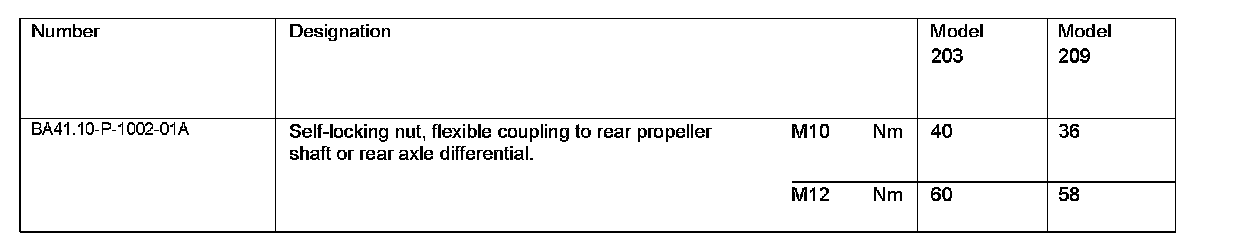

Propeller Shaft:

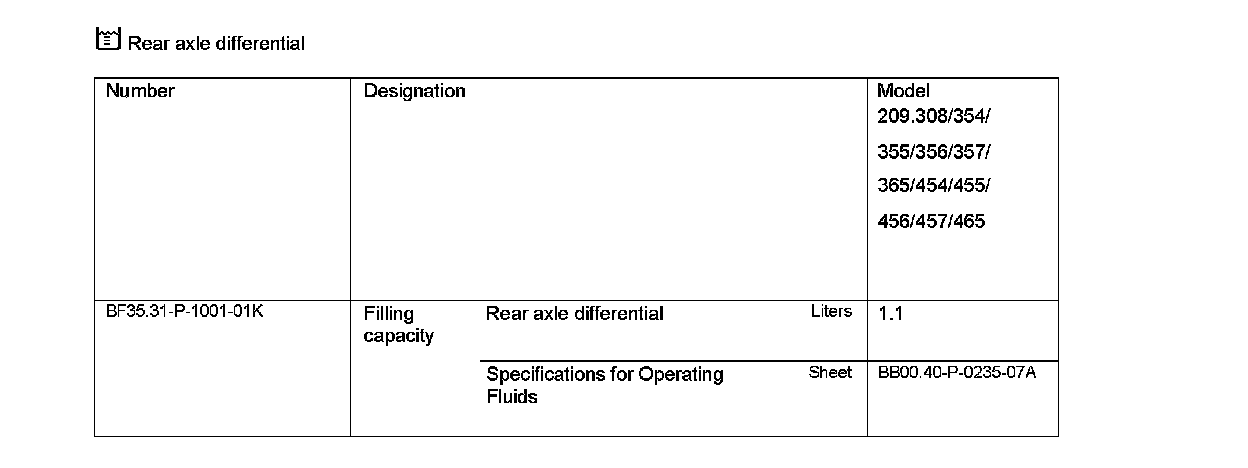

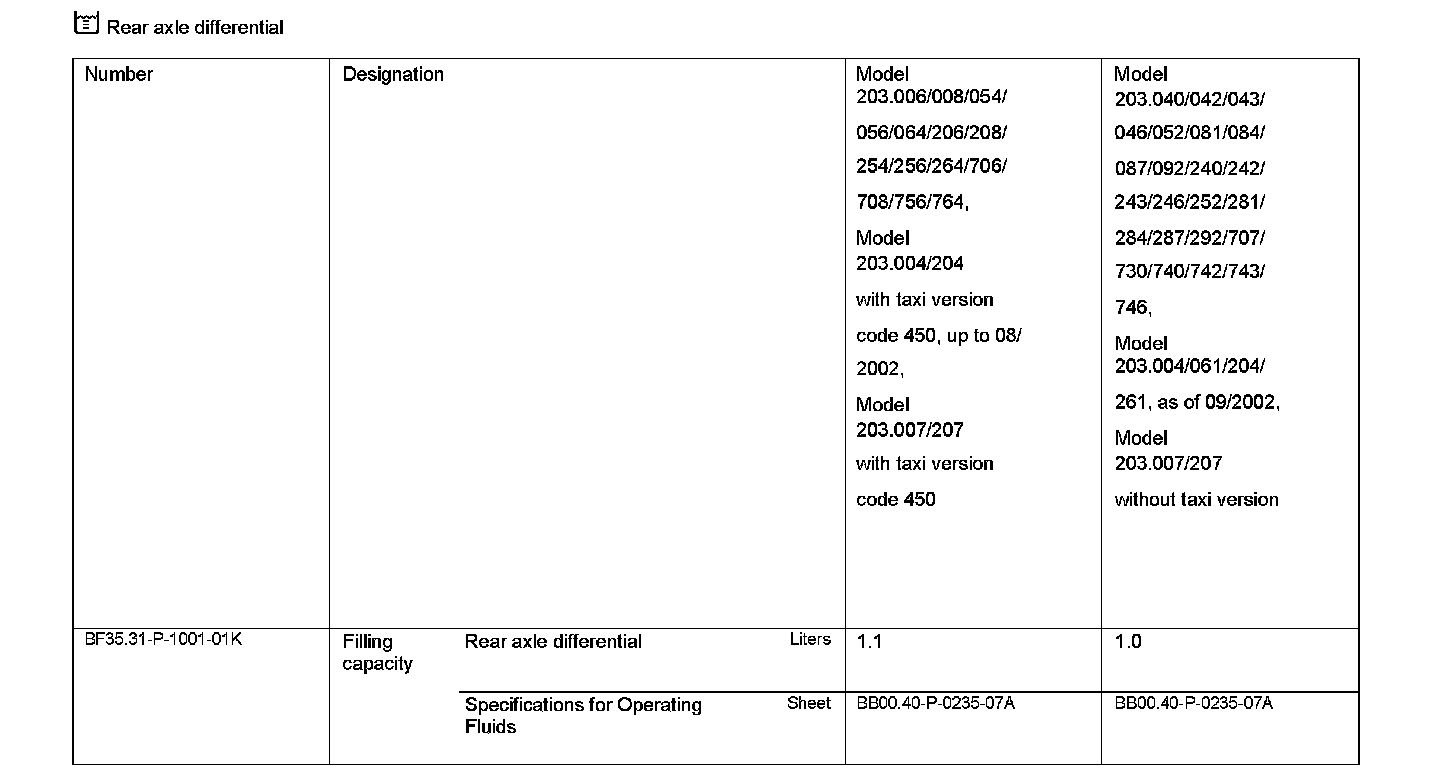

Rear Axle Differential:

Rear Axle Differential:

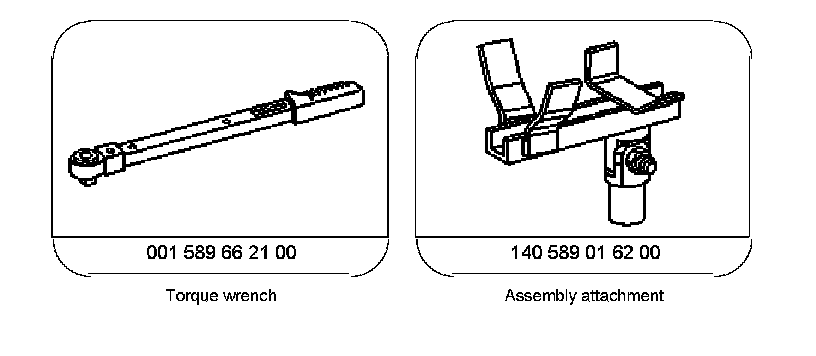

Special Tools:

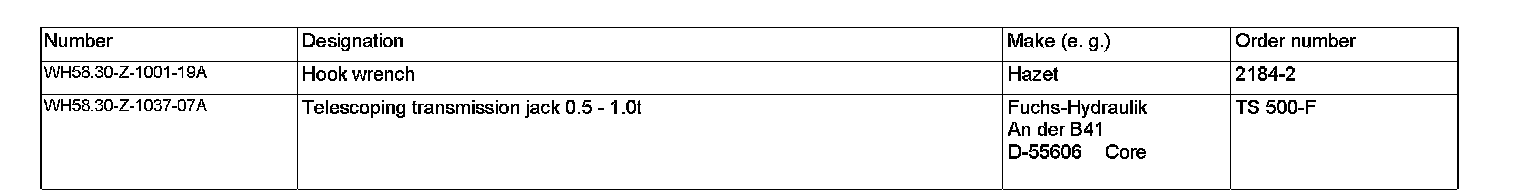

Commercial Available Tools:

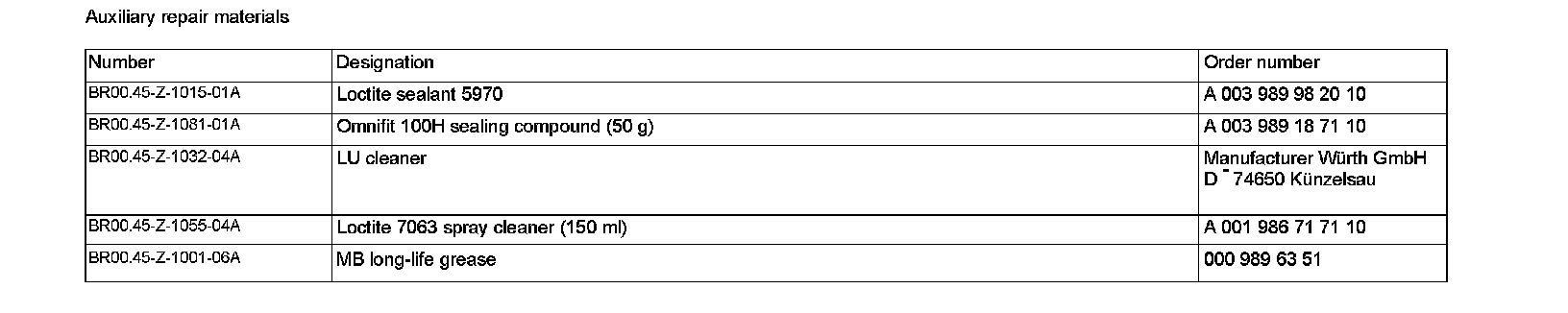

Auxiliary Repair Materials:
