GF26.60-P-4001A Hydraulic Control Unit, Location/Task/Function



GF26.60-P-4001A Hydraulic control unit, location/task/function
- TRANSMISSION 716.6
- with CODE (424) Sequentronic automated manual transmission (SEQ)

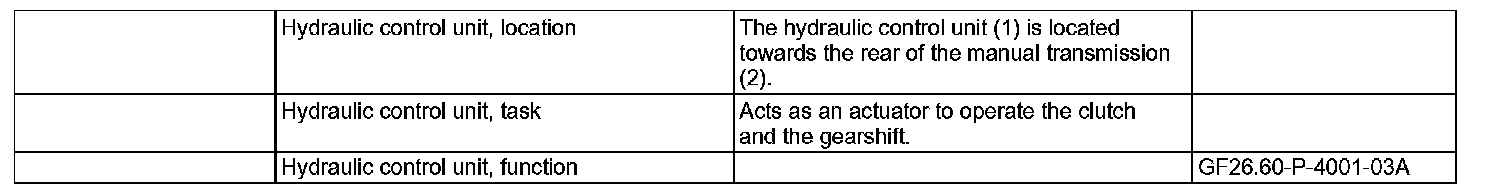

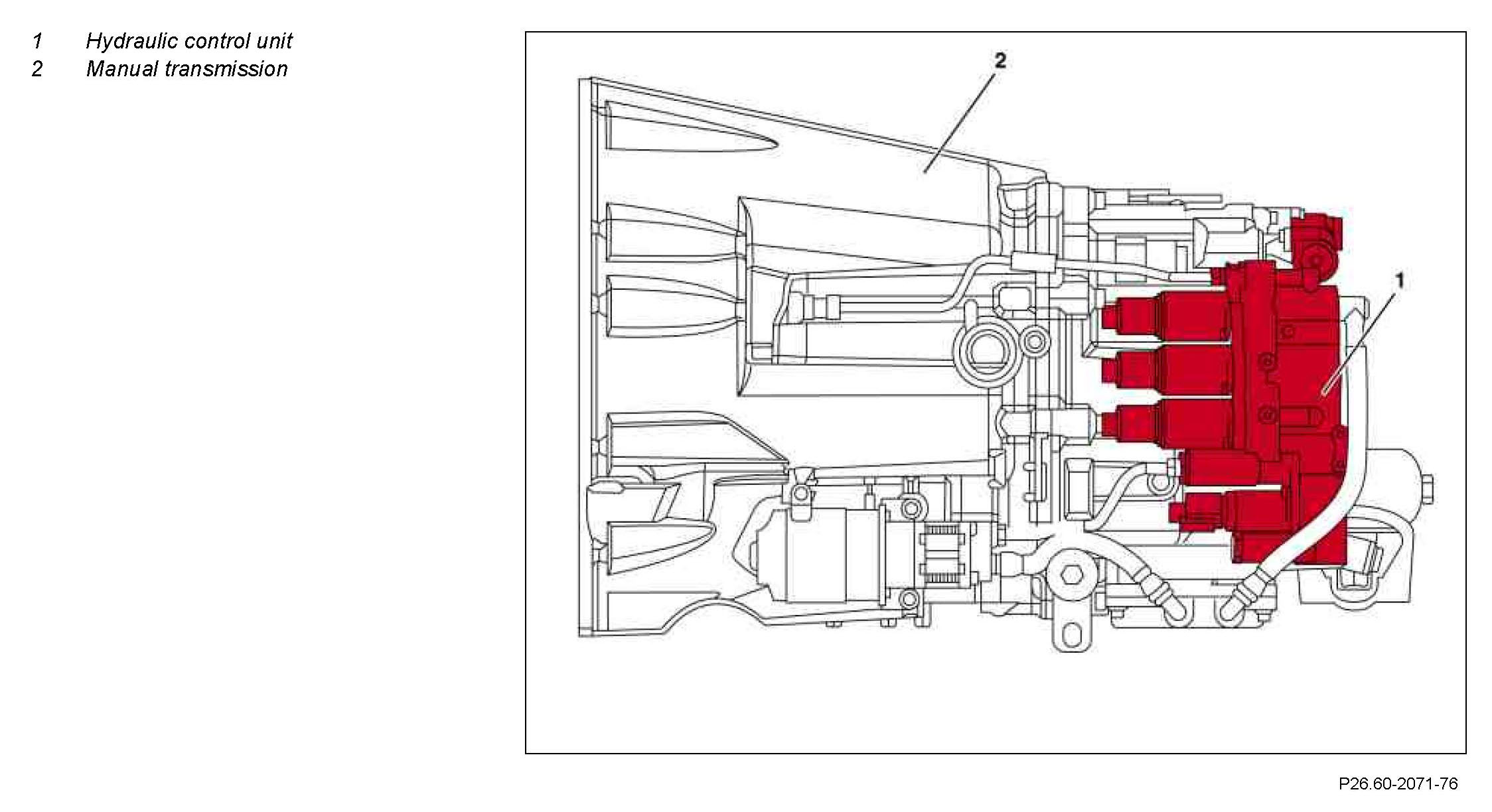

Component Identification:
