AR15.40-P-5012P Test Alternator Fuse
AR15.40-P-5012P Test Alternator Fuse
AR15.40-P-5012P Test
alternator
fuse

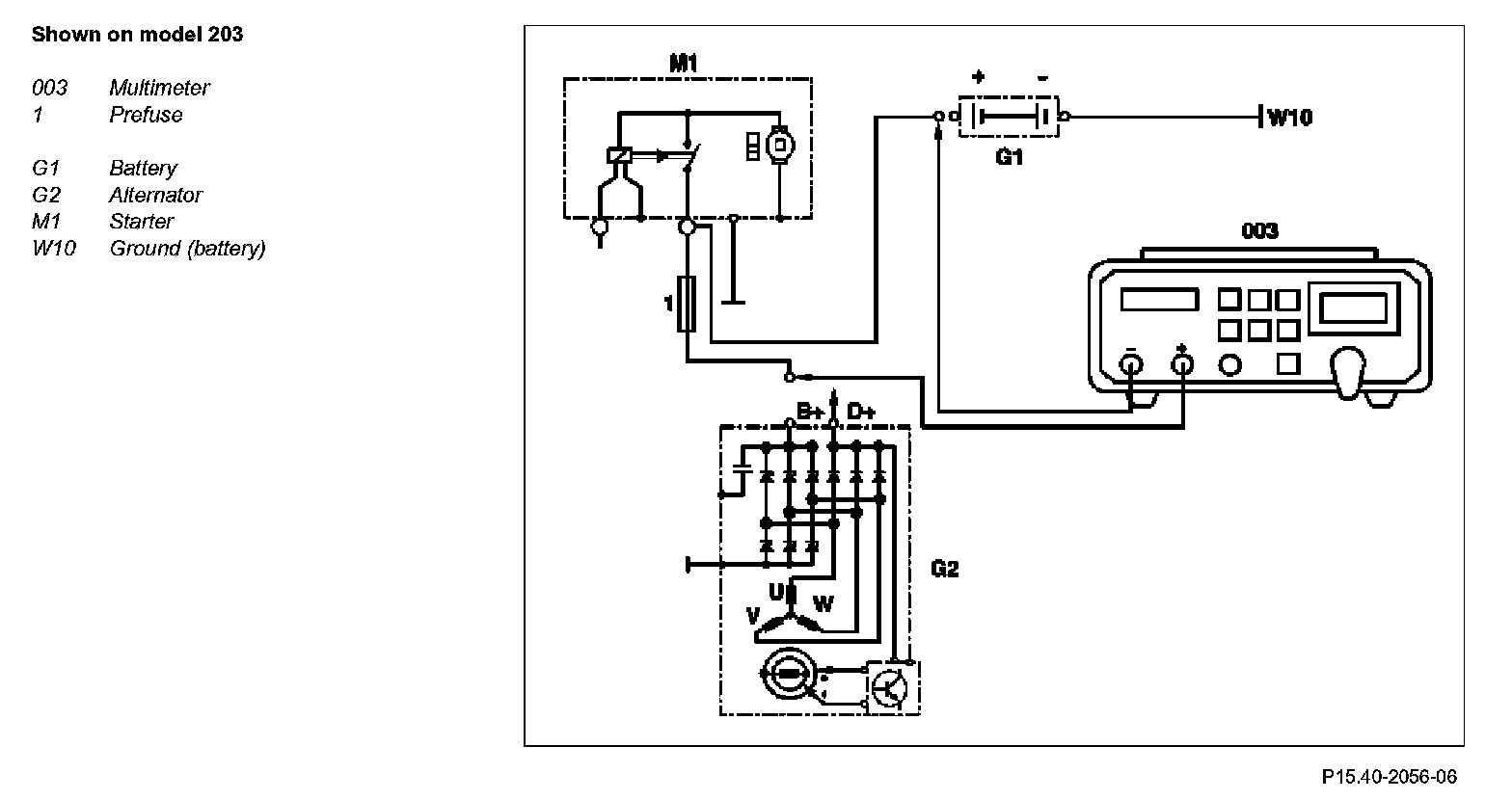

Connection diagram:

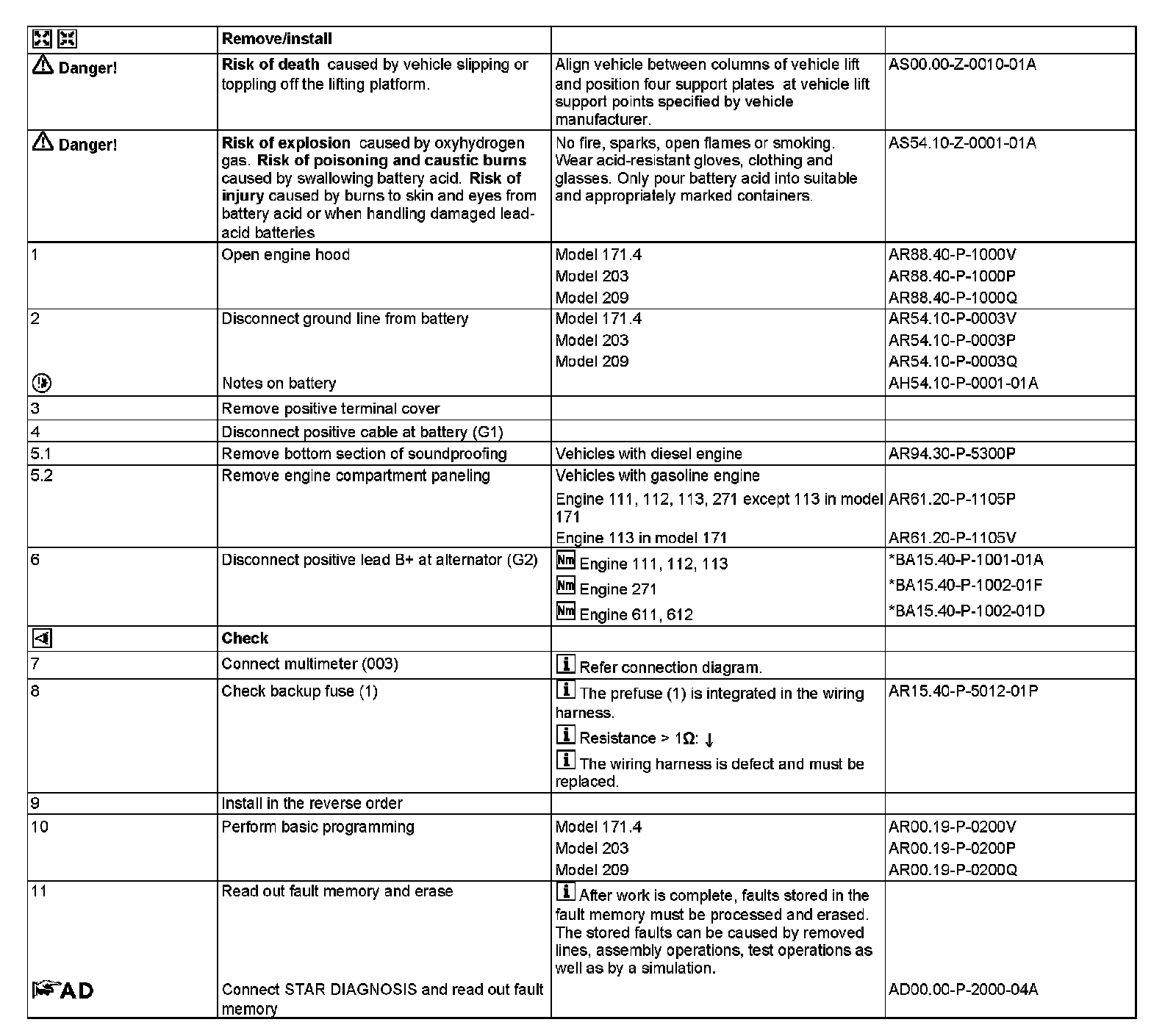

Steps 1-11:

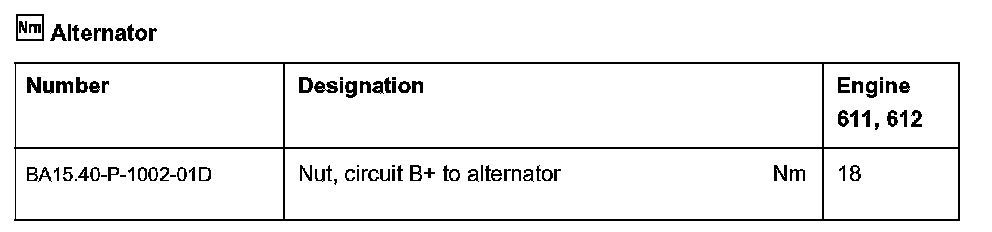

Alternator:

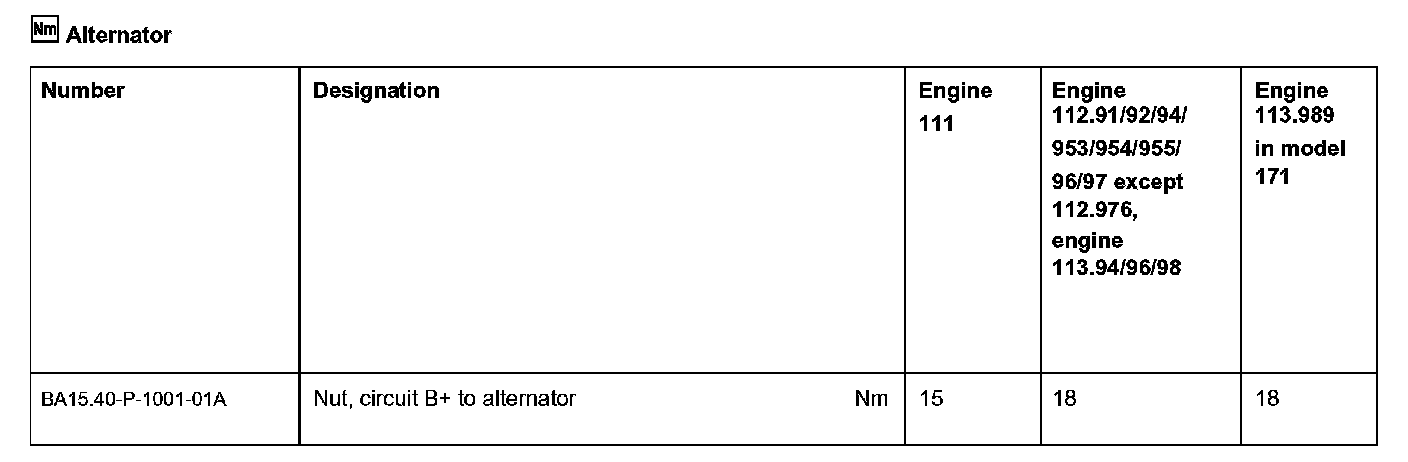

Alternator:

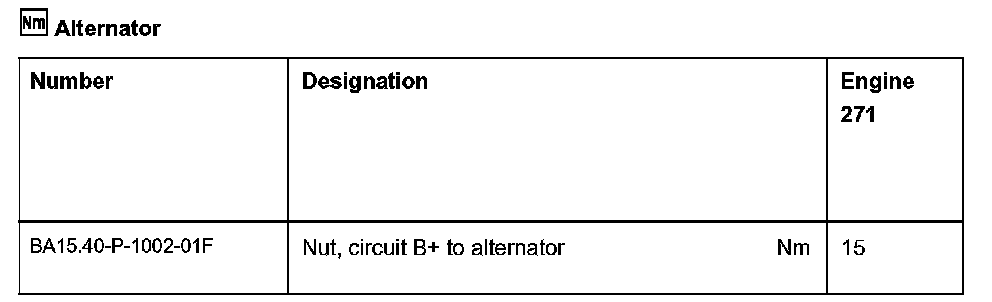

Alternator:
