AN91.45-P-0500PB Retrofit Belt Guide

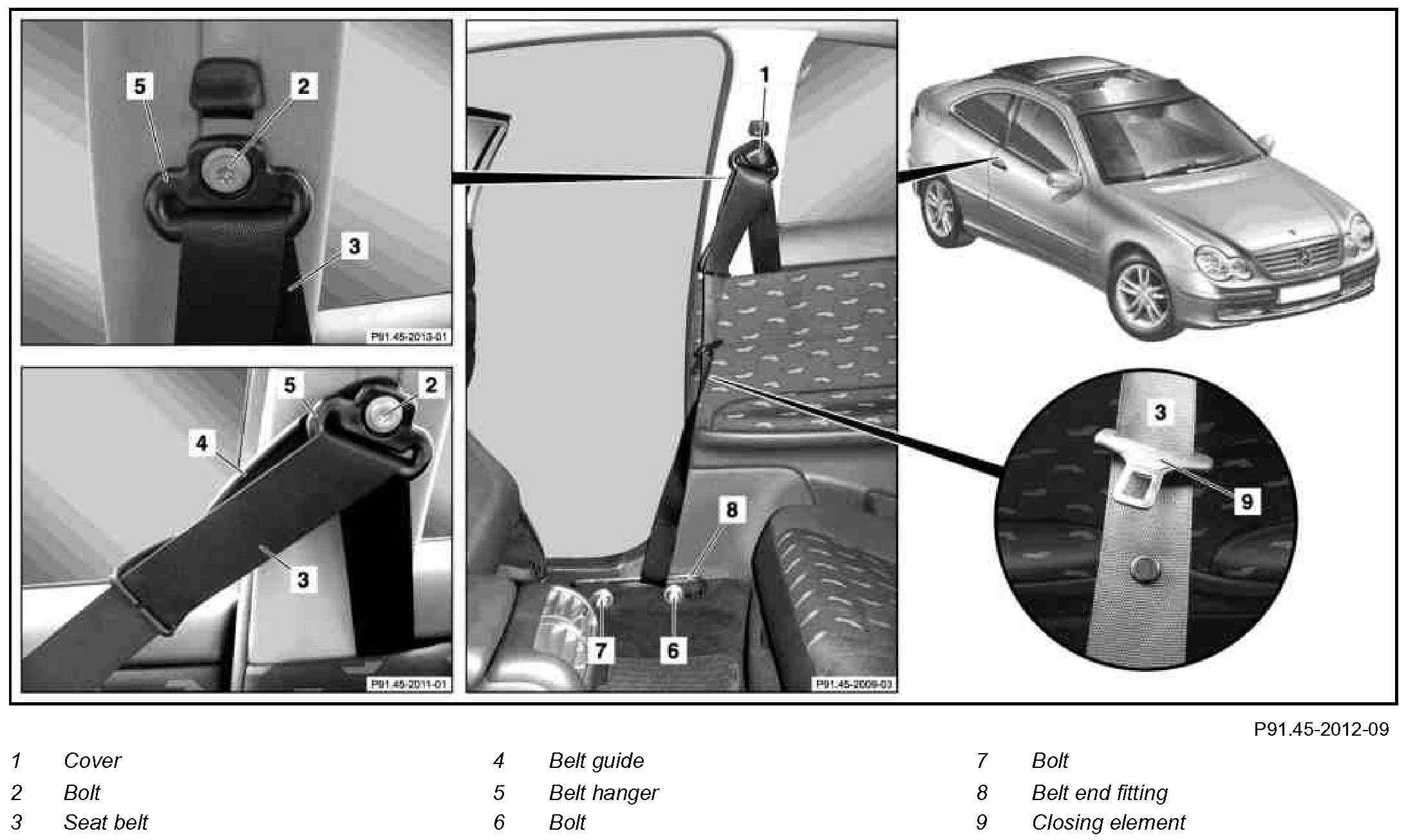

Component Identification:

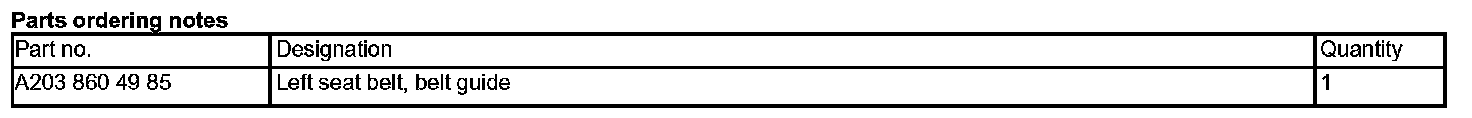

Parts Ordering Notes:

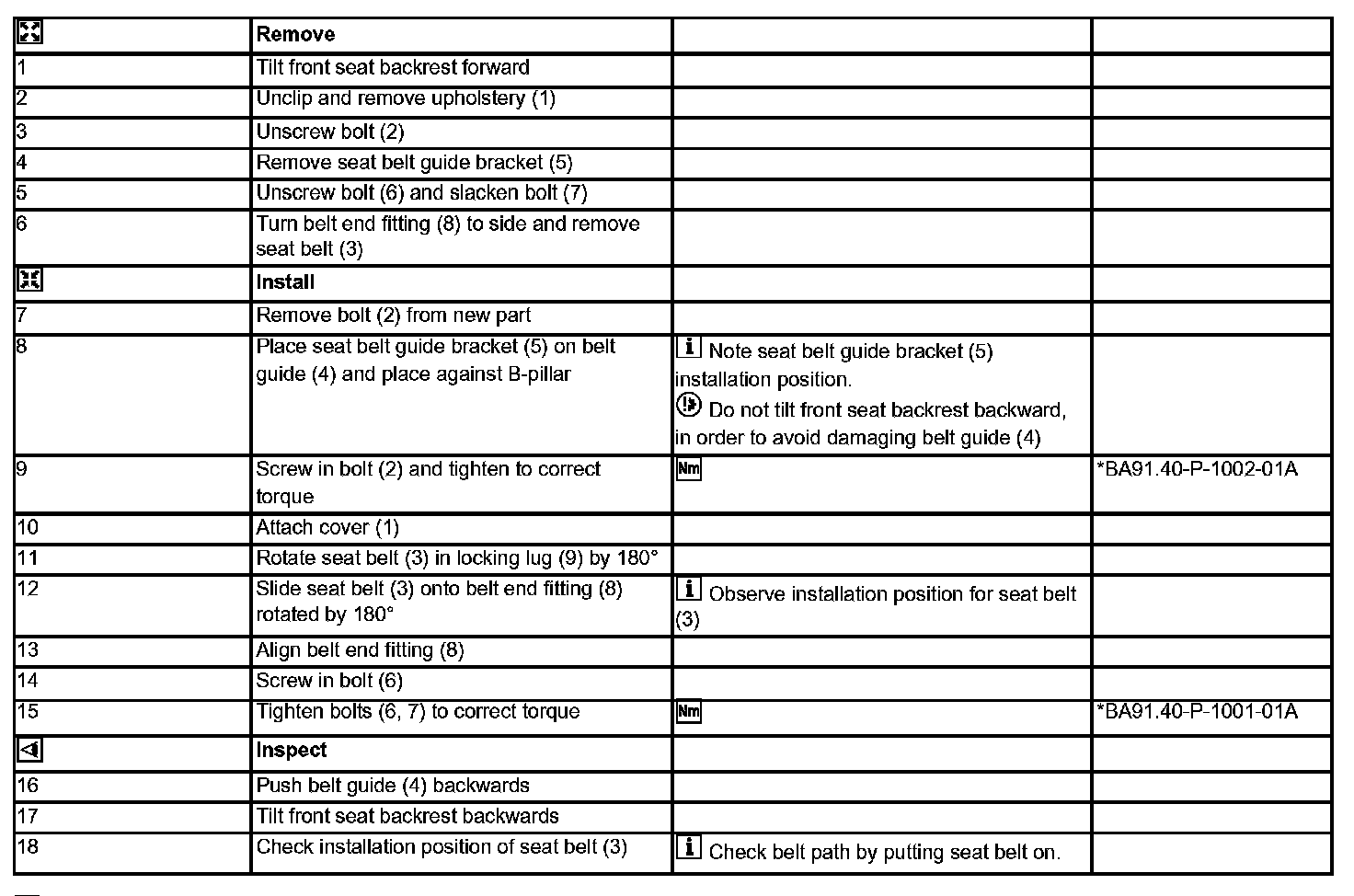

Steps 1 - 18:

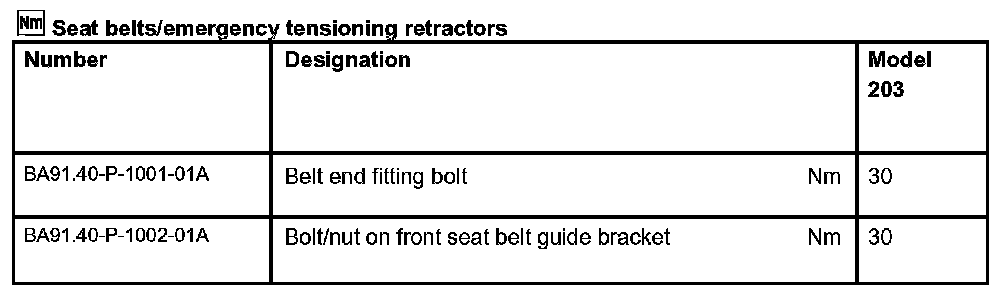

Seat Belts/Emergency Tensioning Retractors:
