AR09.50-P-8841QK Remove/Install Intake and Pressure Connection From Compressor
AR09.50-P-8841QK Remove/Install Intake and Pressure Connection From Compressor

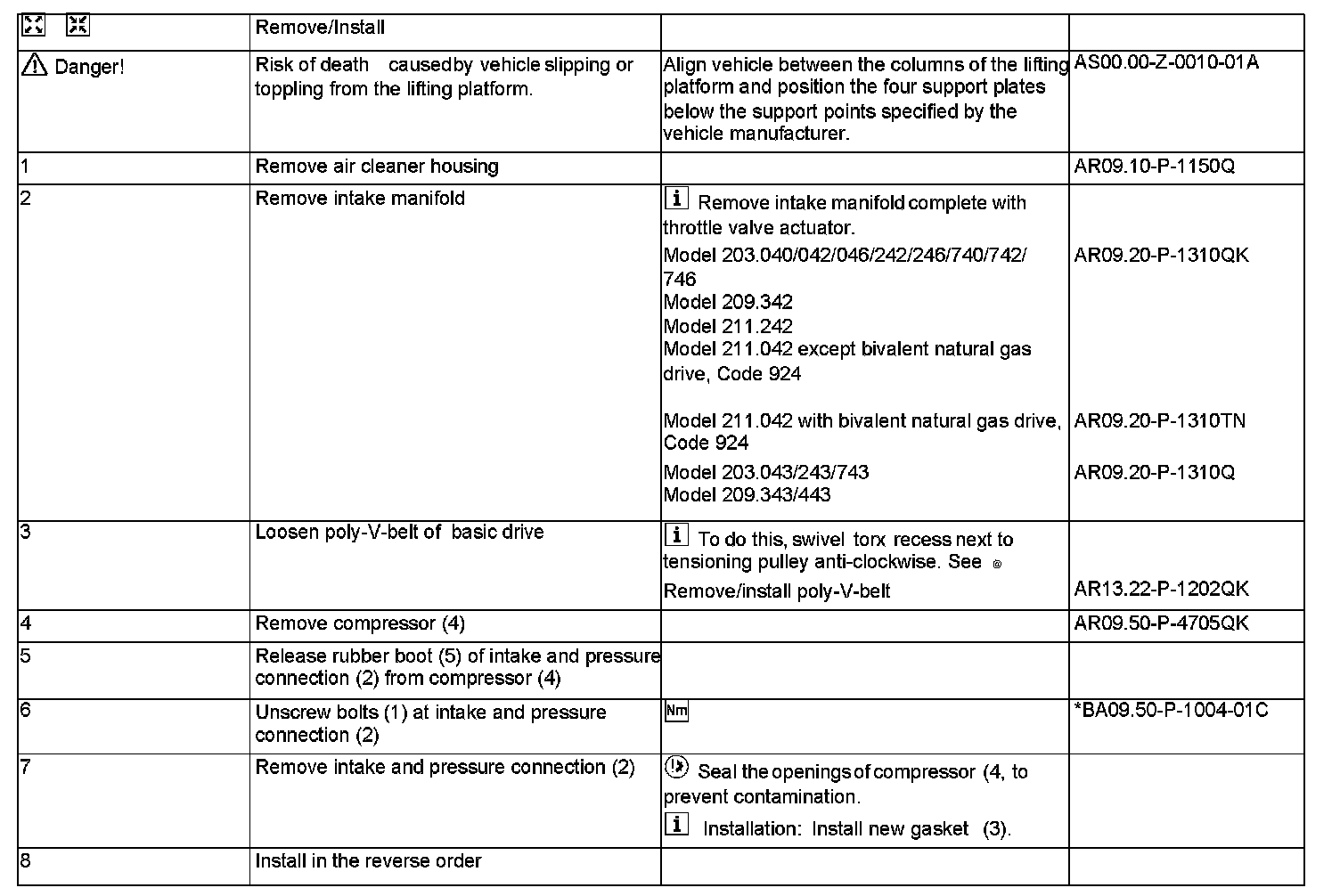

Remove/Install Intake And Pressure Connection From Compressor

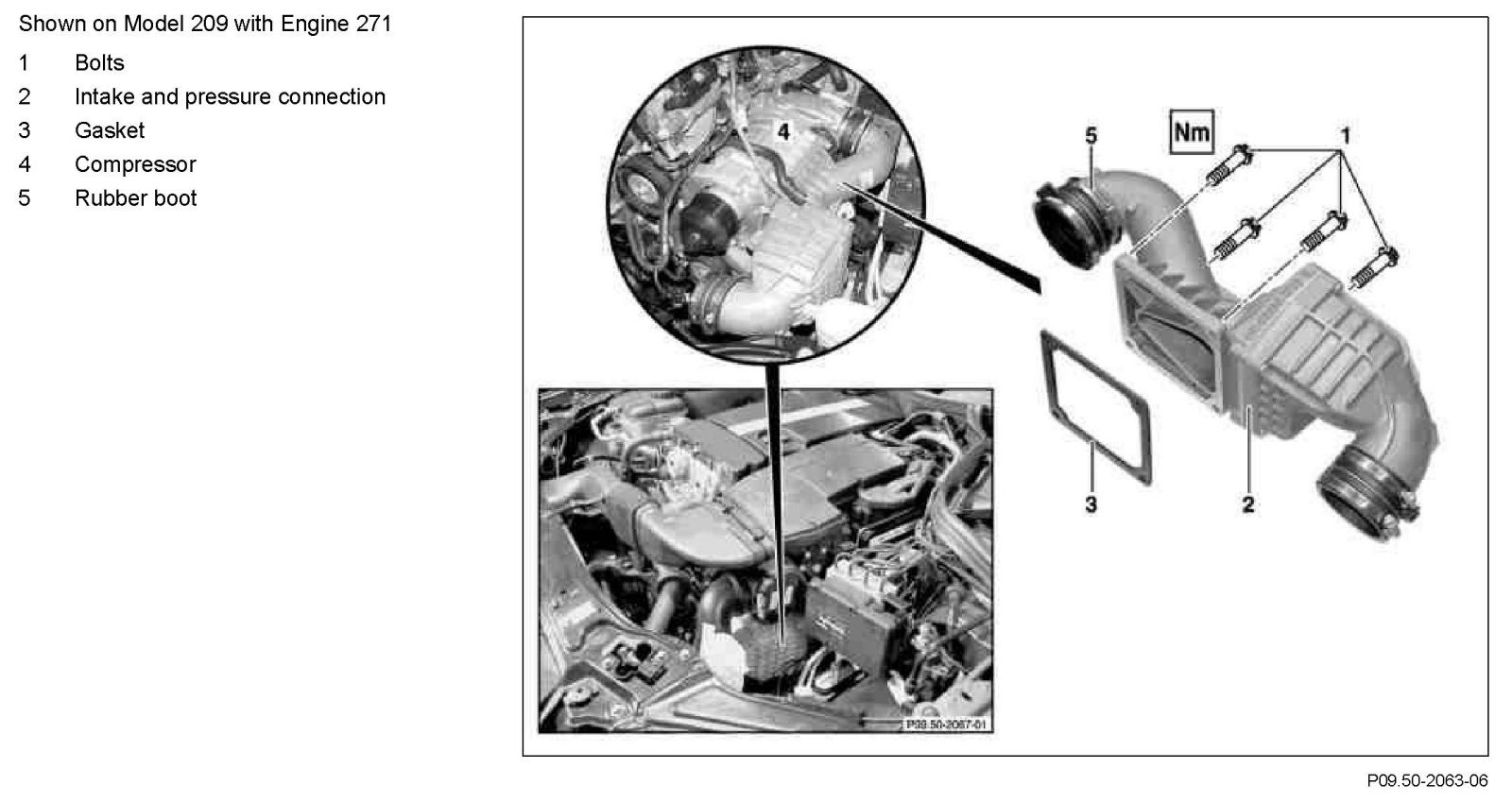

Compressor
Compressor:
