Fuel Rail: Service and Repair

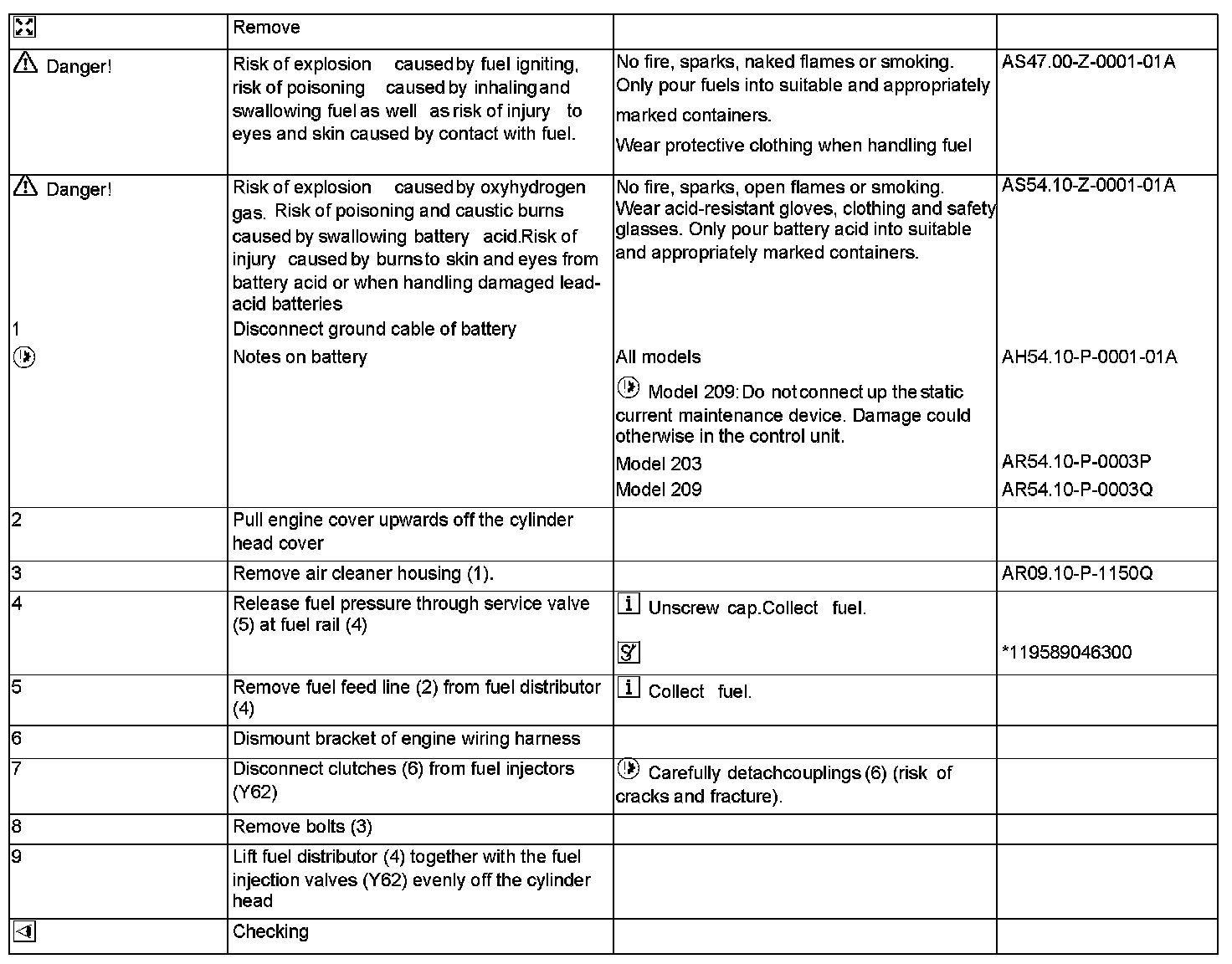

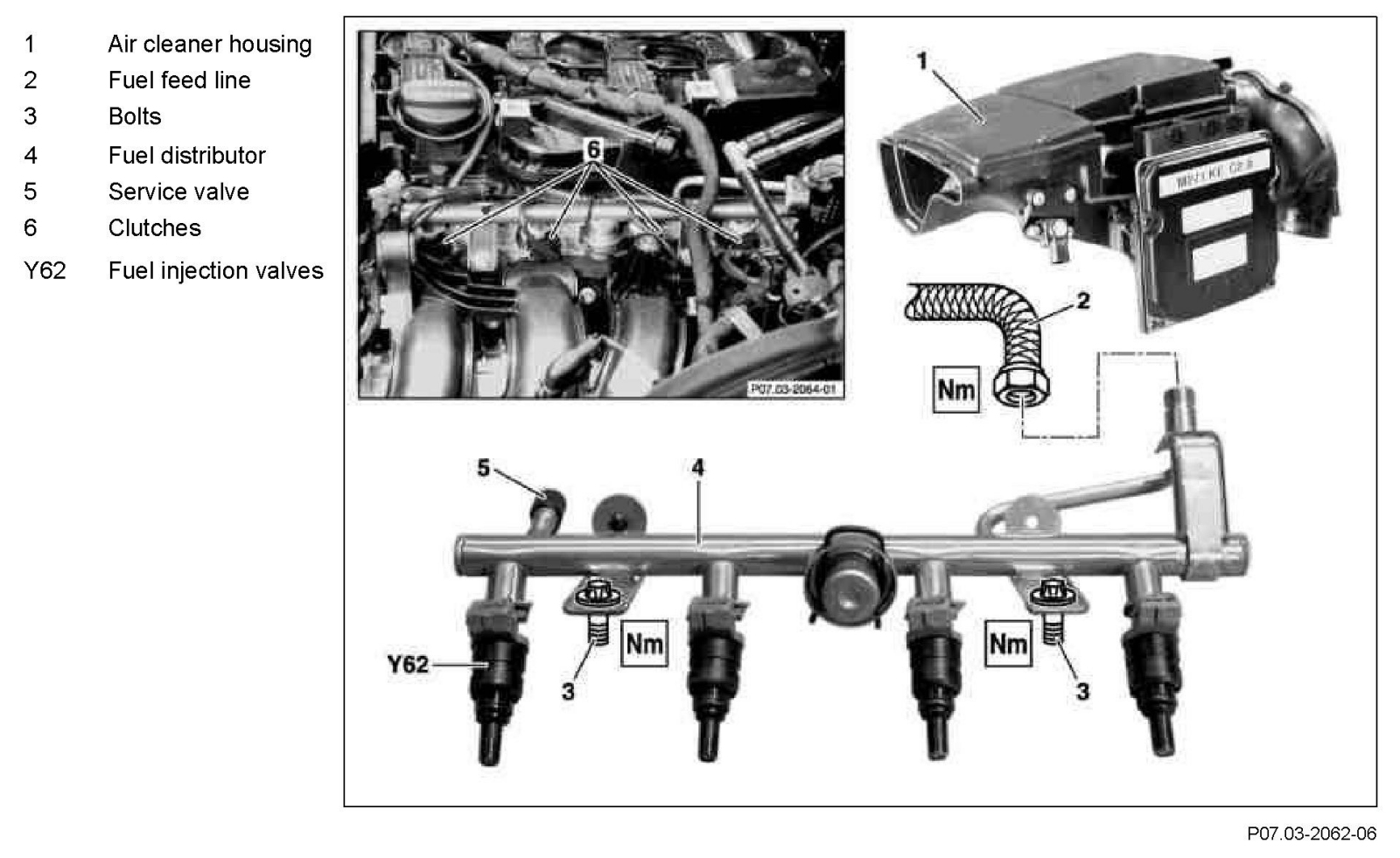

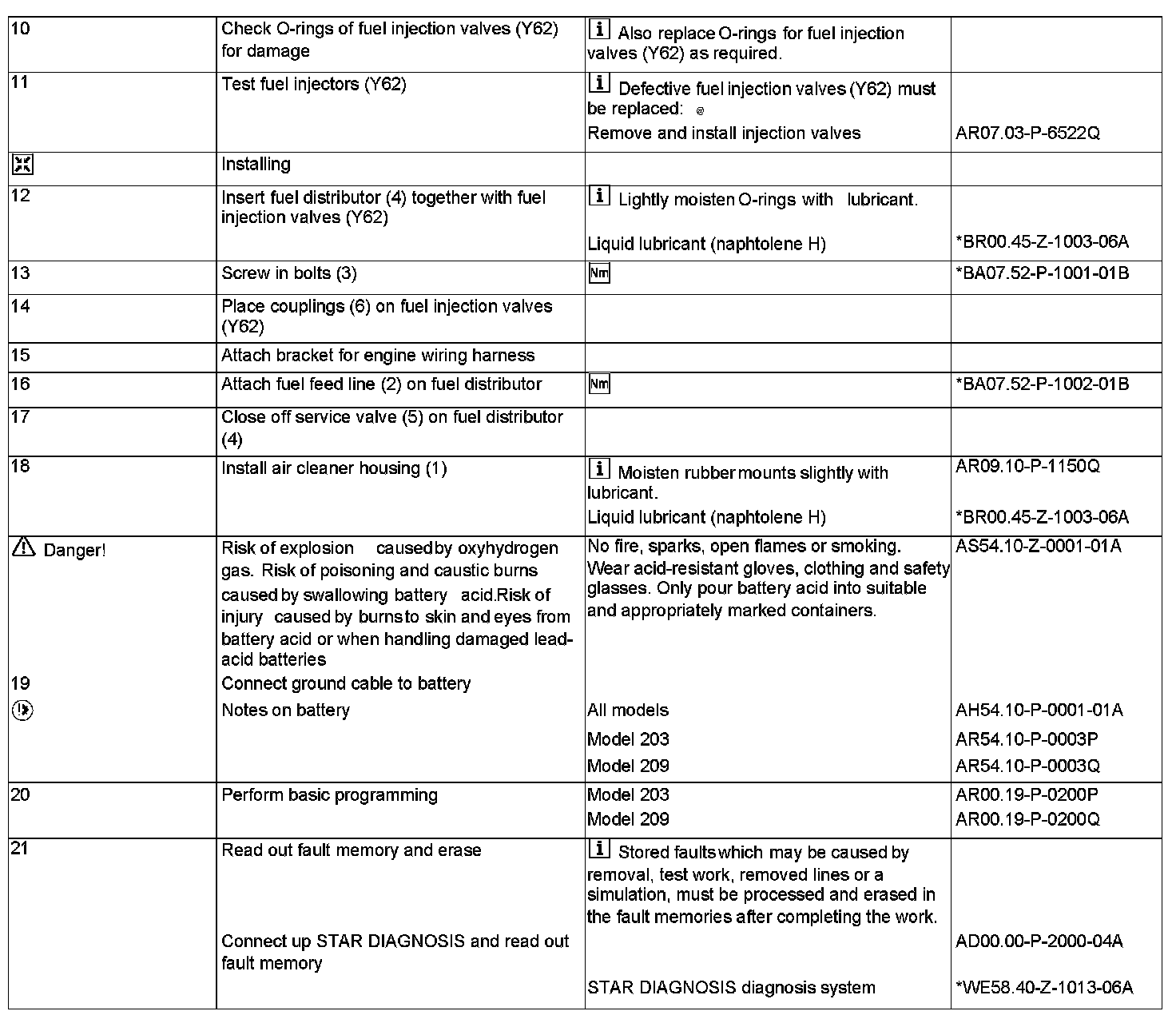

Removing Fuel Distributor With Injection Valves





Part 1:




Part 2:

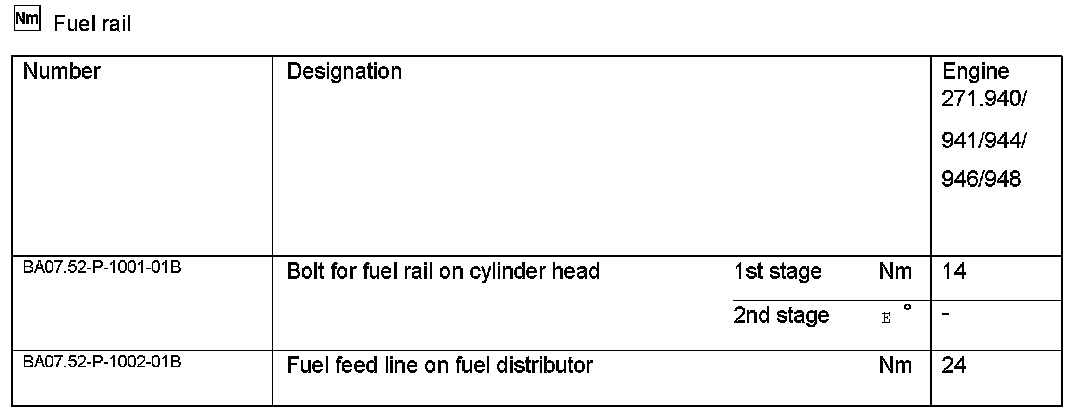

Fuel Rail


Fuel Rail:
