Home >> Mercedes Benz >> 2003 >> C 230 CL (203.740) L4-1.8L SC (271.948) >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Electronic Throttle Actuator >> Service and Repair >> AR07.61-P-1401QK Remove/Install Throttle Valve Actuator

AR07.61-P-1401QK Remove/Install Throttle Valve Actuator

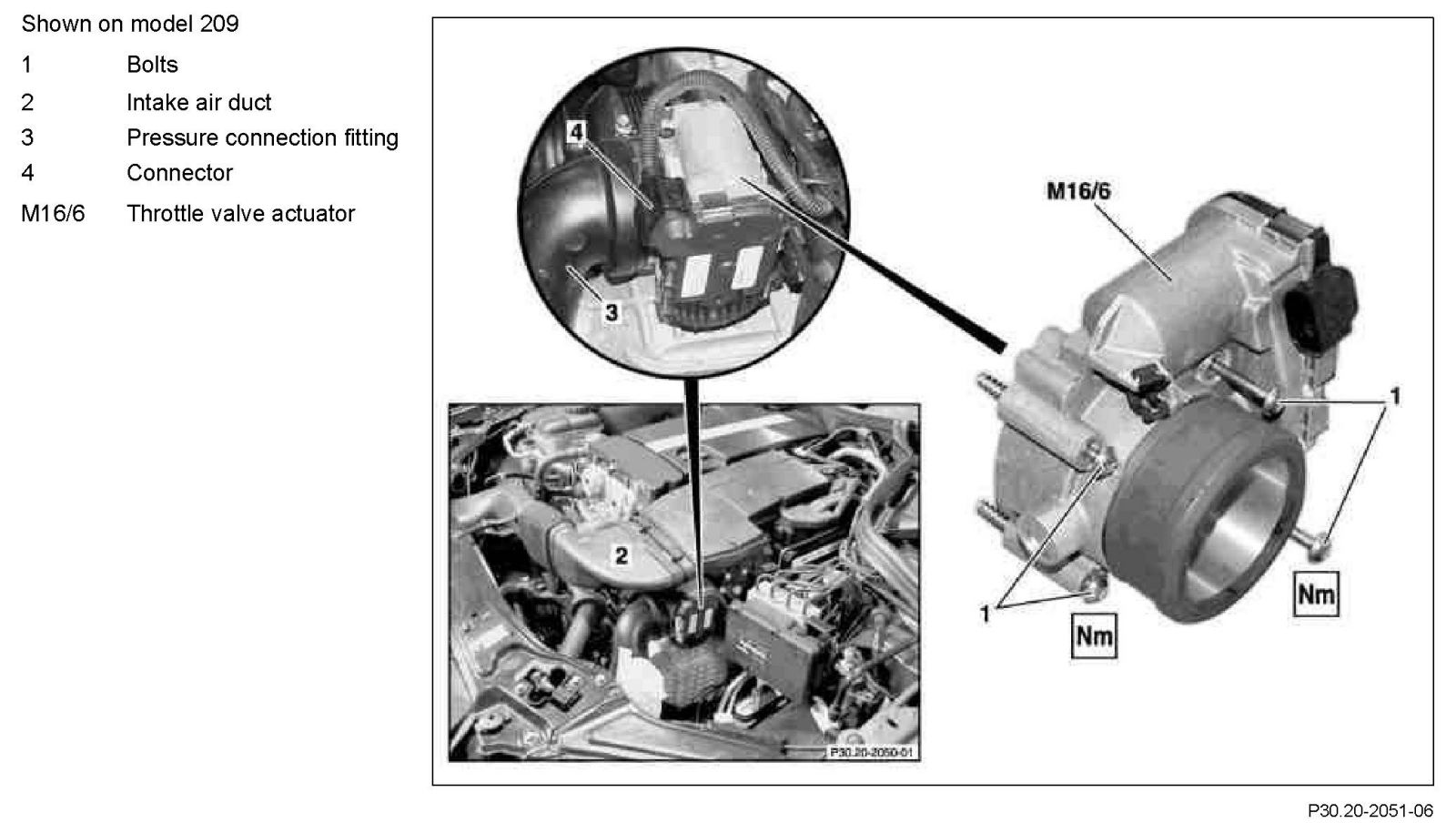

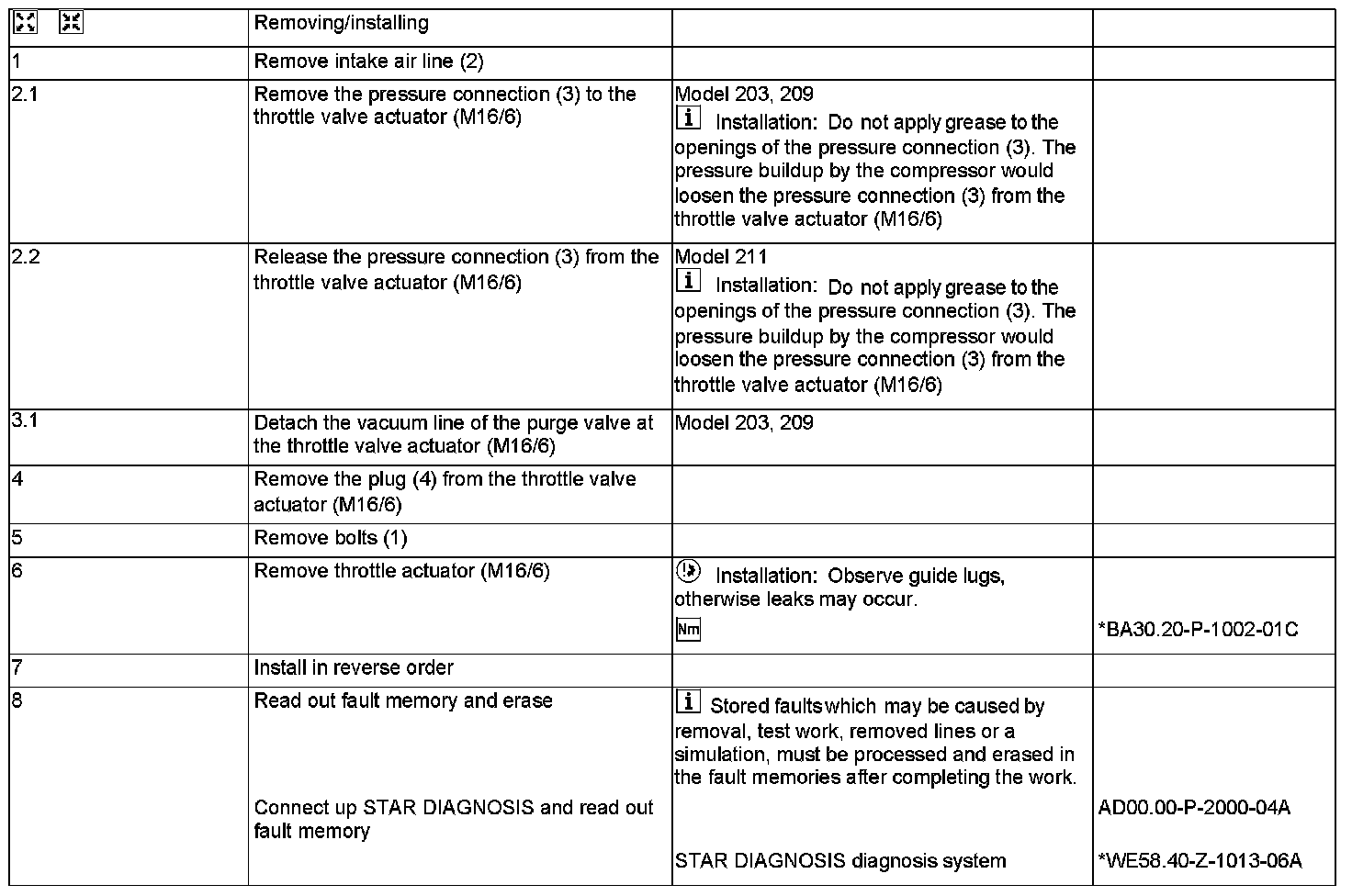

Removing/Installing The Throttle Valve Actuator

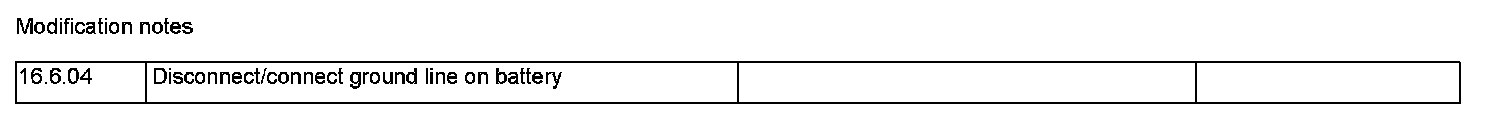

Modification Notes


Modification Notes:

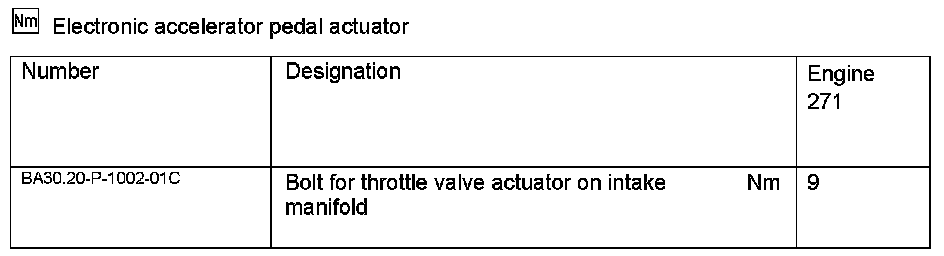

Electronic Accelerator Pedal Actuator


Electronic Accelerator Pedal Actuator:
