AR54.20-P-2360P Remove, Install Module Box

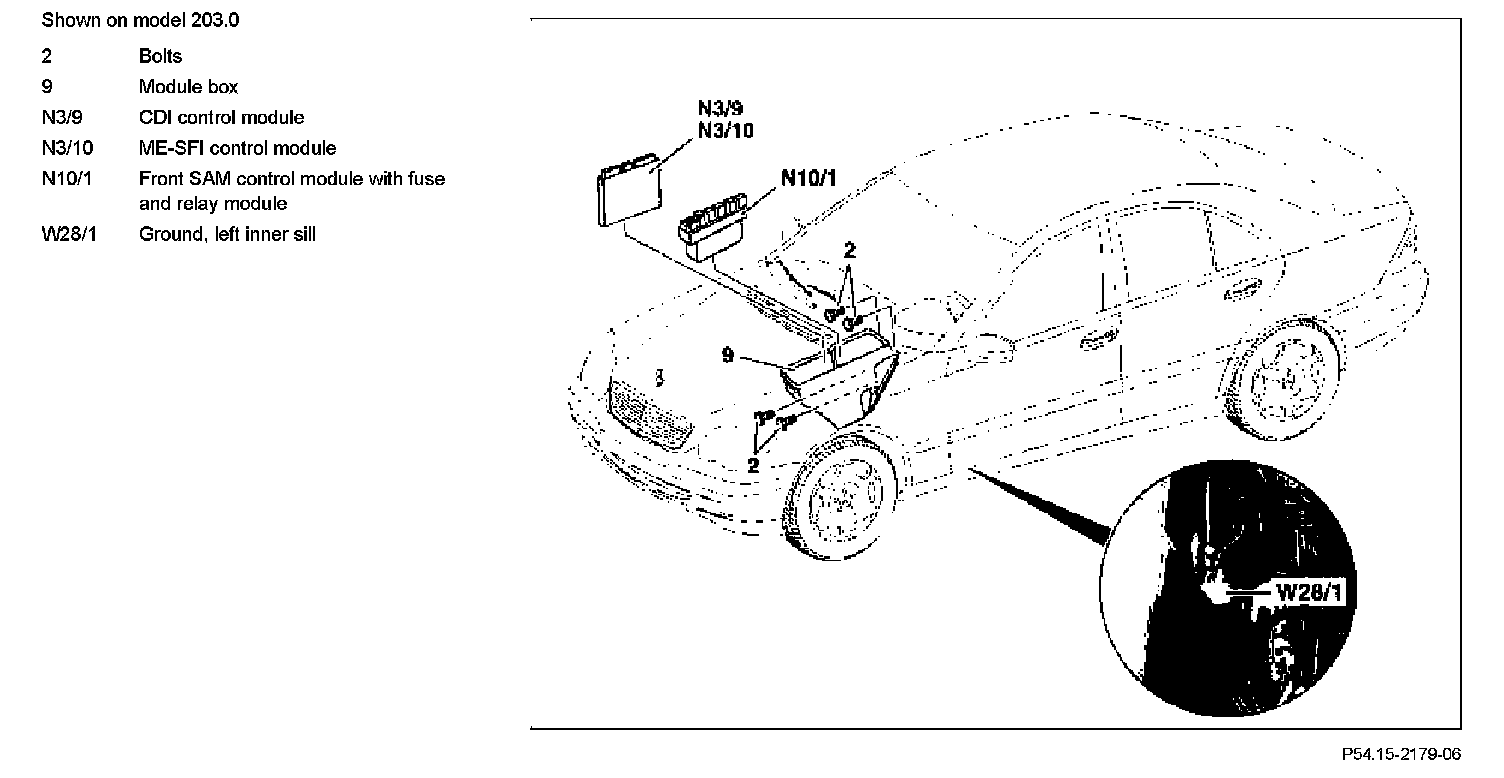

Component Identification:

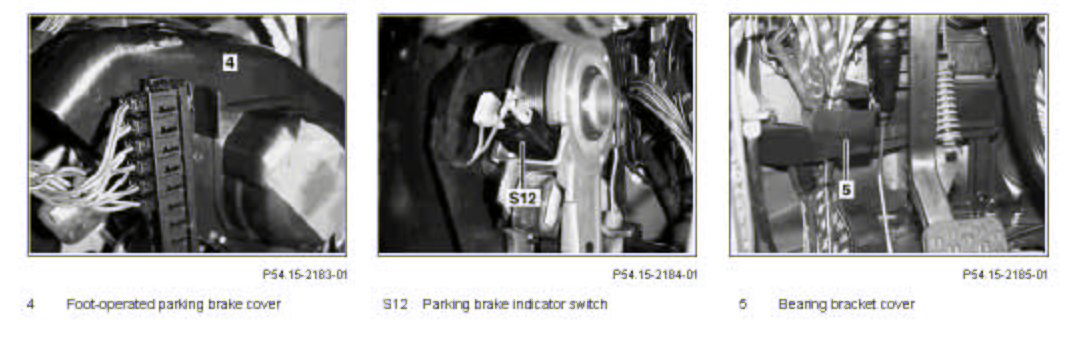

Component Identification:

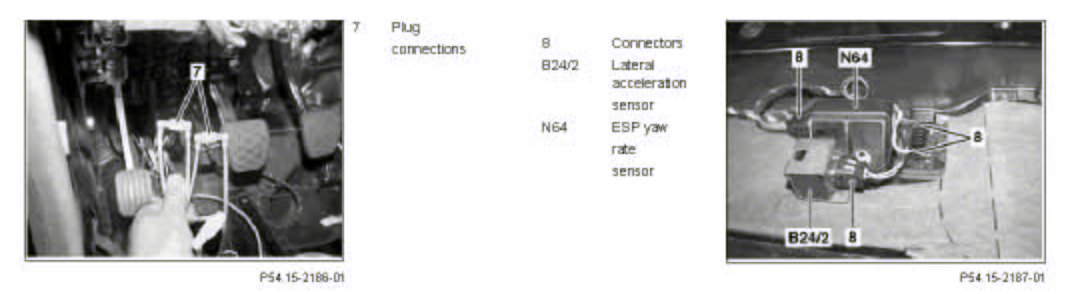

Component Identification:

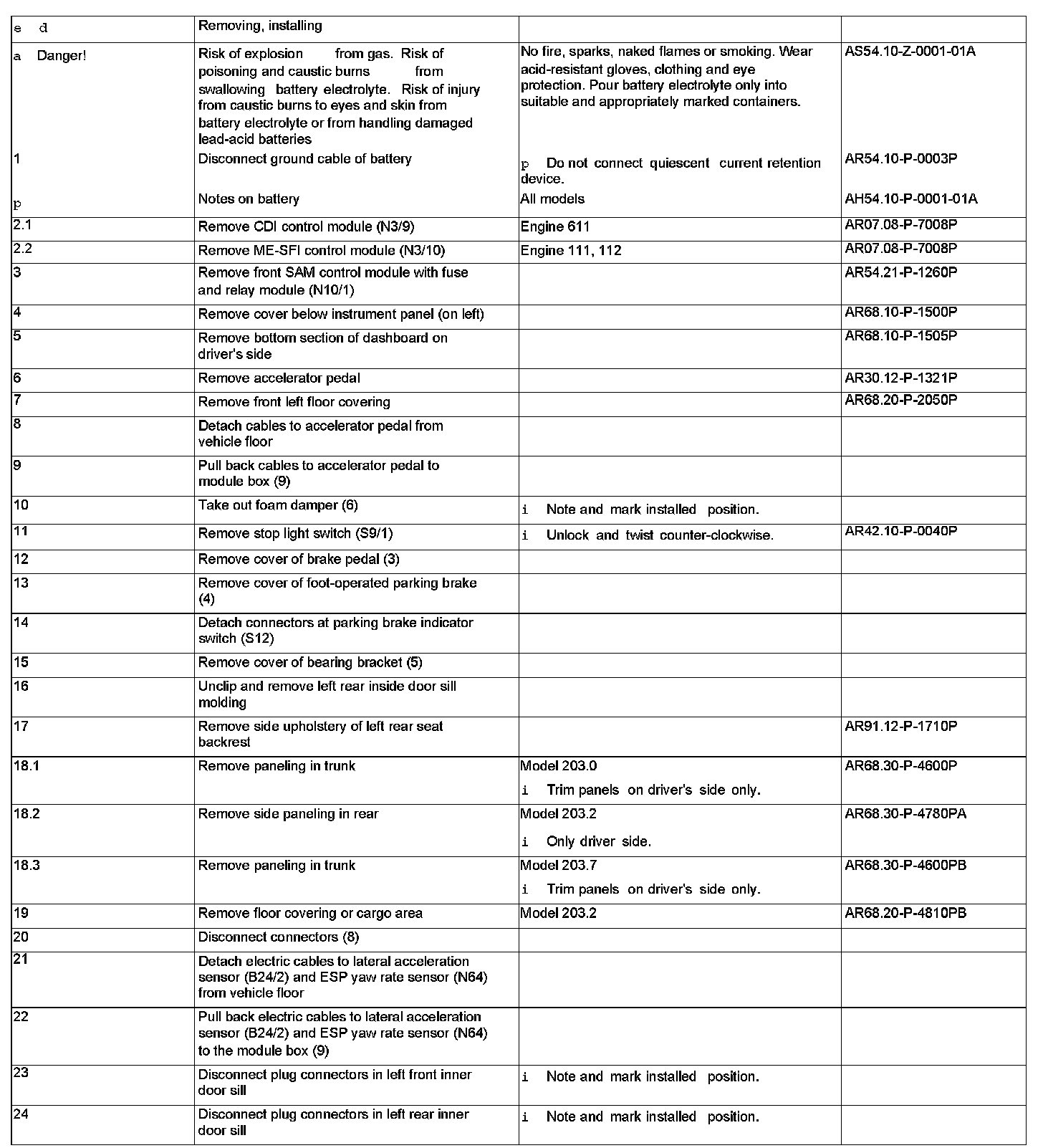

Steps 25 - 36:
