Home >> Mercedes Benz >> 2003 >> C 230 CL (203.740) L4-1.8L SC (271.948) >> Repair and Diagnosis >> Heating and Air Conditioning >> Receiver Dryer >> Service and Repair >> AR83.30-P-6521PA Remove/Install Drier Cartridge

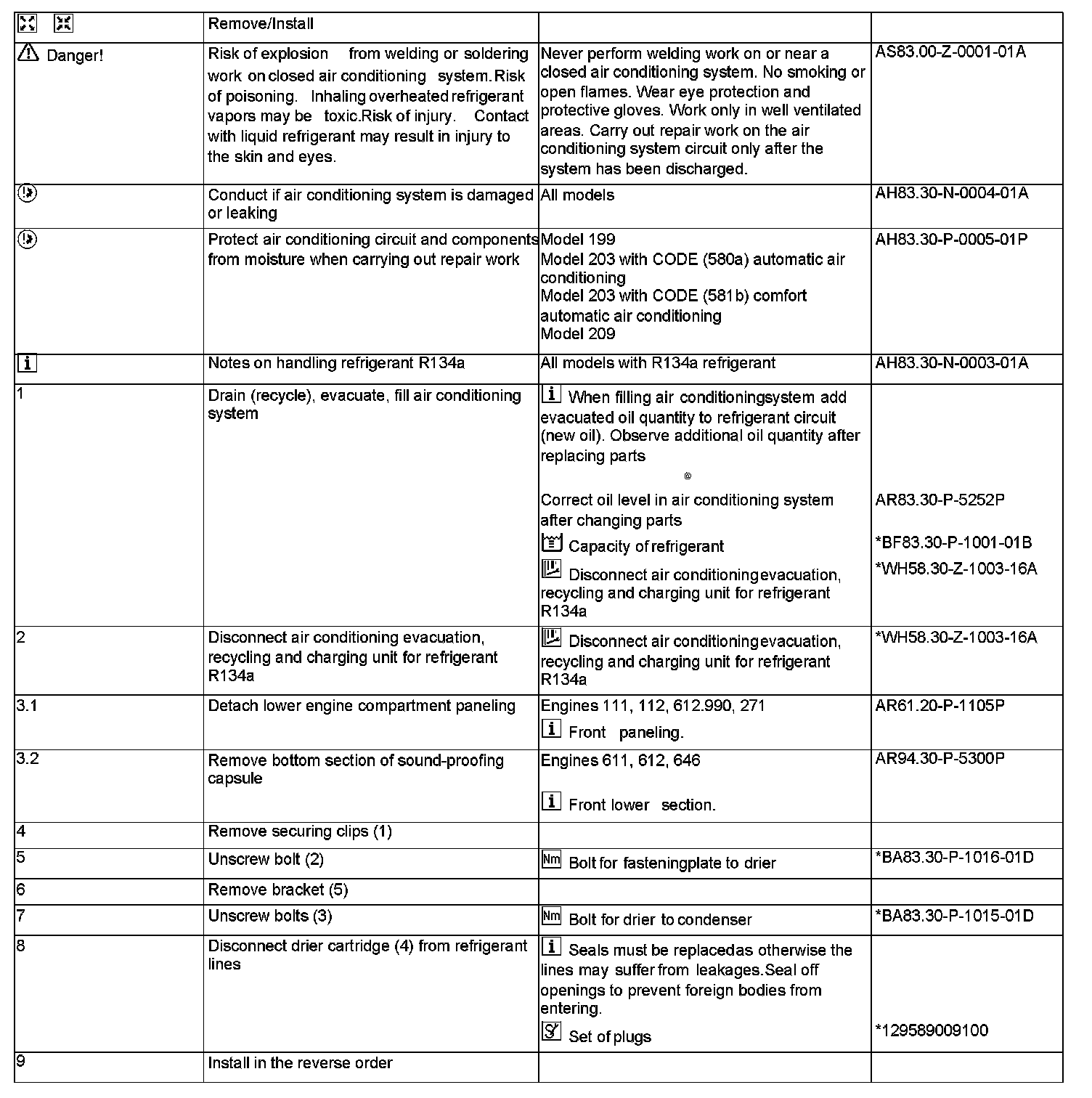

AR83.30-P-6521PA Remove/Install Drier Cartridge



AR83.30-P-6521PA Remove/Install Drier Cartridge

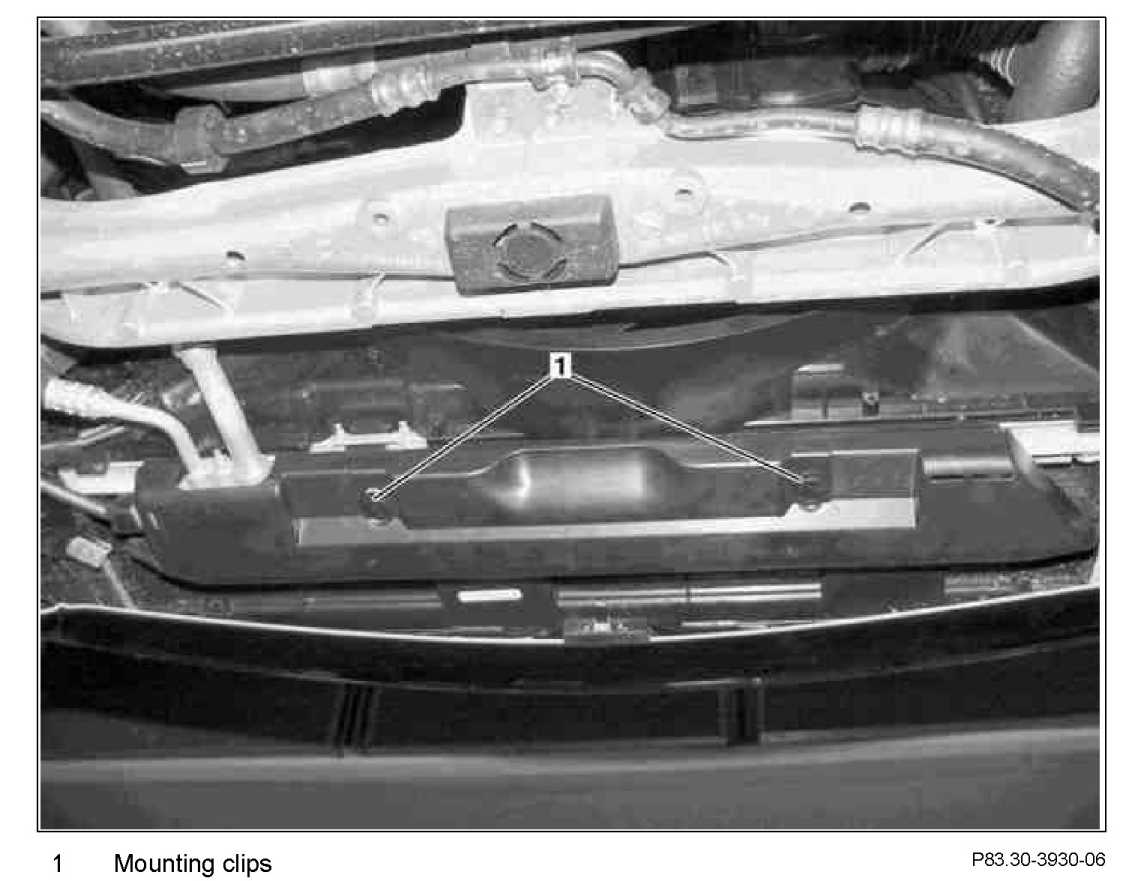

- Desiccant cartridge underneath

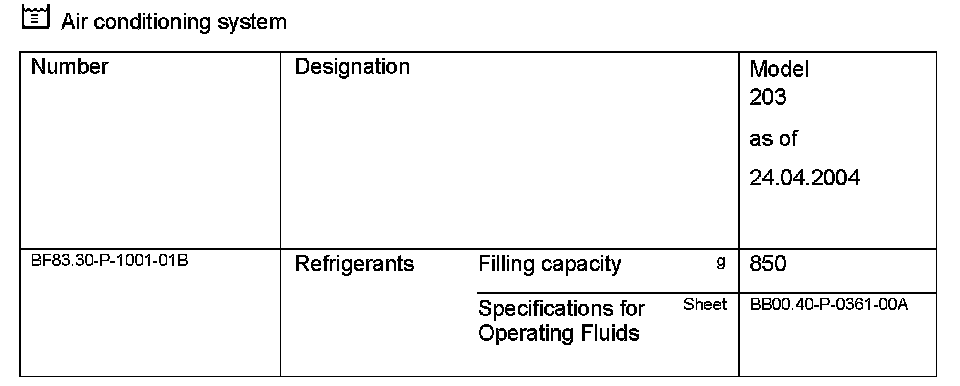

Air Conditioning System:






Air Conditioning System:
