AR03.20-P-1200Q Remove/Install Timing Chain of Lanchester Balancer

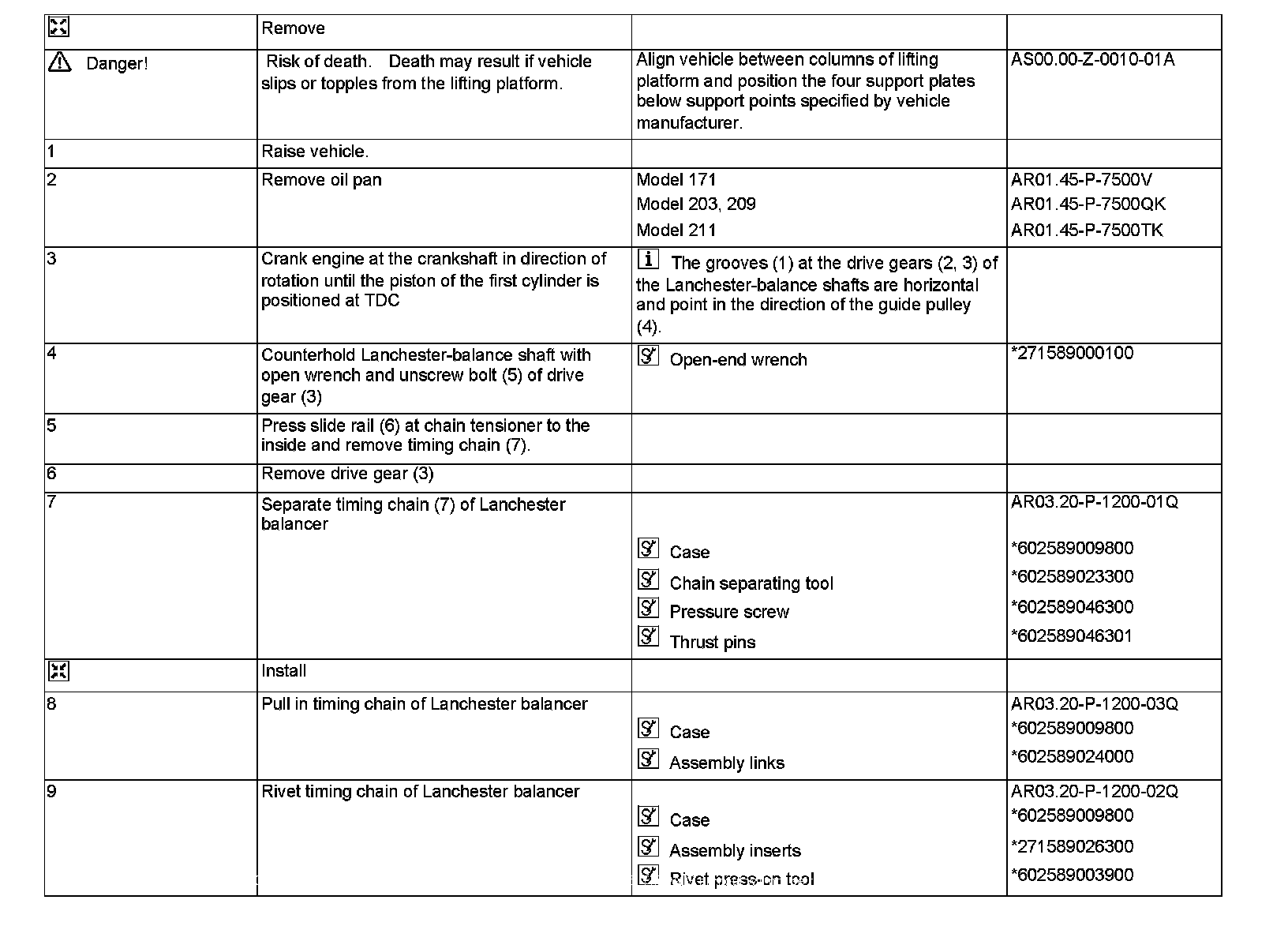

Remove/install timing chain of Lanchester balancer
