Engine Oil Pressure: Testing and Inspection



AR18.00-P-1250QK Test oil pressure

Component Identification:

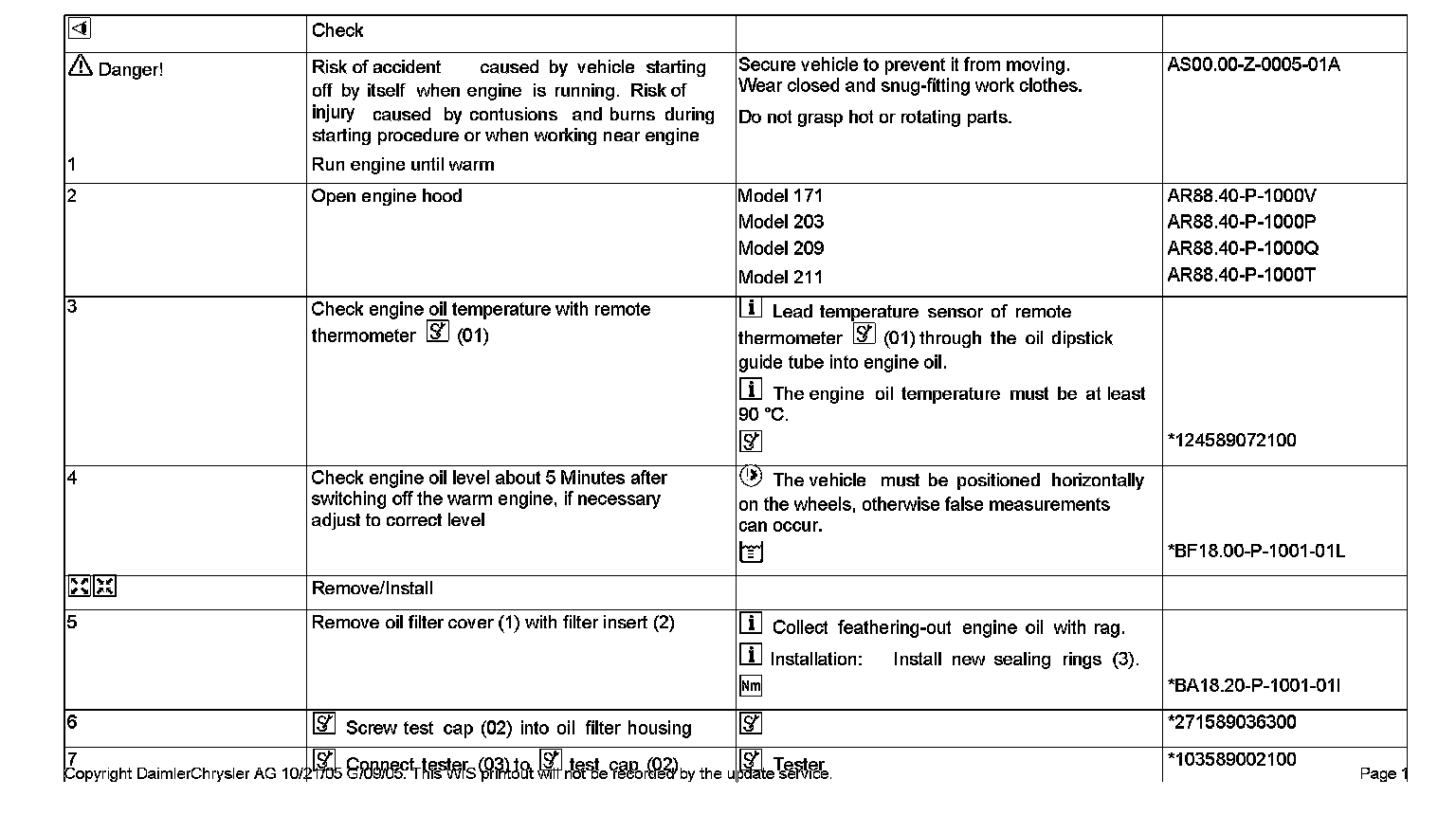

Steps 1-7:

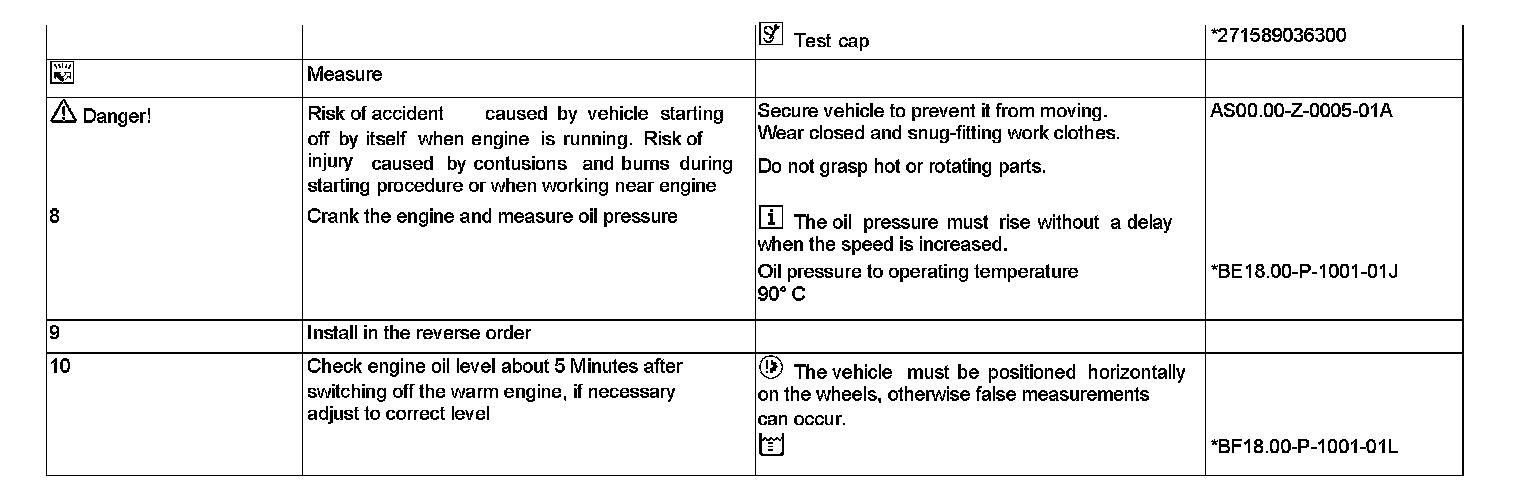

Steps 8-10:

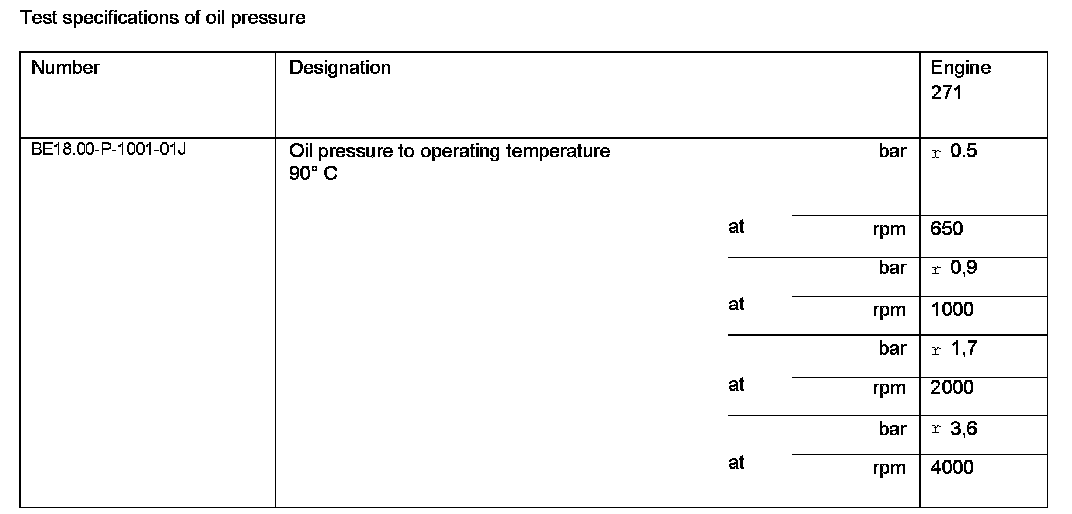

Test Specifications Of Oil Pressure:

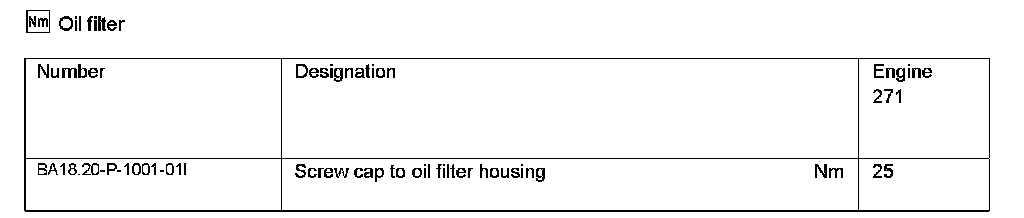

Oil Filter:

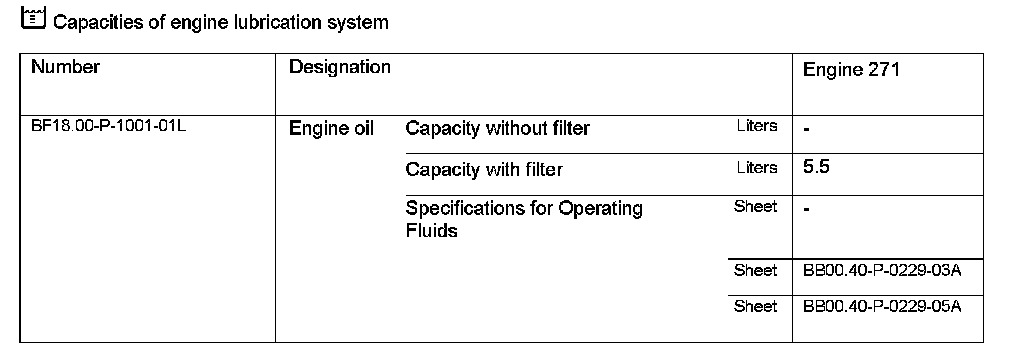

Capacities Of Engine Lubrication System:




Special Tools:
