AR88.70-P-9040PC Remove/Install Outside Mirror Trim
AR88.70-P-9040PC Remove/Install Outside Mirror Trim
AR88.70-P-9040PC Remove/Install Outside Mirror Trim

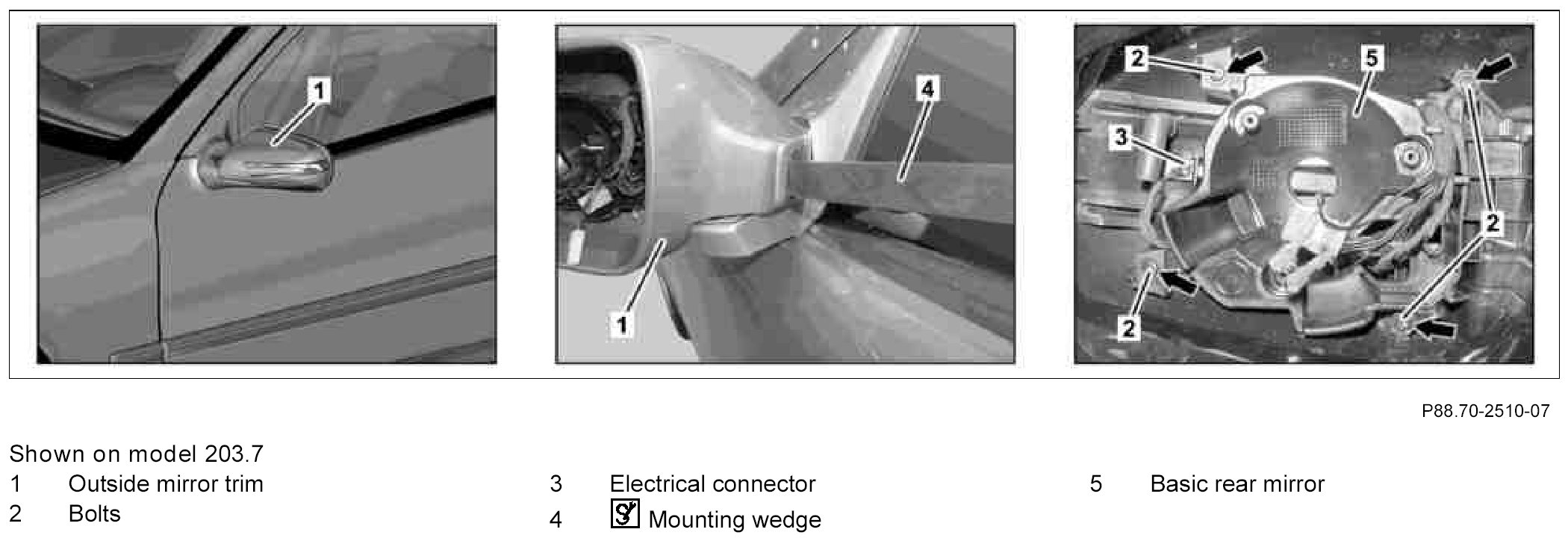

Component Identification:

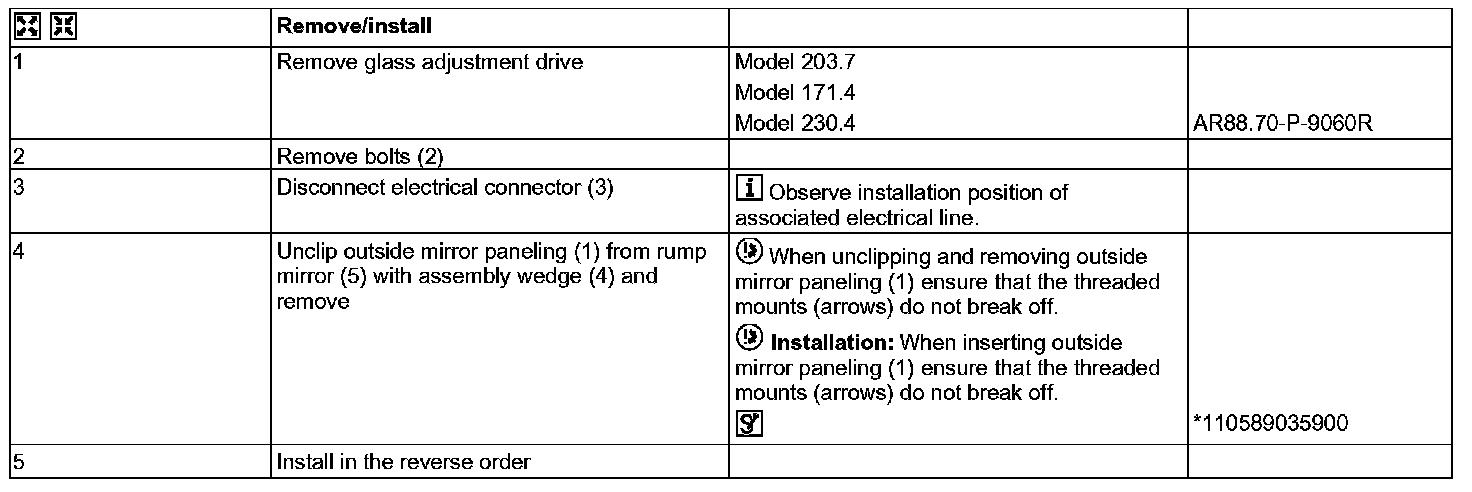

Steps 1 - 5:

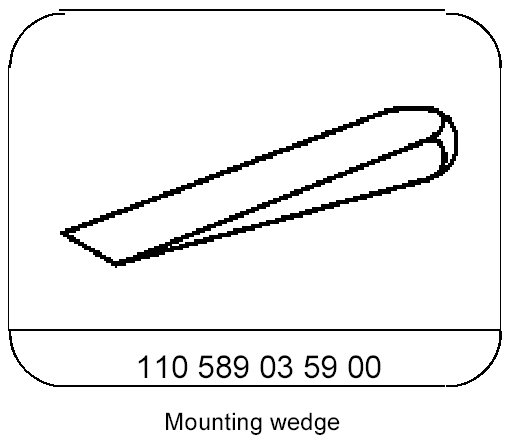

Special Tools:
