AR31.30-P-0007P Remove/Install Trailer Hitch Cross Member



AR31.30-P-0007P Remove/Install Trailer Hitch Cross Member
- with CODE (550) Trailer hitch
- except CODE (772) AMG styling package

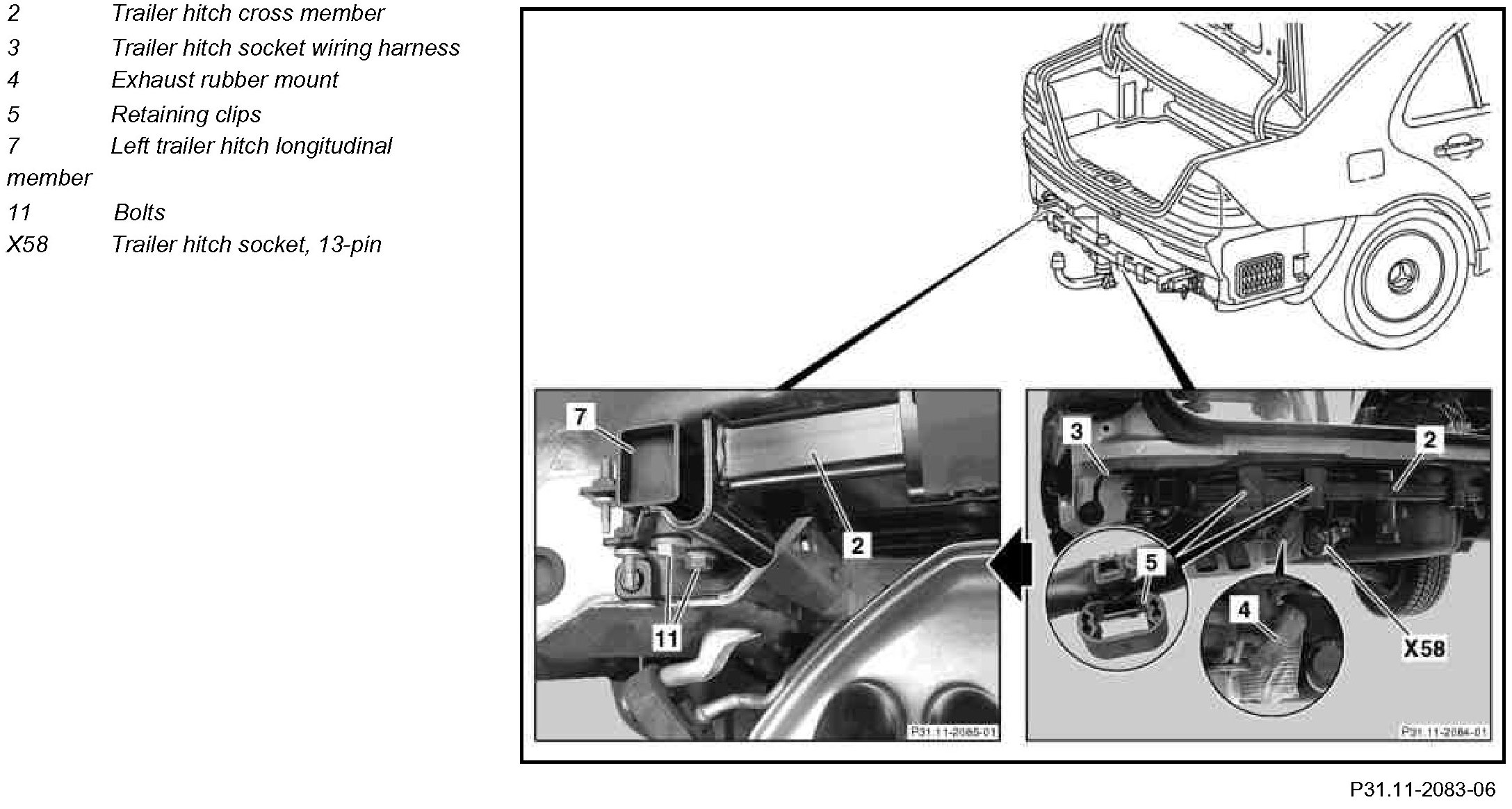

Component Identification:

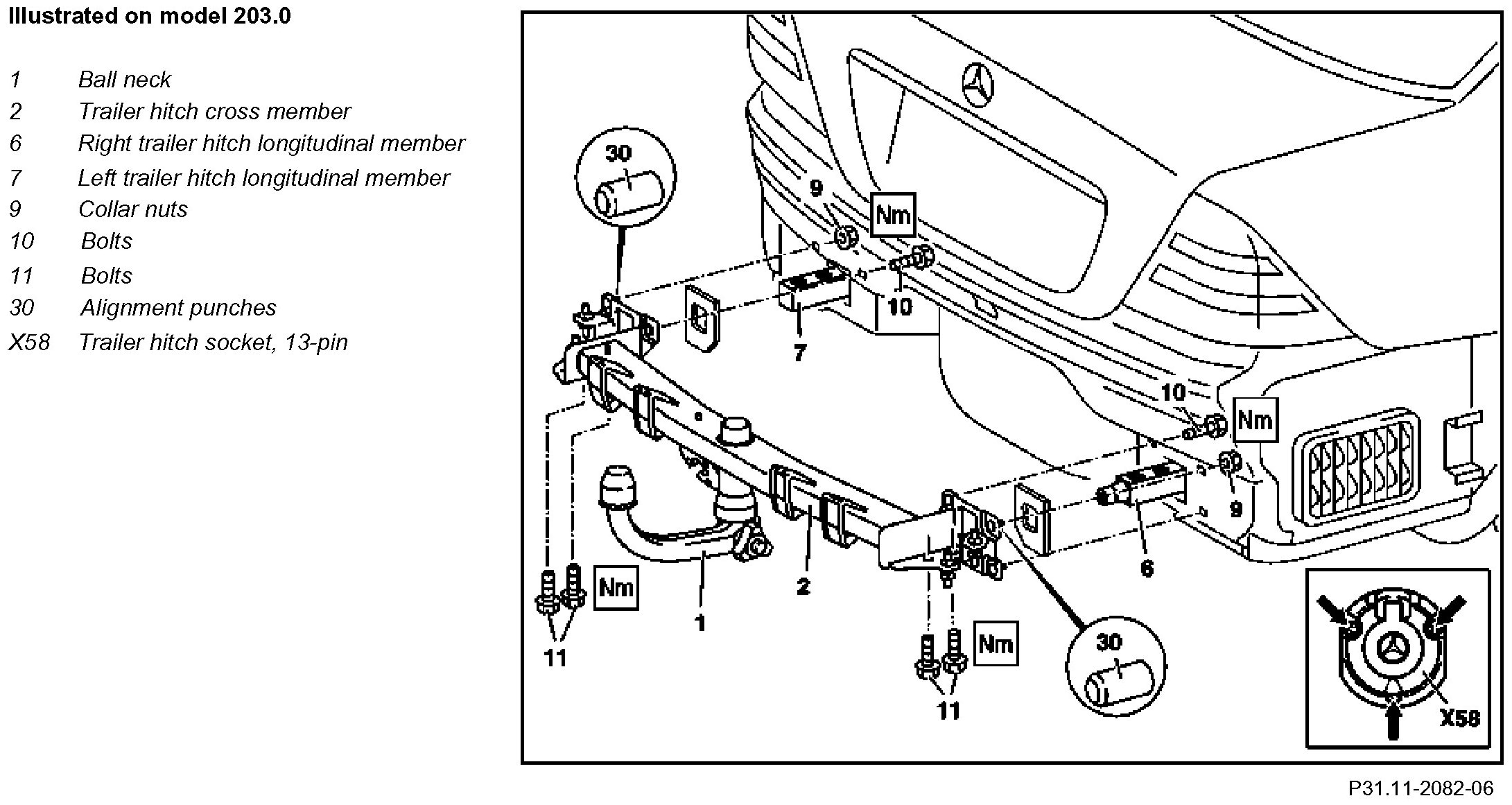

Component Identification:

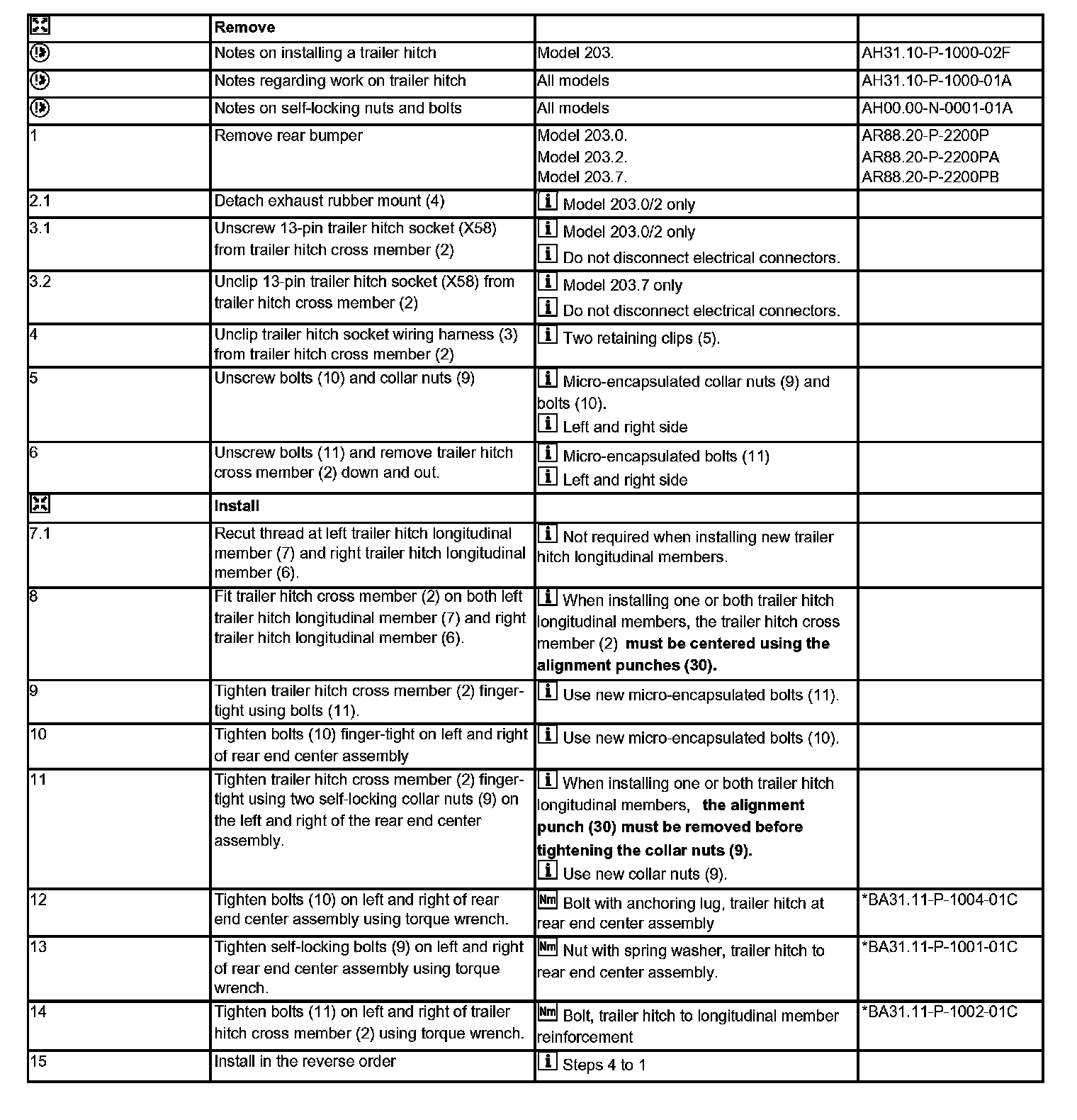

Steps 1 - 15:

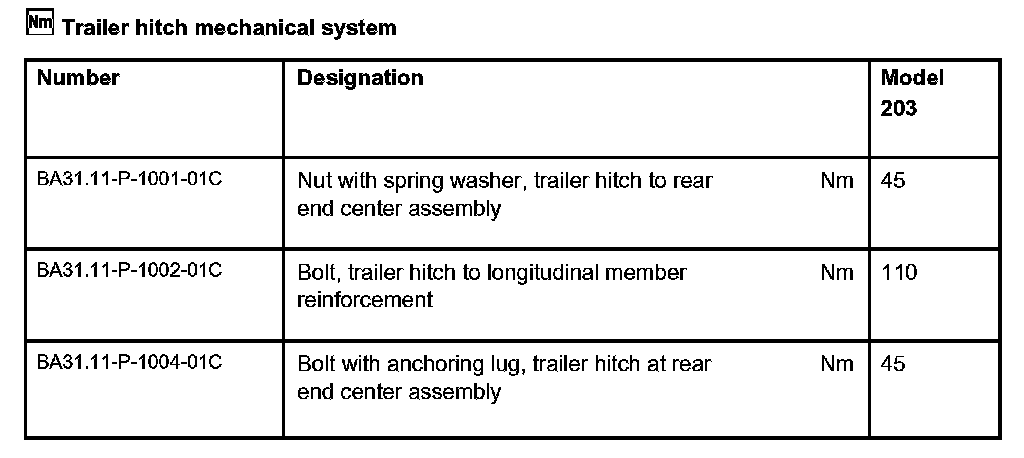

Trailer Hitch Mechanical System:
