AR31.30-P-0006PB Remove/Install Right Trailer Hitch Longitudinal Member



AR31.30-P-0006PB Remove/Install Right Trailer Hitch Longitudinal Member
- with CODE (550) Trailer hitch
- except CODE (772) AMG styling package

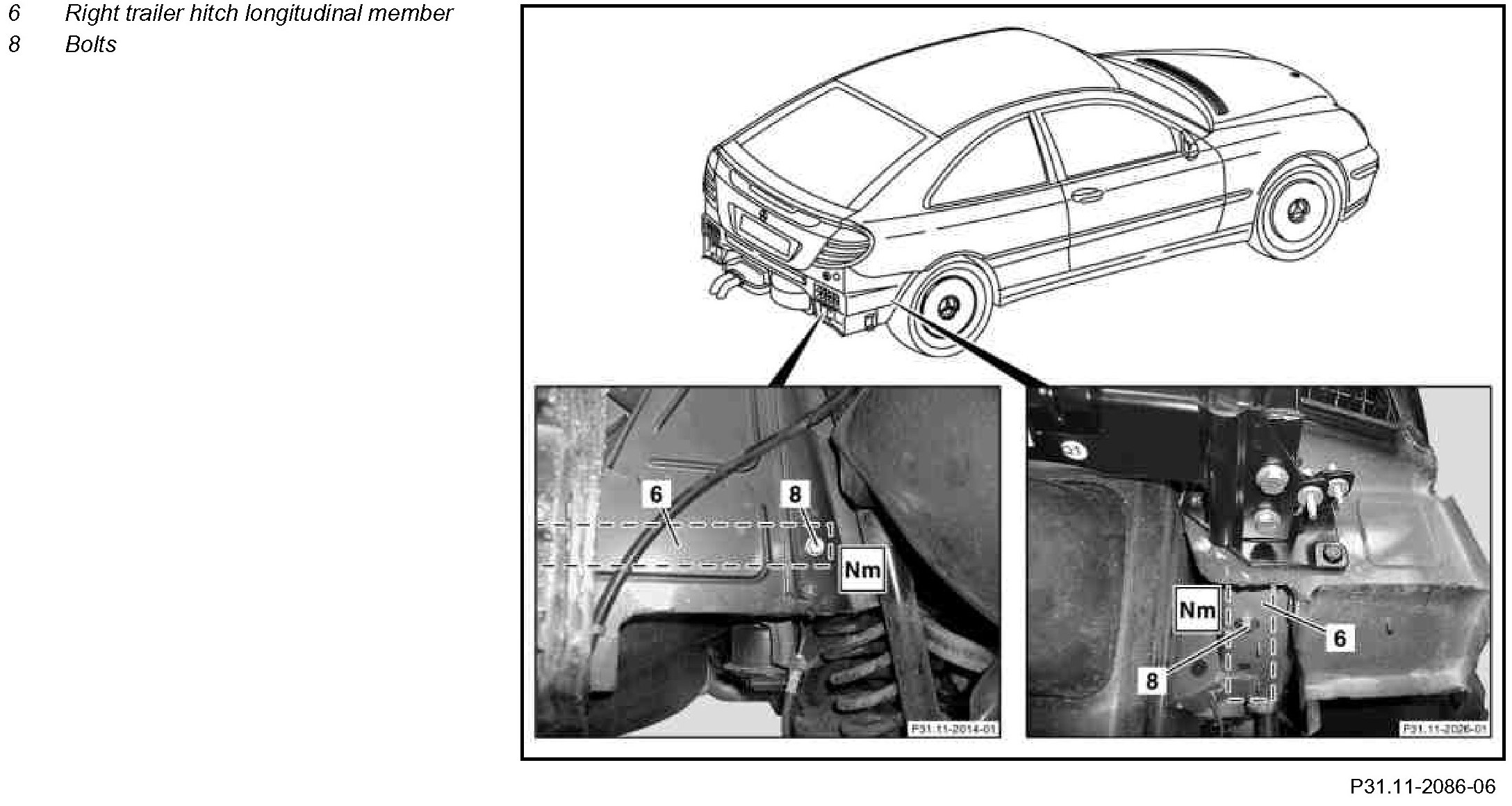

Component Identification:

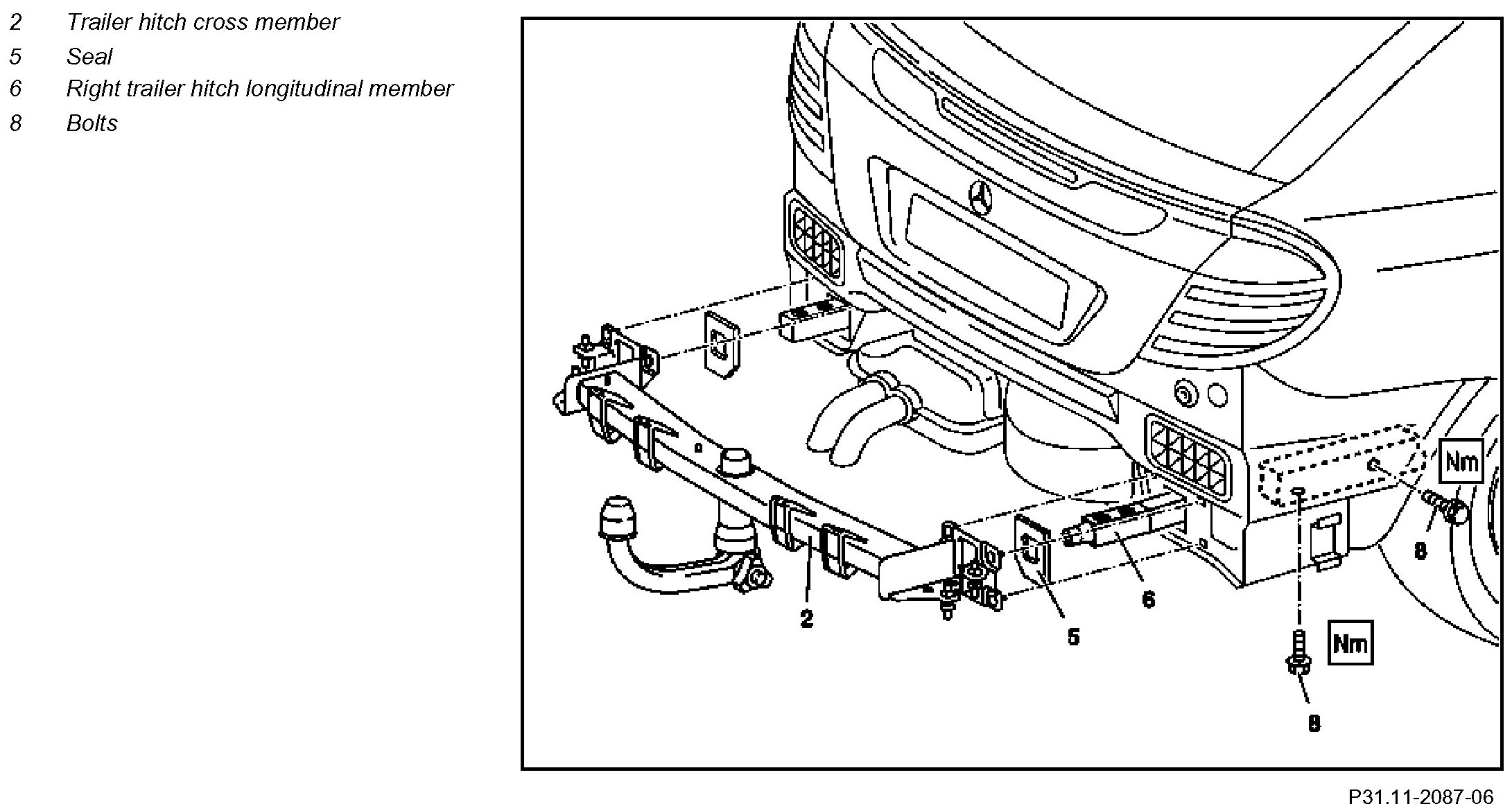

Component Identification:

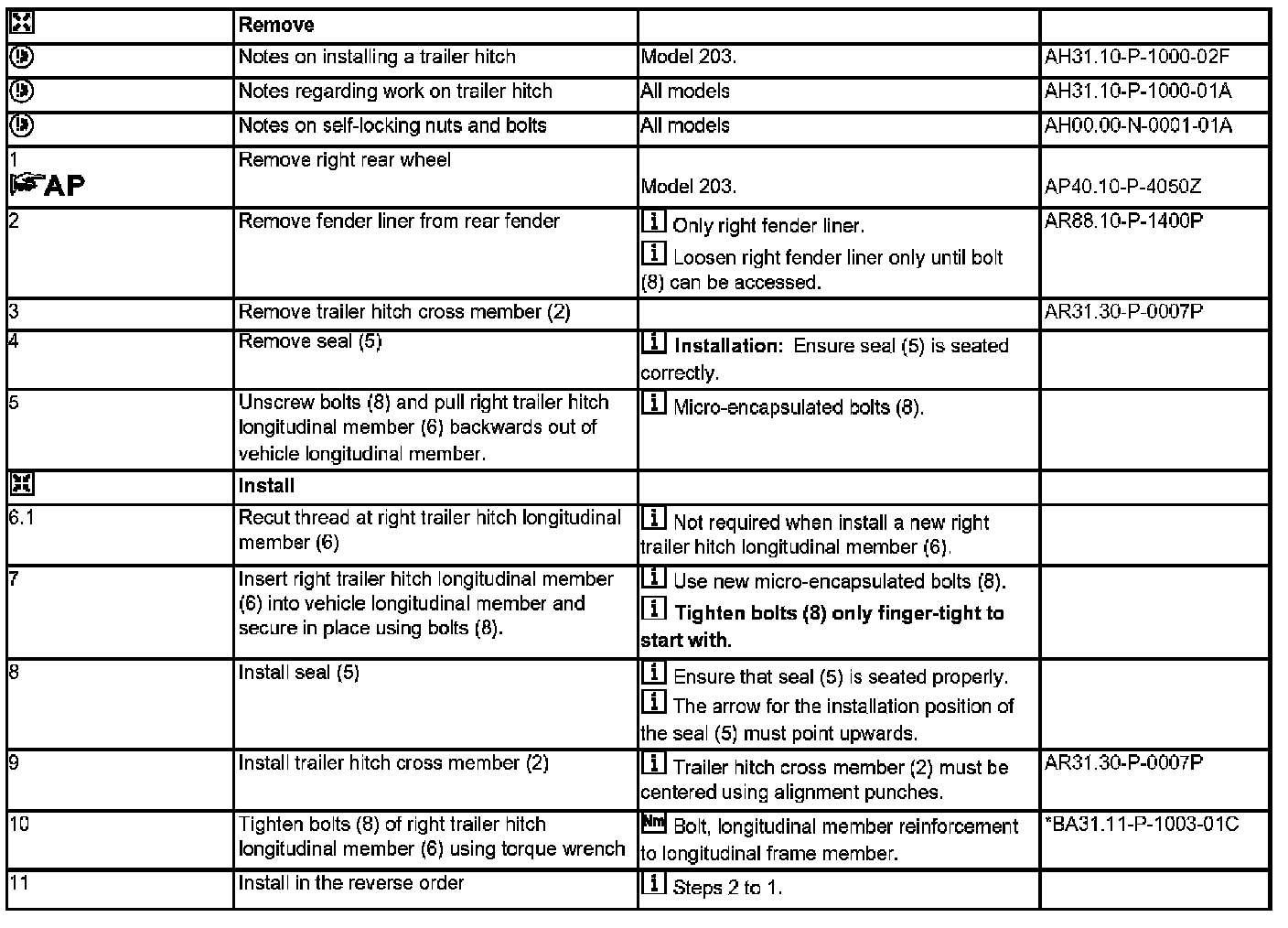

Steps 1 - 11:

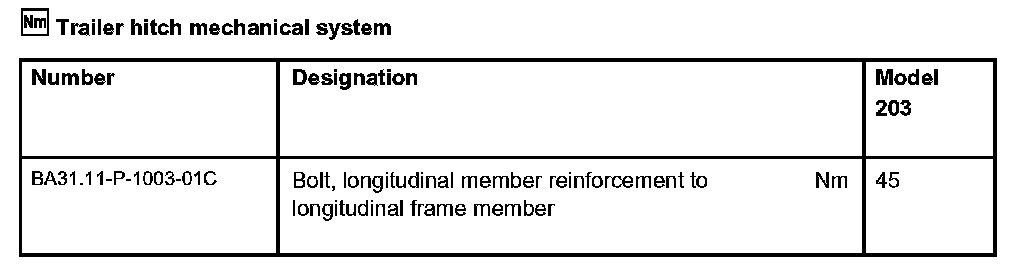

Trailer Hitch Mechanical System:
