Rear Fender Liner: Service and Repair
AR88.10-P-1400P Remove/Install Wheelhousing Liner In Rear Wheelhousing

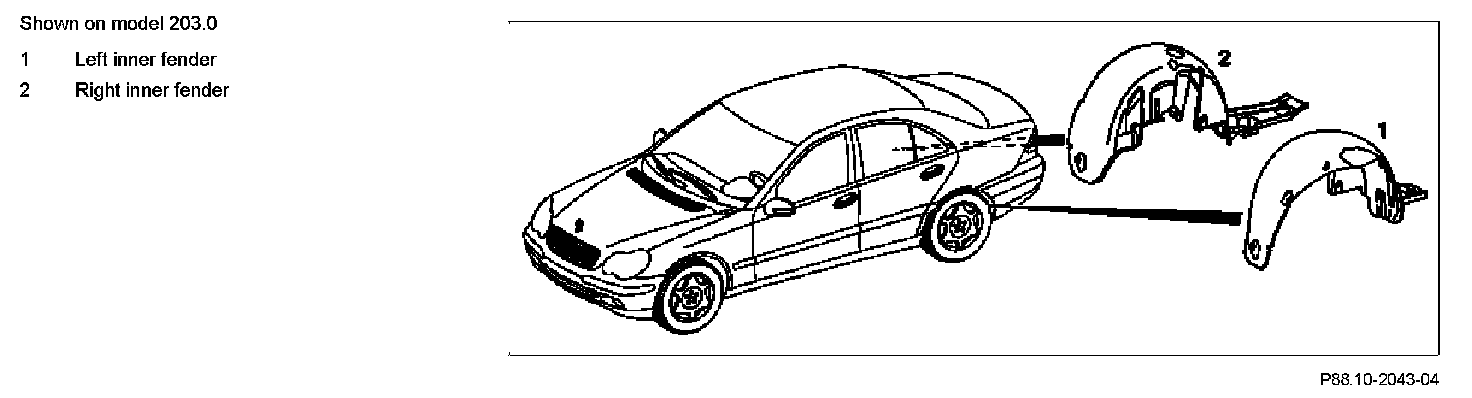

Component Identification:
Component Identification:

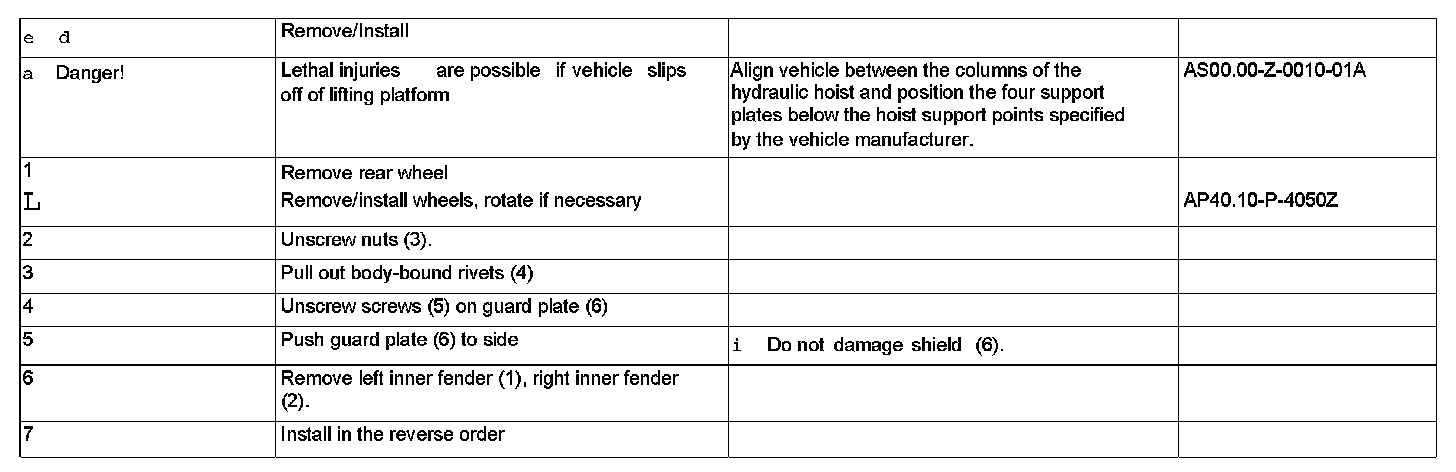

Steps 1 - 7:
