Sensor Signal Is Implausible [Start Here]

[1] G3/2 (O2 Sensor Upstream TWC): Sensor Signal Is Implausible [P0130]

Note: Fault code P2029 /P2046





Procedure Fault code P2029/P2046

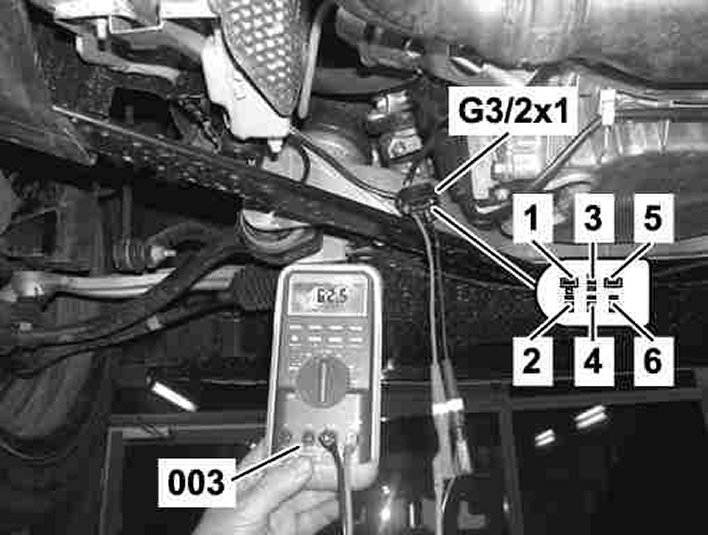

Fig. legend/ fig.
- G3/2x1 (O2 sensor upstream TWC connector)
- 003 Multimeter

Test sequence
- Separate plug connection G3/2x1 (O2 sensor upstream TWC connector).
- Connect multimeter to engine wiring harness connector between pins 2 and 6.

Specified value
- Resistor[57...67] Ohms

Question
Is the measured value okay?

NO
The measured value is not o.k.

Possible cause and remedy
- Check line(s) of components G3/1 (O2 sensor downstream TWC) and G3/2 (O2 sensor upstream TWC) for incorrect routing and damage.
- Disconnect plug at engine wiring harness (component N3/10 (ME-SFI control module)) and check connection for damage.
- Check connectors G3/1x1 (O2 sensor downstream TWC connector) and G3/2x1 (O2 sensor upstream of TWC connector) for proper seating, contacts and latching.
- Repair or replace lines and connector in accordance with current circuit diagram.

End of test

YES
- Check Component G3/2 (O2 Sensor Upstream TWC) Check Component G3/2 (O2 Sensor Upstream TWC)
