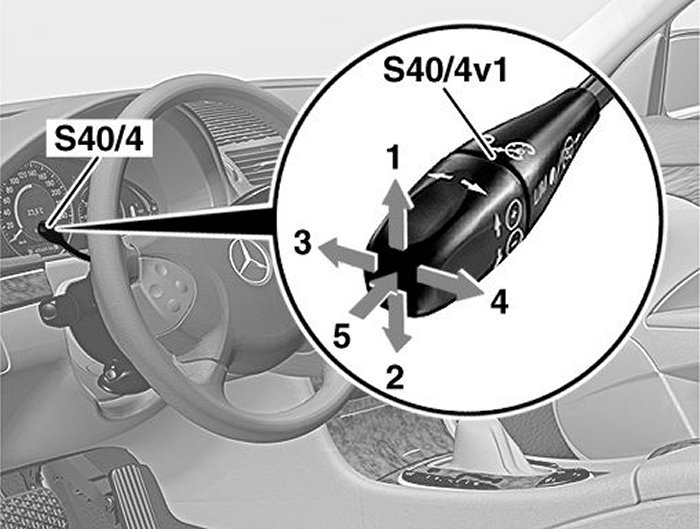

Test 2: Check Component S40/4 (CC Switch With Variable Speed Limiter)

Check component S40/4 (CC switch with variable speed limiter)





Test sequence
- Switch on ignition.
- Operate component 'S40/4 (CC switch with variable speed limiter)'.

Status of relevant actual value:
Specified value
- Actual value must change accordingly.Status: OFF or ON

Question: Are the actual values o.k.?

No
- The actual values are not okay.
Possible cause and remedy
- Leads to component S40/4 (CC switch with variable speed limiter)
- Component S40/4 (CC switch with variable speed limiter)
**End of test**

Yes
- The actual values are okay.
**End of test**
