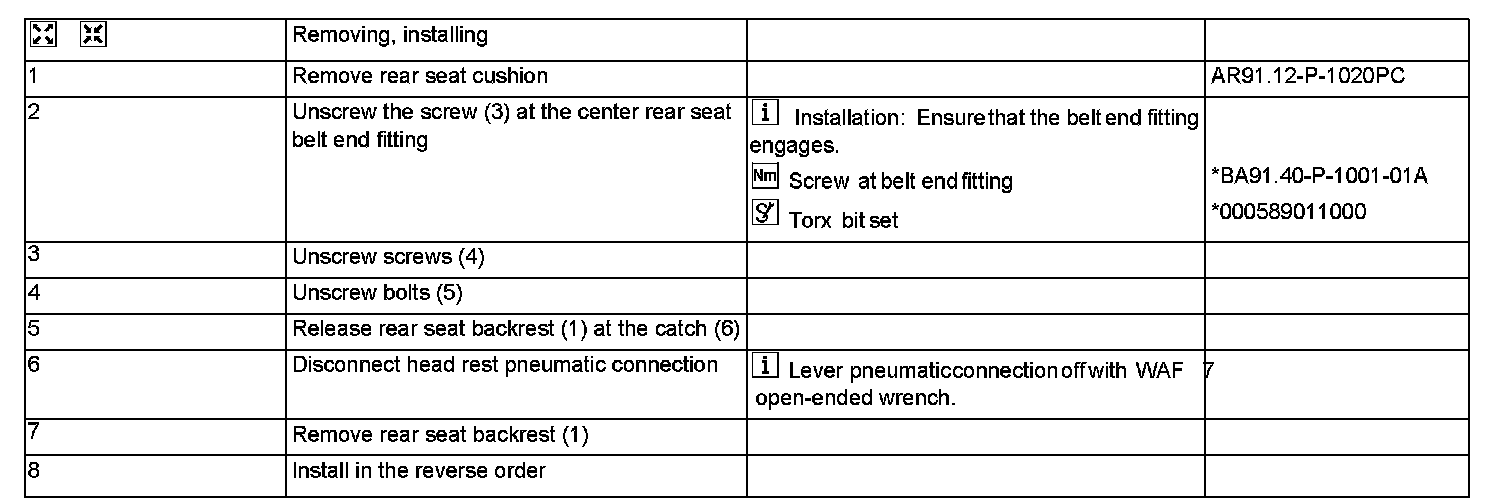

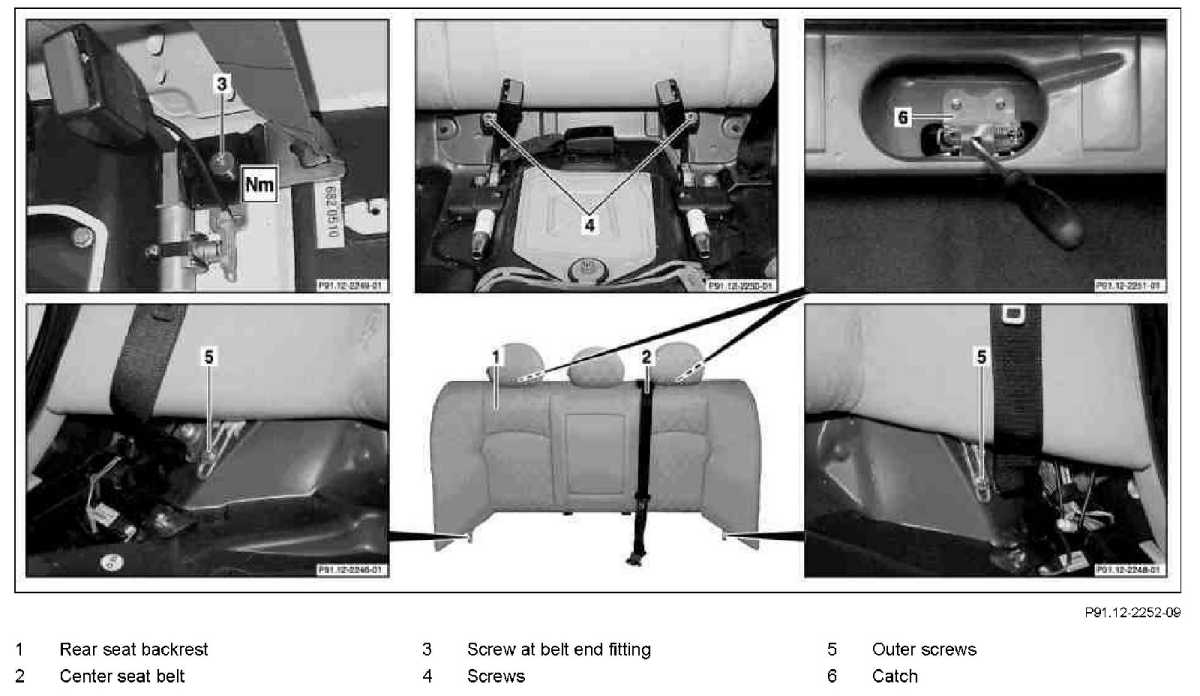

AR91.12-P-1620PC Remove/Install Rear Seat Backrest



AR91.12-P-1620PC Remove/Install Rear Seat Backrest
- without CODE (287a) Through-loading feature

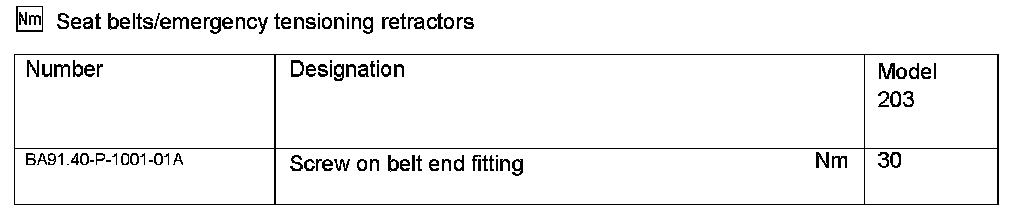

Seat Belts/Emergency Tensioning Retractors:
