Starter Motor: Service and Repair
AR15.30-P-7100GA Remove Starter, Install

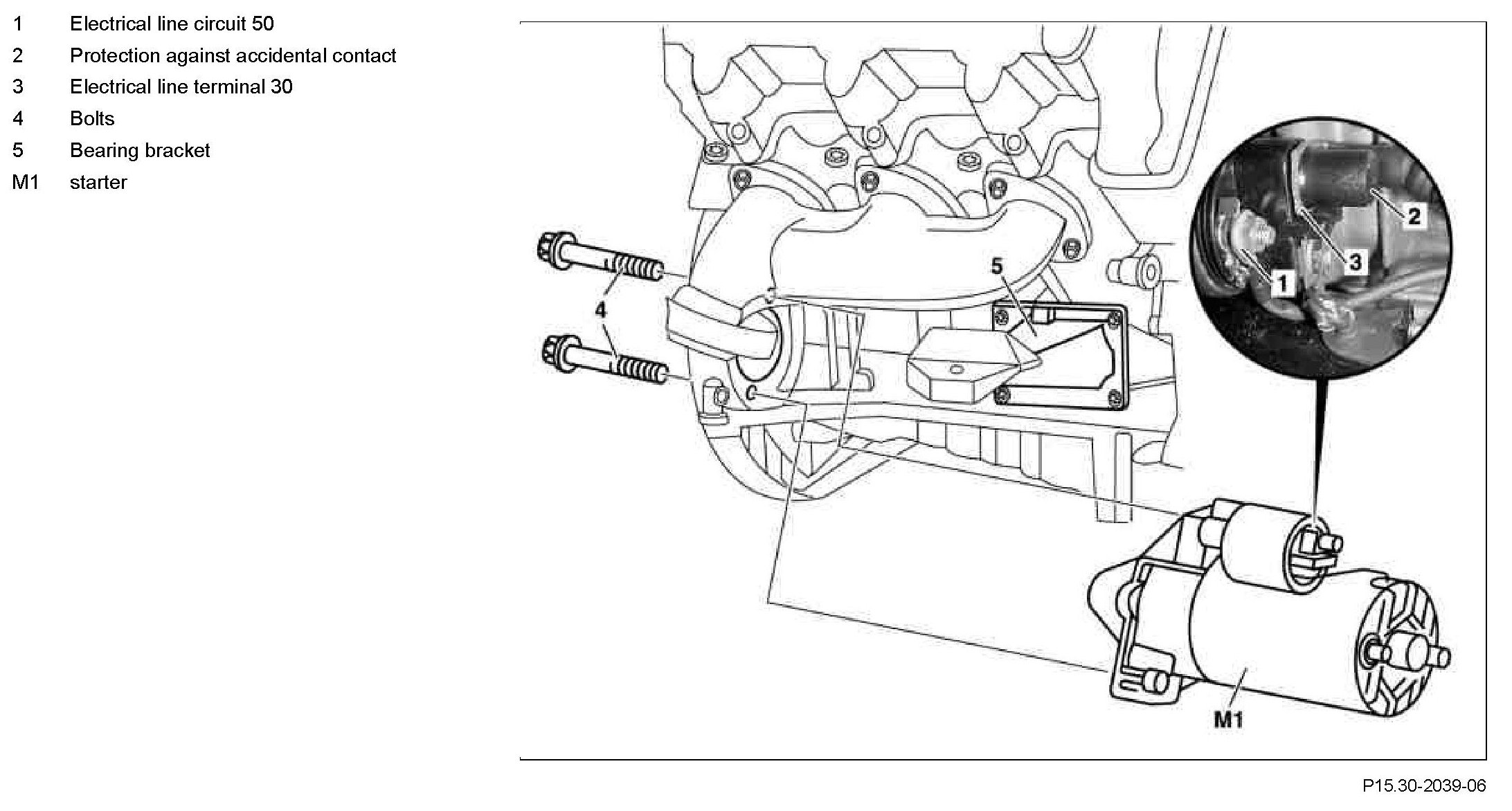

Component Identification:

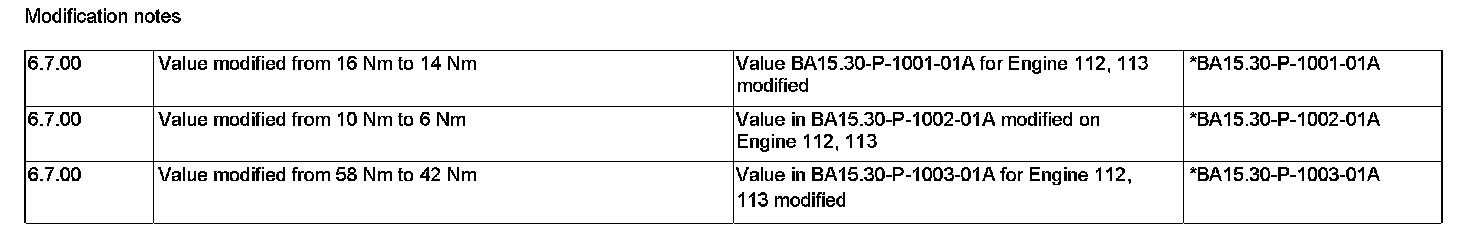

Modification Notes:
Steps 1 - 8:

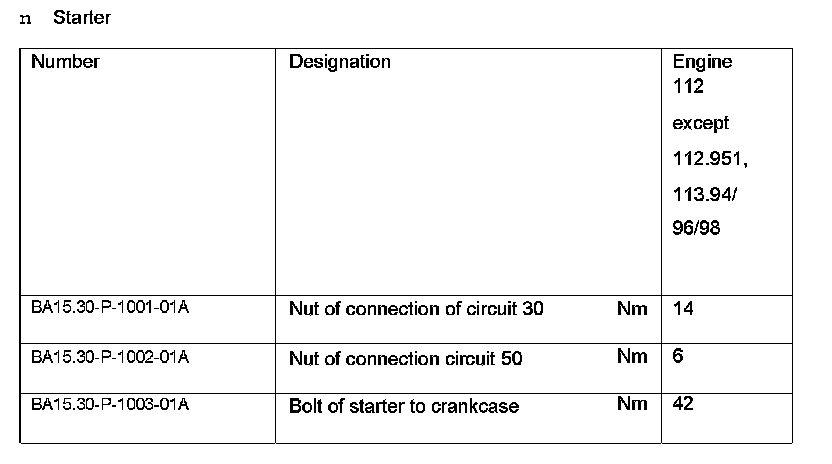

Starter:

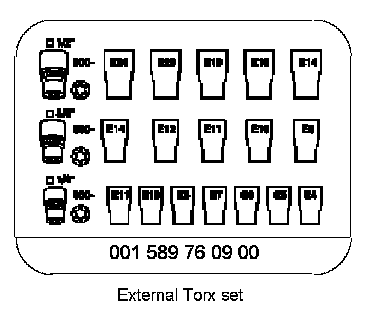

Special Tools:
