Heater Core Case: Service and Repair



Remove/Install Heater Housing

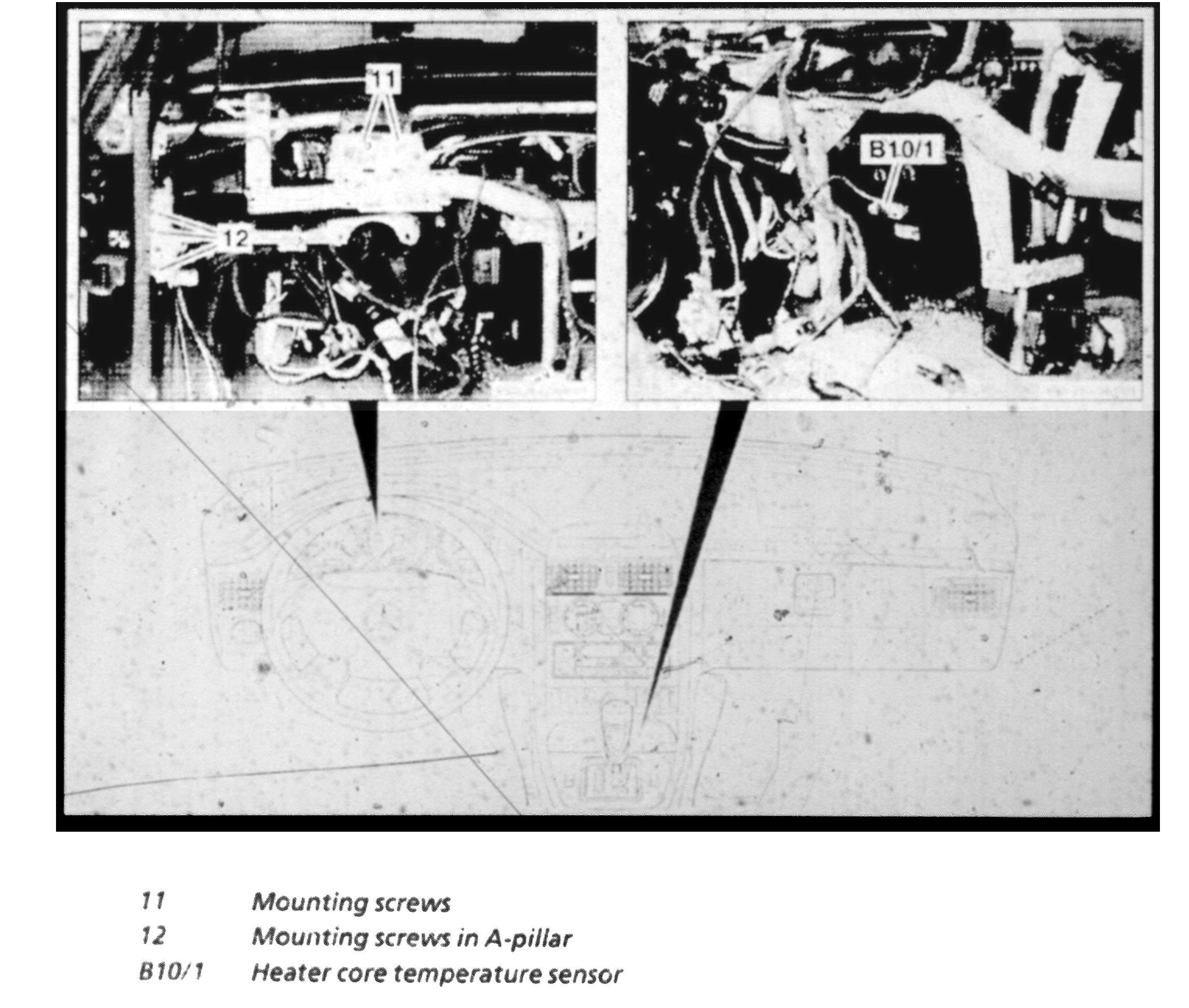

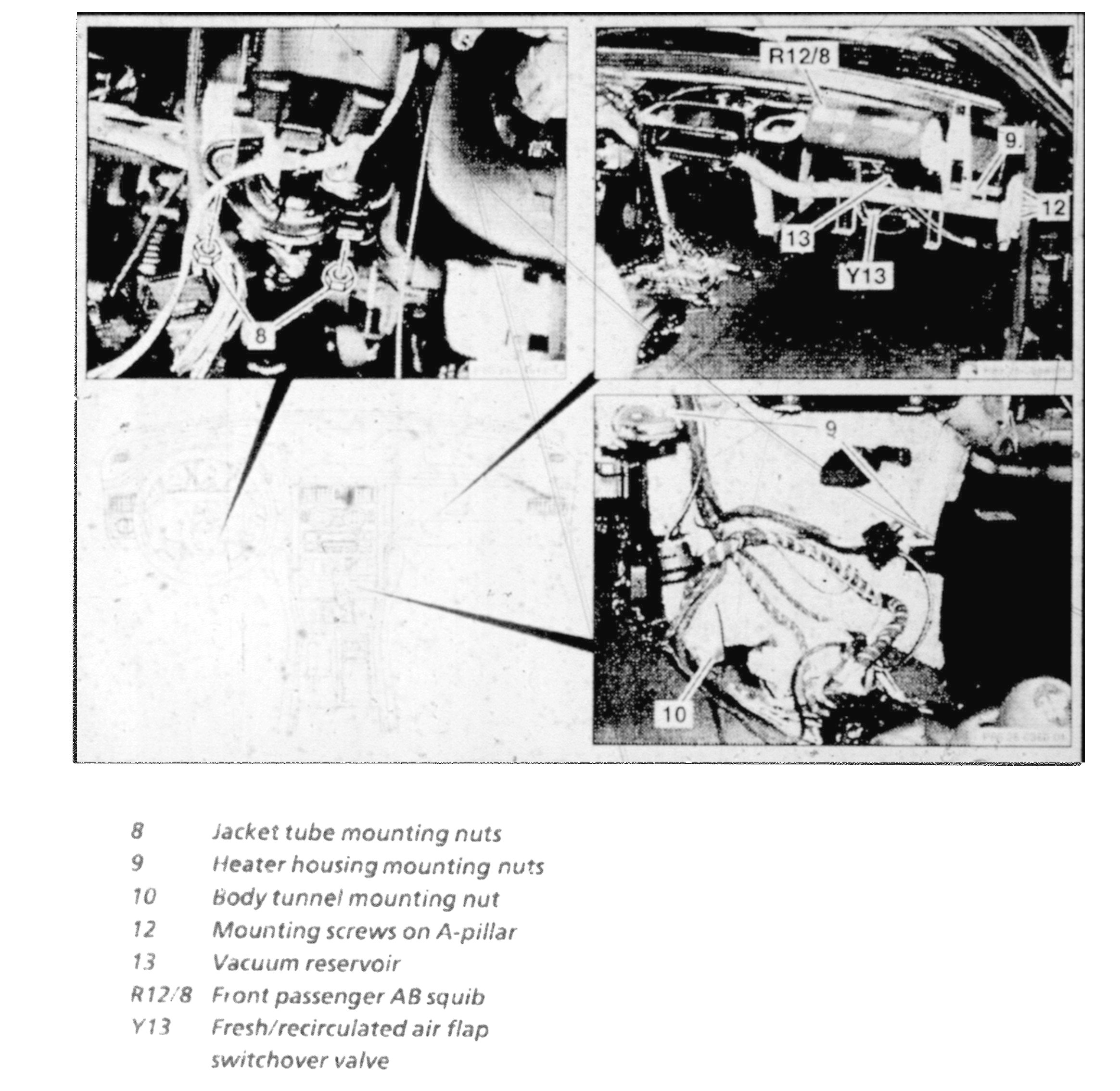

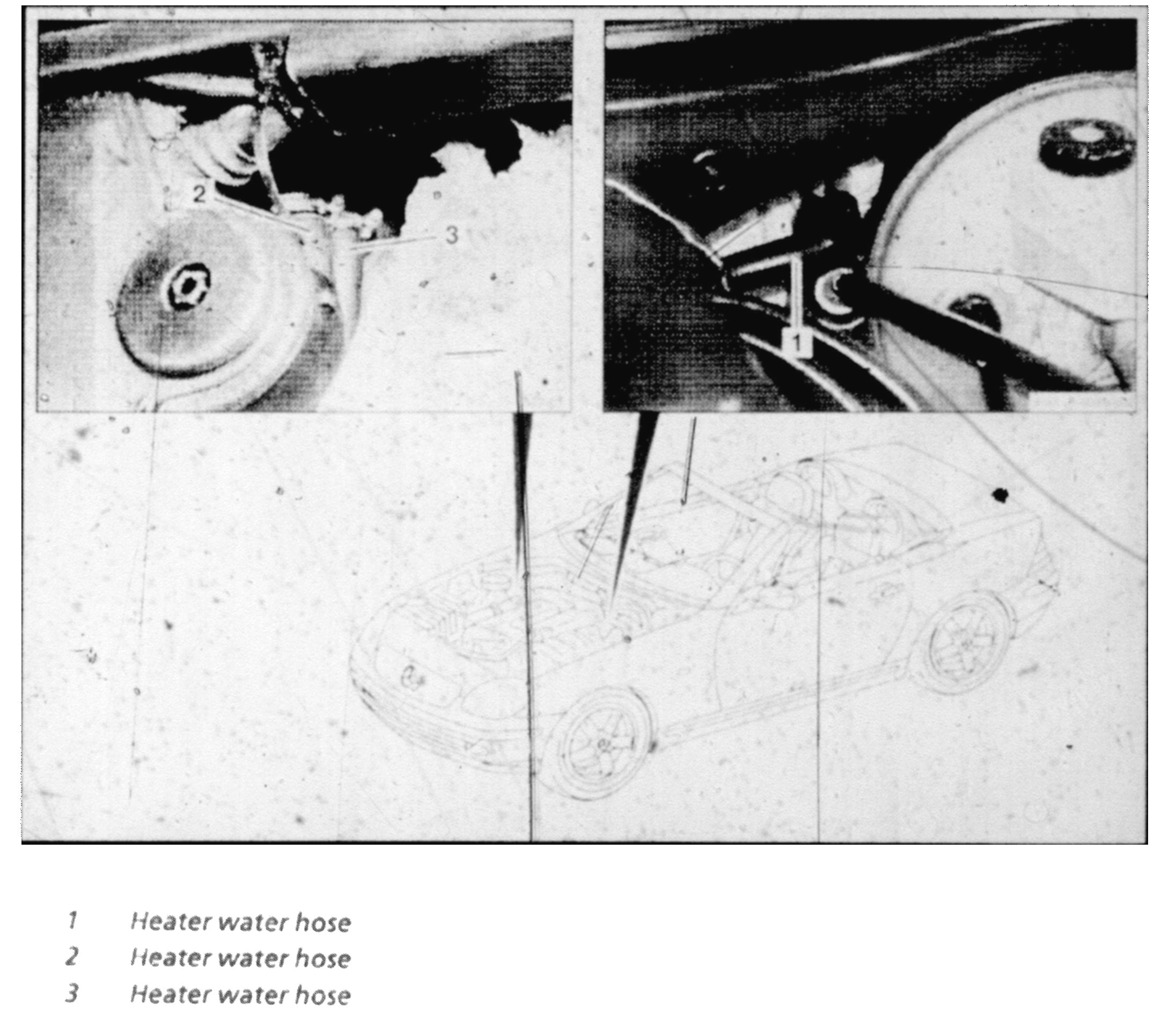

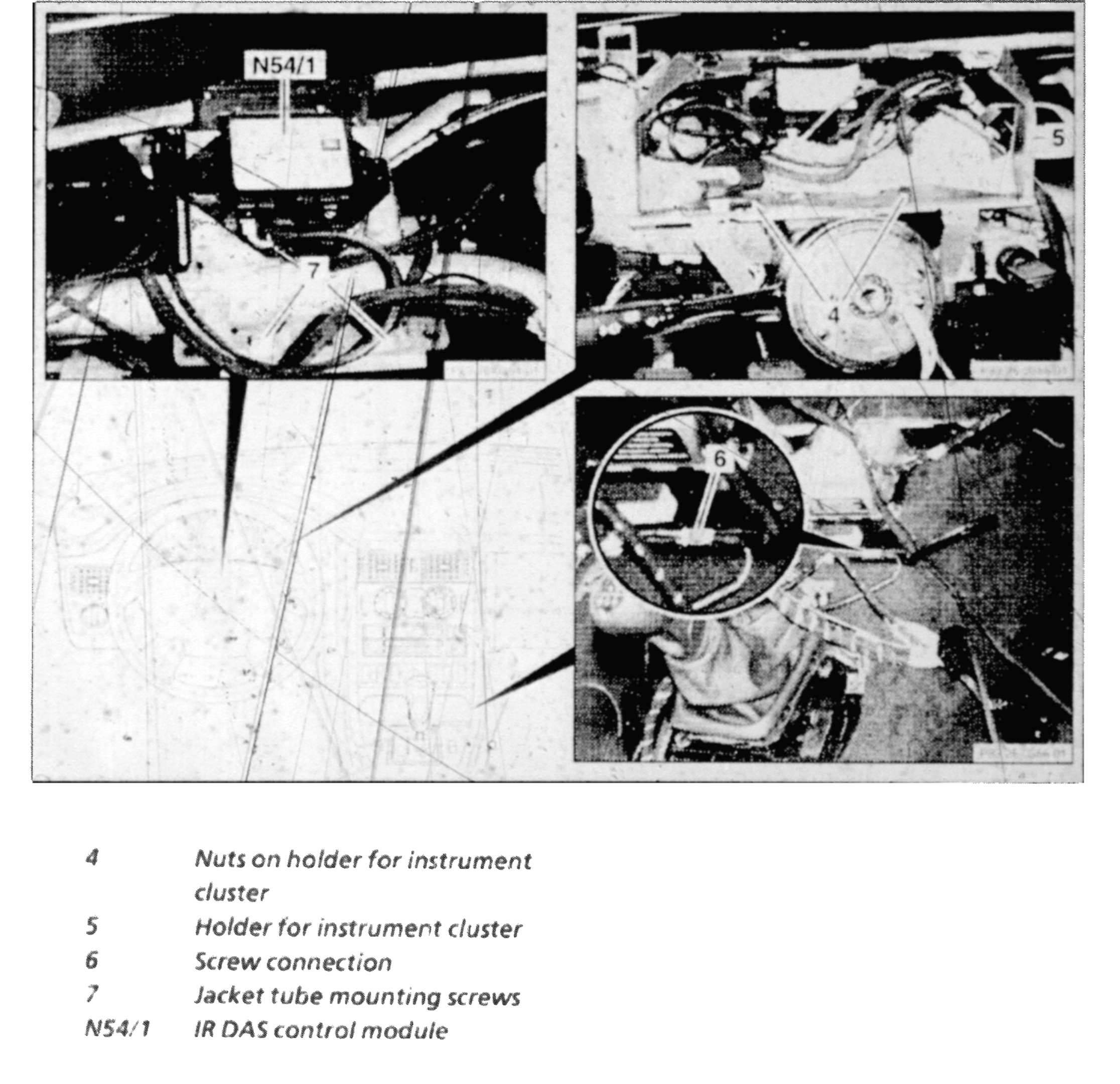

Component ID

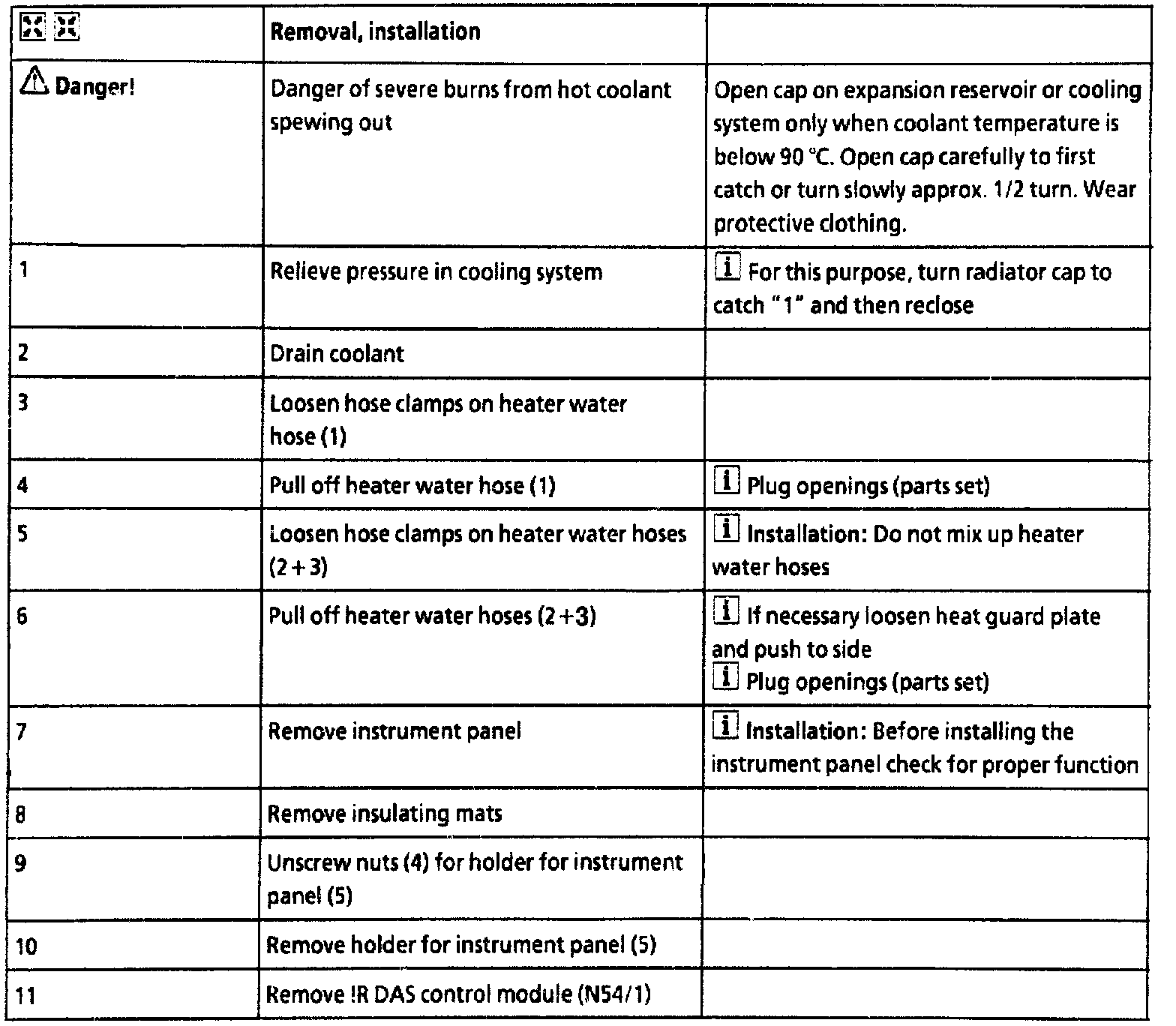

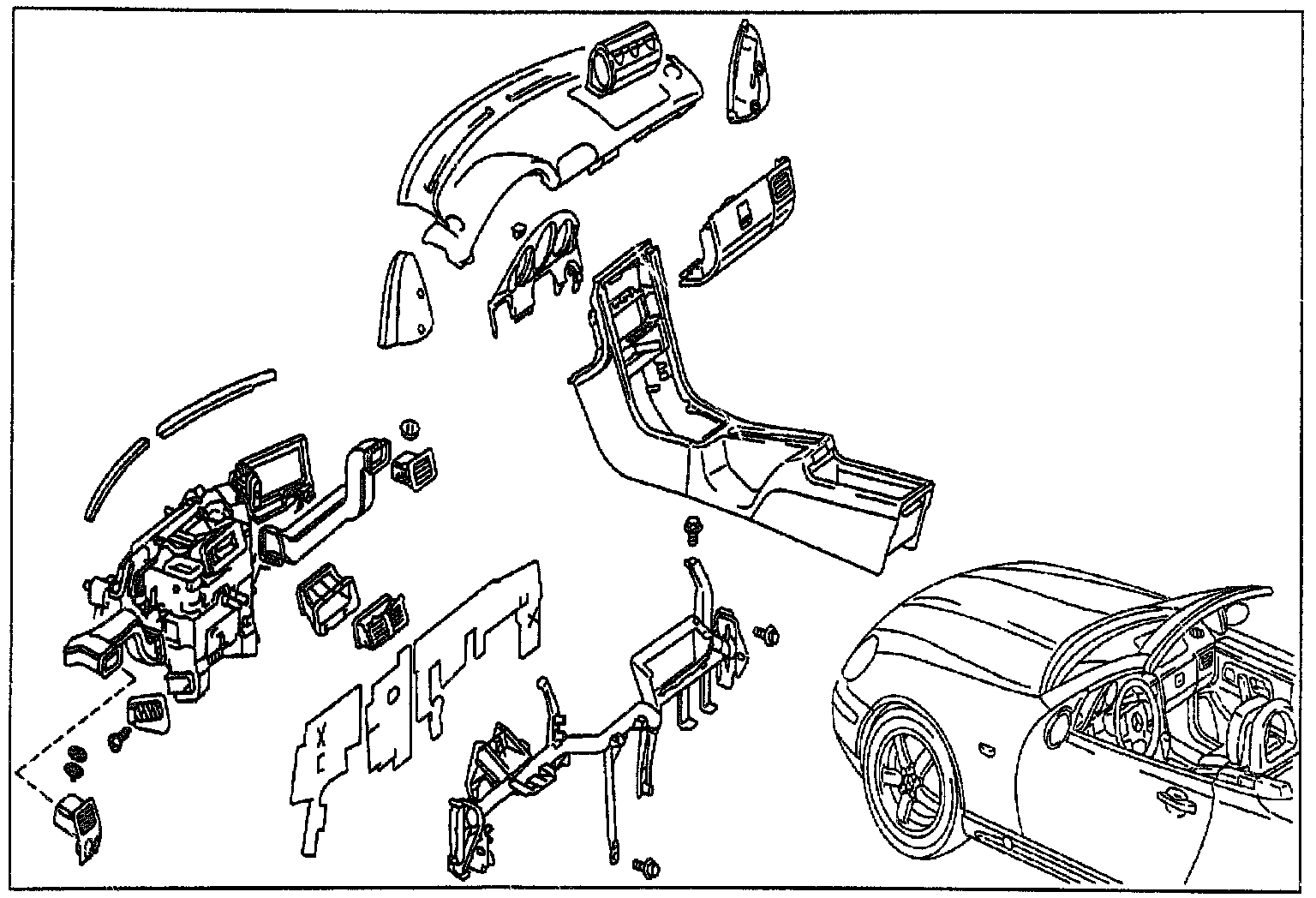

Removal, installation, Part 1 of 2

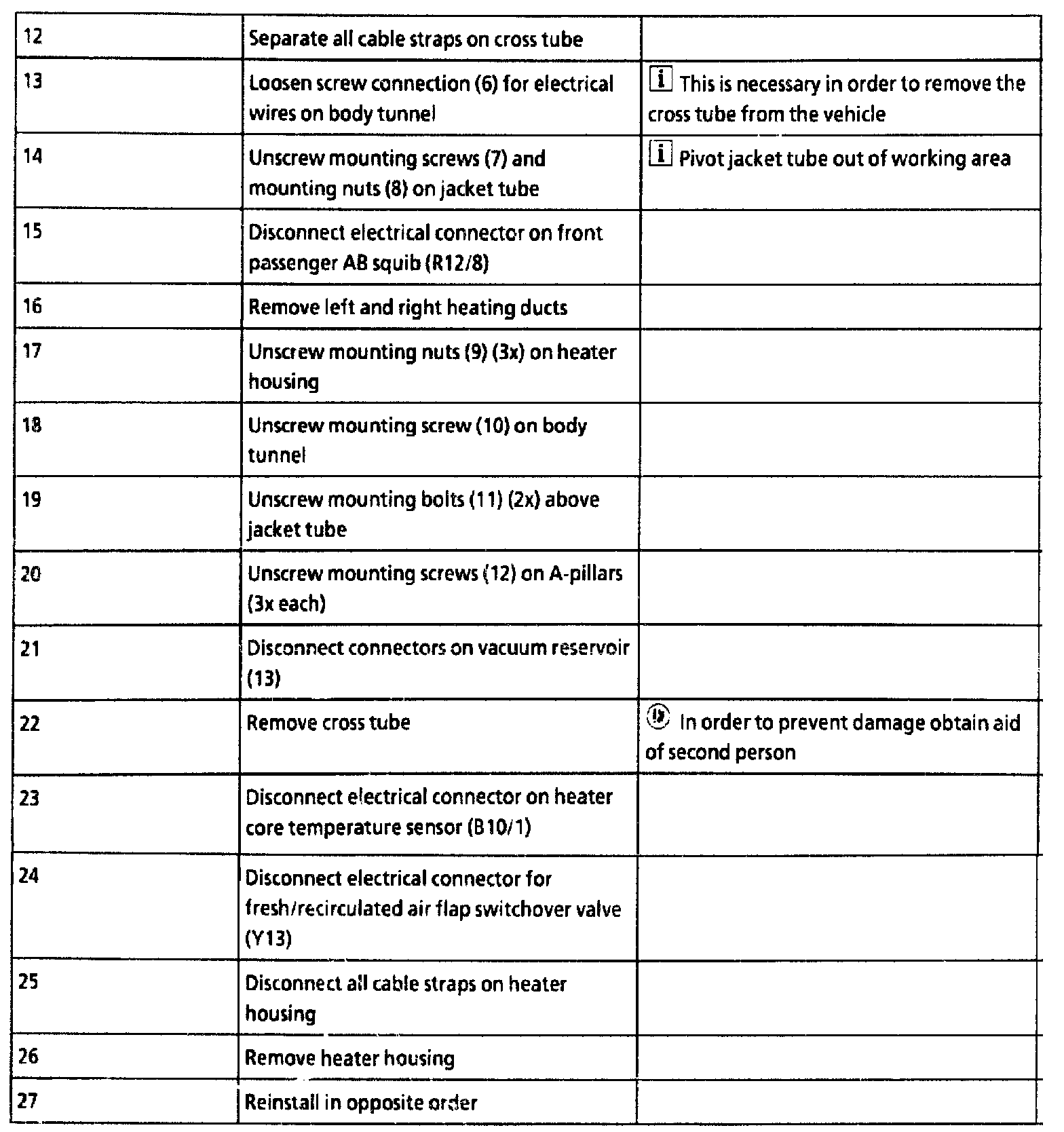

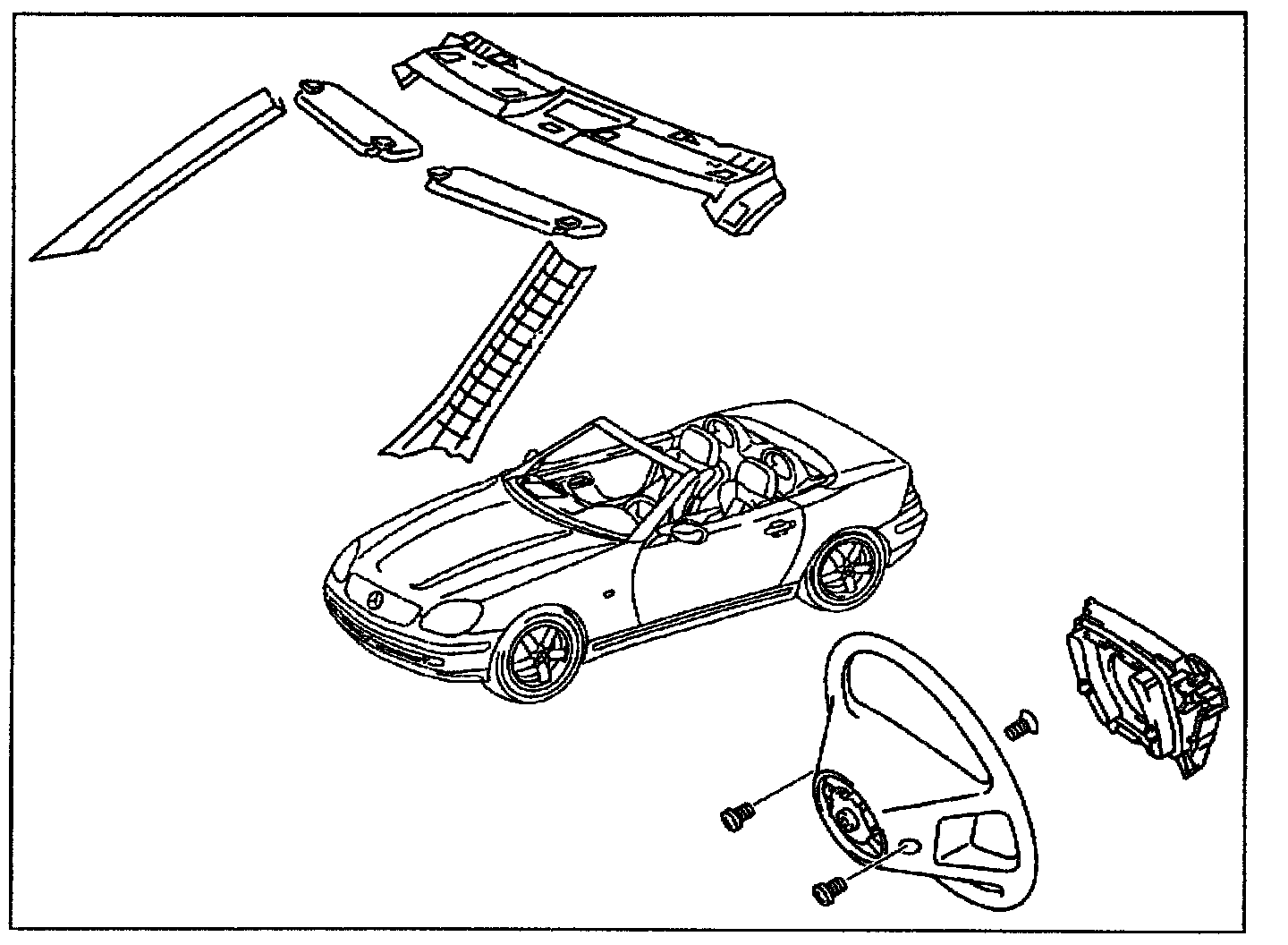

Removal, installation, Part 2 of 2
