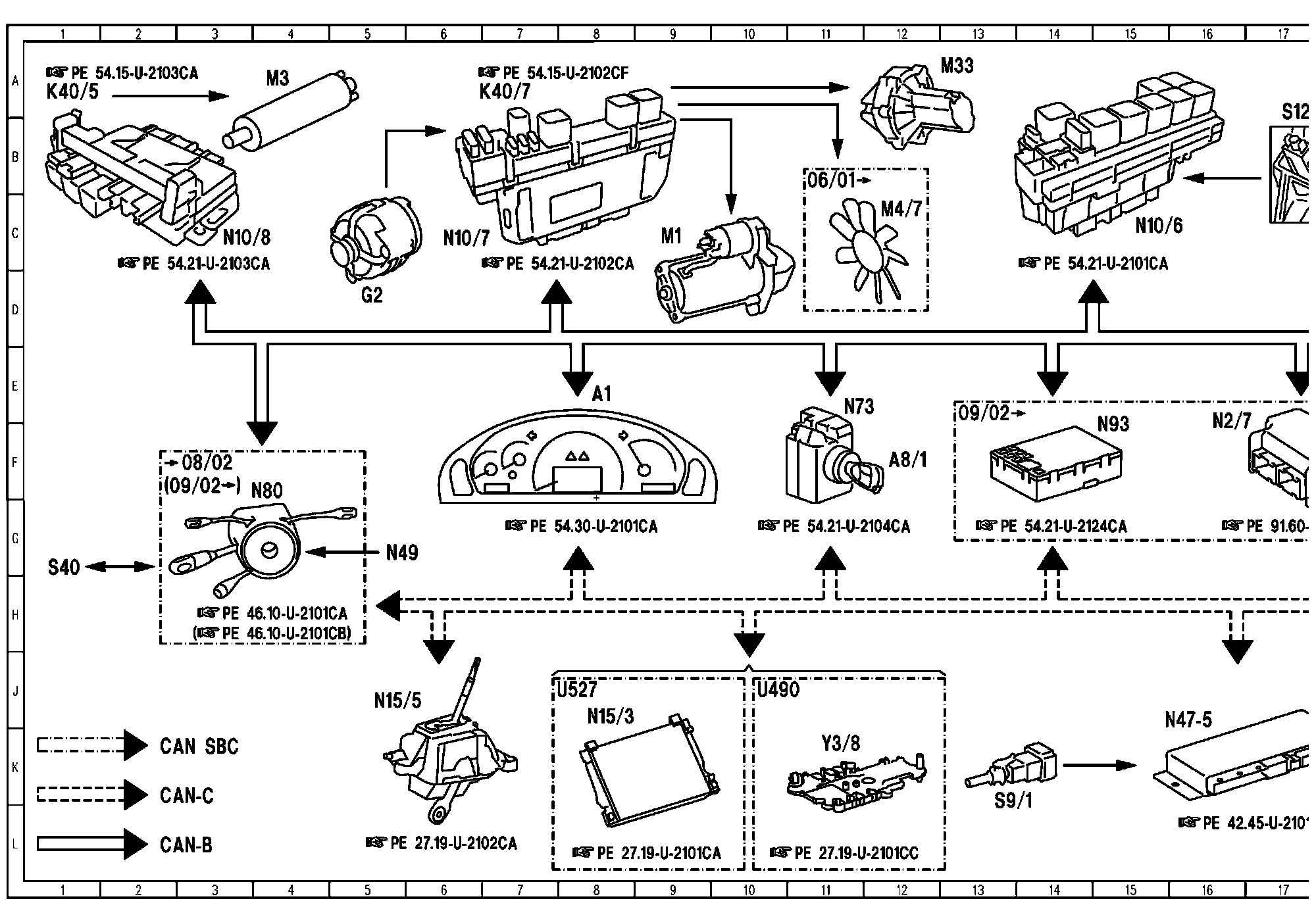

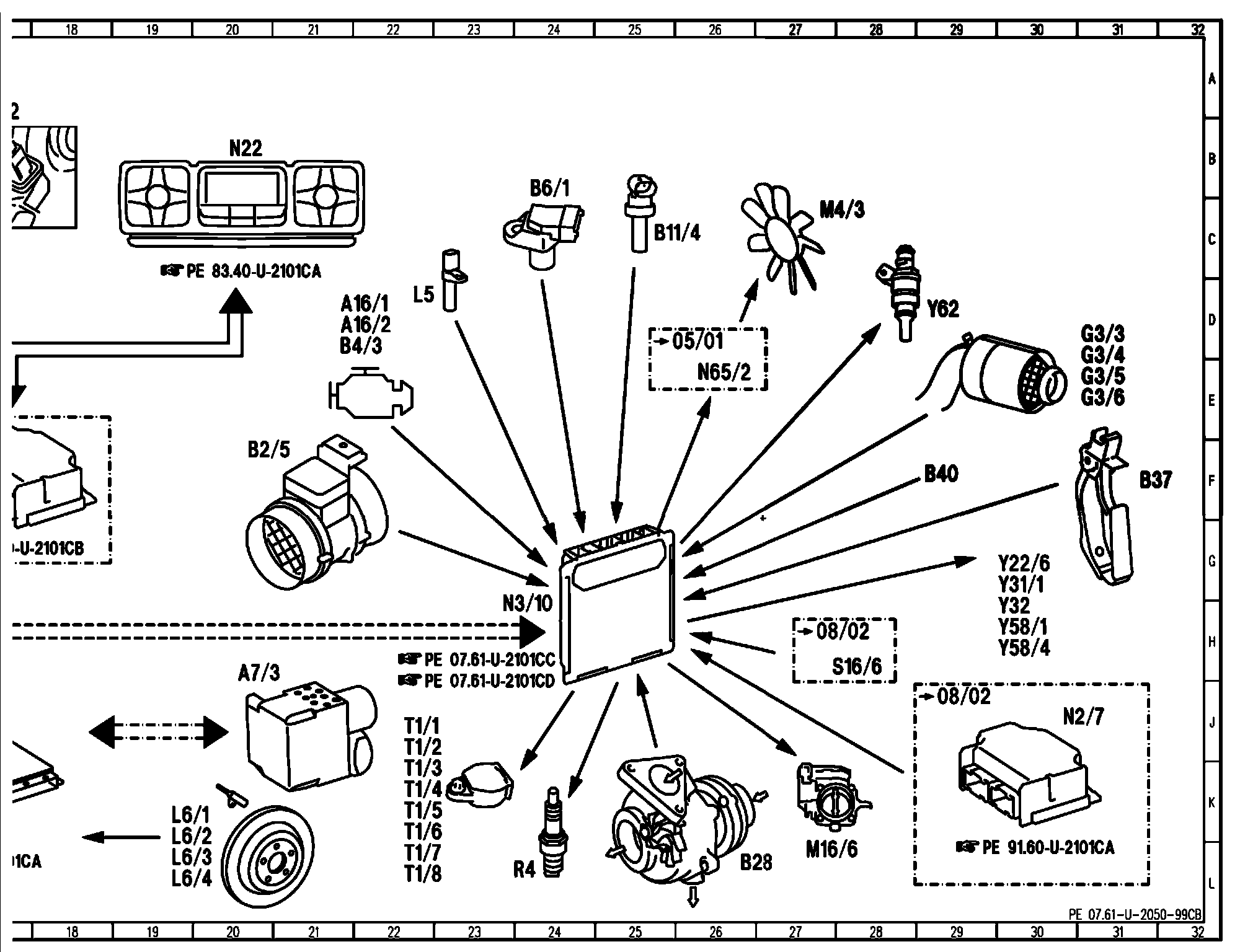

PE07.61-U-2050CA Function Diagram of Electrical System For ME Engine Control
Engine 113 as of 06/01/00 in Model 215
