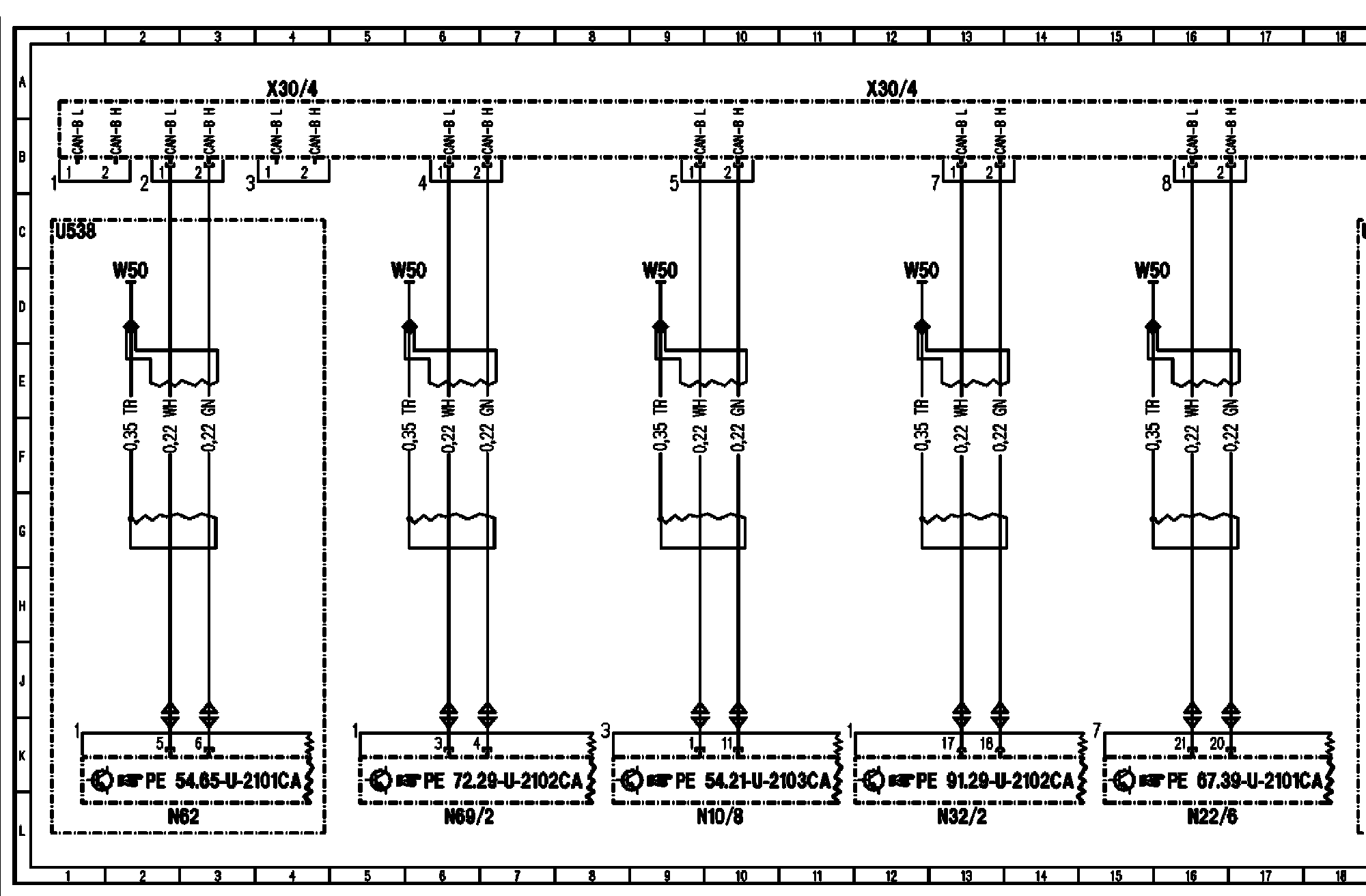

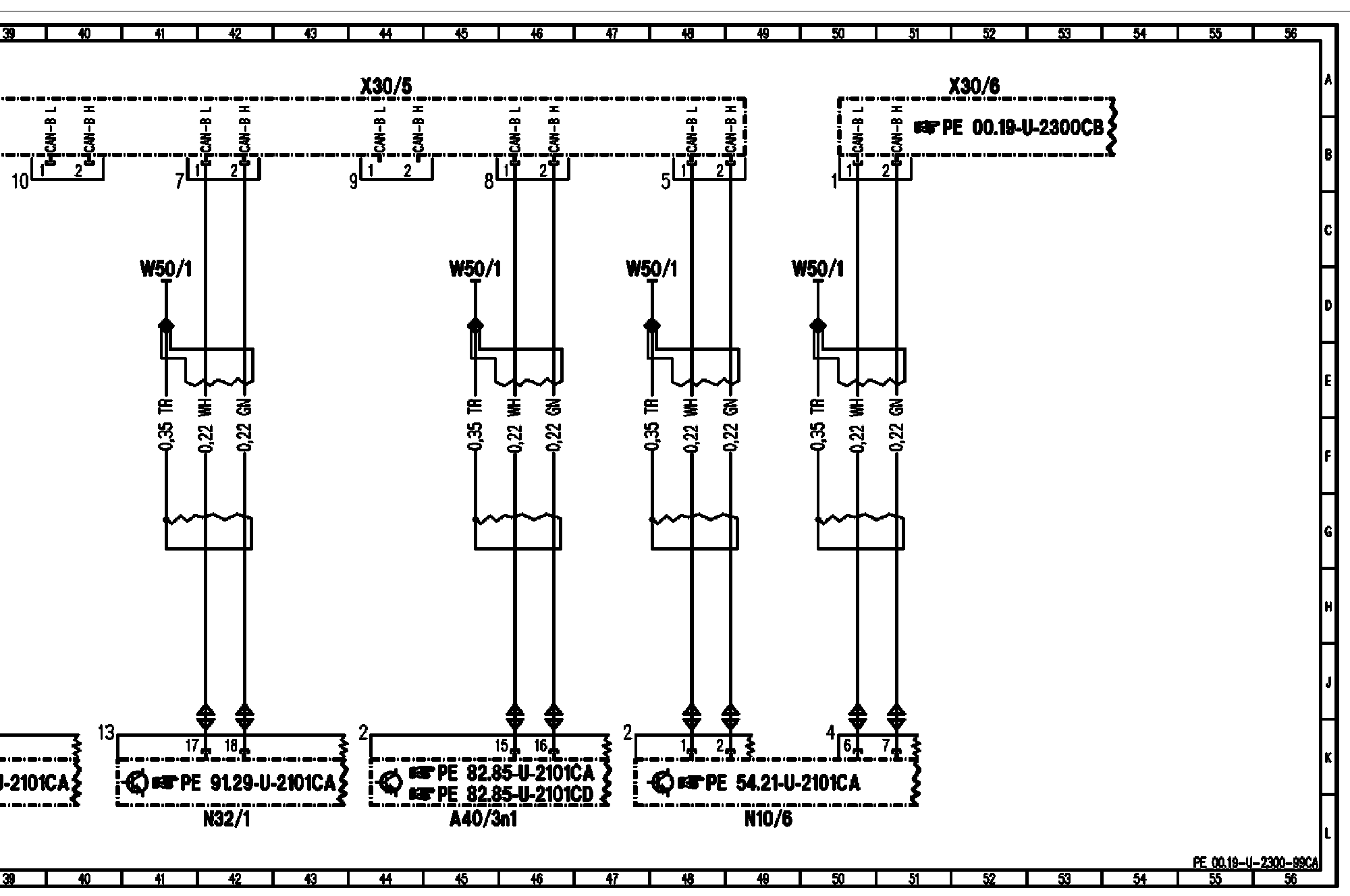

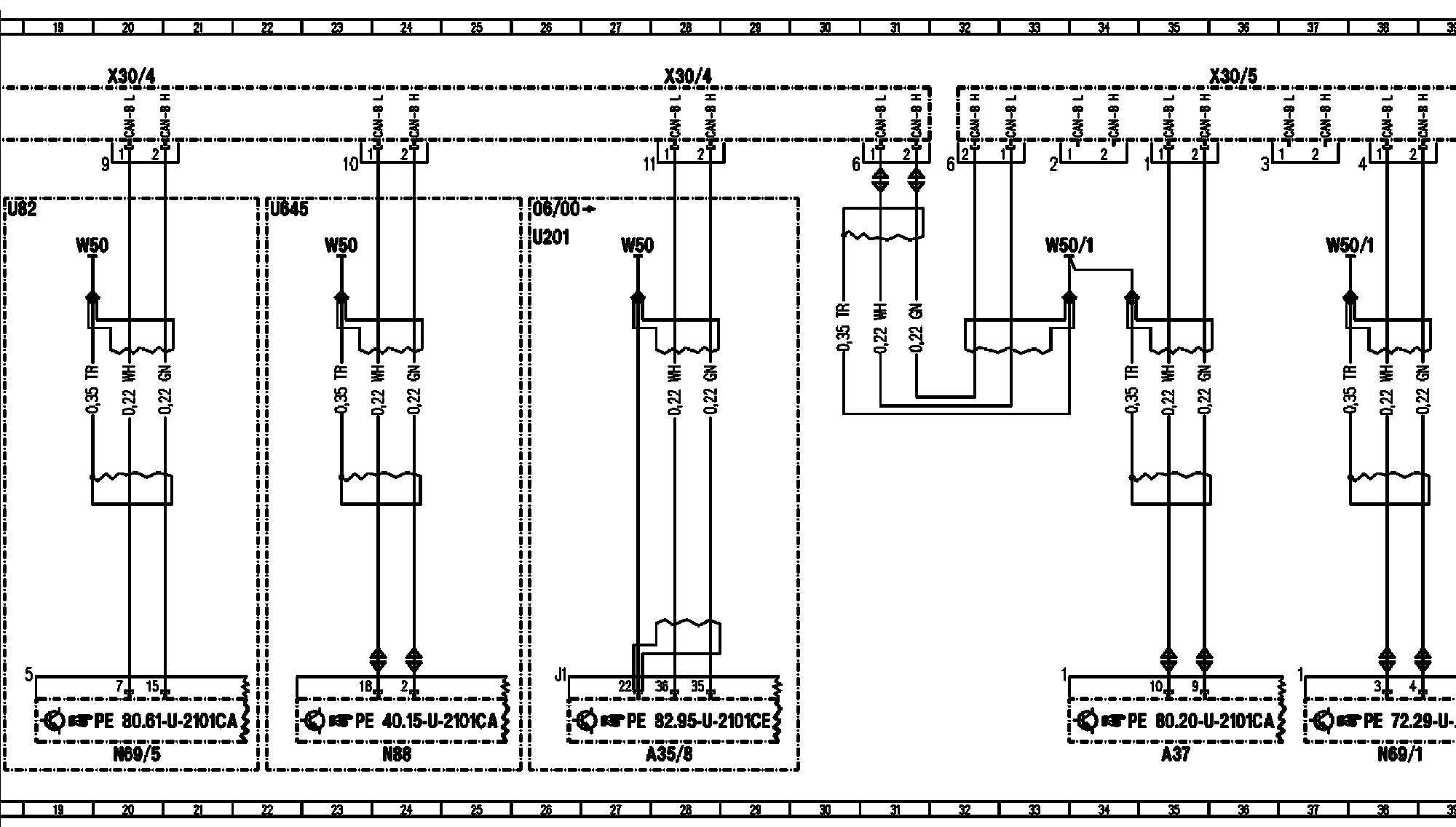

PE00.19-U-2300CA CAN Bus - Interior Compartment
PE00.19-U-2300CA CAN Bus - Interior Compartment
PE00.19-U-2300CA CAN Bus - Interior Compartment
Model 215 up to 05/31/01 Sheet 1
