High Pressure Safety Valve HVAC: Locations
Pressure Relief Valve

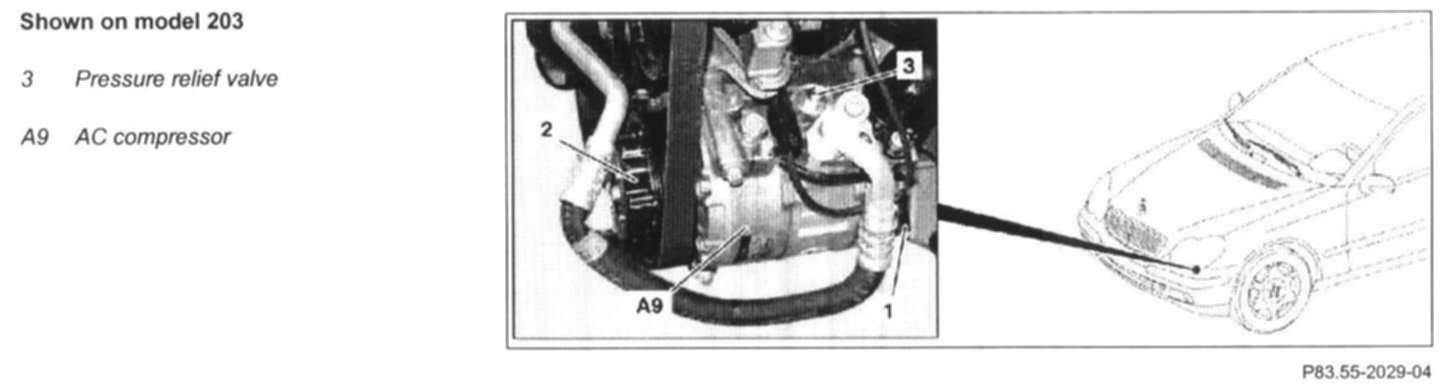

Shown on model 203:
The pressure relief valve (3) is located on the refrigerant compressor (A9).
