Compressor Pulley: Locations



Belt Pulley

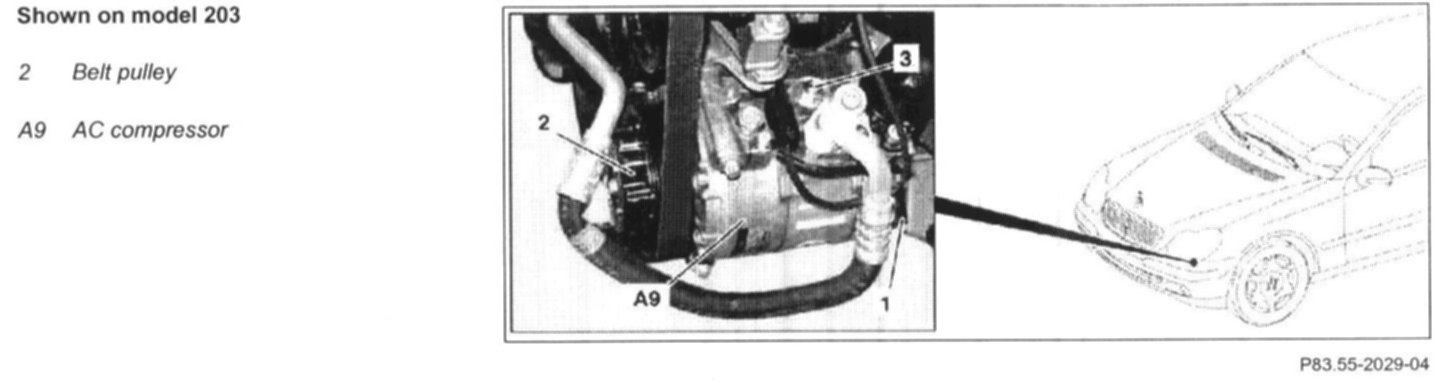

Shown on model 203:






The belt pulley (2) is located at the front of the drive shaft on the refrigerant compressor (A9).
