AR49.10-P-7000PR Remove/Install Complete Exhaust System
AR49.10-P-7000PR Remove/Install Complete Exhaust System

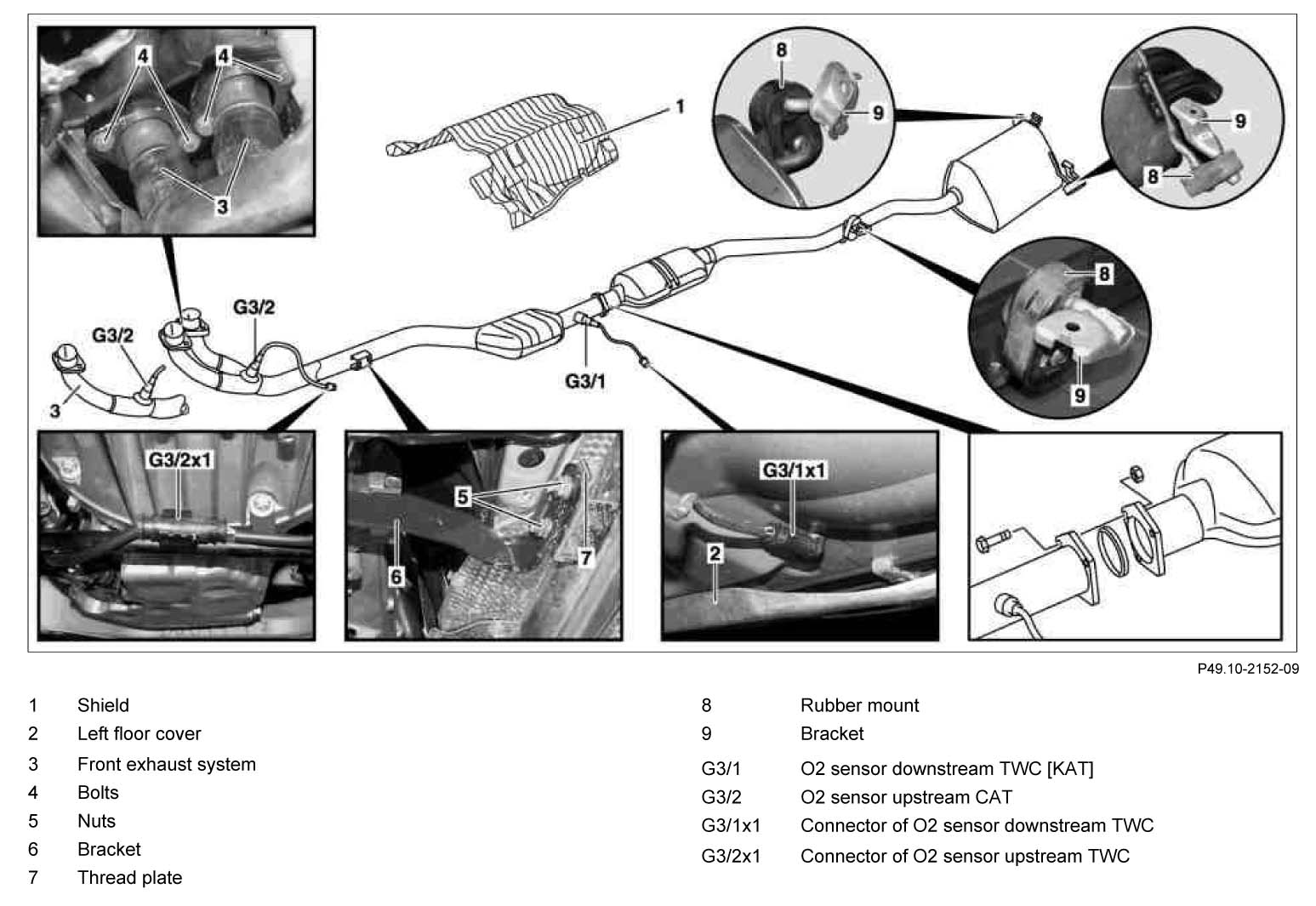

Removing/installing the complete
exhaust system

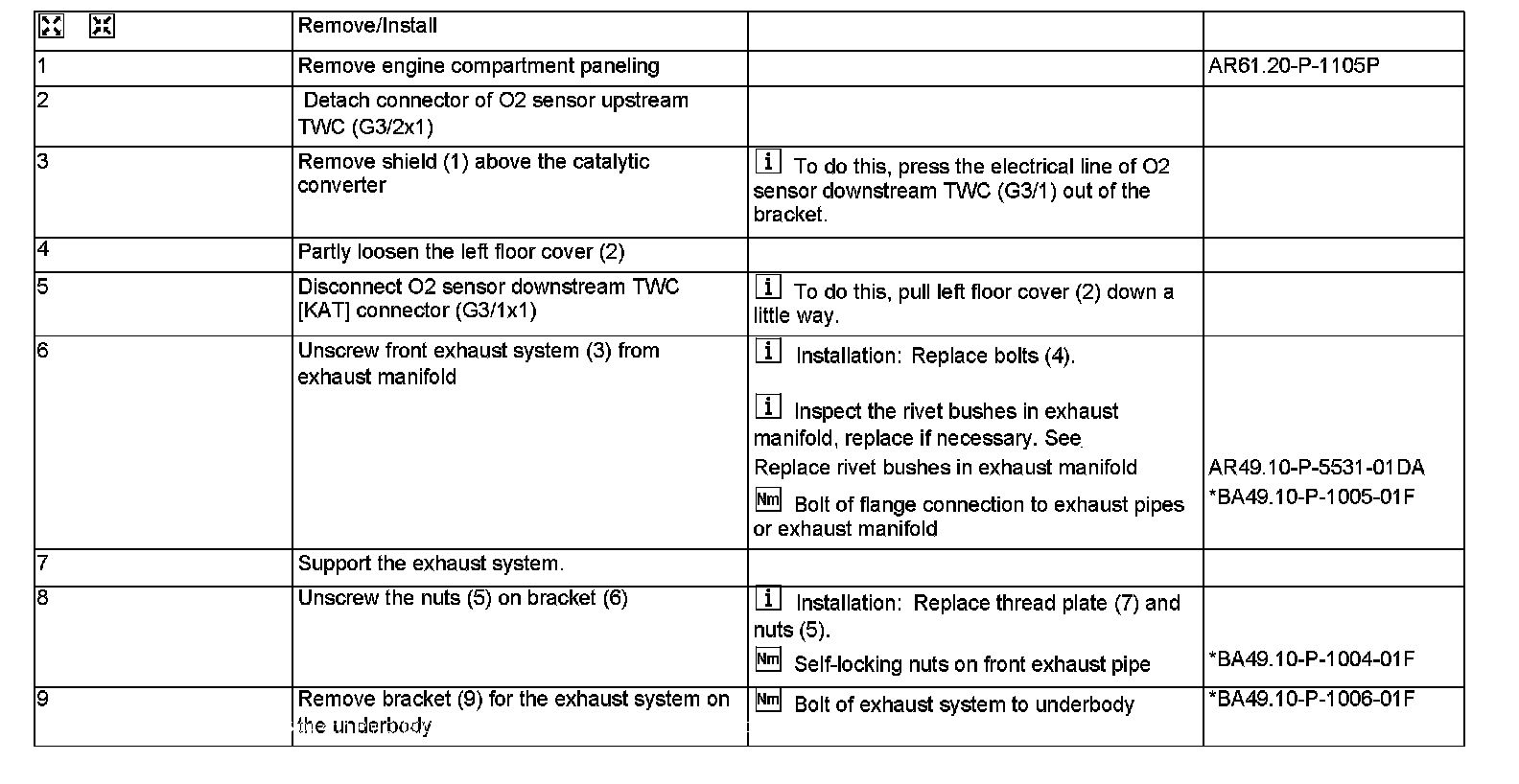

Steps 1-9:

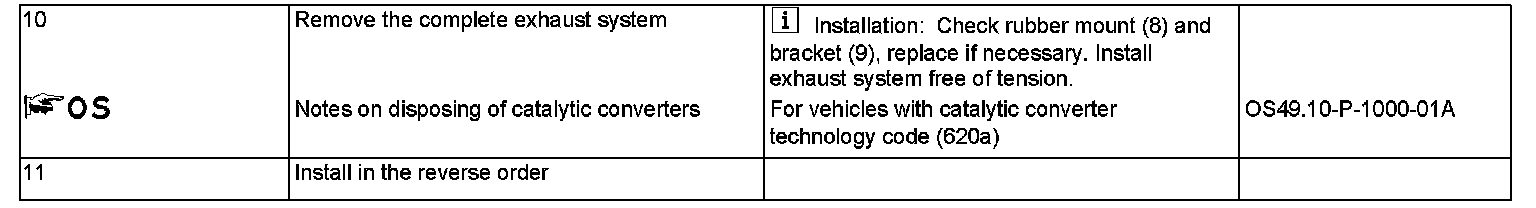

Steps 10-11:
