Tool - B & C Pillar Repair Tool
Date: January 2001Order No: P-SI-58.20/117
Supersedes:
Group: 58
SUBJECT:
MODEL 215, 220
COMPLEMENTARY M-B SPECIAL TOOL SET FOR A-, B-, C-PILLAR REPAIRS
M-B Special Tool 220 589 02 23 00 is specifically designed to be used in conjunction with specific dedicated fixtures, from Celette, in the collision repair process for models 215, 220. Together the tool set and dedicated equipment are used to locate the A-, B-, and C-pillar placements as described in M-B Collision Repair Instructions.

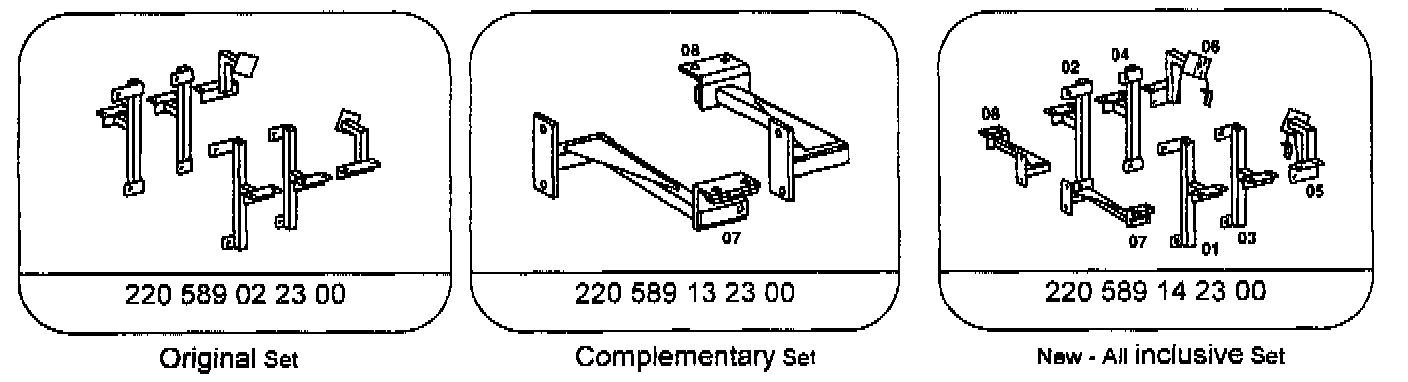

An upgrade or complementary tool set, is now available for the original tool. This Service Information briefly describes the purpose of each of these category "K-" tool set shown and emphasizes the scope of delivery contained in each. It is recommended for those workshops and body shops who already own the original tool, the complementary tool set be purchased. For workshops and body shops who do not own the original tool, an all inclusive tool set can be ordered under the tool number 220 589 14 23 00.

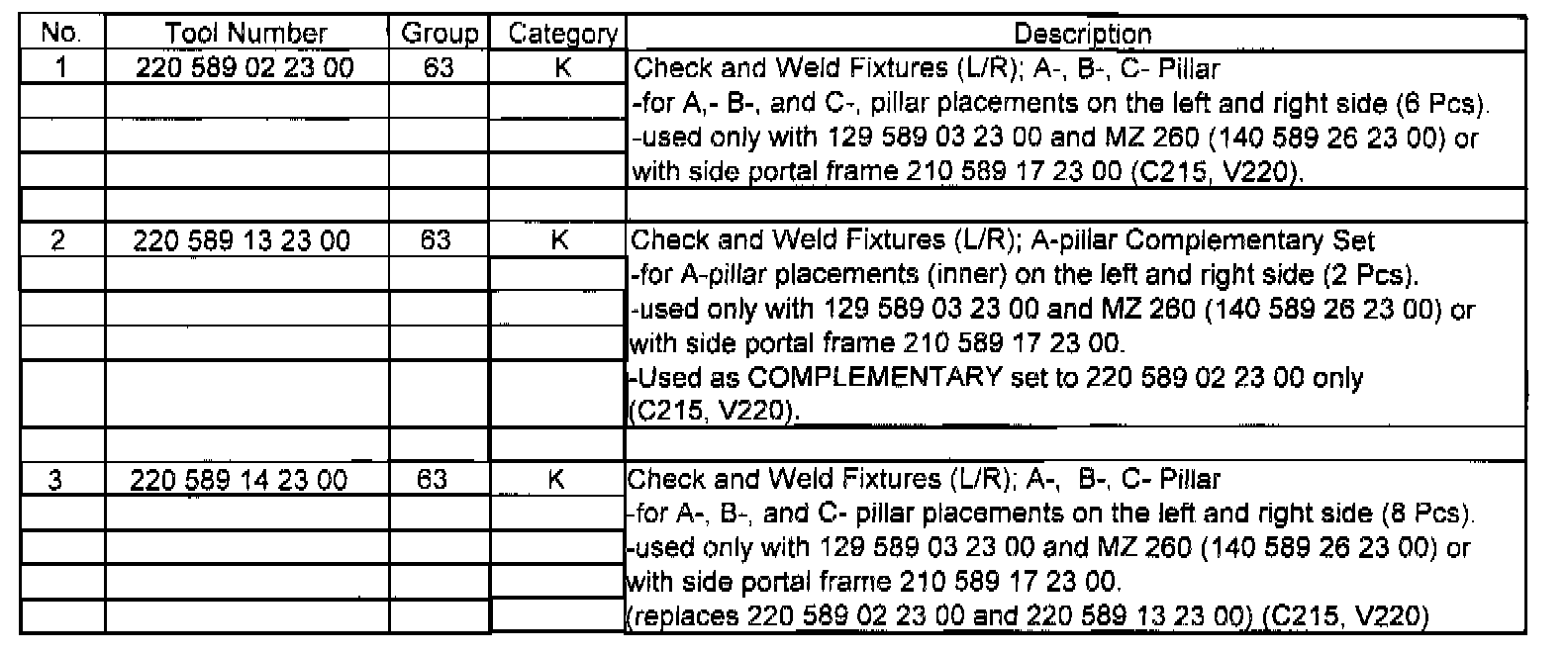

Special Tools
The M-B Special Tools shown are meant to be used by trained Collision Repair Specialists along with the Dedicated Collision Repair Equipment and Fixtures supplied by Celette USA and are available via the MBUSA Standard Service Equipment Program (SEE CATALOG OR PHONE [Toll Free] 1-888-458-4040).
Models 215, 220
