Cellular Phone - Voice Recognition System Installation: Overview
Date: June 2001Order No.: P-SI-82.64/138B
Supersedes: P-SI-82.64/138A
Group: 82
Revision:
Addition of step (1) in section: A. Installation preparation - all configurations.
SUBJECT:
MODEL 203.061/064
MODEL YEAR 2001, 2002
CELLULAR TELEPHONE/CD CHANGER/OPTIONAL VOICE RECOGNITION SYSTEM INSTALLATION
WARNING
Disconnecting the negative battery cable is not recommended due to otherwise extensive reprogramming requirements. WIRING HARNESSES WILL BE ELECTRICALLY ACTIVE. IT IS THEREFORE NECESSARY TO EXERCISE EXTREME CAUTION WHILE EXECUTING THESE INSTALLATION INSTRUCTIONS. FAILURE TO DO SO. COULD RESULT IN SEVERE VEHICLE DAMAGE. PERSONAL INJURY OR DEATH FROM ELECTRICAL SHOCK. The ignition and radio power must remain OFF until the final test is performed.
Application Specific D2B Notes:
^ Telephone, voice recognition, and (if COMAND is installed) Tele Aid 2 fibers are installed in the vehicle at the factory. The fibers run along the right side of the vehicle to the right rear quarter panel and the front of the trunk floor.
^ Fiber reconfiguration is necessary for any accessory installation.
^ If equipped with COMAND, the vehicle is configured at the factory for Tele Aid.
^ If so equipped, the vehicle is configured at the factory for the sound system amplifier.

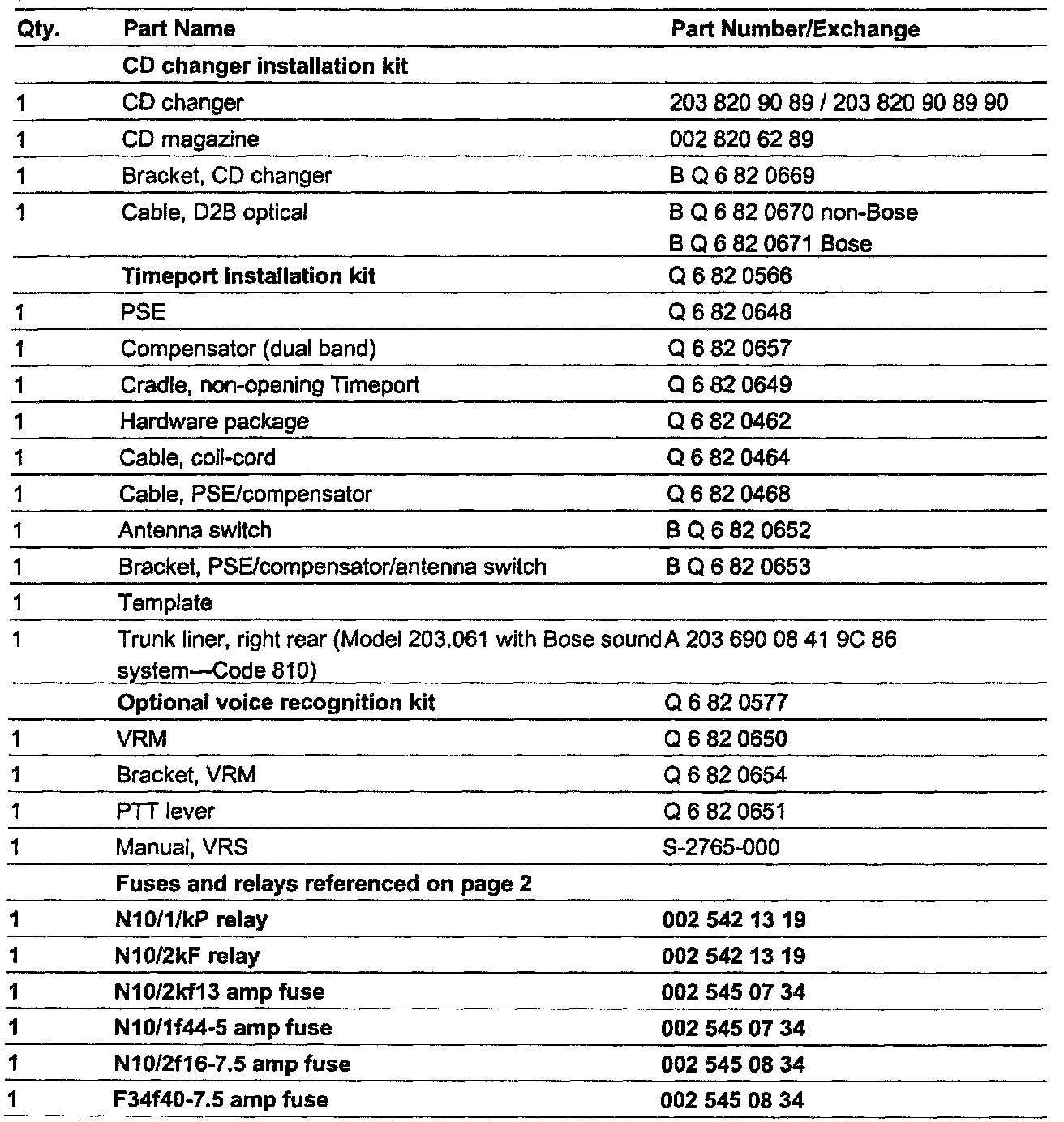

Parts information
