G. Installing the CD Changer
Installing the CD changer1. Remove the radio (refer to WIS: AR82.60-P-7502P, Removing and installing radio).

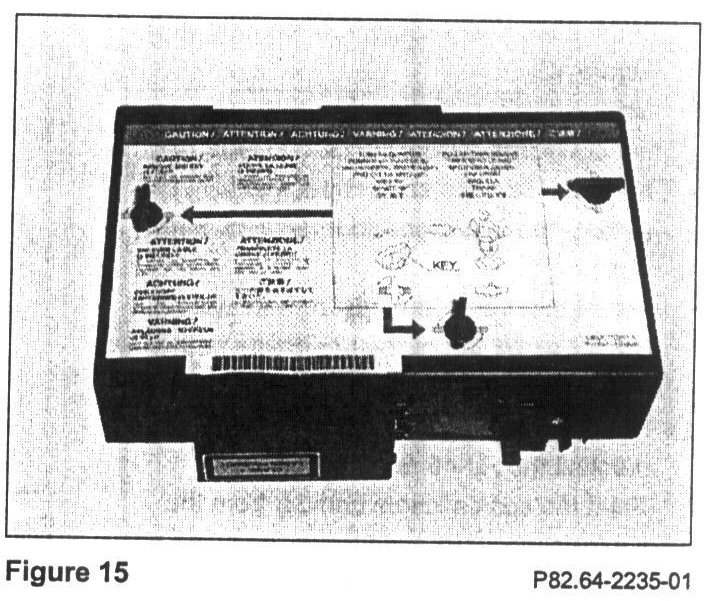

2. Remove the three CD changer transport keys (Figure 15).
3. Verify that the suspension spring setting is H (horizontal).
4. Affix the three adhesive dust covers from the kit over the transport holder holes on the bottom of the CD changer.
5. Mount the CD changer to the mounting bracket with four M4 x 6 machine screws (Figure 16).

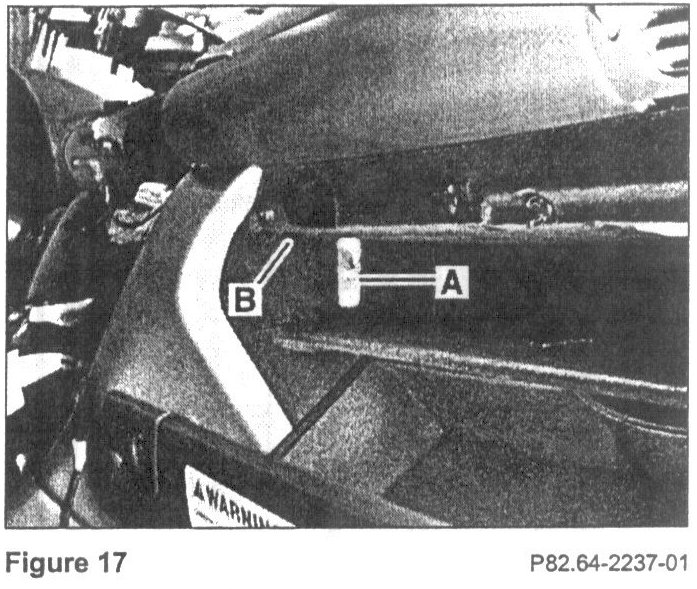

6. Use a knife to cut out the perforated knockout from inside the CD changer compartment left side (A, Figure 17).
7. Feed the CD changer power cable through the newly created opening and into the CD changer compartment.
8. Feed the fiber optic cable (included with the CD changer kit and configured in Section A according to S-SI-82.64/135) through the same opening into the CD changer compartment.
9. Connect the power and fiber optic cables to the back of the CD changer.

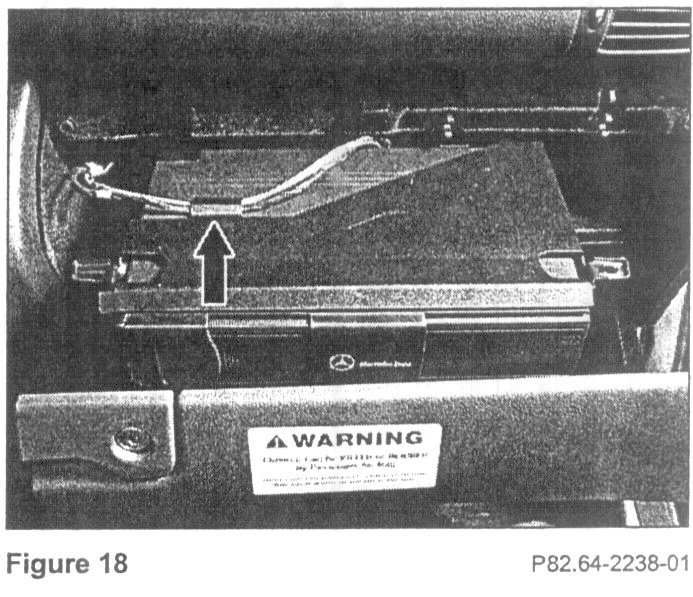

10. Carefully secure both cables in the CD changer bracket clip (Figure 18).
11. Slide the CD changer assembly completely to the left of the compartment until the bracket tab inserts into the compartment slot (B, Figure 17).
12. Secure the CD changer assembly at the right mounting tab with a screw.
13. Reinstall the radio in reverse order of removal.
