Cabin Air Filter / Purifier: Service and Repair

2 Cover
3 Clip




1 Combination filter

Removal and Installation:
1. Remove cover panel below instrument panel.

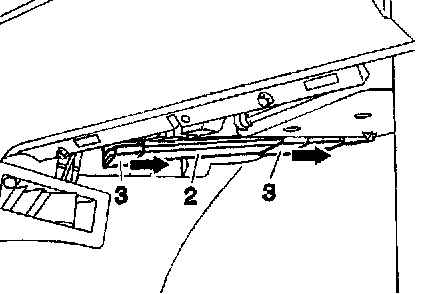

2. Take off cover (2). Push the two remaining clips (3) in the direction of arrow for this purpose.

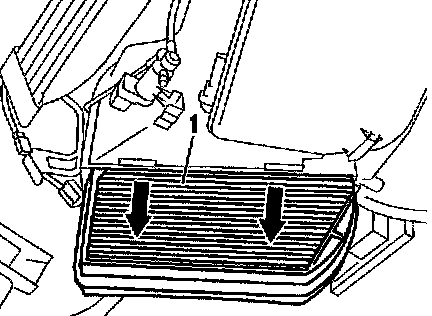

3. Pull combination filter (1) down and out (arrows).
4. Install in reverse order.
