B. Mounting Portable Support Electronics & Linear Compensator

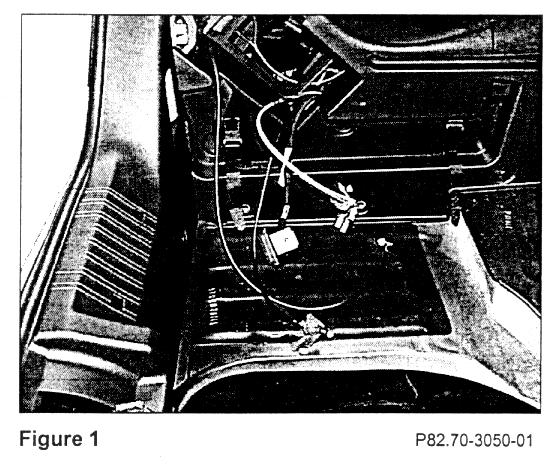

1. Remove the first aid kit and plastic panel covering the left rear interior trim panel (Figure 1).

Figure 1:

2. Locate the (Figure 1):

- 25-pole D-connector

- coaxial cable from the front center console

- two fiber optic connectors integrated antenna coupling

Figure 2:

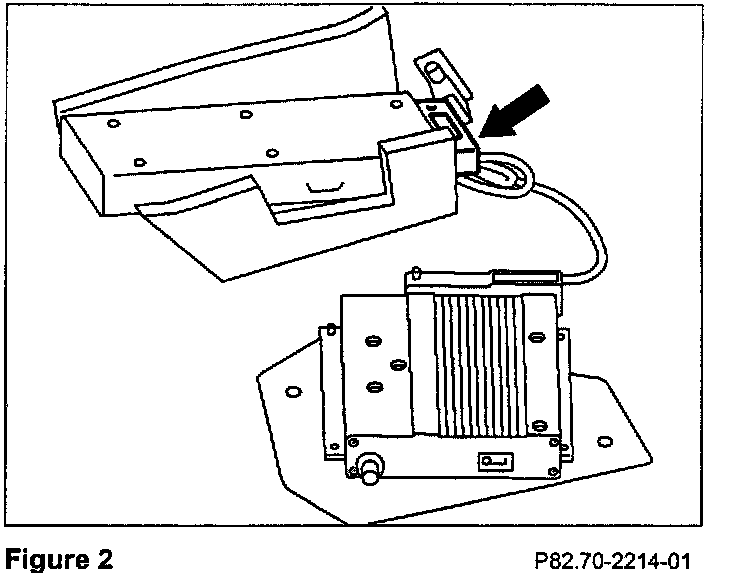

3. Mount the linear compensator to the mounting plate with two M4 nuts (Figure 2).

4. Connect the female 25-pole Y-connector labeled PSE to the PSE module. Fold the cable and tie it back with the cable ties. Place the PSE module in the foam mounting block (Figure 2).

5. Connect the Y-cable 14-pole green connector to the linear compensator.

6. Connect the male Y-cable connector to the vehicle side 25-pole pre-wire harness.

7. Place the foam mounting block containing the PSE module partially into the trim panel opening.

8. Remove the protective cap from the configured fiber optic and connect the fiber to the receptacle on the side of the PSE module.

9. Connect the coaxial cab: from the antenna (terminated in a right angle mini-UHF connector) to the linear compensator jack labeled Antenna.

10. Attach the SAP to mini-UHF adapter (supplied with the installation kit) to the coaxial cable from the front console (terminated in a SAP connector). Connect the mini-UHF end of the installed adapter to the linear compensator jack labeled Portable.

Note:
DO NOT reverse the coaxial connections in steps 9 and 10.

11. Push the foam mounting block containing the PSE into the trim panel recess.

Figure 3:

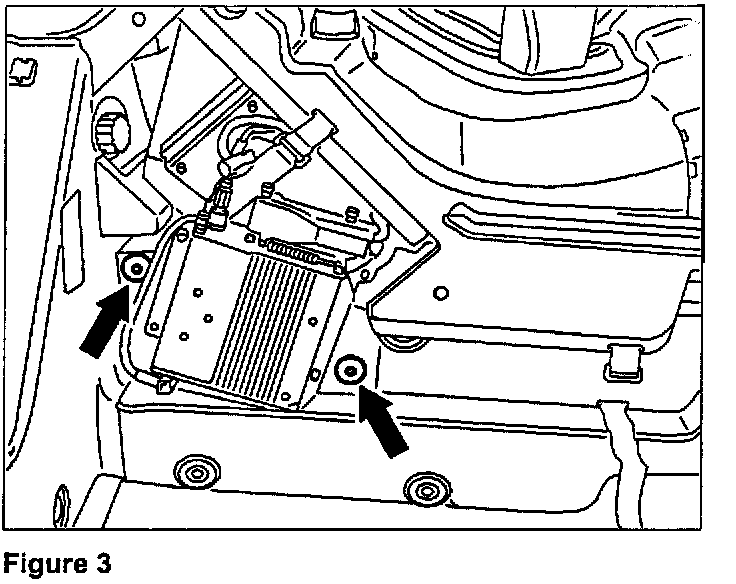

12. Place the linear compensator on the side panel and then drill two 8-mm (5/16-in.) holes in the trim panel using the mounting plate as a template (Figure 3).

13. Fasten the linear compensator to the trim panel with the two trim fasteners included in the kit.

14. Reinstall the previously removed trim panel cover.
