Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Mercedes Benz
>>
2000
>>
SLK 230 (170.447) L4-2.3L SC (111.973)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Emission Control Systems
>>
Evaporative Emissions System
>>
Canister Purge Control Valve
>>
Description and Operation
>>

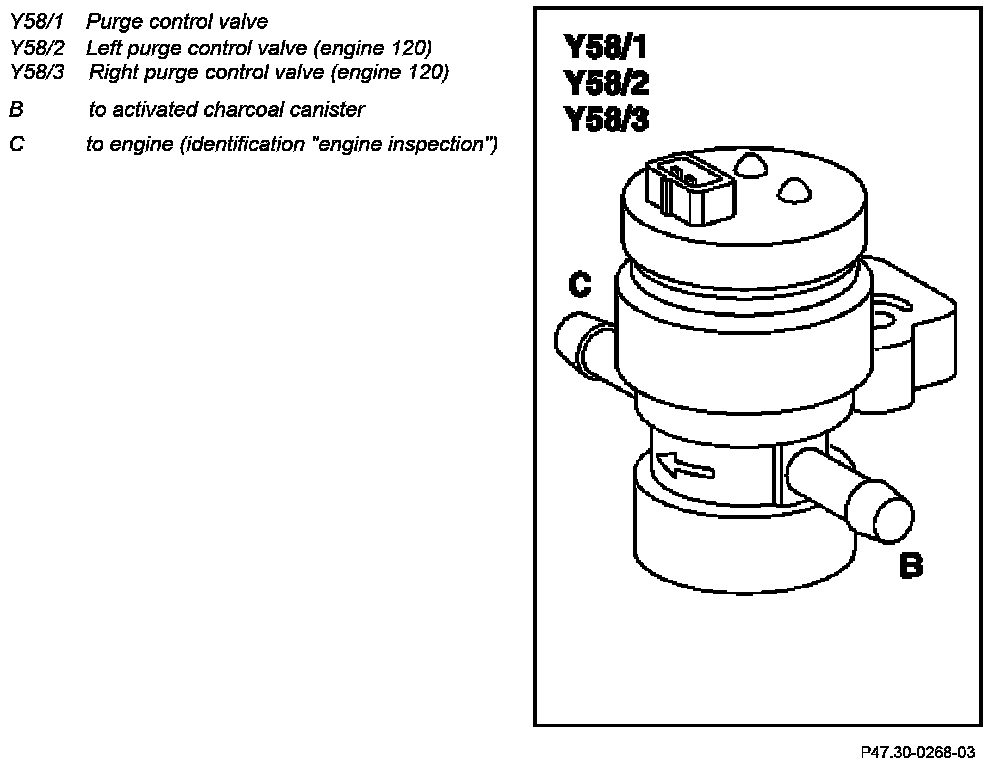

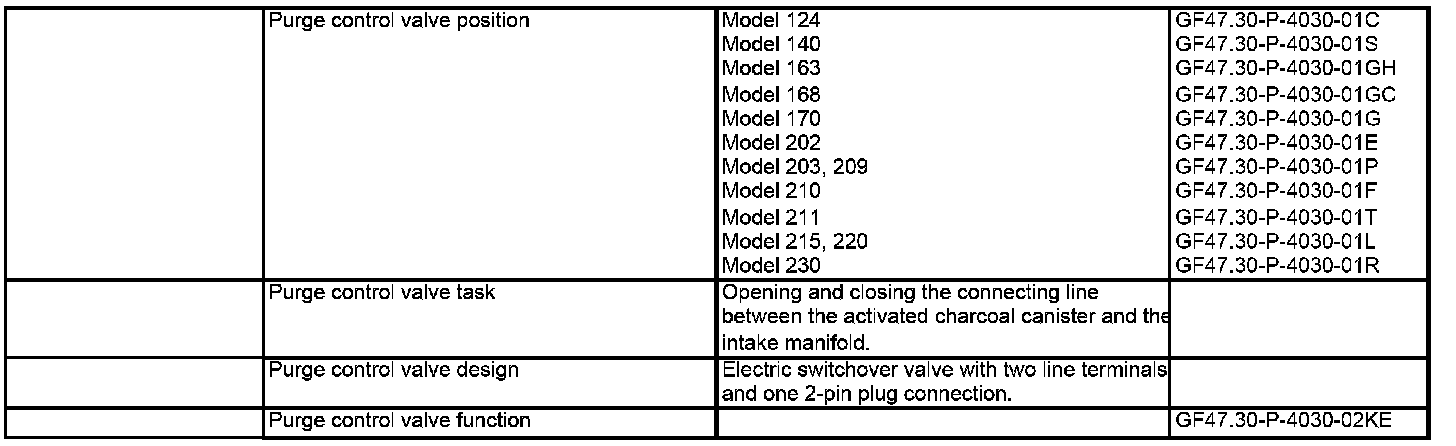

GF47.30-P-4030L Purge Control Valve, Location/Task/Design/Function
GF47.30-P-4030L Purge Control Valve, Location/Task/Design/Function
GF47.30-P-4030L Purge Control Valve, Location/Task/Design/Function
