Evaporator Case: Service and Repair

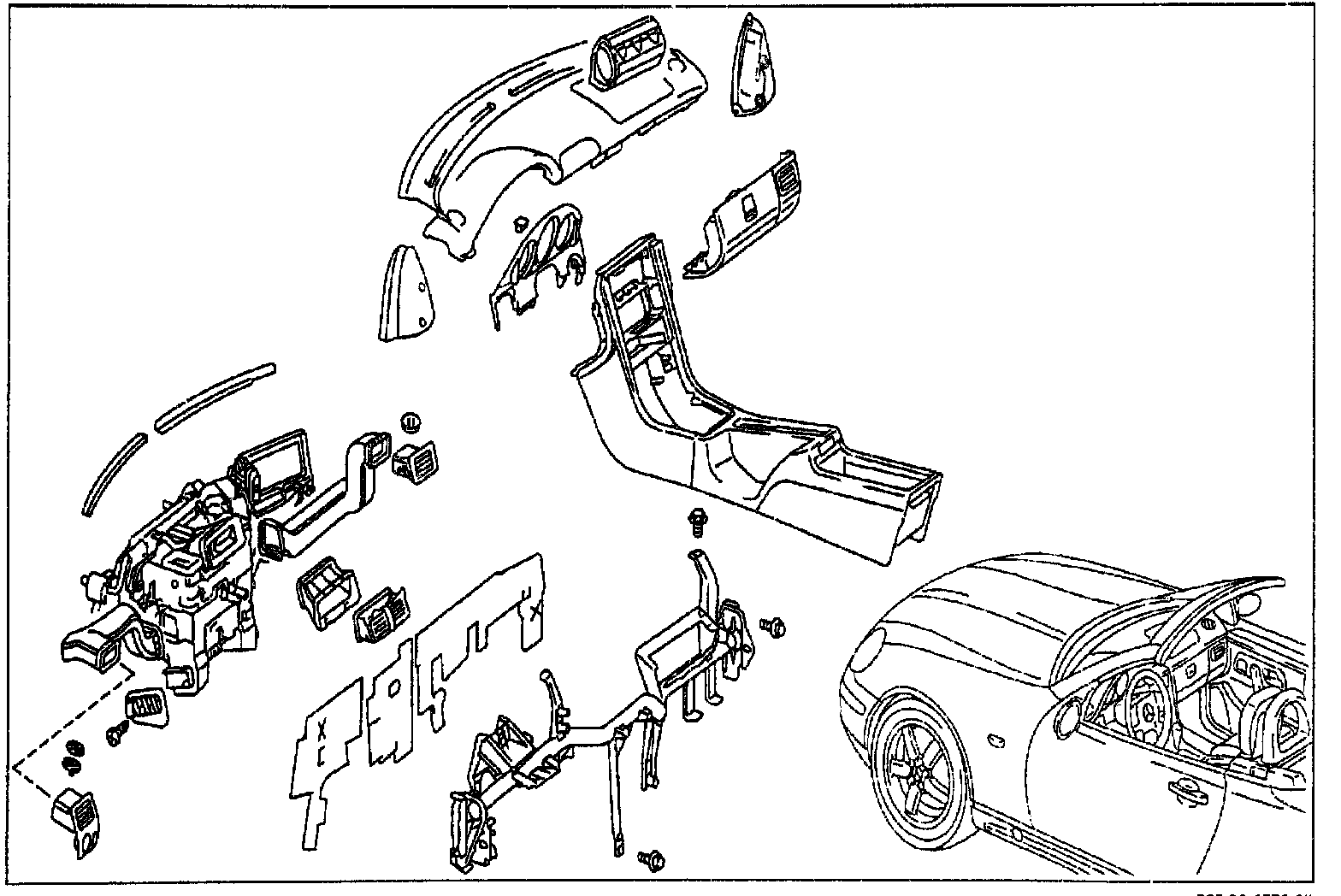

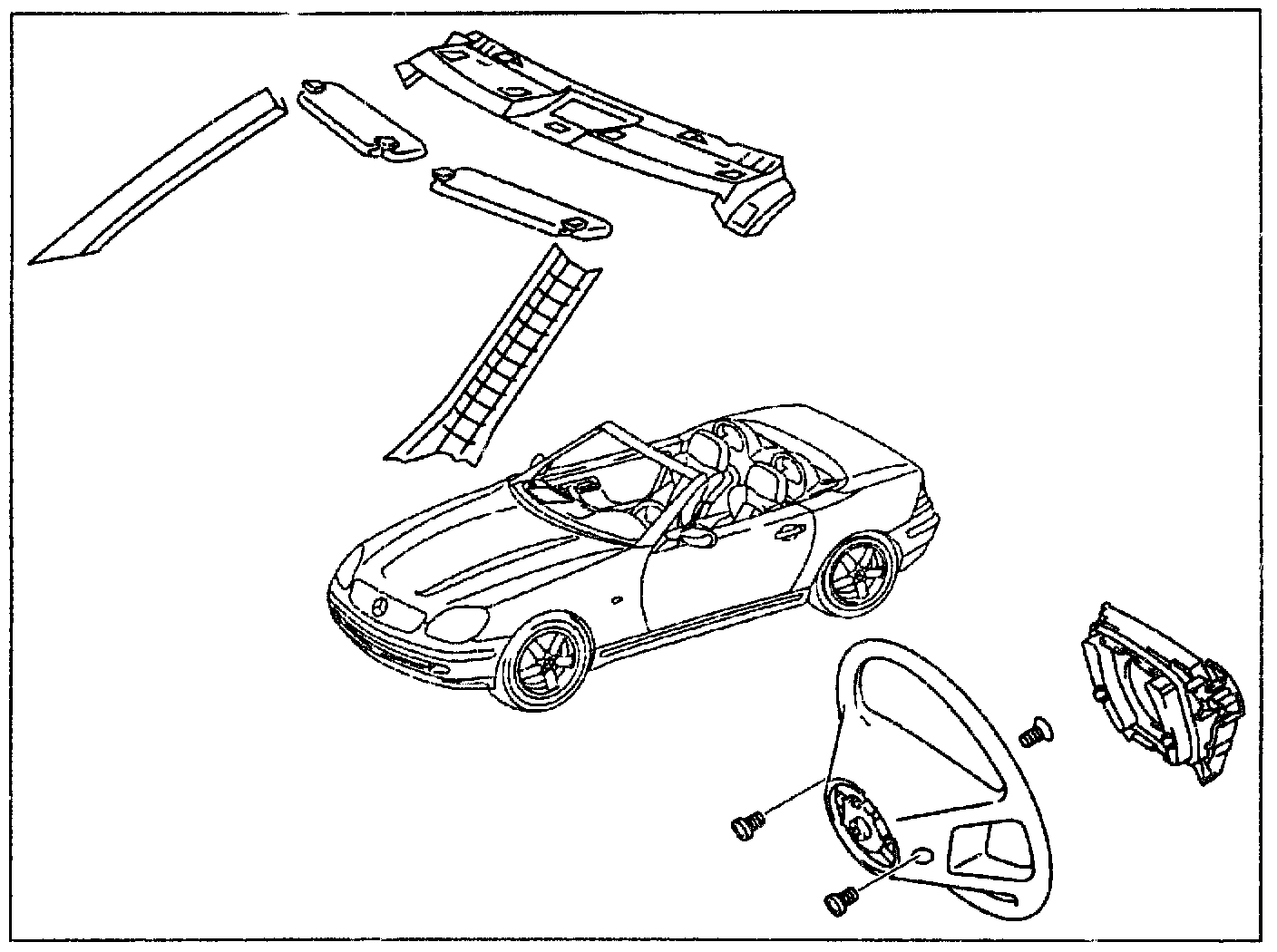

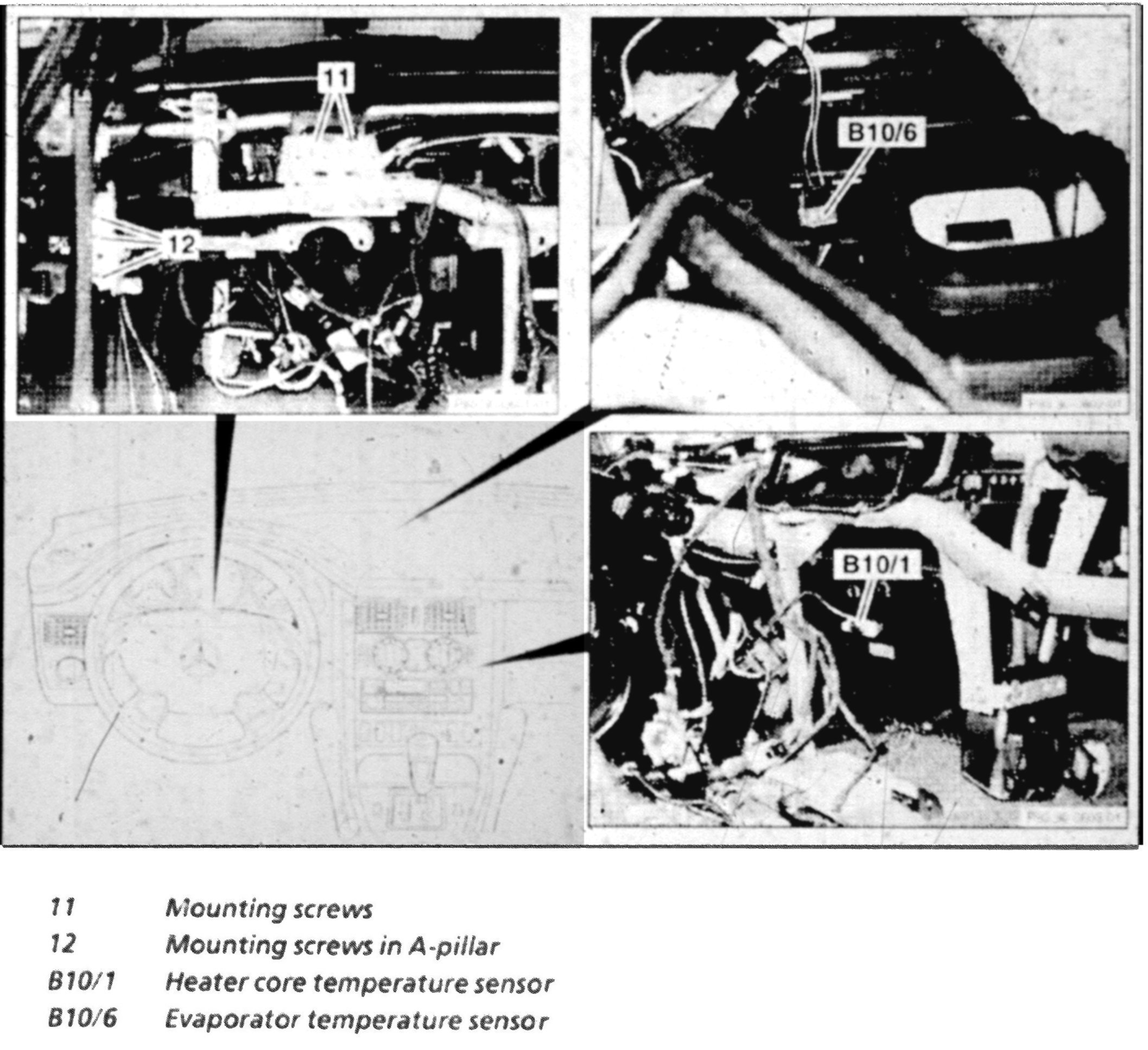

Removing and installing
evaporator housing

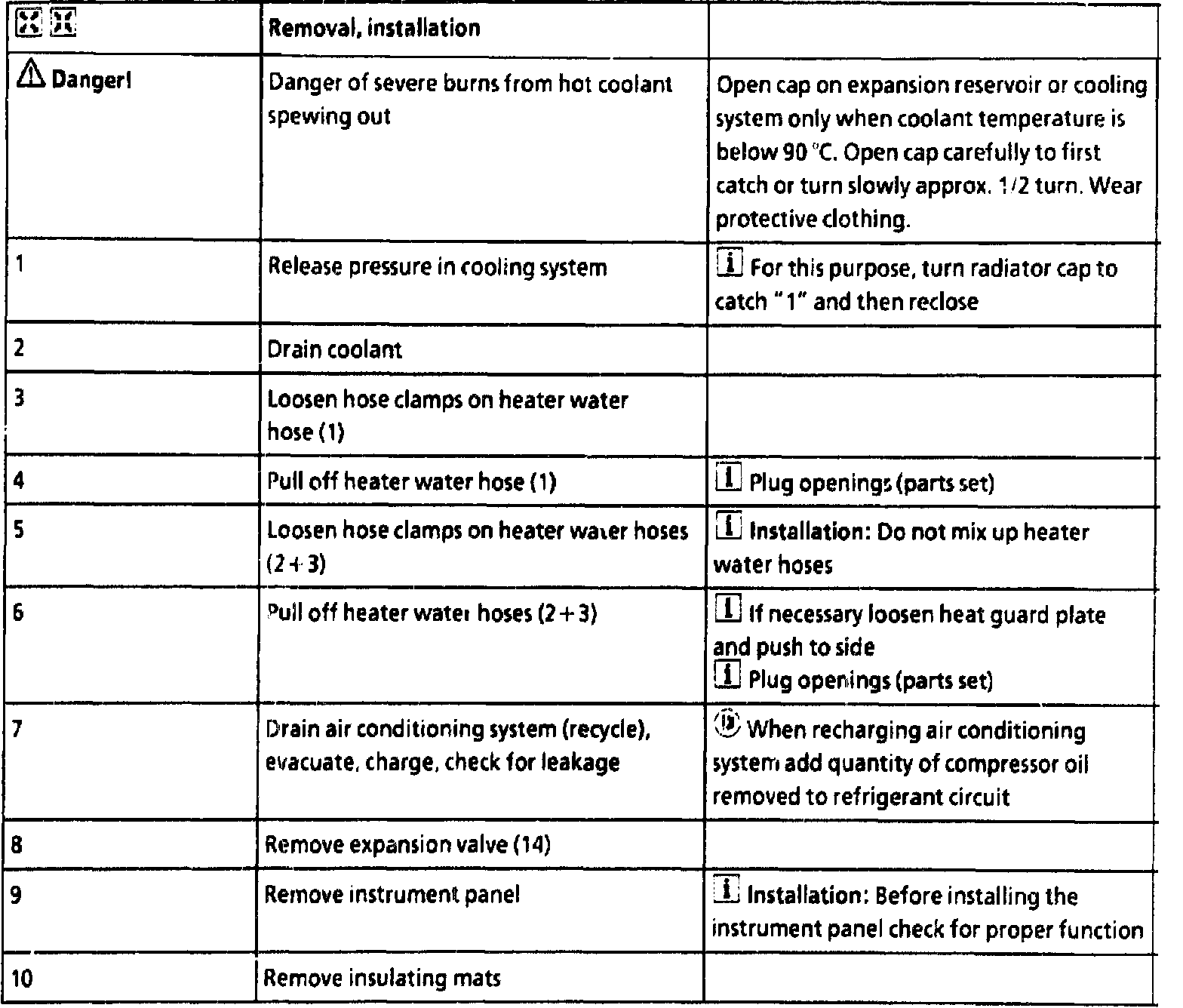

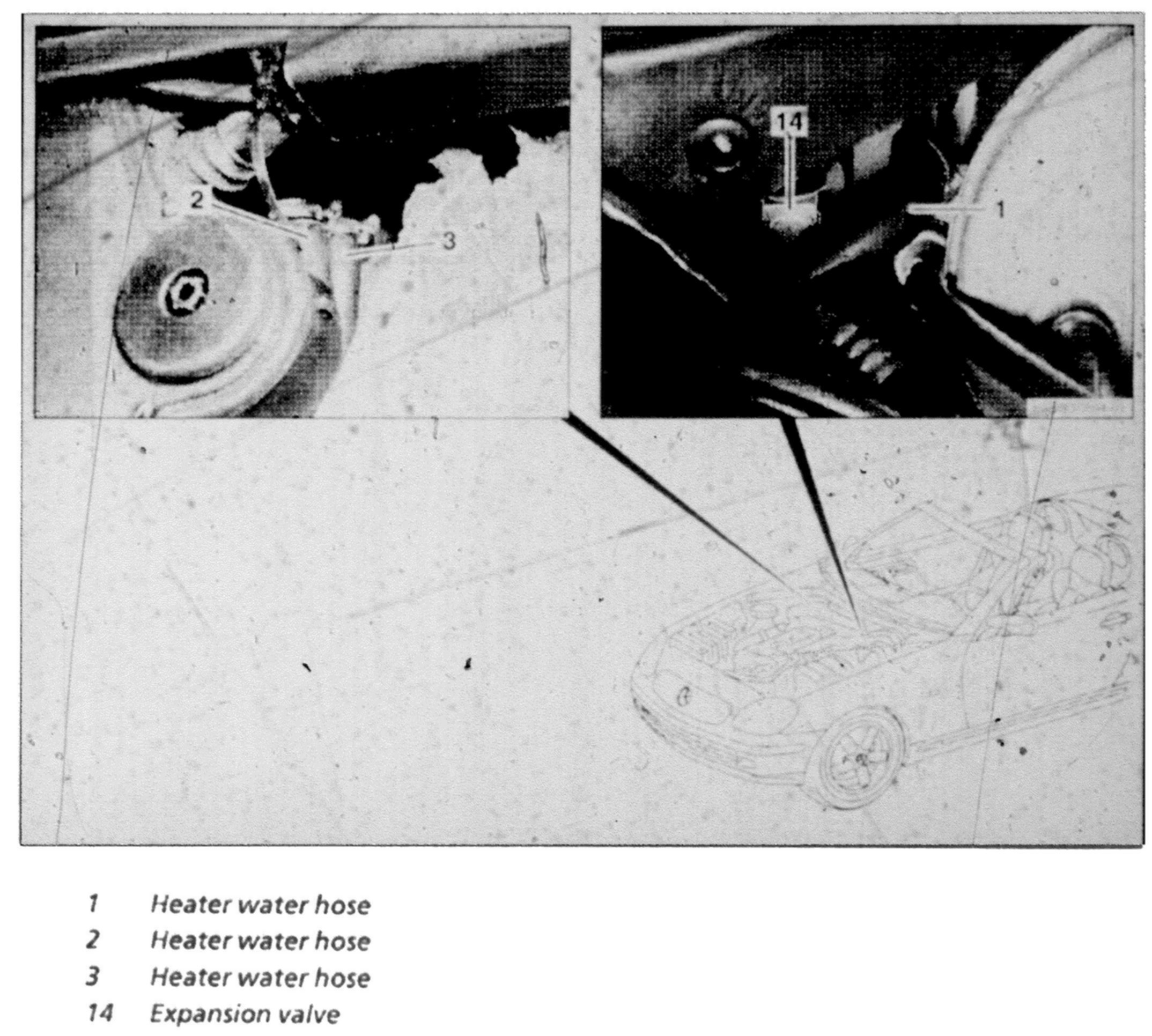

Remove, Install - Steps 1-10:

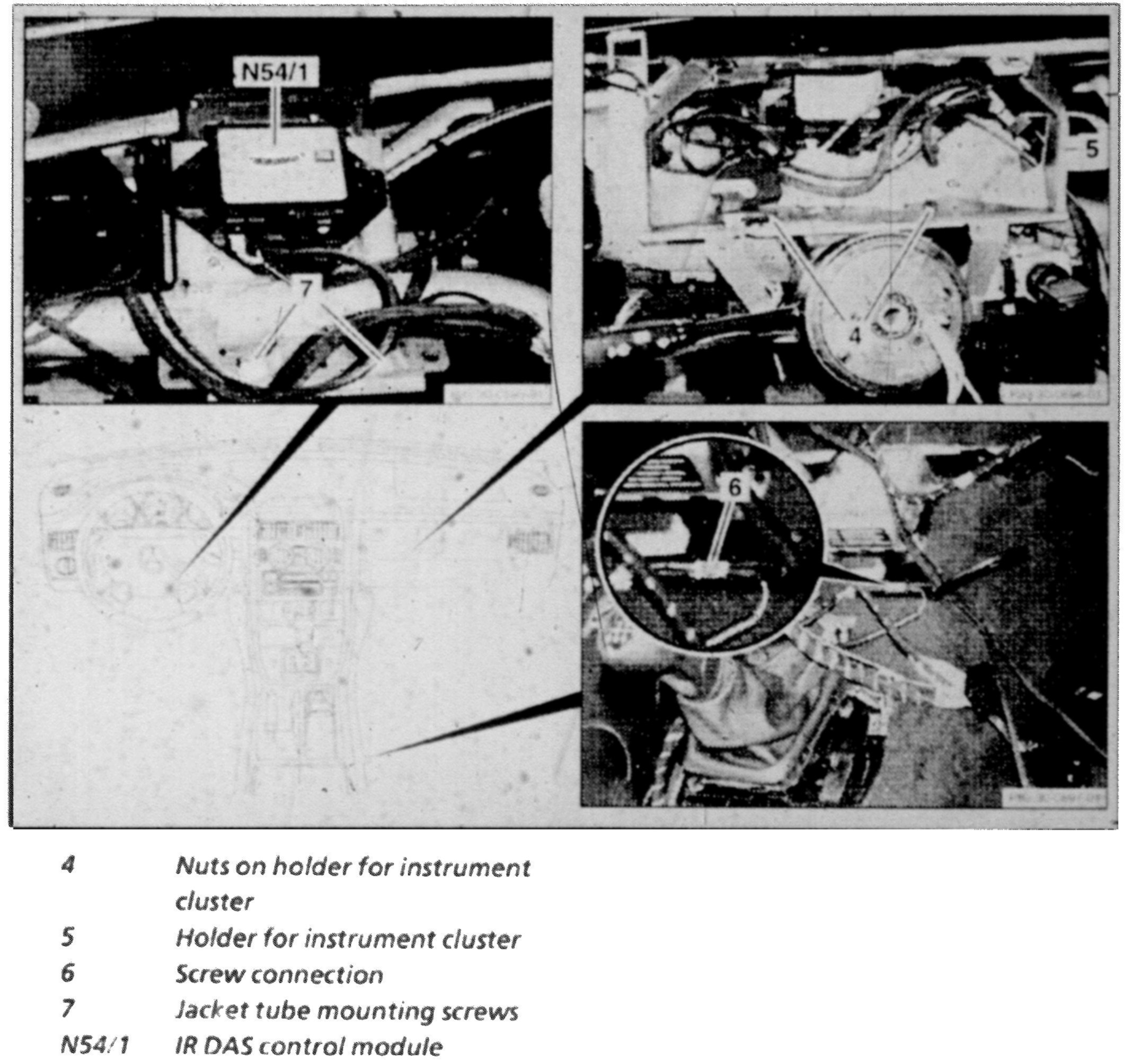

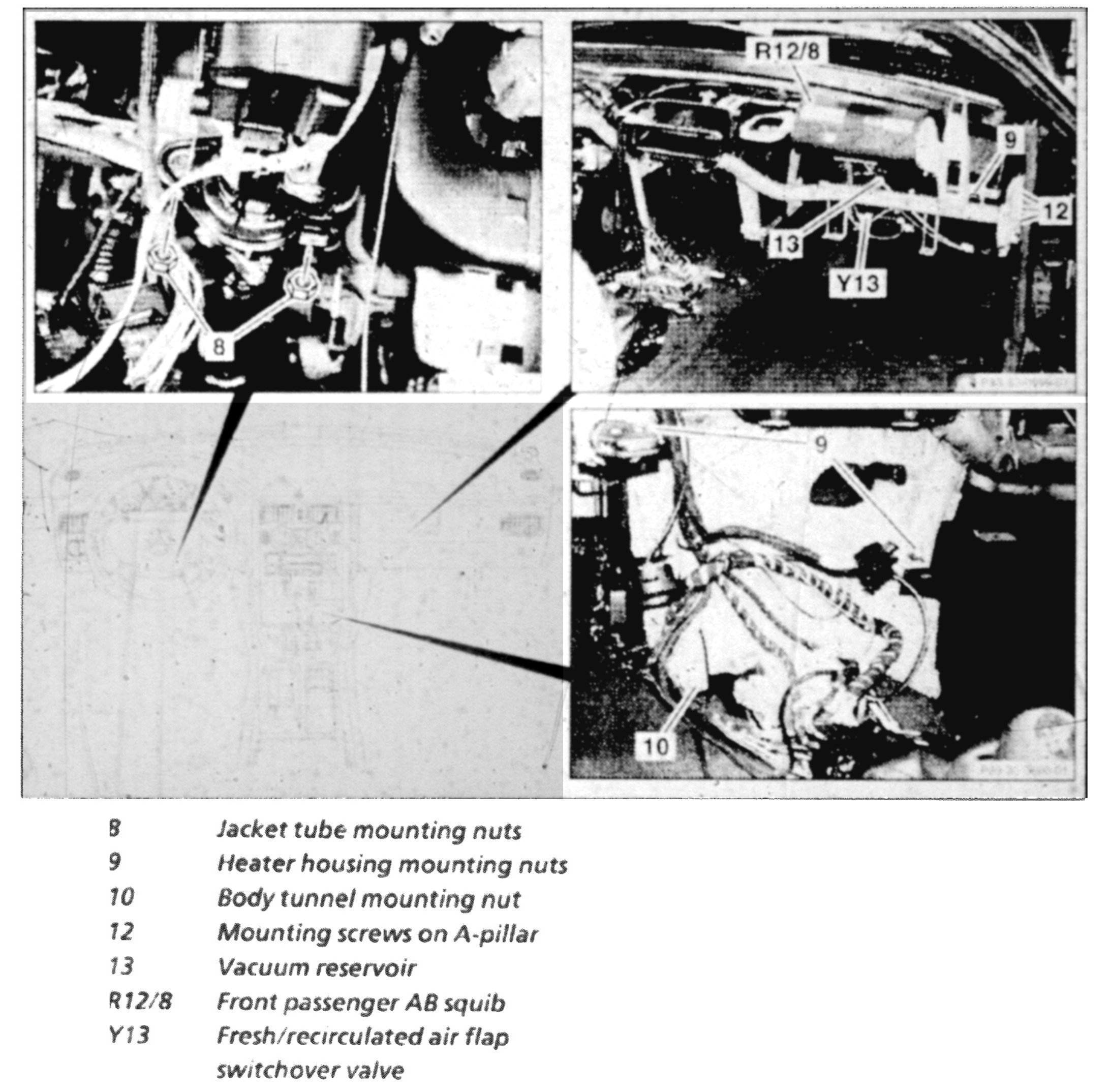

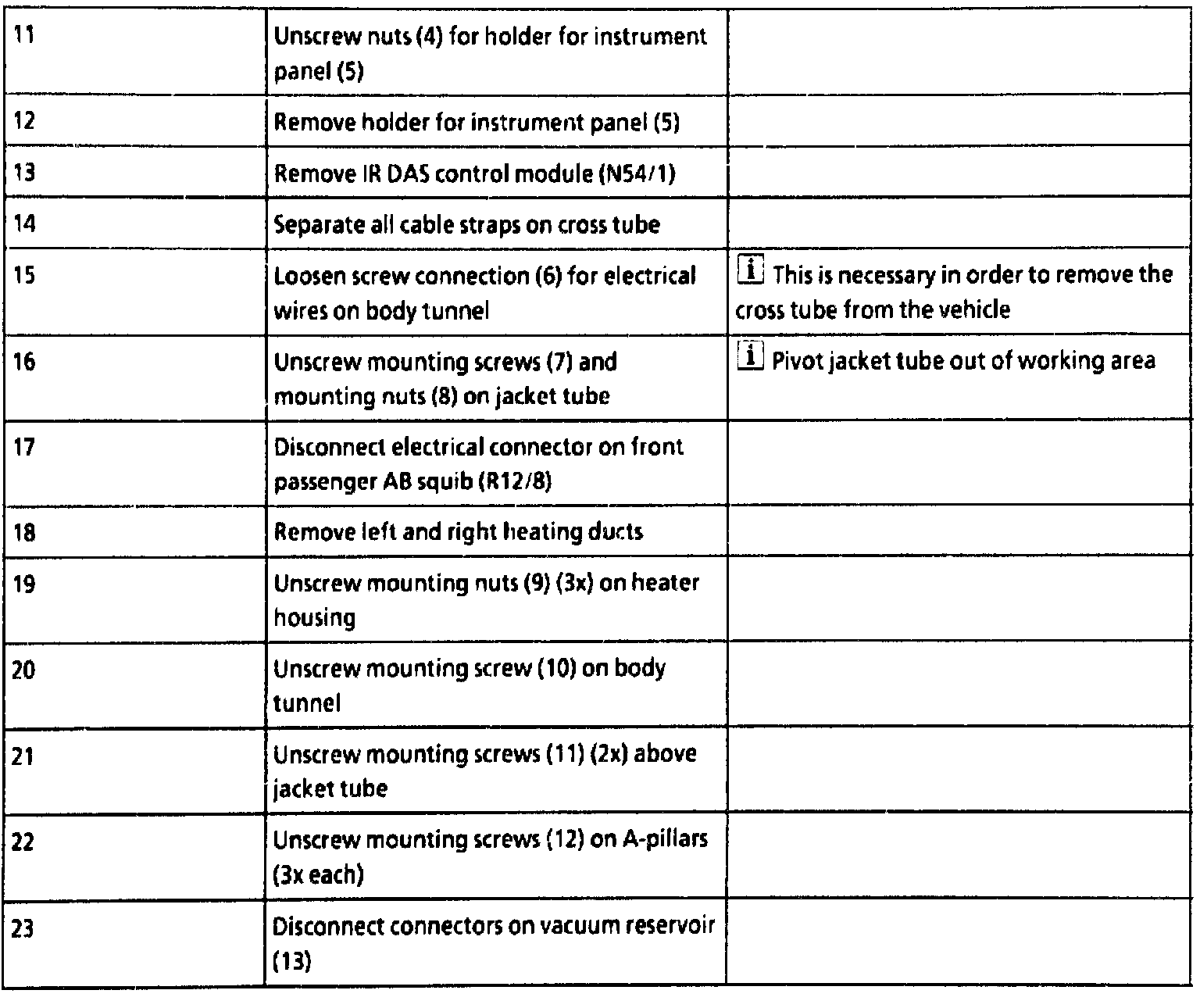

Remove, Install - Steps 11-23:

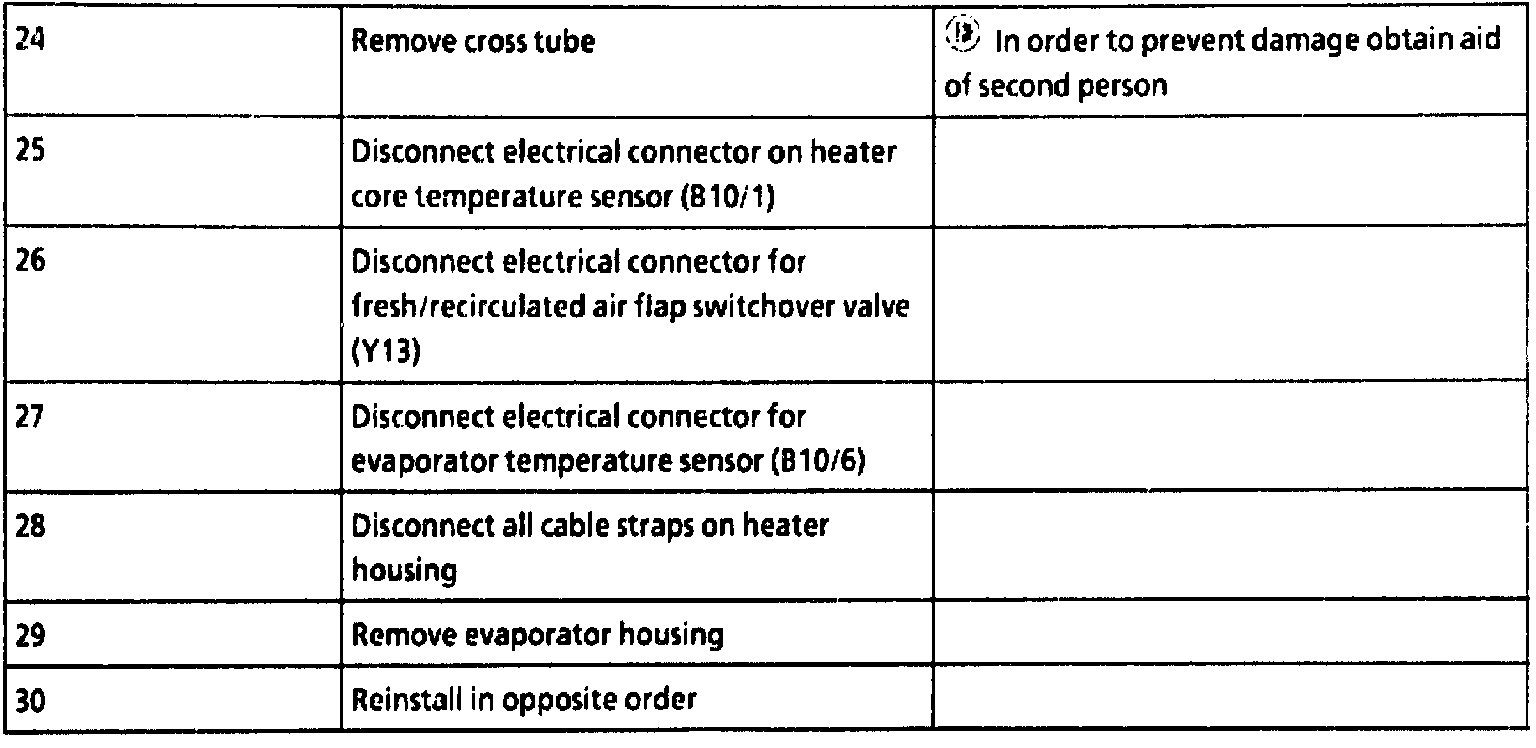

Remove, Install - Steps 24-30:
