Mercedes Benz
>>
2000
>>
SLK 230 (170.447) L4-2.3L SC (111.973)
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Description and Operation
>>

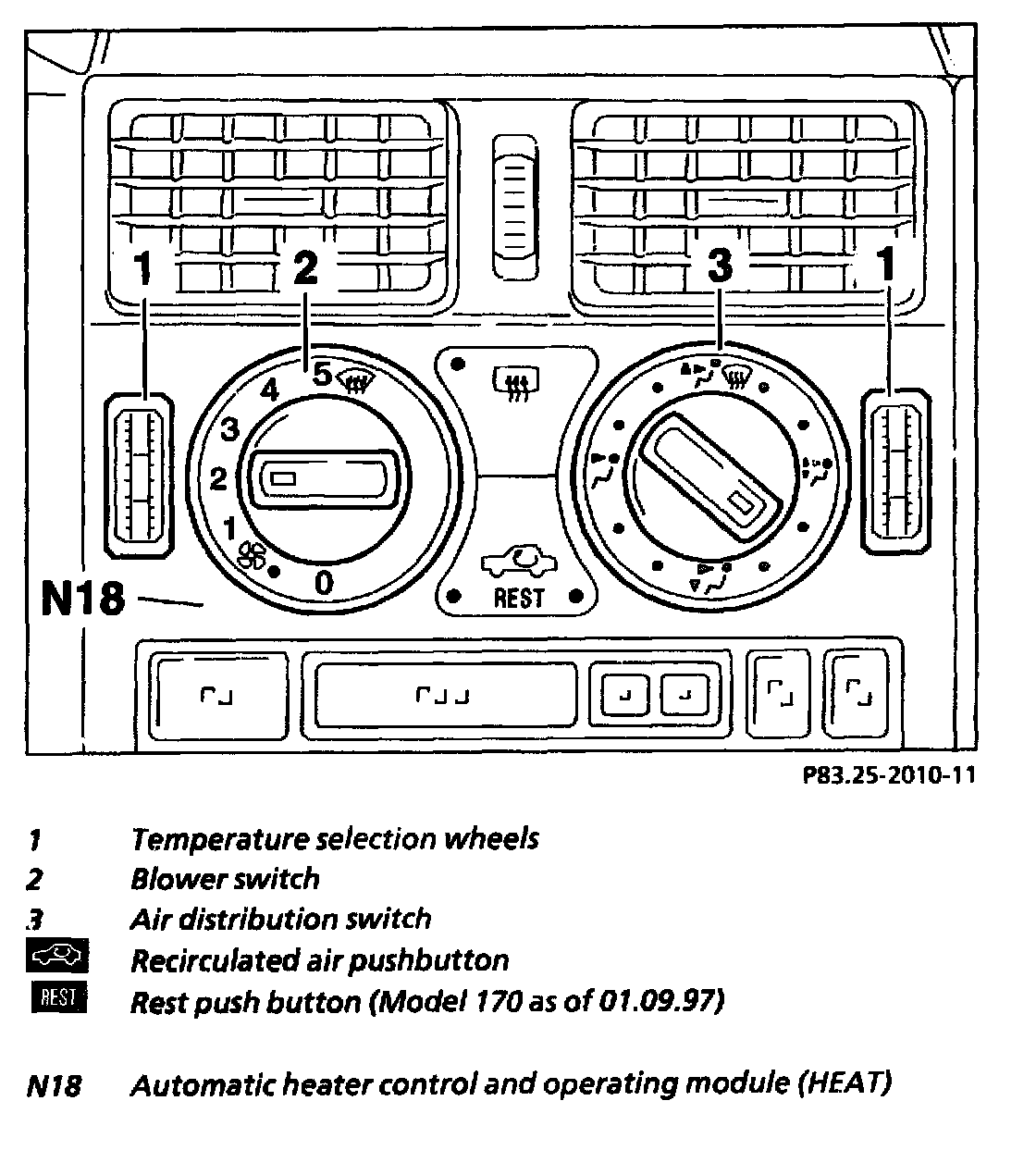

Automatic Heater Push-button Control Module Position
Automatic Heater Push-button Control Module Position

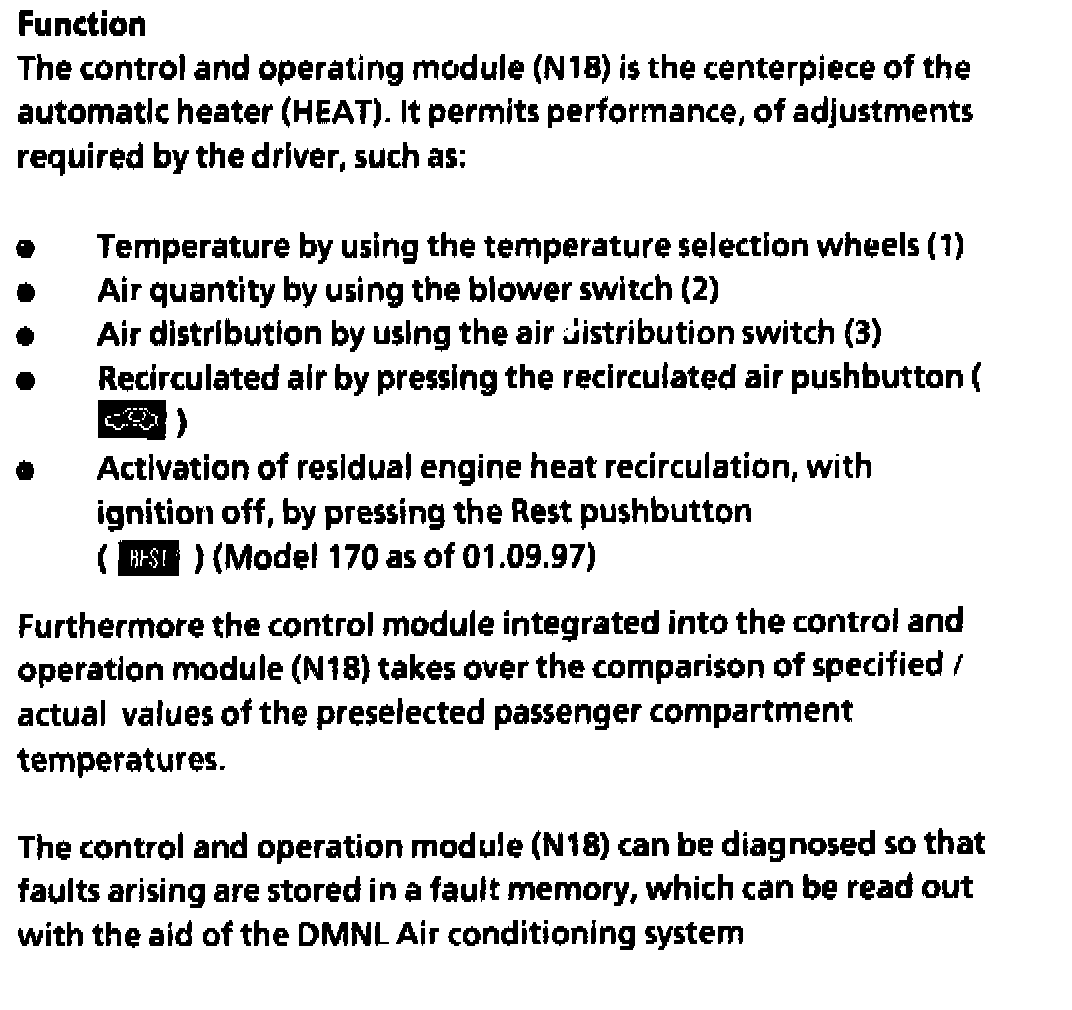

Function:
