Mercedes Benz
>>
2000
>>
SLK 230 (170.447) L4-2.3L SC (111.973)
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Control Assembly
>>
Description and Operation
>>
AAC Pushbutton Control Module (N22), Display and Pushbuttons
>>

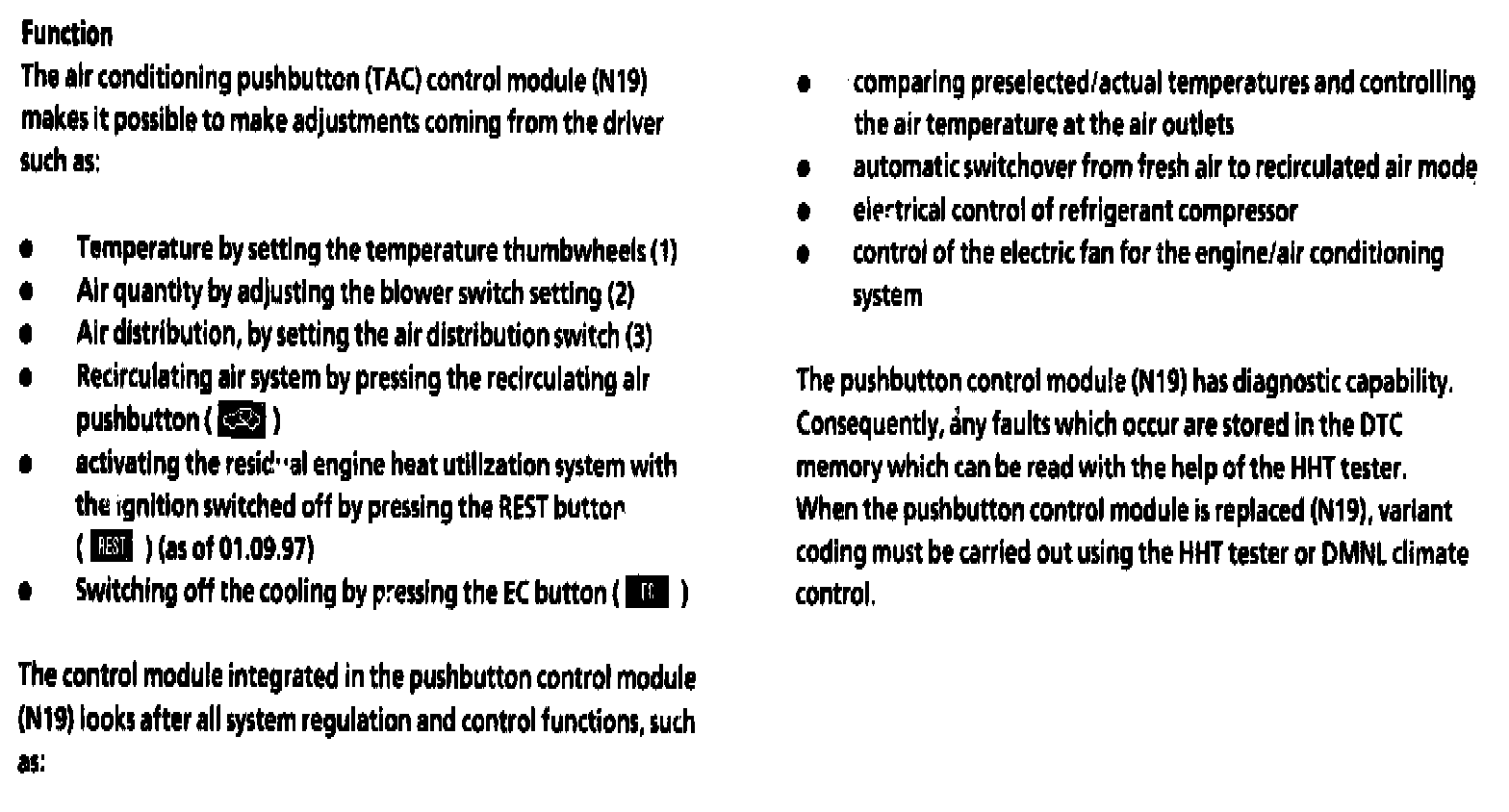

Air Conditioning Pushbutton Control Module Function
Air Conditioning Pushbutton Control Module Function
Function:
