Home >> Mercedes Benz >> 2000 >> SLK 230 (170.447) L4-2.3L SC (111.973) >> Repair and Diagnosis >> Body and Frame >> Seats >> Seat Cover >> Service and Repair >> AR91.18-P-1820G Remove/Install Cover on Front Seat Backrest

AR91.18-P-1820G Remove/Install Cover on Front Seat Backrest



AR91.18-P-1820G Remove/Install Cover on Front Seat Backrest

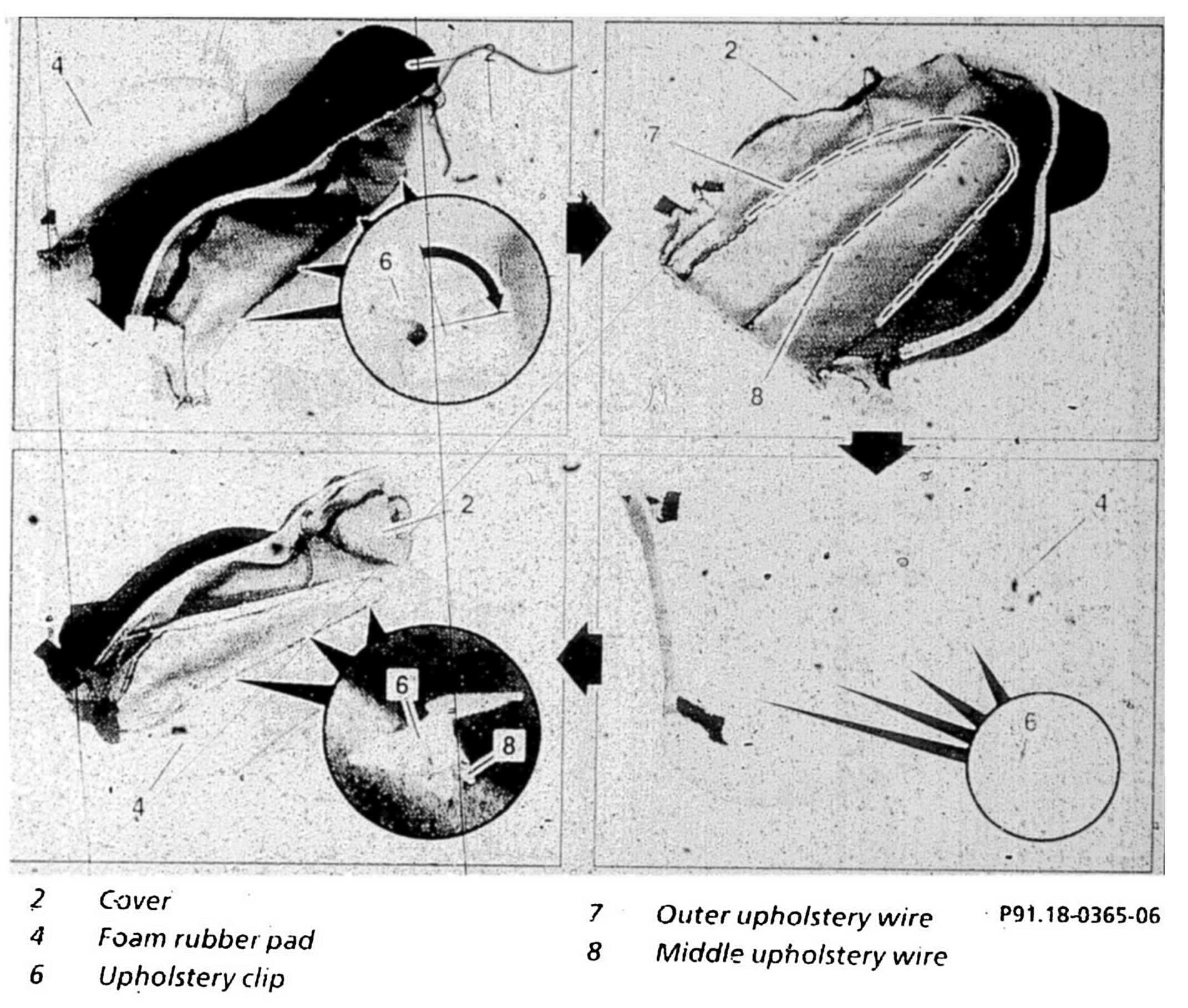

Component Identification:






Component Identification:

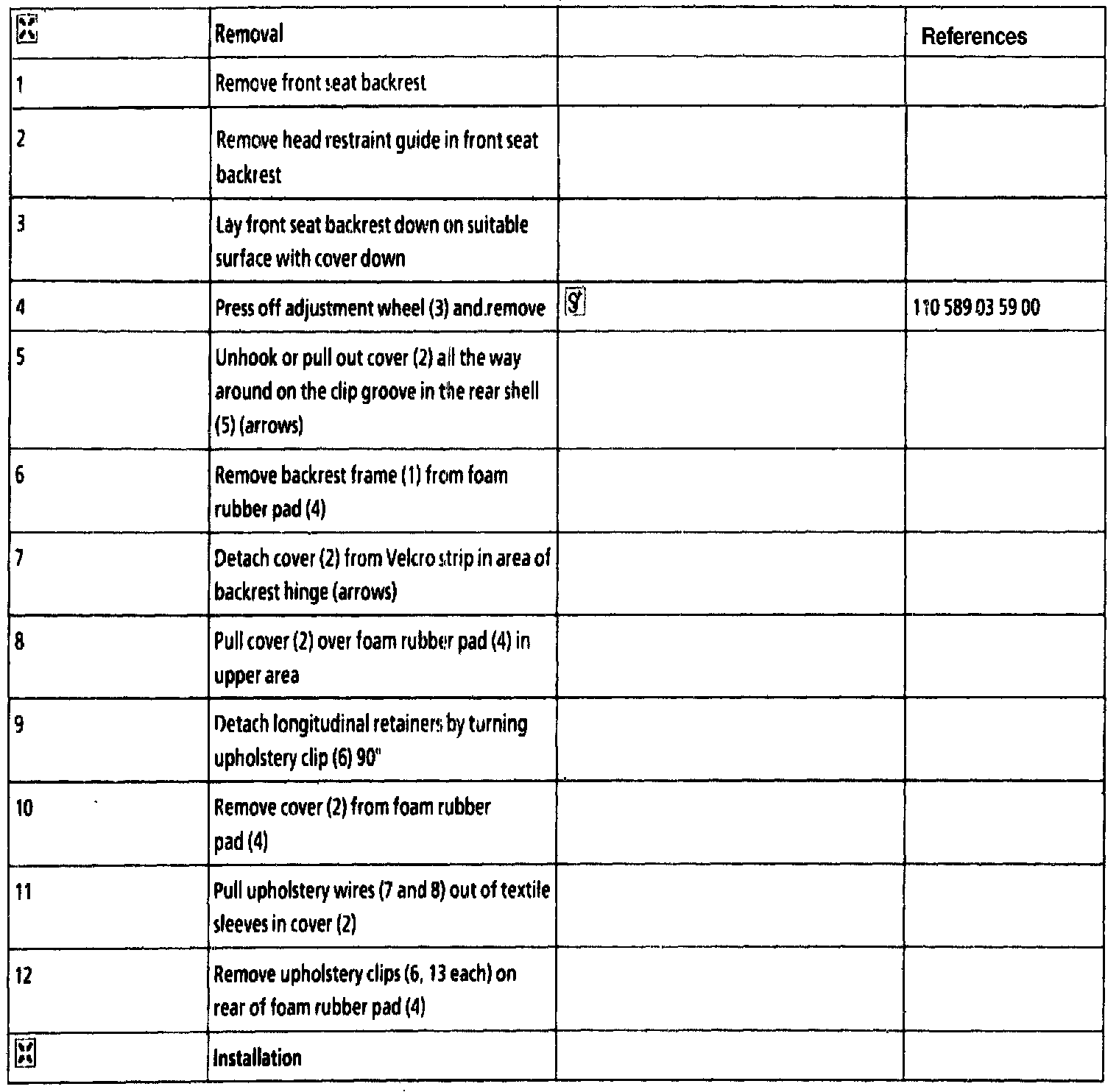

Removal/Installation, Steps 1 - 12:

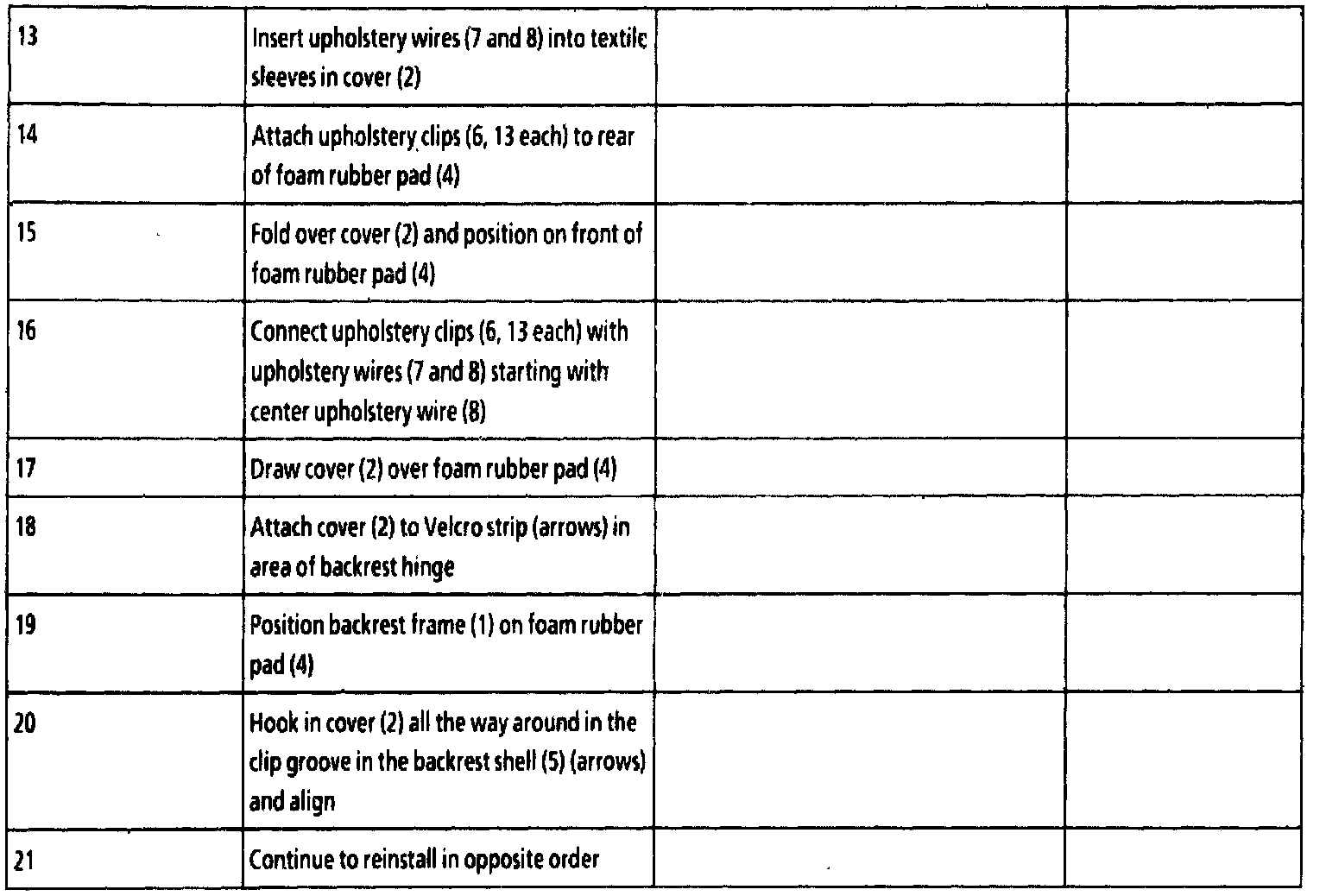

Removal/Installation, Steps 13 - 21:
