Rear Bumper: Service and Repair

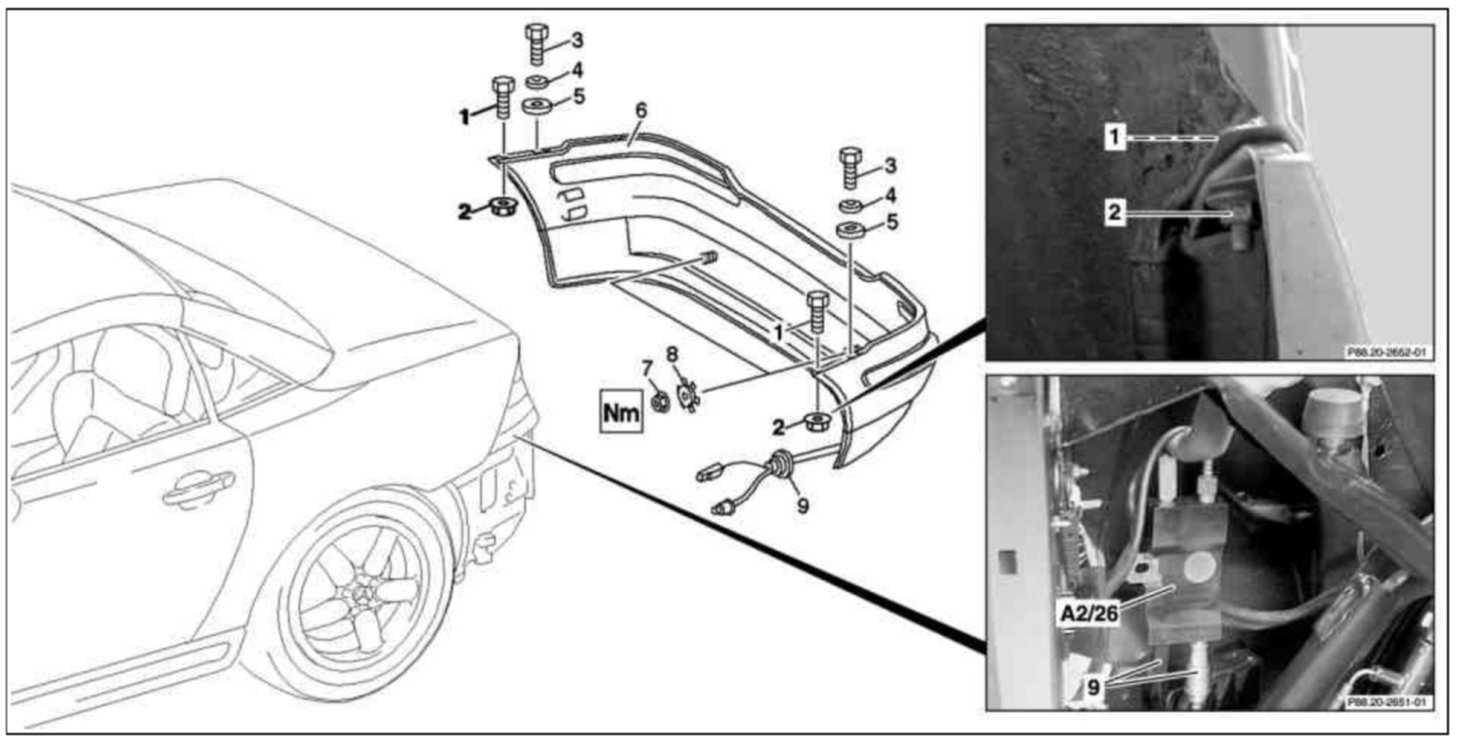

AR88.20-P-2200G Remove/Install Rear Bumper









1. Bolts
2. Nuts
3. Bolts
4. Remove washers
5. Sealing washers
6. Bumper
7. Nut
8. Toothed lock washer
9. Antenna line
10. Contact
A2/26 Left rear bumper antenna

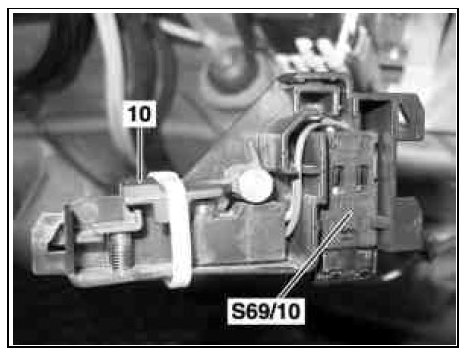

S69/10 Trunk luggage cover "closed" limit switch
