Mercedes Benz
>>
2000
>>
SLK 230 (170.447) L4-2.3L SC (111.973)
>>
Repair and Diagnosis
>>
Accessories and Optional Equipment
>>
Radio, Stereo, and Compact Disc
>>
Testing and Inspection
>>
Component Tests and General Diagnostics
>>
Loudspeaker System (LS)
>>
Electrical Test Program
>>

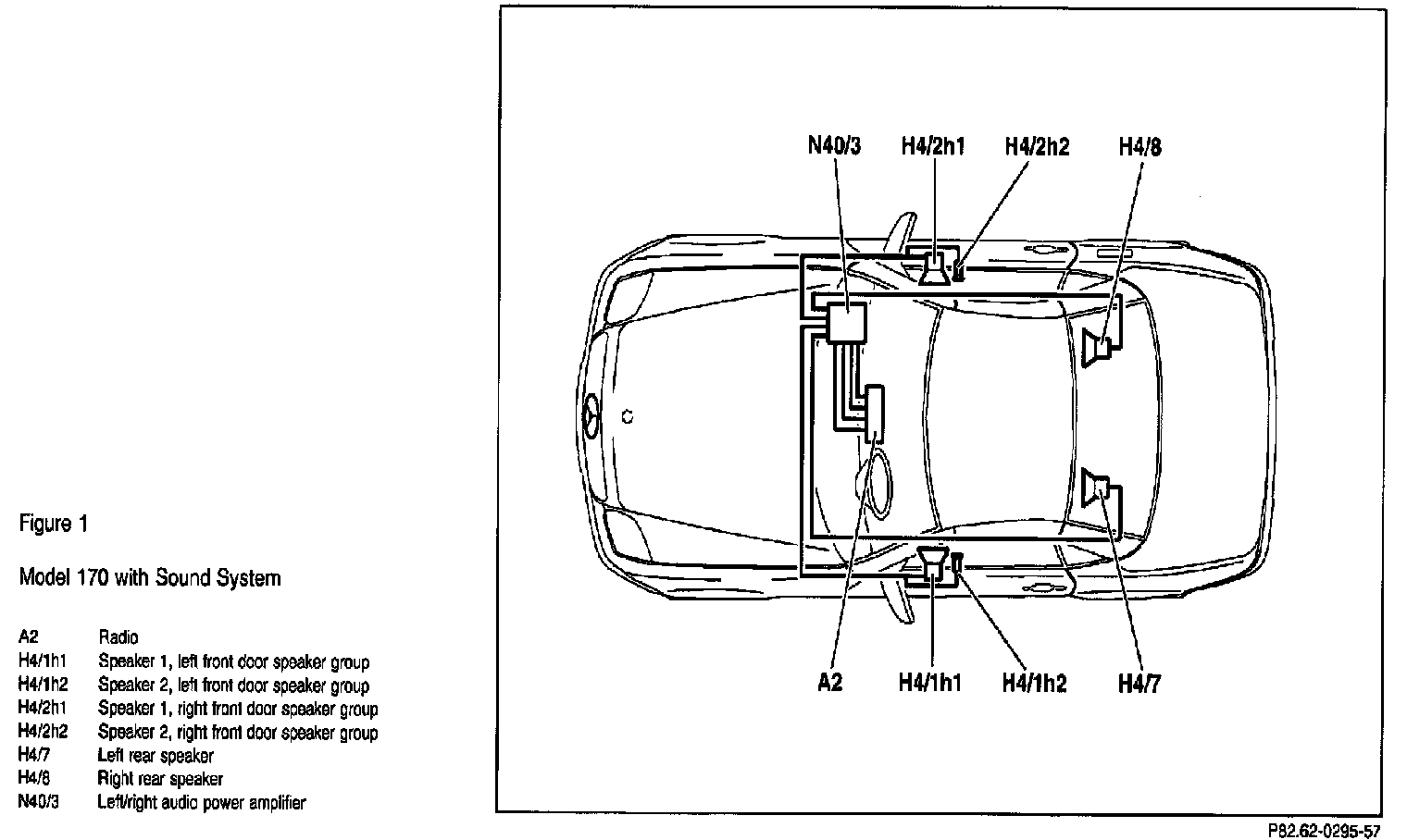

Component Location - Section 21
Component Location - Section 21
Figure 1:
