AR03.30-P-8003AO Remove/Install Flywheel/Driven Plate
AR03.30-P-8003AO Remove/Install Flywheel/Driven Plate
AR03.30-P-8003AO Remove/Install
Flywheel
/Driven Plate

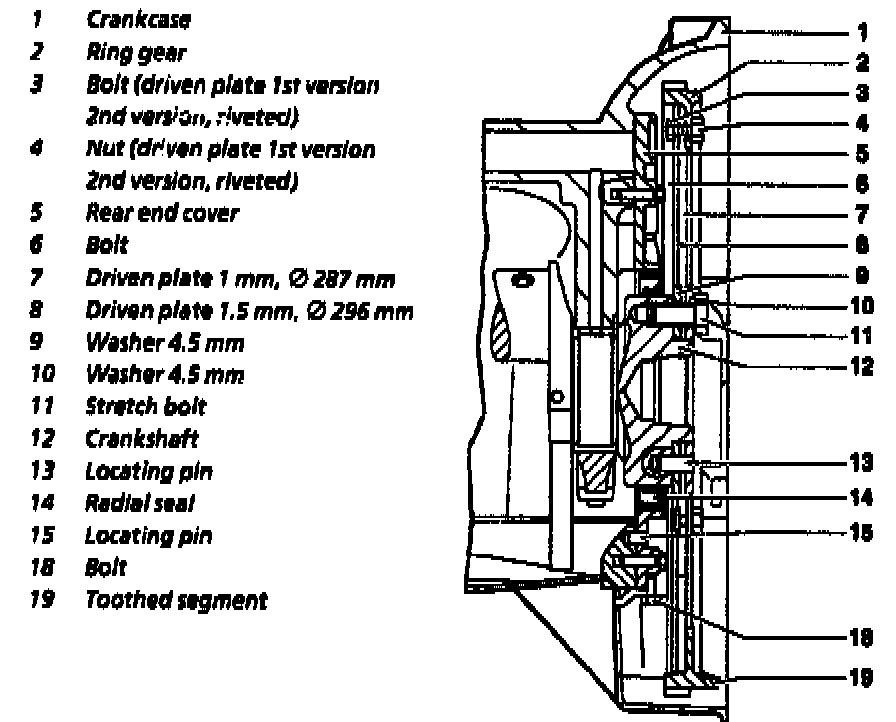

Component Identification:

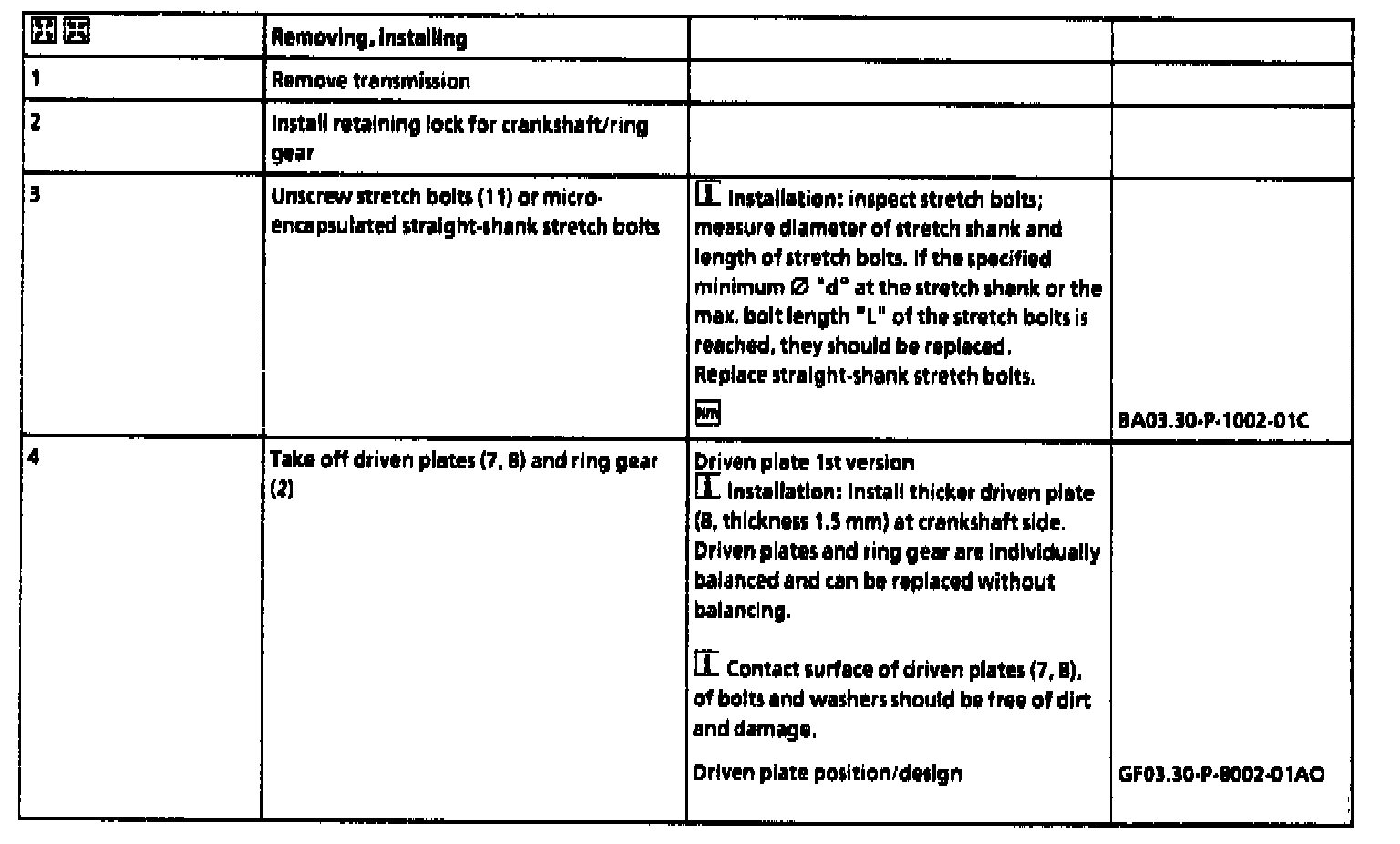

Steps 1-4:

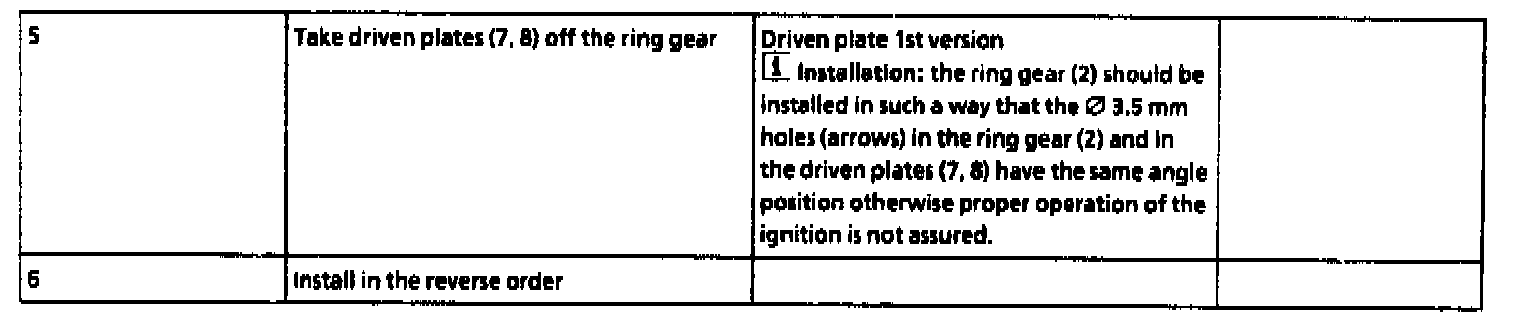

Steps 5-6:

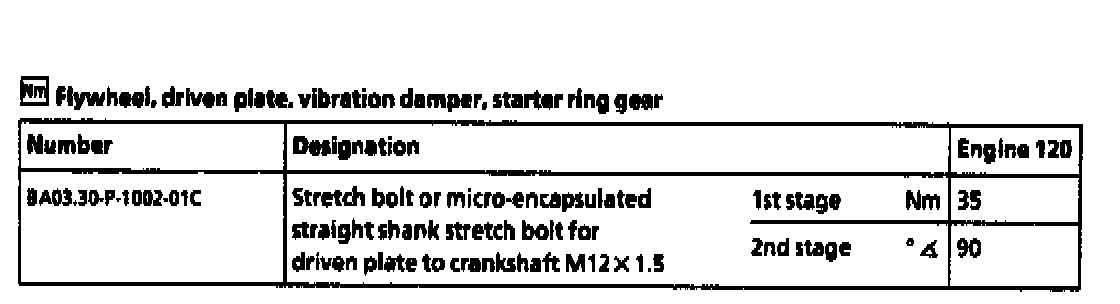

Specifications:

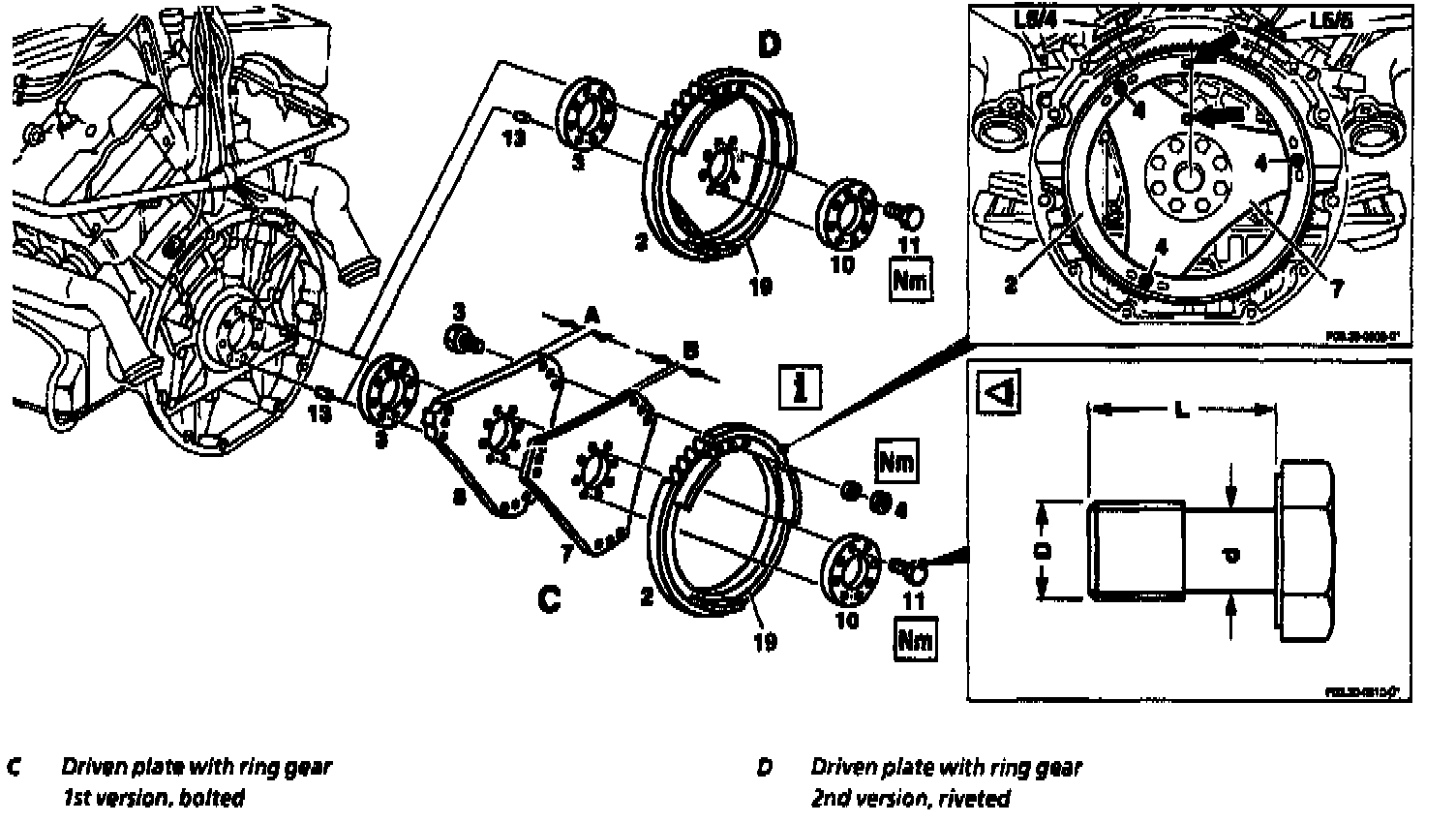

Exploded View:
