AR67.10-P-1000MB Remove/Install Windshield



AR67.10-P-1000MB Remove/Install Windshield
- with CODE (Z04) Light armoring
- with CODE (Z07) Top protection

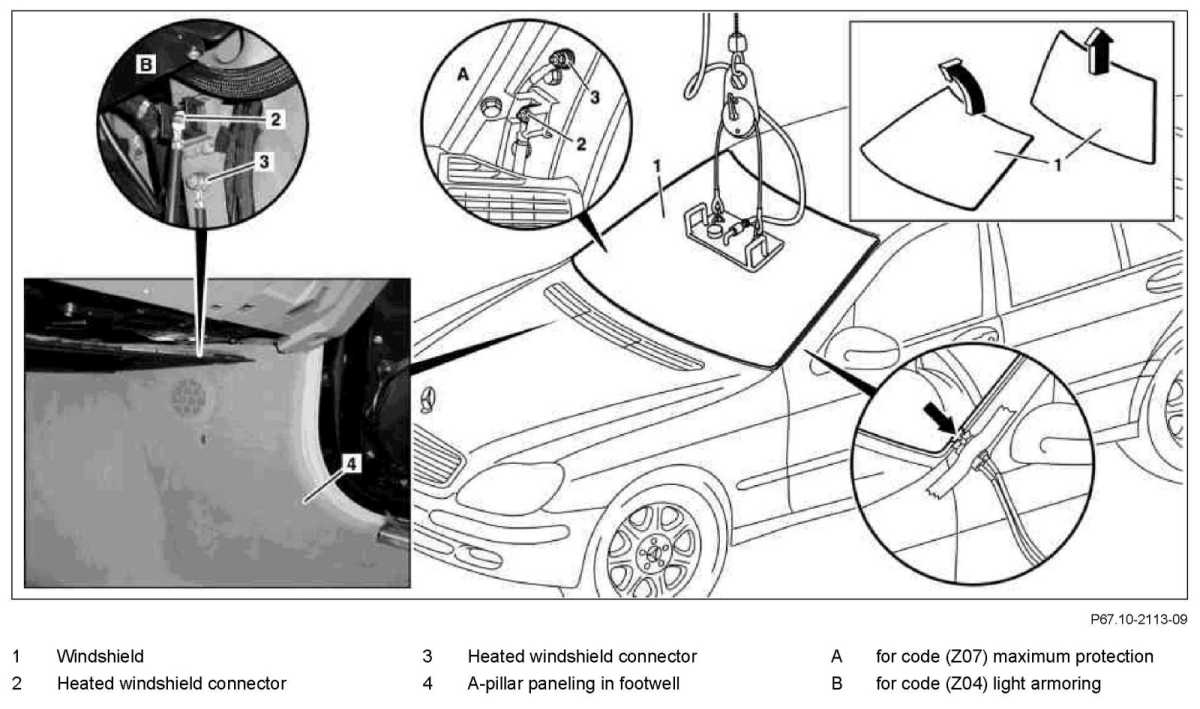

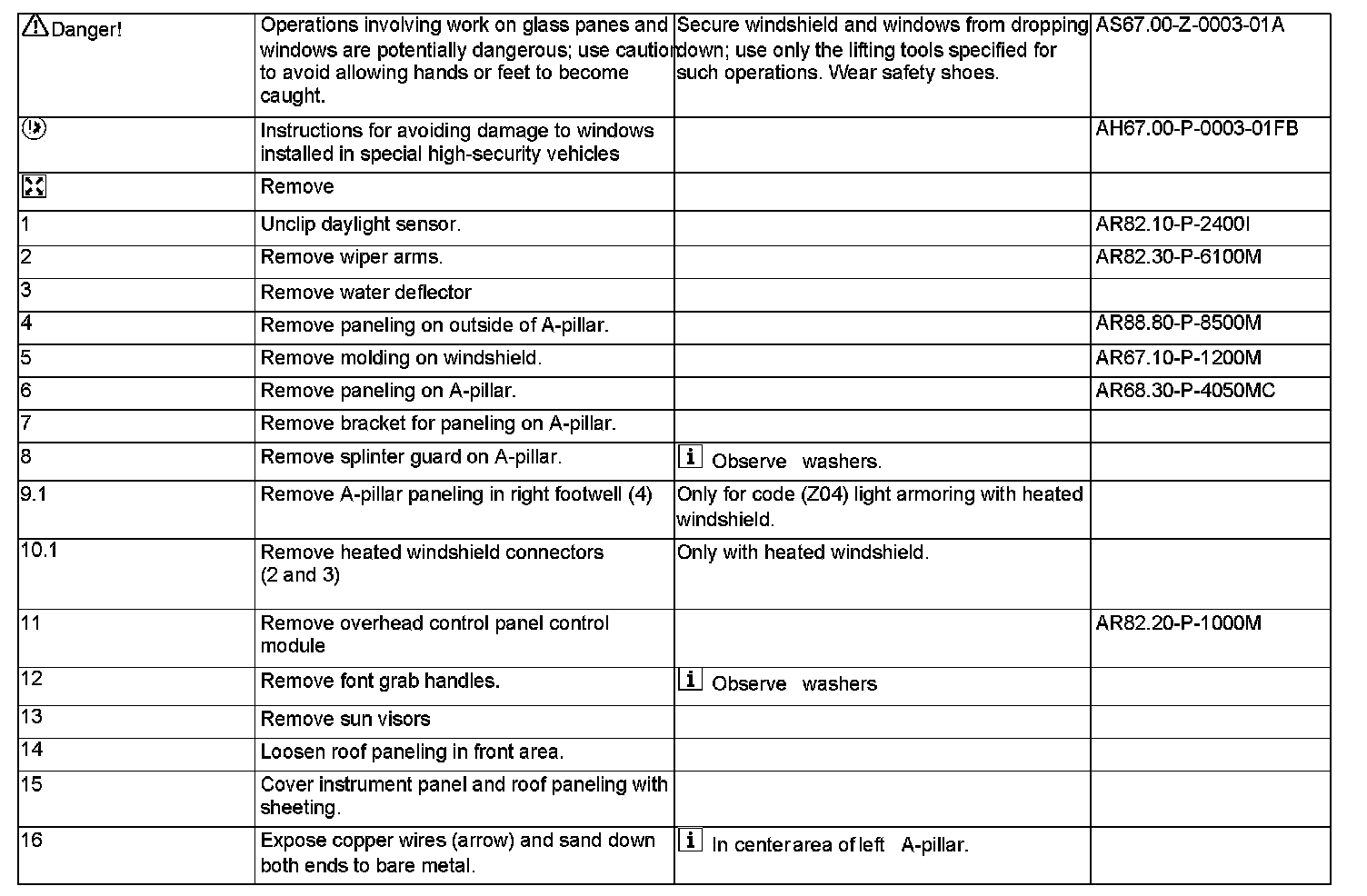

Part 1:

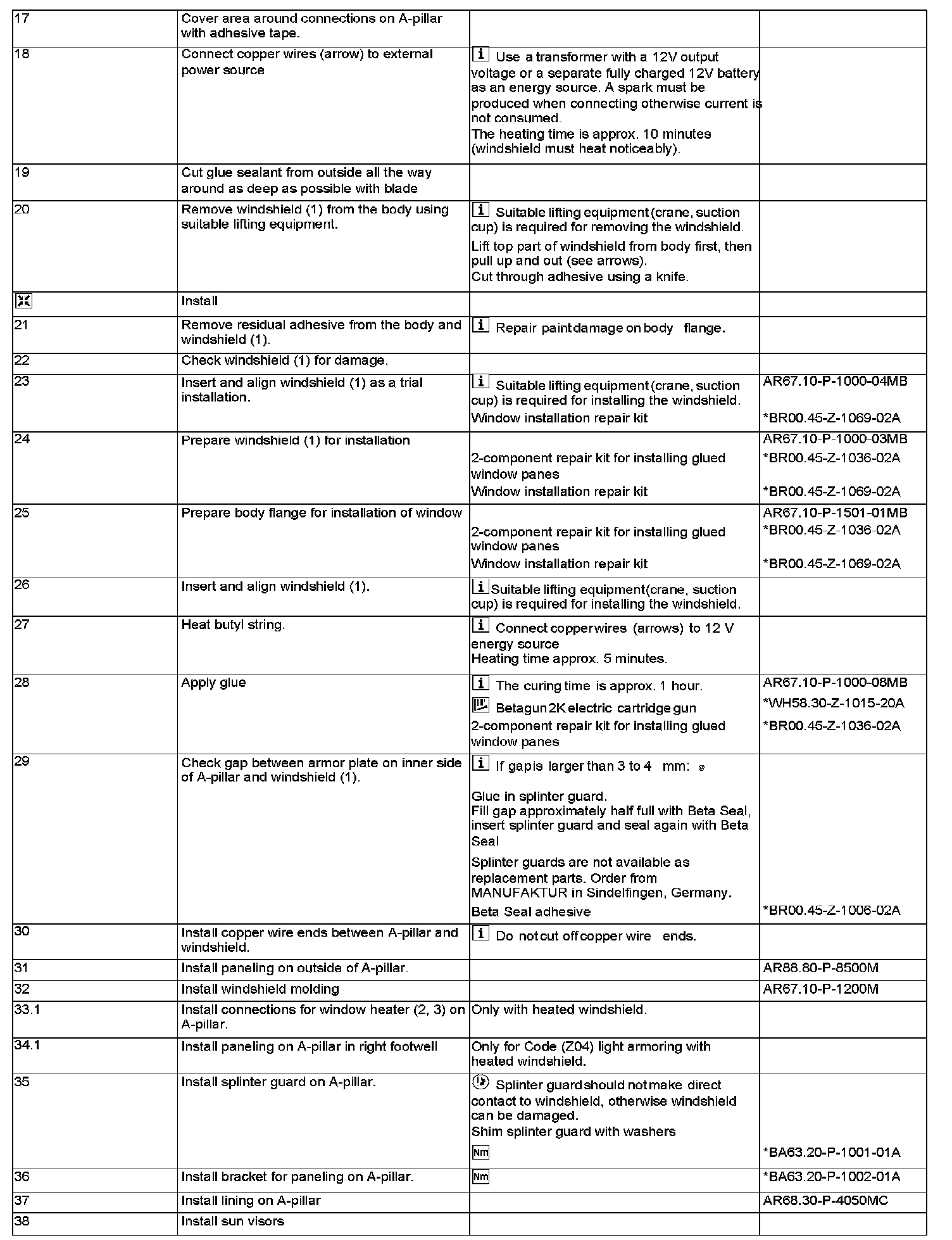

Part 2:






Part 3:

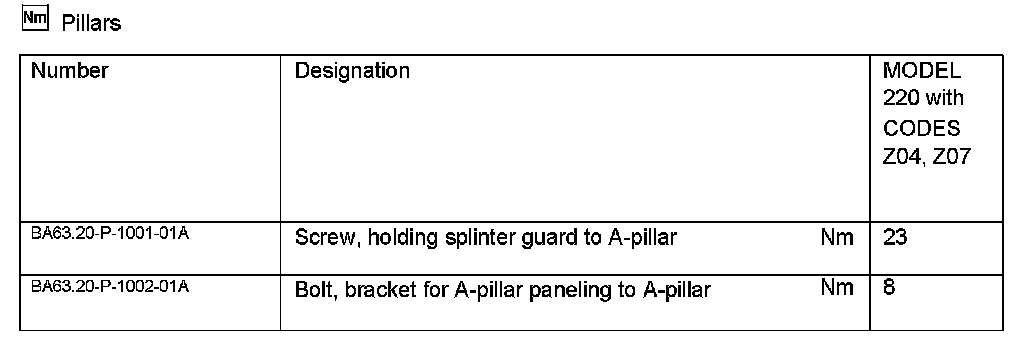

Pillars:
