Campaign - Center Engine Compartment Panel

Campaign No. 2000020001

FEBRUARY 1, 2000

TO: ALL MERCEDES-BENZ CENTERS

SUBJECT:
MODEL 220

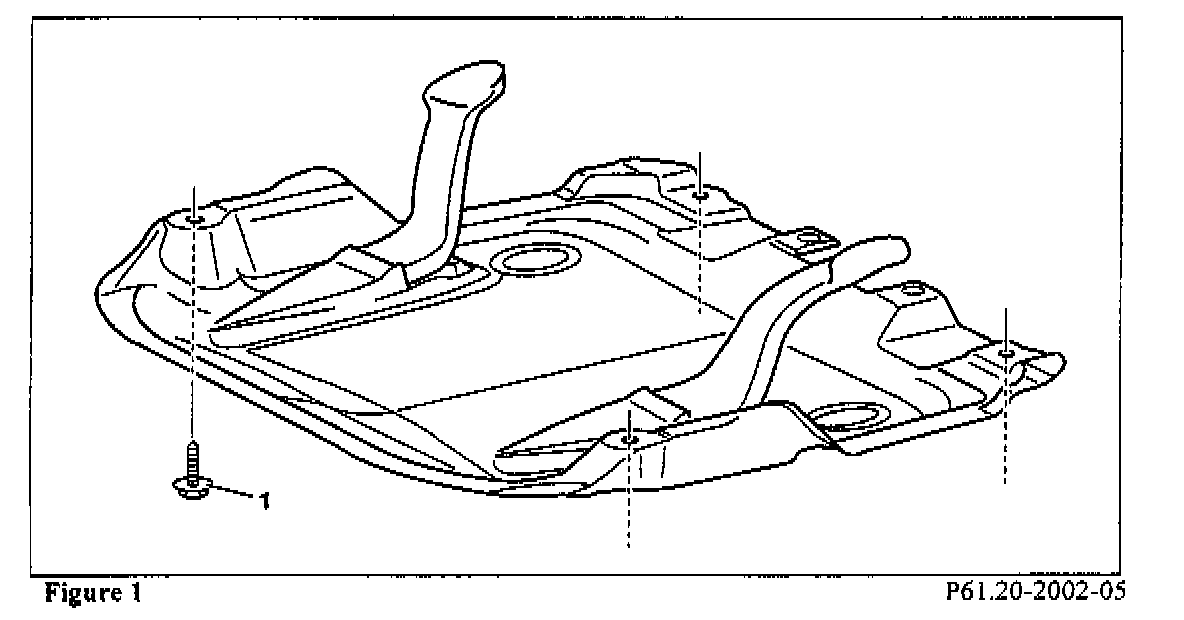

LOWER CENTER ENGINE COMPARTMENT PANEL
MOUNTING SCREWS AND NUTS





This Service Campaign is being initiated because DCAG has determined that the mounting screws and clip nuts for the lower center engine compartment panel as attached to the front axle carrier may be subject to corrosion
Mounting screws with an improved surface protection against corrosion have been used on vehicles produced since August 1999.

Procedure
Please replace the effected mounting screws and clip nuts on vehicles produced before August 1999, in order to prevent corrosion of the mounting screws on these vehicles (see WIS: AR61.20-P-1105M, Removing and installing bottom engine compartment paneling).Please perform this Service Campaign during the vehicles' next scheduled service visit.

Effective Serial Number Range

Model Chassis End Number
From To

220.170 000243 065723
220.175 000342 065715

Important note:
^ Not all the vehicles within the serial number range listed above are affected. The 16,066 individual VINS (USA) are on VMI. Please check VMI to determine if the vehicle is involved in this campaign, prior to performing this Service Campaign.

Parts Information

Quantity Description Part Number

4 Screw 001 990 60 36
4 Clip Nut 004 994 31 45

Warranty Information

Operation: Replace lower center engine compartment panel mounting screws and nuts.

Damage Code Operation Number Labor Time Est. Model Indicator(s)
8893005 02-3292 0.3 hrs. M0
